[IOTDB-2569]Support ZSTD Compression

Open lyssom opened this issue 3 years ago • 12 comments

Description

https://issues.apache.org/jira/browse/IOTDB-2569

ZSTD is a new compression method published by Facebook. https://github.com/facebook/zstd

use pure java ZSTD: https://github.com/luben/zstd-jni The compression ratio is about 0.83

Eg: IoTDB > CREATE TIMESERIES root.ln.wf01.wt01.temperature WITH DATATYPE=FLOAT, ENCODING=RLE, COMPRESSOR=ZSTD

Content1 ...

Content2 ...

Content3 ...

This PR has:

  • [ ] been self-reviewed.
    • [ ] concurrent read
    • [ ] concurrent write
    • [ ] concurrent read and write
  • [ ] added documentation for new or modified features or behaviors.
  • [ ] added Javadocs for most classes and all non-trivial methods.
  • [ ] added or updated version, license, or notice information
  • [ ] added comments explaining the "why" and the intent of the code wherever would not be obvious for an unfamiliar reader.
  • [ ] added unit tests or modified existing tests to cover new code paths, ensuring the threshold for code coverage.
  • [ ] added integration tests.
  • [ ] been tested in a test IoTDB cluster.
Key changed/added classes (or packages if there are too many classes) in this PR

lyssom avatar Jul 06 '22 07:07 lyssom

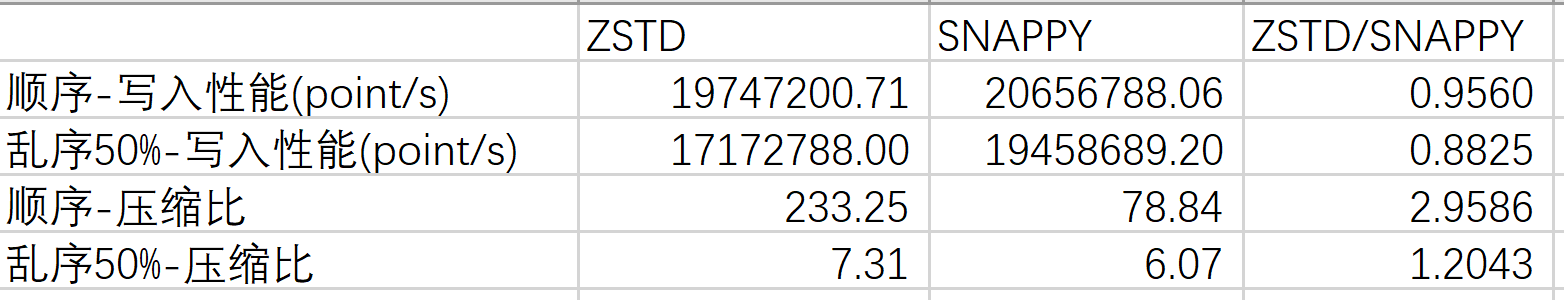

1657278302629 ZSTD对写入性能有些影响（见数据）。

liuzhen1207 avatar Jul 08 '22 11:07 liuzhen1207

1657278302629 ZSTD对写入性能有些影响（见数据）。

您好，，麻烦请问这个测试方法是怎样的呢？或者有测试脚本吗？我也测一下，看看怎么优化

lyssom avatar Jul 11 '22 01:07 lyssom

2台8C32G 机器，1台安装iotdb，1台benchmark： iotdb参数配置： MAX_HEAP_SIZE="16G" wal_buffer_size_in_byte=1048576 default_storage_group_level=2

compressor=ZSTD和SNAPPY对比，ZSTD对写入性能影响大。 benchmark参数配置： DEVICE_NUMBER=2000 SENSOR_NUMBER=1000 CLIENT_NUMBER=100 GROUP_NUMBER=50 OPERATION_PROPORTION=70:1:1:1:1:0:1:1:1:1:1 BATCH_SIZE_PER_WRITE=10 IS_OUT_OF_ORDER=false LOOP=1000000 LINE_RATIO=0 SIN_RATIO=0 SQUARE_RATIO=0 RANDOM_RATIO=1 CONSTANT_RATIO=0

可以试试这个配置，ZSTD对写入性能影响更大，压缩比和SNAPPY差不多。

您好，，麻烦请问这个测试方法是怎样的呢？或者有测试脚本吗？我也测一下，看看怎么优化

liuzhen1207 avatar Jul 11 '22 03:07 liuzhen1207

2台8C32G 机器，1台安装iotdb，1台benchmark： iotdb参数配置： MAX_HEAP_SIZE="16G" wal_buffer_size_in_byte=1048576 default_storage_group_level=2

compressor=ZSTD和SNAPPY对比，ZSTD对写入性能影响大。 benchmark参数配置： DEVICE_NUMBER=2000 SENSOR_NUMBER=1000 CLIENT_NUMBER=100 GROUP_NUMBER=50 OPERATION_PROPORTION=70:1:1:1:1:0:1:1:1:1:1 BATCH_SIZE_PER_WRITE=10 IS_OUT_OF_ORDER=false LOOP=1000000 LINE_RATIO=0 SIN_RATIO=0 SQUARE_RATIO=0 RANDOM_RATIO=1 CONSTANT_RATIO=0

可以试试这个配置，ZSTD对写入性能影响更大，压缩比和SNAPPY差不多。

您好，，麻烦请问这个测试方法是怎样的呢？或者有测试脚本吗？我也测一下，看看怎么优化 好的，感谢感谢，我看看

lyssom avatar Jul 11 '22 07:07 lyssom

运行36小时，iotdb进程消失，生成hs_err_pid文件 hs_err_pid17566.log 对写入性能影响大，此压缩方式的写入性能 约为snappy的10分之1

2台8C32G 机器，1台安装iotdb，1台benchmark： iotdb参数配置： MAX_HEAP_SIZE="16G" wal_buffer_size_in_byte=1048576 default_storage_group_level=2 compressor=ZSTD benchmark参数配置： DEVICE_NUMBER=2000 SENSOR_NUMBER=1000 CLIENT_NUMBER=100 GROUP_NUMBER=50 OPERATION_PROPORTION=70:1:1:1:1:0:1:1:1:1:1 BATCH_SIZE_PER_WRITE=10 IS_OUT_OF_ORDER=false LOOP=1000000 LINE_RATIO=0 SIN_RATIO=0 SQUARE_RATIO=0 RANDOM_RATIO=1 CONSTANT_RATIO=0

liuzhen1207 avatar Jul 14 '22 02:07 liuzhen1207

Hi, I see the latest version is v1.5.2-3 now, why don't you use it? And it may fix the bug that @liuzhen1207 mentioned.

https://github.com/luben/zstd-jni/releases/tag/v1.5.2-3

HTHou avatar Jul 14 '22 06:07 HTHou

Another question I would like to know, this there any reason that you choose the jni implement rather than the pure Java version. https://github.com/airlift/aircompressor/tree/master/src/main/java/io/airlift/compress/zstd

Airlift said their version is actully 10-40% faster than the JNI one. See https://github.com/airlift/aircompressor

HTHou avatar Jul 14 '22 06:07 HTHou

Another question I would like to know, this there any reason that you choose the jni implement rather than the pure Java version. https://github.com/airlift/aircompressor/tree/master/src/main/java/io/airlift/compress/zstd

Airlift said their version is actully 10-40% faster than the JNI one. See https://github.com/airlift/aircompressor

I Reference apache pulsar, it used zstd-jni. I'm not familiar with Airlift, and do not see license discribe in there github, so I'm not sure if Airlift has copyright issues. If want to try Airlift, I rewrite mycode.

lyssom avatar Jul 15 '22 08:07 lyssom

Hi, I see the latest version is v1.5.2-3 now, why don't you use it? And it may fix the bug that @liuzhen1207 mentioned.

https://github.com/luben/zstd-jni/releases/tag/v1.5.2-3

sorry, I don't see their version clearly, so I don't chose their newest version. I also think we should choose newest version too.

lyssom avatar Jul 15 '22 08:07 lyssom

Another question I would like to know, this there any reason that you choose the jni implement rather than the pure Java version. https://github.com/airlift/aircompressor/tree/master/src/main/java/io/airlift/compress/zstd Airlift said their version is actully 10-40% faster than the JNI one. See https://github.com/airlift/aircompressor

I Reference apache pulsar, it used zstd-jni. I'm not familiar with Airlift, and do not see license discribe in there github, so I'm not sure if Airlift has copyright issues. If want to try Airlift, I rewrite mycode.

Airlift has actually already introduced in IoTDB server module now, and the license is Apache 2.0. I think we can try it in a new PR to compare the performance. :)

HTHou avatar Jul 15 '22 10:07 HTHou

Another question I would like to know, this there any reason that you choose the jni implement rather than the pure Java version. https://github.com/airlift/aircompressor/tree/master/src/main/java/io/airlift/compress/zstd Airlift said their version is actully 10-40% faster than the JNI one. See https://github.com/airlift/aircompressor

I Reference apache pulsar, it used zstd-jni. I'm not familiar with Airlift, and do not see license discribe in there github, so I'm not sure if Airlift has copyright issues. If want to try Airlift, I rewrite mycode.

Airlift has actually already introduced in IoTDB server module now, and the license is Apache 2.0. I think we can try it in a new PR to compare the performance. :)

ok

lyssom avatar Jul 16 '22 03:07 lyssom

Another question I would like to know, this there any reason that you choose the jni implement rather than the pure Java version. https://github.com/airlift/aircompressor/tree/master/src/main/java/io/airlift/compress/zstd Airlift said their version is actully 10-40% faster than the JNI one. See https://github.com/airlift/aircompressor

I Reference apache pulsar, it used zstd-jni. I'm not familiar with Airlift, and do not see license discribe in there github, so I'm not sure if Airlift has copyright issues. If want to try Airlift, I rewrite mycode.

Airlift has actually already introduced in IoTDB server module now, and the license is Apache 2.0. I think we can try it in a new PR to compare the performance. :)

new PR is here, thanks for check: https://github.com/apache/iotdb/pull/6729

lyssom avatar Jul 20 '22 06:07 lyssom
