[Bug] Text Outline not changeable

[Breigner01]

Version

5.3.0

Link to Minimal Reproduction

No response

Steps to Reproduce

On the theme builder select the dark theme, you'll notice on the pie chart that the legends (the ones circled in red on my screenshot), are outlined in white which renders poorly on dark theme

Current Behavior

The legend of the pie chart is outlined in white

Expected Behavior

The legend of the pie chart should be either outlined with a color that's configurable or not be outlined at all.

Environment

- OS: Archlinux 5.16.14-arch1-1
- Browser: Firefox Developer Edition 99.0b3
- Framework: React@17

Any additional comments?

No response

[plainheart]

You can try to set darkMode to false. And sorry for missing this option in the English documentation. Just added it in commit https://github.com/apache/echarts-doc/commit/301f2158cc8fb7f0ff5735fdbc577698170743c9

[Breigner01]

It partially fixes it, but it's not as versatile as I'd hope Here is a screenshot of my use case:

[liunanchenFYJJ]

have this been solved? I have same problem when using theme-builder, Label.color would'nt work

[Malachite40]

I'm also having this issue still

[delphi1004]

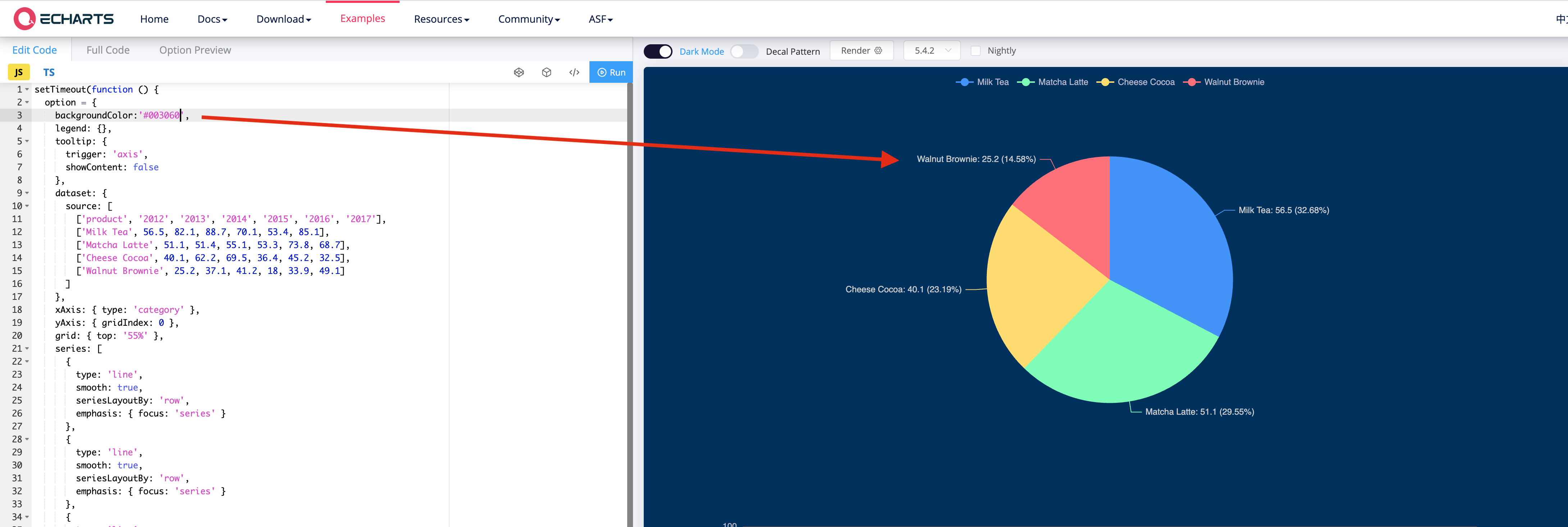

we had the same issue and realized that I need to specify the background color of the chart. Please take a look at the screenshots. If I don't specify the background color then it seems the background of the chart color is transparent. So, explicitly specifying the color for the light and dark modes could be a solution for this issue.

[Moxie1776]

Is this considered a bug? I have a standard template I am using which uses a background color of transparent, which seems to make this problem happen.

[j3ski-bioraptor]

I don't know if this is relevant to these labels (though this setting is a label one). I was able to control the text outline width & color by the respective label properties: textBorderWidth and textBorderColor

[gmdaos]

After trying by trial and error, I managed to modify it, since it has a hidden property... which is not included in the JSON that the theme gives you, the configuration is this

"pie": { "itemStyle": { "borderWidth": 0, "borderColor": "transparent" }, "label": { // by assigning a color the border disappears. "color": "#cbd2c8" } },
