Request help: how to setup the gateway variables to enable HTTPS?

[MirtoBusico]

Hi all, I need to enable the https protocol on the apisisx ingress gateway. I don't know how to setup the variables in the helm chart values.yaml to enable HTTPS.

My framework:

• 3 node kubernetes cluster
• Istio installed with the "minimal" profile
• apisix installed with helm chart (enabling ingress controller and dashboard)
• a working route and upstream for a site (eg "http://www.m01.net")

Now I want to setup apisix so that it responds to "https://www.m01.net"

What I have:

• a private Certificatiion Authority certificate
• key and certificate for www.m01.net signed by the private CA

The "gateway" part of values.yaml (modified as per #851 bug) is:

gateway:
  type: NodePort
  # If you want to keep the client source IP, you can set this to Local.
  # ref: https://kubernetes.io/docs/tasks/access-application-cluster/create-external-load-balancer/#preserving-the-client-source-ip
  externalTrafficPolicy: Cluster
  # type: LoadBalancer
  # annotations:
  #   service.beta.kubernetes.io/aws-load-balancer-type: nlb
  externalIPs: []
  http:
    enabled: true
    servicePort: 80
    containerPort: 9080
  tls:
    enabled: false
    servicePort: 443
    containerPort: 9443
    existingCASecret: ""
    certCAFilename: ""
    http2:
      enabled: true
  stream:  # L4 proxy (TCP/UDP)
    enabled: true
    only: false
    tcp: # TCP proxy address list
      - 9100
      - "127.0.0.1:9101"
    udp: # UDP proxy address list
      - 9200
      - "127.0.0.1:9211"
  ingress:
    enabled: false
    annotations: {}
      # kubernetes.io/ingress.class: nginx
      # kubernetes.io/tls-acme: "true"
    hosts:
      - host: apisix.local
        paths: []
    tls: []
  #  - secretName: apisix-tls
  #    hosts:
  #      - chart-example.local

As far as I understand, I have to set "tls: enabled: true" but I don't know:

• what is tthe existingCASecret ?
• if the certCAFilename refers to the CA cert file, where have I to put that file so the helm cart find it?
• have I to enable "ingress"

There is any documentation / tutorial about this topic?

[gardun0]

Hey @MirtoBusico, in order to secure your gateway, there are many methods out there, this is one of them:

1. Enable TLS with gateway.tls.enabled set to true, this will add a 443 port for your service.
2. In order to expose your gateway, you must set the service to LoadBalancer type (alternative to Ingress).
3. As soon as your service set up, it'll have a public address with two ports 80 and 443.
4. In order to have a TLS/SSL certificate there are many ways to do that but Let's Encrypt might do that Job for you, in this case we're using cert-manager.
5. You must set up an Issuer/ClusterIssuer with cert-manager and a Certificate, that Certificate will generate a secret including the keys within your namespace (I don't remember if it must be the same as Apisix).
6. Once you have a Certificate resource created, you must create an ApisixTls resource referencing the same DNS you set on your Certificate and the secret name generated.
7. Finally you must change your domain DNS with the one generated trough your LoadBalancer.

Overall, this is a simple guide to secure your exposed gateway (I may missed something)

[MirtoBusico]

Thanks. I'll try asap

[MirtoBusico]

Hi @gardun0, I was able to do steps 1, 2, 3, and 7

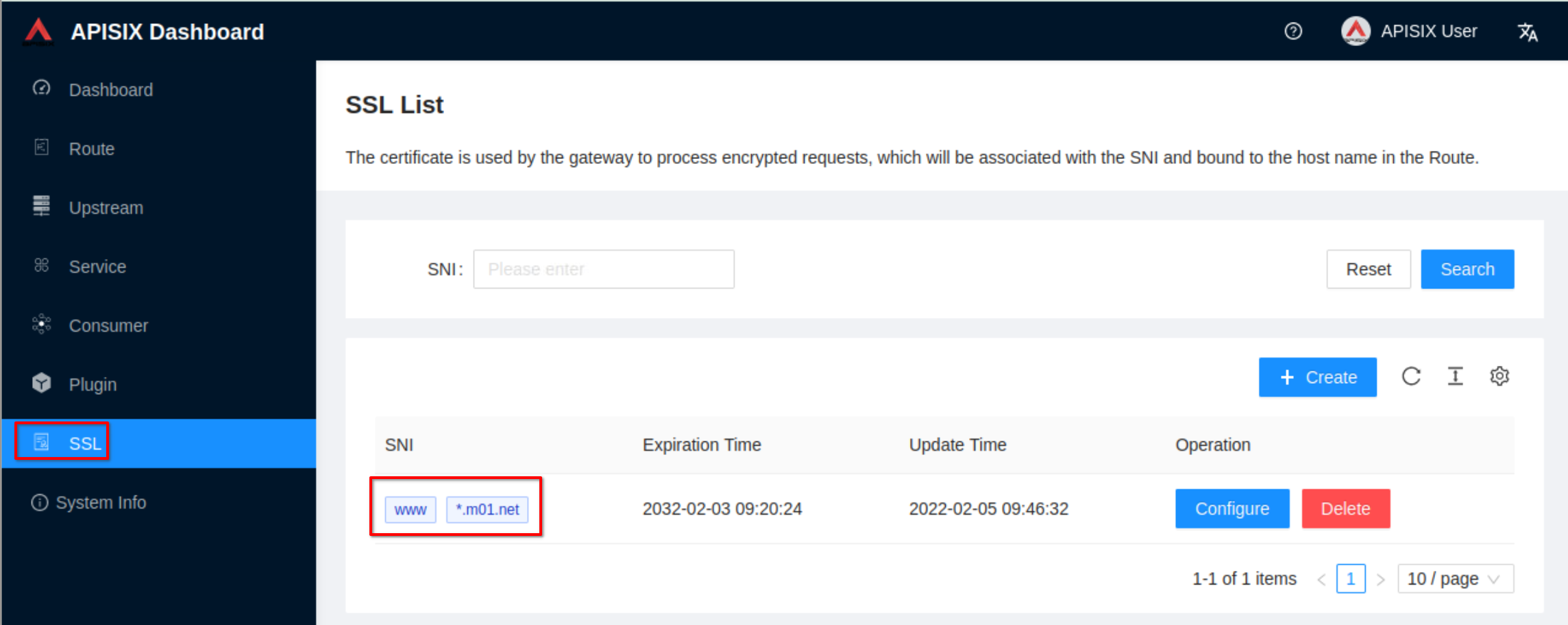

Then I created an SSL resource using apisix dashboard giving the crt and key for www.m01.net

It seems to work. I'm missing something?
