Task group entry/exits hide task dependency

[MatrixManAtYrService]

Apache Airflow version

2.2.2 (latest released)

Operating System

debian buster (docker)

Versions of Apache Airflow Providers

n/a

Deployment

Astronomer

Deployment details

This dag:

def waiter(secs):
    @task(task_id=str(secs))
    def wait():
        sleep(secs)
    return wait()
​
@task_group
def two():
    t1 = waiter(60)
    t2 = waiter(65)
    bookend = DummyOperator(task_id="bookend")
    [t1, t2] >> bookend
    return bookend
​
with DAG(
    dag_id="hidden_dep",
    schedule_interval=None,
) as dag:
​
    # based on the dag image, you'd expect this task group finish last,
    # since it has a 100 second task
    with TaskGroup(group_id="group1") as tg1:
        t1 = waiter(5)
        t50 = waiter(100)
​
    # but actually, the blue dot at the end of the group means nothing
    # the dummy below runs after just five seconds
    tg2 = two()

    [tg1, tg2] >> DummyOperator(task_id="done", trigger_rule=TriggerRule.ONE_SUCCESS)

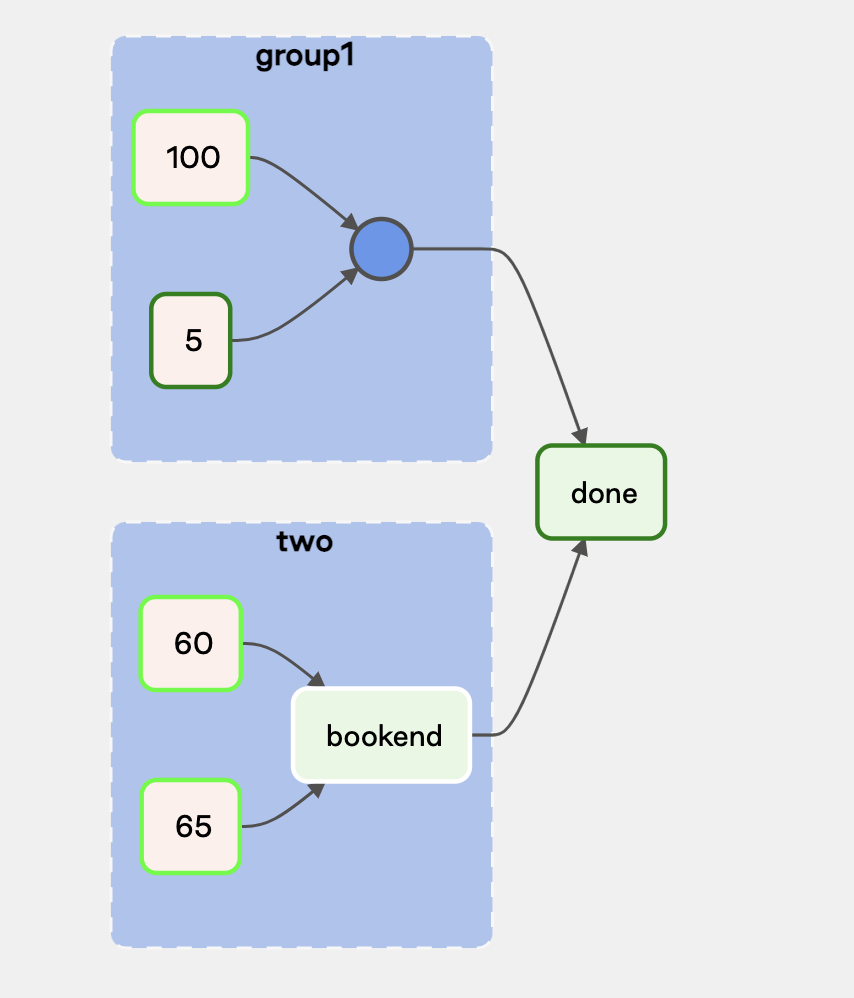

Which looks like this after running for 10 seconds (the numbers refer to seconds that the task will sleep).

What happened

The "done" task ran after 5 seconds.

What you expected to happen

The graph view leads me to believe that the two things that are upstream of "done" are:

• group1
• two

Based on that image, I would expect "done" to run after 65 seconds, which is when the "two" task group is complete.

How to reproduce

No response

Anything else

I know that it will make several dags out there uglier, but unless we want to make task-group entry/exit points into tasks (complete with their own trigger rules) I think the fix is to remove the blue dots entirely so that we avoid misleading the user about task dependency.

Are you willing to submit PR?

• [ ] Yes I am willing to submit a PR!

Code of Conduct

• [X] I agree to follow this project's Code of Conduct

[bbovenzi]

@MatrixManAtYrService Does this updated graph view, with a smaller join node, make more sense to you?
