refactor!: Switch SourceLink to container

[paulgessinger]

This PR changes the SourceLink back from a base class to a concrete type without inheritance. It now contains a type erased upstream sourcelink (right now implement by std::any, but we can change this to use something with small buffer optimization).

Contains #1512 at the moment.

[paulgessinger]

@tboldagh what do you think?

[codecov[bot]]

Codecov Report

Merging #1616 (fe4a168) into main (275ef67) will increase coverage by 0.01%. The diff coverage is 65.11%.

@@            Coverage Diff             @@
##             main    #1616      +/-   ##
==========================================
+ Coverage   49.20%   49.21%   +0.01%
==========================================
  Files         398      398
  Lines       21815    21827      +12
  Branches     9902     9904       +2
==========================================
+ Hits        10733    10742       +9
- Misses       4215     4216       +1
- Partials     6867     6869       +2

Impacted Files	Coverage Δ
...ude/Acts/SpacePointFormation/SpacePointBuilder.hpp	50.00% <ø> (ø)
...de/Acts/TrackFinding/CombinatorialKalmanFilter.hpp	31.72% <0.00%> (-0.26%)	:arrow_down:
Core/include/Acts/TrackFitting/KalmanFitter.hpp	45.06% <33.33%> (-0.31%)	:arrow_down:
...s/SpacePointFormation/detail/SpacePointBuilder.ipp	47.14% <50.00%> (ø)
Core/include/Acts/EventData/MultiTrajectory.hpp	71.35% <57.14%> (+0.27%)	:arrow_up:
...e/include/Acts/EventData/VectorMultiTrajectory.hpp	58.20% <60.00%> (ø)
Core/include/Acts/EventData/Measurement.hpp	80.00% <66.66%> (-6.37%)	:arrow_down:
Core/include/Acts/EventData/SourceLink.hpp	75.00% <73.33%> (-25.00%)	:arrow_down:
Core/include/Acts/EventData/MultiTrajectory.ipp	57.89% <100.00%> (+0.75%)	:arrow_up:
Core/src/EventData/VectorMultiTrajectory.cpp	78.67% <100.00%> (+1.47%)	:arrow_up:
... and 3 more

:mega: We’re building smart automated test selection to slash your CI/CD build times. Learn more

[github-actions[bot]]

:bar_chart: Physics performance monitoring for fe4a1683cdf1d2ca8bb75cd5f3d3574b27ac901e

Full report Seeding: seeded, truth estimated, orthogonal CKF: seeded, truth smeared, truth estimated, orthogonal IVF: seeded, truth smeared, truth estimated, orthogonal Ambiguity resolution: seeded, orthogonal Truth tracking Truth tracking (GSF)

Vertexing

Vertexing vs. mu

IVF seeded

IVF truth_smeared

IVF truth_estimated

IVF orthogonal

Seeding

Seeding seeded

Seeding truth_estimated

Seeding orthogonal

CKF

CKF seeded

CKF truth_smeared

CKF truth_estimated

CKF orthogonal

Ambiguity resolution

seeded

Truth tracking (Kalman Filter)

Truth tracking

Truth tracking (GSF)

Truth tracking

[paulgessinger]

Ok, the orthogonal seeding test and the ExaTrkX compilation still need fixes here.

[paulgessinger]

This still carries a slowdown of about 10%. I'm trying to optimize the type erasure mechanism to be more efficient.

[paulgessinger]

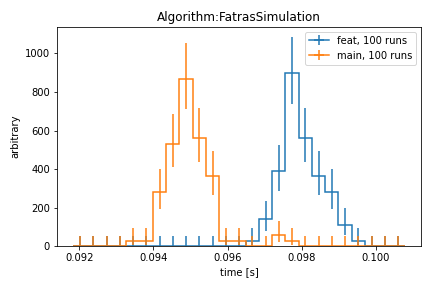

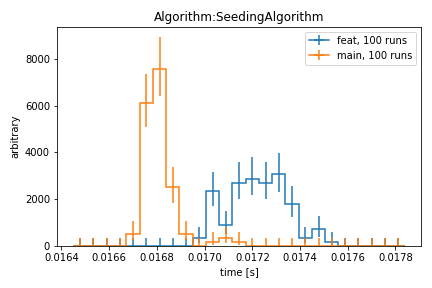

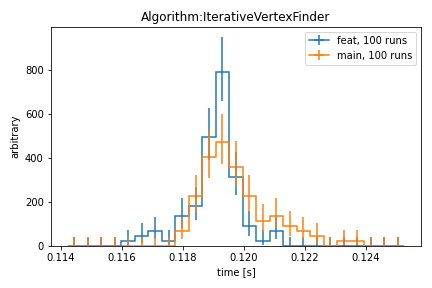

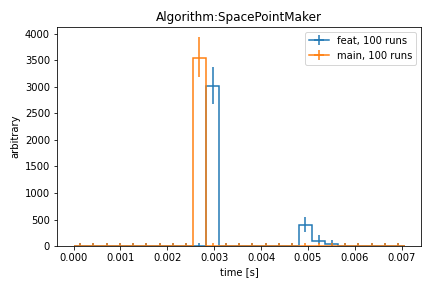

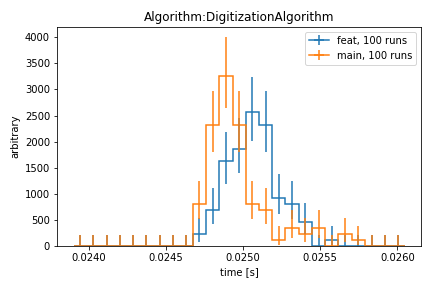

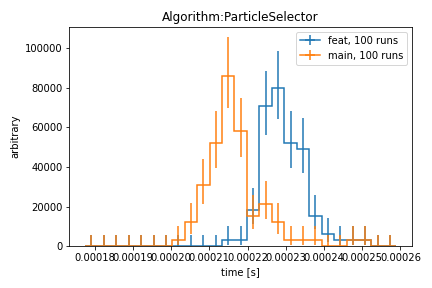

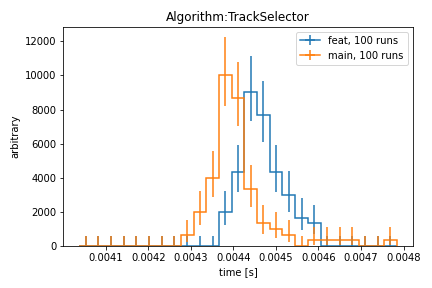

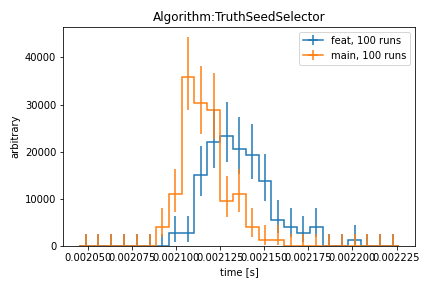

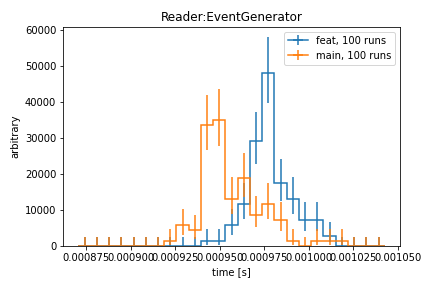

I made some performance comparisons here on 20 events, 100 runs in each config.

[paulgessinger]

I need to unblock this from the Any developments (#1695). Can we move ahead with this with std::any, and accept that the overhead we incur is slightly larger than we would/will until the Any type with SBO lands?

Opinions? @asalzburger @andiwand @benjaminhuth ?

[andiwand]

makes sense to me as the performance seems to be mostly lost in the ambi resolution which is not optimal anyway

[benjaminhuth]

Yeah sounds good. And I think Acts::Any will land quite soon, right?

[paulgessinger]

There are 100 million edge cases so no ETA on Acts::Any yet.

[paulgessinger]

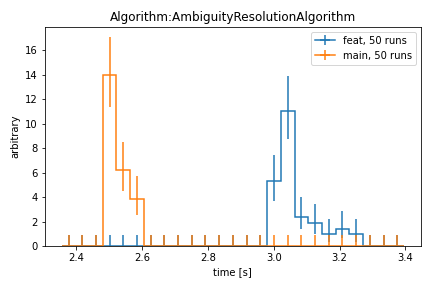

Inclusively, a 20 event ODD job goes from about 10.0s to about 11.2s on -O3.

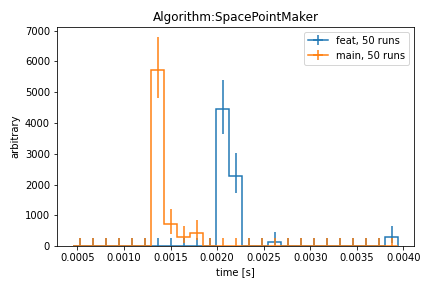

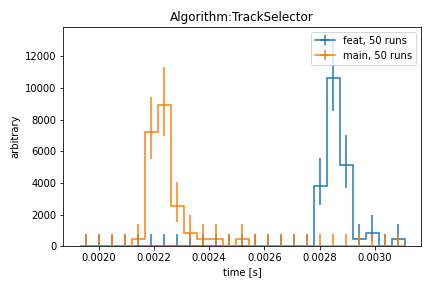

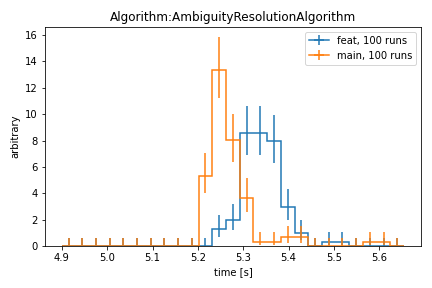

Also in this case the largest part seems to indeed be from the Ambiguity resolution. Space point creation and track selection is also slower, but those are generally not very slow to begin with, so it's a smaller effect.

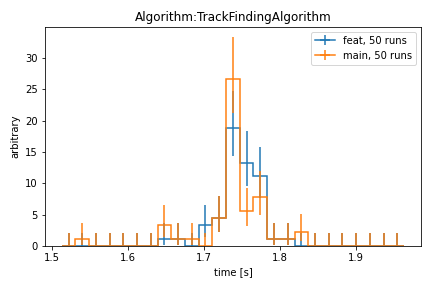

Track finding is not strongly affected (likely dominated by math anyway):

[paulgessinger]

I think this is ready for review. @benjaminhuth, @andiwand @asalzburger ?

[paulgessinger]

@andiwand can you have another quick look and reapprove?
