Lock Bits programming problem
Sorry for my bad english. Google translator.
Thank you very much for your development. I really like your program.

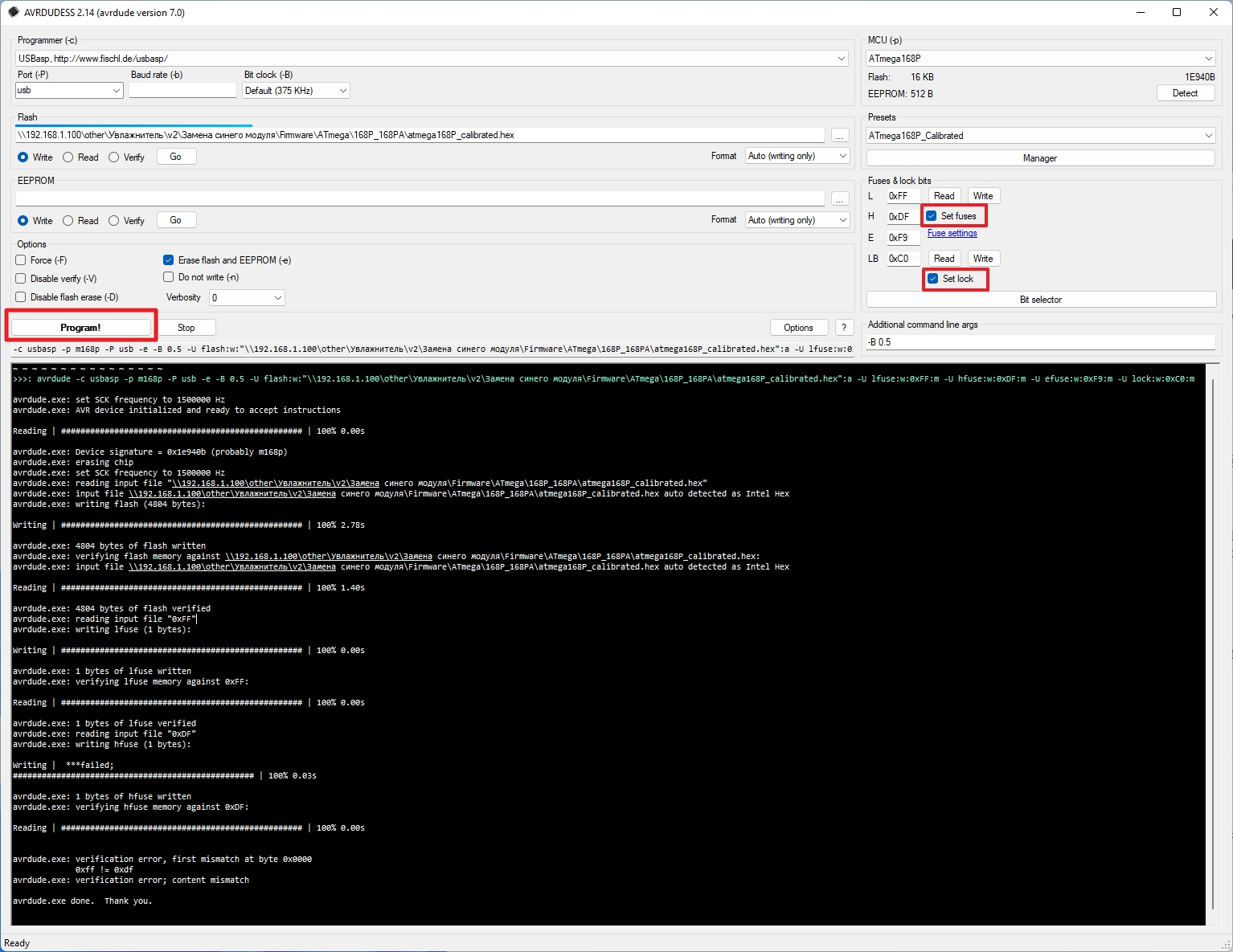

When programming atmega168p/328p, attini45/85 an error occurs when recording Lock Bits. This happens if factory fuses are installed in the microcontroller and I do the firmware of the microcontroller and fuses automatically. This doesn't always happen. Two times out of ten.
: avrdude -c usbasp -p m168p -P usb -e -B 0.5 -U flash:w:"\\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATmega\168P_168PA\atmega168P_calibrated.hex":a -U lfuse:w:0xFF:m -U hfuse:w:0xDF:m -U efuse:w:0xF9:m -U lock:w:0xC0:m
avrdude.exe: set SCK frequency to 1500000 Hz
avrdude.exe: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.00s
avrdude.exe: Device signature = 0x1e940b (probably m168p)
avrdude.exe: erasing chip
avrdude.exe: set SCK frequency to 1500000 Hz
avrdude.exe: reading input file "\\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATmega\168P_168PA\atmega168P_calibrated.hex"
avrdude.exe: input file \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATmega\168P_168PA\atmega168P_calibrated.hex auto detected as Intel Hex
avrdude.exe: writing flash (4804 bytes):
Writing | ################################################## | 100% 2.78s
avrdude.exe: 4804 bytes of flash written
avrdude.exe: verifying flash memory against \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATmega\168P_168PA\atmega168P_calibrated.hex:
avrdude.exe: input file \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATmega\168P_168PA\atmega168P_calibrated.hex auto detected as Intel Hex
Reading | ################################################## | 100% 1.40s
avrdude.exe: 4804 bytes of flash verified
avrdude.exe: reading input file "0xFF"
avrdude.exe: writing lfuse (1 bytes):
Writing | ################################################## | 100% 0.00s
avrdude.exe: 1 bytes of lfuse written
avrdude.exe: verifying lfuse memory against 0xFF:
Reading | ################################################## | 100% 0.00s
avrdude.exe: 1 bytes of lfuse verified
avrdude.exe: reading input file "0xDF"
avrdude.exe: writing hfuse (1 bytes):
Writing | ***failed;
################################################## | 100% 0.03s
avrdude.exe: 1 bytes of hfuse written
avrdude.exe: verifying hfuse memory against 0xDF:
Reading | ################################################## | 100% 0.00s
avrdude.exe: verification error, first mismatch at byte 0x0000
0xff != 0xdf
avrdude.exe: verification error; content mismatch
avrdude.exe done. Thank you.
: avrdude -c usbasp -p t45 -P usb -e -B 0.5 -U flash:w:"\\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATtiny\45\attiny45_calibrated.hex":a -U lfuse:w:0xFF:m -U hfuse:w:0xDF:m -U efuse:w:0xFF:m -U lock:w:0xFC:m
avrdude.exe: set SCK frequency to 1500000 Hz
avrdude.exe: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.00s
avrdude.exe: Device signature = 0x1e9206 (probably t45)
avrdude.exe: erasing chip
avrdude.exe: set SCK frequency to 1500000 Hz
avrdude.exe: reading input file "\\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATtiny\45\attiny45_calibrated.hex"
avrdude.exe: input file \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATtiny\45\attiny45_calibrated.hex auto detected as Intel Hex
avrdude.exe: writing flash (3130 bytes):
Writing | ################################################## | 100% 1.89s
avrdude.exe: 3130 bytes of flash written
avrdude.exe: verifying flash memory against \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATtiny\45\attiny45_calibrated.hex:
avrdude.exe: input file \\192.168.1.100\other\Увлажнитель\v2\Замена синего модуля\Firmware\ATtiny\45\attiny45_calibrated.hex auto detected as Intel Hex
Reading | ################################################## | 100% 0.93s
avrdude.exe: 3130 bytes of flash verified
avrdude.exe: reading input file "0xFF"
avrdude.exe: writing lfuse (1 bytes):
Writing | ################################################## | 100% 0.00s
avrdude.exe: 1 bytes of lfuse written
avrdude.exe: verifying lfuse memory against 0xFF:
Reading | ################################################## | 100% 0.00s
avrdude.exe: 1 bytes of lfuse verified
avrdude.exe: reading input file "0xDF"
avrdude.exe: writing hfuse (1 bytes):
Writing | ***failed;
################################################## | 100% 0.06s
avrdude.exe: 1 bytes of hfuse written
avrdude.exe: verifying hfuse memory against 0xDF:
Reading | ################################################## | 100% 0.00s
avrdude.exe: verification error, first mismatch at byte 0x0000
0xff != 0xdf
avrdude.exe: verification error; content mismatch
avrdude.exe done. Thank you.
I've noticed you have added an addition command line argument of -B0.5 (bit clock at 1500000 hrz) which is too fast to program chips with the stock clock settings. This will override your default setting and cause issues.
It does not help. I remove this setting and set the frequency to 187.5kHz. Error again.
And I still don’t understand why the default frequency is 375kHz? At this frequency, the microcontroller will not be programmed with factory settings (internal quartz).
Therefore, I use the firmware for usbasp with automatic frequency detection. https://github.com/dioannidis/usbasp
This error occurs on any usbasp firmware.
375KHz is the default frequncy that AVRDUDE uses (or maybe it's the default of USBasp, I'm not sure) if no -B option is supplied.
As for your problem, try enabling verbosity in the Options panel. That might help tell you what's going on.
I don't know what to watch. Tests have shown that there is no error with verbosity 4. I am attaching the files.
verbosity_1_error.txt verbosity_2_error.txt verbosity_3_error.txt verbosity_4_NOerror.txt
Question about settings manager. All settings are saved. Problem with "bitclock" setting. It is saved in the presets.xml file. But when selecting a saved preset, "bitclock" is not set.
Hmm, it could be a timing thing. Verbosity 4 might be slowing avrdude down enough that it just about works. Does it work without verbosity and a very slow clock?
Can confirm the bit clock restore problem, I've made an issue here #68
Ok, it's a timing thing with AVRDUDE. I think it would be best to make an issue over at https://github.com/avrdudes/avrdude
Can you ask a question there? And my English is bad. And I don't know many terms/names.
Your English is fine :) Put a link back to this issue so they can see what's been happening. Title it something like "Fuses sometimes fail to write"
