Wrong image width and height when using "wpseo_opengraph_image" filter

[ivfit]

When providing custom image using "wpseo_opengraph_image" filter:

<meta property="og:image:width" content="..." />
<meta property="og:image:height" content="..." />

display wrong width and height, i.e. not using the ones from the image provided.

[Djennez]

I was able to reproduce this. As a workaround I would normally advise wpseo_opengraph_image_size but that doesn't seem to be working either.

Please note that this behavior is not new in 14.0, but was present in 13.5 as well.

Steps to reproduce:

1. Create a post with a featured image.
2. Upload a second, differently sized, mediafile to your site and get the URL.
3. Use this filter to change the OG Image URL:

add_filter( 'wpseo_opengraph_image', 'filterimage', 10, 1);

function filterimage( $url ) {
	return '<insert url to second image here>';
}

4. Check the source of your post and notice the og:image has changed, but the og:image:width/height tags are the same sizes as the original image.

[aussig]

Tried to fix this in my specific case by creating a class that extends Image_Presenter, overriding the filter() method to set the width and height too (just hard coded to 500x500 for the moment for debugging):

use Yoast\WP\SEO\Presenters\Open_Graph\Image_Presenter;

class MyPresenter extends Image_Presenter {

	protected function filter( $image ) {
		$image_url = \trim( \apply_filters( 'wpseo_opengraph_image', $image['url'], $this->presentation ) );
		if ( ! empty( $image_url ) && \is_string( $image_url ) ) {
			$image['url'] = $image_url;
			$image['width'] = 500;
			$image['height'] = 500;
		}

		return $image;
	}
}

However, this didn't work either.

After debugging, I can see that the Image_Presenter superclass is being called twice (though my subclass just once). The first time, og:image:width and og:image:height are being set to the large values from the default og:image, and the second time they are being set to 500x500.

From this, I think we can deduce that if meta keys are set twice, only the first value is output to the page.

[amboutwe]

The code below worked in 13.5 but not in 14.1

add_filter( 'wpseo_opengraph_image', 'change_opengraph_image_url' );
add_filter( 'wpseo_og_og_image_width', 'change_opengraph_image_width' );
add_filter( 'wpseo_og_og_image_height', 'change_opengraph_image_height' );

function change_opengraph_image_url( $url ) {
    return 'https://example.com/uploads/2019/03/image.png';
}

function change_opengraph_image_width( $width ) {
    return '1048';
}

function change_opengraph_image_height ( $height ) {
    return '480';
}

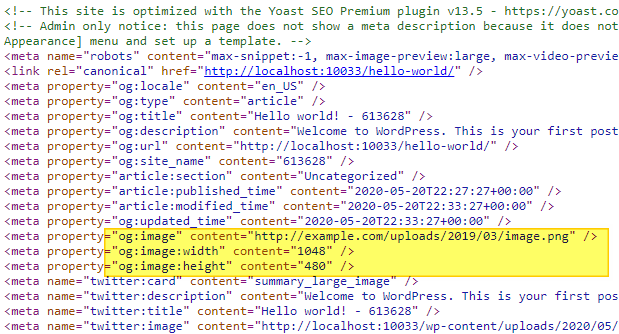

13.5 Works

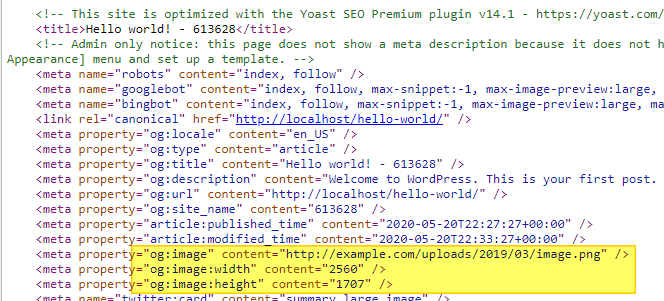

14.1 Doesn't Work

[amboutwe]

Please inform the customer of conversation # 613628 when this conversation has been closed.

[aussig]

On testing Yoast 14.2, and with my Image_Presenter subclass still in play (see above), I can now see that the og:image tags are being output to the page twice - once for the default image and a second time using my subclass.

If I remove my Image_Presenter, we're back to a single set of og:image tags, but the width and height are always picked up from the default image even if a wpseo_opengraph_image filter is registered.

Multiple og:image tags are defined as arrays so multiple are permitted in OG, but in my use case I only want one to be output to the page - i.e. my overridden one, with correct width and height. I can't see a way to suppress or override the output of the default image.

[markspolakovs]

FWIW, the way I got it to work (which is quite cursed) is to filter the presenter and override the open_graph_images array, like so:

function issue15052_yoast_presentation($presentation) {
    global $post;
    if (isset($post)) {
        $presentation->open_graph_images = [
            [
                'url' => $your_image_url,
                'width' => 1200,
                'height' => 630,
                'type' => 'image/png'
            ]
        ];
    }
    return $presentation;
}
add_filter('wpseo_frontend_presentation', 'issue15052_yoast_presentation', 30);

[axlright]

I am also having this issue. Don't know if it's been solved. For a certain post type, I'm setting the facebook og:image programmatically not using an image in the media library. I've been able to set the og:image but the width and height of the default image is still shown.

add_filter( 'wpseo_opengraph_image', 'change_opengraph_image_url' );

function change_opengraph_image_url( $url ) {
	if( is_singular( 'certificates' ) ) {
		$certificate_number = get_the_title();
		$certificate_png = esc_url( home_url( '/certificates/' ) . $certificate_number . '.png' );
		$image = $certificate_png;
		return $image;
	 }
}

Tried the following with no luck:

add_filter( 'wpseo_og_og_image_width', 'change_opengraph_image_width' );
add_filter( 'wpseo_og_og_image_height', 'change_opengraph_image_height' );
function change_opengraph_image_width( $width ) {
	if( is_singular( 'certificates' ) ) {
		return '1048';
	}
}

function change_opengraph_image_height ( $height ) {
	if( is_singular( 'certificates' ) ) {
		return '480';
	}
}

[cheba91]

I modified a @markspolakovs solution to my needs, so I will share it here if it helps anyone.

It fetches the featured image, checks for minimum Facebook dimensions and sets all of the parameters.

function change_yoast_image($presentation)
{
  global $post;
  if (isset($post)) {
    $img_id = get_post_thumbnail_id($post->ID);
    if ($img_id) {
      $image_url = wp_get_attachment_url($img_id);
      // get image sizes and type
      list($width, $height, $type) = getimagesize($image_url);
      // minimum pixels for sharing (Facebook is 200px)
      if ($width > 200 && $height > 200) {
        $presentation->open_graph_images = [
          [
            'url' => $image_url,
            'width' => $width,
            'height' => $height,
            'type' => $type
          ]
        ];
      }
    }
  }
  return $presentation;
}
add_filter('wpseo_frontend_presentation', 'change_yoast_image', 30);

[tatthien]

@markspolakovs solution works for me.

In case that you want to change the Twitter image.

$presentation->twitter_image = {your_image_url}

p/s: I don't know why from v14.1 Yoast SEO does not allow developers to filter the open graph image width and height.

[dineshtrivedi]

+1

Has anyone found the solution for it? @cheba91 solution seems to be working for me, I will run some more tests, but I was wondering if anyone has any other suggestions.

[Dominic-Marcelino]

Are there any updates planned?

I noticed that wpseo_opengraph_image_size has been marked as deprecated but there's no new alternative listed in the API docs.

When a developer uses the wpseo_opengraph_image filter to change the used image, yoast will always fall back to the dimensions of the global og-image. As there's no filter to change it, the meta-tags will be wrong in most cases.

[thijsoo]

After some internal discussion we decided on going for investigating the use of the wpseo_opengraph_image_size filter and if needed updating our documentation. And if the wpseo_opengraph_image_size is not usable for filtering the height and width meta. We will introduce filters to be able to do this.

[Dominic-Marcelino]

A solution has been implemented in #21383 and released with the plugin version v 22.9

[josevarghese]

Hi @Dominic-Marcelino and others,

Yes, we implemented new filters for og:image's height, width, and type in Yoast SEO version 22.9. The filters and other details on how to use the filters can be noticed here under the heading "Test instructions."
