I'm looking for the pins for the onboard LEDs

Open tom2323tom2323 opened this issue 3 years ago • 3 comments

Hello, I would like to use the onboard Led s. But I can't find the pin in the datasheet. Can someone help me

THX

tom2323tom2323 avatar Mar 16 '22 08:03 tom2323tom2323

Which LED do you want to know?

LilyGO avatar Mar 17 '22 07:03 LilyGO

All on the board. I found LED13. What are the other LEDs called?

tom2323tom2323 avatar Mar 17 '22 08:03 tom2323tom2323

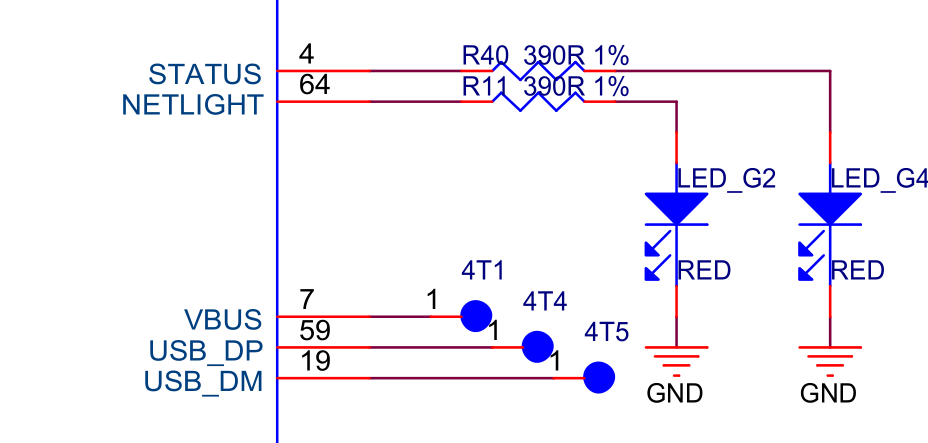

It's all in the schematic. 1

LilyGO avatar Mar 18 '22 03:03 LilyGO
