2020 corner wire guide

[Tehtsuo]

• [ ] The mod, firmware configuration or slicer profile is in the correct category folder. Printable mods go to printer_mods/, firmware configurations go to firmware_configurations/, slicer profiles go to slicer_profiles/. Create a subfolder with your name, and place the mods in a subfolder with a descriptive name within that folder, e.g.: /printer_mods/FHeilmann/flux_capacitor
• [ ] Folder and file naming:
  • Folders and filenames shouldn't contain spaces. Only letters a-zA-Z, numbers 0-9, underscores _, hyphens - and periods .
  • Primary color: part_xyz.stl
  • Accent color: [a]_part_xyz.stl
  • Opaque color (Blocks light): [o]_part_xyz.stl
  • Clear/transparent color (Allows light): [c]_part_xyz.stl
  • Quantity, if more than one is needed: part_xyz_x4.stl
• [ ] For each mod, add a small README.md file to its folder with a short description of what the mod accomplishes. This readme can be used to add pictures, give assembly instructions or specify a bill of materials if the mod requires additional hardware.
• [ ] The PR modifies the top-level README.md of the category folder adding the contribution to the table. Read the top part of the file for instructions on how to do this. Please preserve the alphabetical ordering while adding new rows. Make sure to fill out the compatibility matrix to indicate which versions of the Voron printer the submission is compatible with.
• [ ] The mod/configuration/profile has been tested by the person submitting the mod and/or other Voron users. Make sure to add information about how the mod was tested below.
• [ ] The mod is not merely a slight modification of an official Voron part, configuration or profile (i.e. an official Voron part with a few mm added or removed or a slicer profile which only modifies a few values). (When in doubt, contact one of the admins in the Voron discord before submitting the PR)
• [ ] Submitted STLs are printable without support. (If the mod does not meet this criterion join the Voron discord and ask the other users for advice on how to modify the mod such that it does not require supports)
• [ ] Submitted STL files are not corrupt. (This can be tested by opening the STL in PrusaSlicer and checking if mesh errors are reported.)
• [ ] Submitted STL files are oriented and scaled properly for printing.
• [ ] Submission includes a CAD file in the form of a .STEP or .SCAD file
• [ ] Submitted firmware configs or slicer profiles contain no sensitive data (e.g. API keys).

Which mods/configurations/profiles are added by this PR?

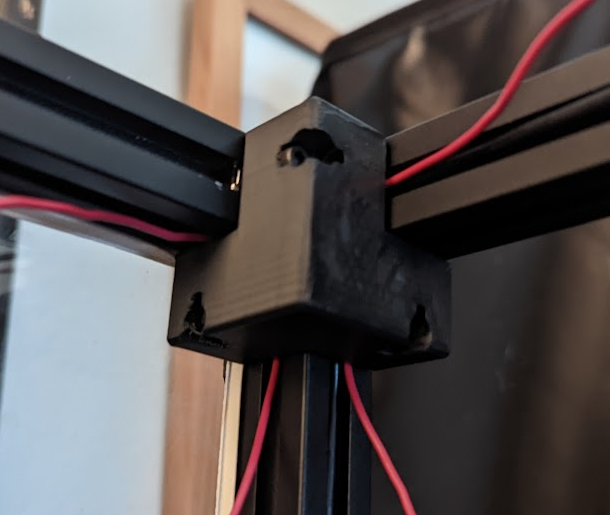

A non-functional part to hide wires being routed in extrusion channels around corners.

How was it tested?

Installed on my printer.

Any background context you want to provide?

There's also a resized version for 1515 extrusions, untested but should work for V0.

Screenshots (if appropriate)

Further notes

[MapleLeafMakers]

All submissions are required to print cleanly without supports, these overhangs will not print.

[Tehtsuo]

All submissions are required to print cleanly without supports, these overhangs will not print.

I've redesigned the part to ensure nothing hangs.

[cbc02009]

@Tehtsuo can you make another commit that just adds a space or something stupid to one of the readme files? The CI checker is borked and it needs another commit to run again.

[FHeilmann]

Hi,

I want to thank you for your submission and want to personally apologize that your submission has not gotten the review it deserves. We are in the process to restructure the repo to streamline reviews and hopefully solve this issue in the future.

Unfortunately, this means that we will require you to resubmit the mod under the new system.

Please check here for details and instructions on how to proceed. If you have any questions, please reach out in the #voronuser_mods channel on the VoronDesign discord. If you have since moved on from this mod and don't want to resubmit, no further action is necessary from your side.

Bests,

Florian a.k.a. Haribro
