printer_mods/CGrassin/V0.1_CR10_E3_Mini_Afterburner : a new Cowling part to fit an Ender 3/CR10 hotend (very very inexpensive despite a lower maximum flow capability than other options).

How was it tested?

Currently being used on my v0.1 (about 36h of printing with this mod).

Any background context you want to provide?

No.

Screenshots (if appropriate)

Further notes

This part does require a bit of support material (please read the readme). This is due to the tight fit in the Mini Afterburner assembly, I see no way around this. I was asked on the Discord to submit this mod. Originally posted here : https://www.prusaprinters.org/prints/131985-voron-v01-cr10-hotend-mini-afterburner-mod

[VinnyCordeiro]

This part does require a bit of support material (please read the readme). This is due to the tight fit in the Mini Afterburner assembly, I see no way around this.

You have to add the support yourself on the feature that requires it, so anyone that want to print this mod does not have to be worried about that. That's on the rules, and I'm afraid that the mod won't be approved because of that.

[CGrassin]

I agree with this comment. I added some manually generated support material in CAD that mimics Cura's default support settings which I was using (single line zig-zag with 2.5mm XY spacing and 0.1mm Z spacing top & bottom).

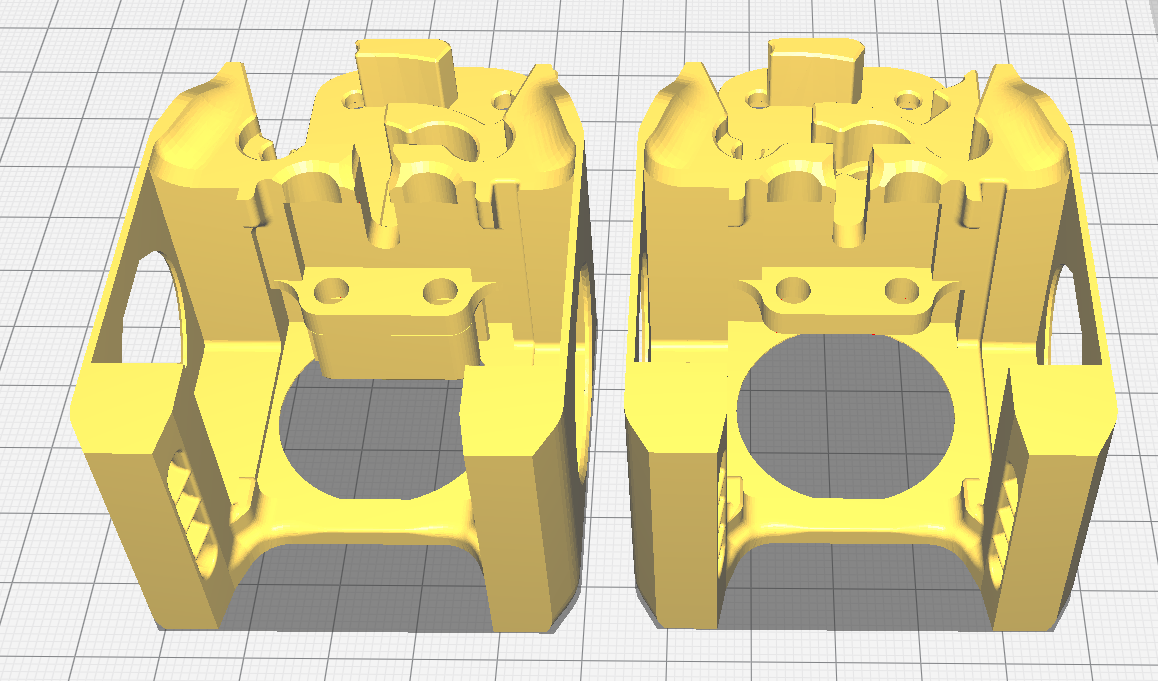

Screenshots: Left: Built-in support, Right: default

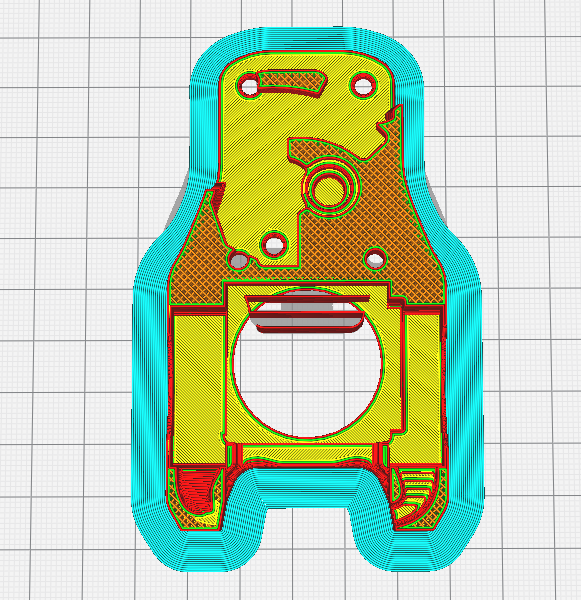

View of the support structure that is designed in the model

However:

1. I have not printed the file with built-in support since I don't currently have access to a 3D printer and won't for several months. When sliced with Cura with Voron's settings, the file behaves as expected, but I technically don't have proof that it does print correctly. Therefore, I have unchecked the corresponding checkbox. This may or may not mean that this PR is on hold.
2. I wanted to include both the version with built-in support and without support (both STL and STEP files). However, I don't know if the current file naming/documentation is clear enough about this. Feedback would be appreciated.

Thanks!

[MapleLeafMakers]

@CGrassin this PR will need to be updated to resolve merge conflicts. I don't think the files without supports should be included at all, but I will defer to @cbc02009 on that.

[CGrassin]

Since the VORON V0.2 release now natively support the All Metal hot end, this PR doesn't really have reason to exist anymore in my opinion. I believe we can close it. Nevertheless, I solved the merge conflict just in case.

This mod still exists outside of this repository on Printables: https://www.printables.com/model/131985-voron-v01-cr10-hotend-mini-afterburner-mod

[FHeilmann]

Since the VORON V0.2 release now natively support the All Metal hot end, this PR doesn't really have reason to exist anymore in my opinion. I believe we can close it. Nevertheless, I solved the merge conflict just in case.

This mod still exists outside of this repository on Printables: https://www.printables.com/model/131985-voron-v01-cr10-hotend-mini-afterburner-mod

I agree that this PR can now be closed. I want to thank you for making the effort to submit this PR, even if it ultimately didn't make it into the repo. if you still want to pursue this, I'll do my best to assist you.
