dpo:edit commands of improvePlacement for better HPWL.
Signed-off-by: niv280 [email protected]
Hi, I change the set of command in improvePlacmentto to give better results. Here is comparision between the new set commands ( from the left ) to the old command ( in the right):
[INFO ODB-0128] Design: aes_cipher_top
Original HPWL 372201.2 u Original HPWL 372201.2 u
Final HPWL 354025.3 u Final HPWL 360418.2 u
Delta HPWL -4.9 % Delta HPWL -3.2 %
[INFO ODB-0128] Design: gcd
Original HPWL 7709.2 u Original HPWL 7709.2 u
Final HPWL 7154.5 u Final HPWL 7322.4 u
Delta HPWL -7.2 %** Delta HPWL -5.0 %
[INFO ODB-0128] Design: ibex_core
Original HPWL 652460.9 u Original HPWL 652460.9 u
Final HPWL 636120.8 u Final HPWL 639841.3 u
Delta HPWL -2.5 % Delta HPWL -1.9 %
The most affect gain from increase the movePerCandidate from 20 originally to 100, even though the run time degraded I think it worth it, but that results is on small design so please advise if you think that is too much in bigger design.
Other change is change the order of the commands that gave better results. Also I notice that the mis and reorder method don't make much different at least on the tested design so I moved them to the end, but I also can comment them to reduce some run time.
Thanks, these results look nice. Please report the runtimes you observe. Would also run one larger design like swerv_wrapper to see the impact on something bigger.
Do you encounter any difficulties with routing the designs later in the flow?
Increasing the moves per candidate seems fine if the run time does not get out of control for larger designs. Changing the order of commands is also fine.
If the def files varies run to run with the same parameters then that is a problem that needs investigating. We expect deterministic results.
The problem was on my side, the results are deterministic.
The format code check are failing me, it's looks like it expecting change only in c++ files, this is true?
I still need to try to route the design with the new command, I will update about it tomorrow.
The format code check is not blocking for now. However it is helpful if you can run clang-format on the code to keep it up to date.
Hi, I fixed the clang format error.

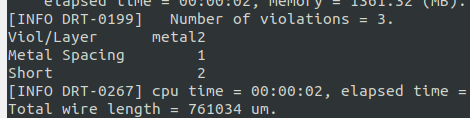

Also, I tried to route ibex design with the new command, here what it looked like:
Here is with the old set of command:
Unfortunately, the short and metal spacing violation was degraded with the new command from 4 to 21 but the overall wire length reduced. I will try to reduce the moves per candidate and see if I getting better results in the shorts violations.
I think it is also important to compare the congestion but I'm don't sure were I can check it, can you guide me?
Unfortunately, the short and metal spacing violation was degraded with the new command from 4 to 21 but the overall wire length reduced.
Interesting. I was wondering how we prevent DPO from undoing both timing and congestion based global placement. Should it incorporate the STA and grt data (like gpl currently does)?
Unfortunately, the short and metal spacing violation was degraded with the new command from 4 to 21 but the overall wire length reduced.
Interesting. I was wondering how we prevent DPO from undoing both timing and congestion based global placement. Should it incorporate the STA and grt data (like gpl currently does)?
Right now we just hope it is ok. The changes tend to be fairly local and we hope that WL improvement is neutral to positive for timing. We could add some sort of try-reject strategy but that requires some sort of mechanism to be built for undo.
To check congestion you can look at the congestion map in the GUI or dump it out with "gui::dump_heatmap name filename"
The routing congestion looks pretty similar to me.
The old commands:
with new commands:
What do you suggest for the next steps?
Perhaps it is something more local. The m3 shorts are new so perhaps take a look and see what is happening there. Is there increased local congestion that might explain the problem?
@maliberty Maybe we should add a feature to compare the congestion values between two runs?
@maliberty Maybe we should add a feature to compare the congestion values between two runs?
Sure though you can dump the heat map to a csv and do it easily externally.
I think that I misunderstood the short in the design. I used that command for routing: detailed_route -output_drc dpo_tests/ibex_drc -output_maze dpo_tests/ibex.output.maze.log -output_guide_coverage dpo_tests/ibex.coverage.csv
and the output_drc file is empty, but in the last message in the tool I see the short that I upload above. Maybe the last drc report in the detailed_route is not the final one?
I tired also the check_drc command but it keep failed to me.
I checked it again the drc file is empty so as I understand it there is no drc in both of the command and the route succeed with the new command also there is small improvement in the power ( in aes design) .
Please advise for the next steps here.
Would you include more of the router log. I wonder if you are looking at the right message or not.
I attached log of 2 runs of ibex_sky130hd test, one with old command and one with new commands. To the test ( in flow.tcl) I added the improve_placement and check_placement proc to review the diff. Let me know if that not enough and you need me to add other command to the test.
Withe new commands: ibex_sky130hd.log
With old commands: ibex_sky130hd_old_commands.log
@niv280 I don't see actual detailed routing in either of the logs. It looks like pin access is running, but not detailed routing itself. To get the violation count, you should see something in the form of
[INFO DRT-0199] Number of violations = ###.
I think it was the verbose=0, here is the update logs:
With new commands: ibex_sky130hd.log
With old commands: ibex_sky130hd_old_commands.log
From the logs you posted, both versions converge to 0 violations, but the new one takes 11 iterations to do so compared to 10 previously.
Yes, this is the downside of the new commands change but we are getting better HPWL
@maliberty what do you think?
So long as we can still get to 0 drvs that's ok. It is expected that denser designs will take longer to route.
So, it required anything else to be approved? I'm just won't be available for the next 2 months from next week, so I want to close it.
@niv280 One thing for sure is that you need to adhere to the formatting rules. Please run clang-format on your code to pass the required formatting check.
I ran ORFS with this change and I see some degradation of results that need investigating (there are some more minor changes that we could just accept): nangate45/bp_multi - fails in grt due to congestion nangate45/jpeg - [ERROR] finish__timing__setup__ws fail test: -0.09 >= 0.0
Maybe there should be less ambitious optimization e.g. 50 moves per candidate instead of 100? This is a good candidate for a sensitivity study / possibly throw at the autotuner.
