OpenLane [Error PDN-0179] Unable to repair all channels

Description

Hello, I am trying to use OpenLane to place macros for a core design, and I set DESIGN_IS_CORE as 1 and FP_PDN_CORE_RING as 1. And I want to make sure the automatic marco placement on the core design can work at first. However, when the process went into the stage of PDN, it shows the error (see Logs). Could anyone help me out with what is wrong here? I will appreciate it!

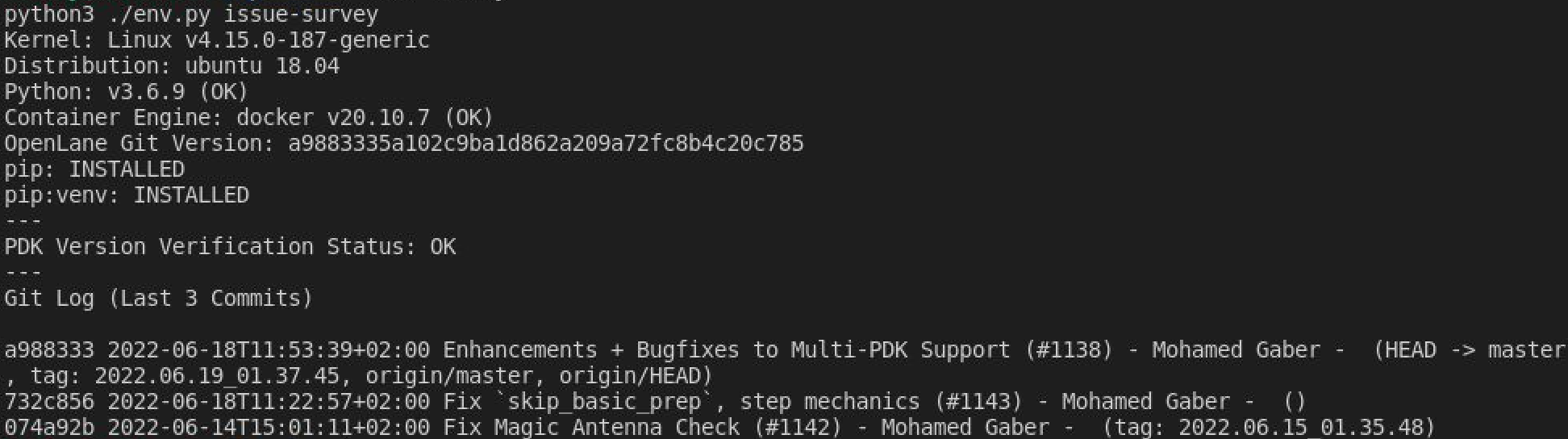

Environment

Reproduction Material

set DESIGN_IS_CORE as 1 and FP_PDN_CORE_RING as 1 in the config.tcl
add necessary commands referred from the chip integration tutorial

Expected behavior

Auto macro placement should work successfully.

Logs

    OpenROAD 0b8b7ae255f8fbbbefa57d443949b84e73eed757
    This program is licensed under the BSD-3 license. See the LICENSE file for details.
    Components of this program may be licensed under more restrictive licenses which must be honored.
    [INFO ODB-0222] Reading LEF file: /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/tmp/merged.unpadded.nom.lef
    [INFO ODB-0223]     Created 13 technology layers
    [INFO ODB-0224]     Created 25 technology vias
    [INFO ODB-0225]     Created 458 library cells
    [INFO ODB-0226] Finished LEF file:  /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/tmp/merged.unpadded.nom.lef
    [INFO ODB-0127] Reading DEF file: /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/results/floorplan/mydesign_core.def
    [INFO ODB-0128] Design: mydesign_core
    [INFO ODB-0130]     Created 296 pins.
    [INFO ODB-0131]     Created 74280 components and 206305 component-terminals.
    [INFO ODB-0133]     Created 17456 nets and 34951 connections.
    [INFO ODB-0134] Finished DEF file: /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/results/floorplan/mydesign_core.def
    [INFO PDN-0001] Inserting grid: stdcell_grid
    [WARNING PDN-0178] Remaining channel (525.7800, 2896.5600) - (609.0400, 2943.2800) on met1 for nets: VPWR, VGND
    [WARNING PDN-0178] Remaining channel (554.7600, 2855.7600) - (609.0400, 2896.5600) on met1 for nets: VPWR, VGND
    [WARNING PDN-0178] Remaining channel (828.4600, 2654.4800) - (955.8800, 2665.8400) on met1 for nets: VGND
    [WARNING PDN-0178] Remaining channel (837.2000, 2170.3200) - (970.1400, 2181.6800) on met1 for nets: VGND
    [WARNING PDN-0178] Remaining channel (1153.2200, 3179.4400) - (1305.0200, 3193.5200) on met1 for nets: VPWR, VGND
    [WARNING PDN-0178] Remaining channel (1232.3400, 2888.4000) - (1296.2800, 2926.9600) on met1 for nets: VGND
    [WARNING PDN-0178] Remaining channel (1557.1000, 1781.3600) - (1678.0800, 1792.7200) on met1 for nets: VPWR
    [WARNING PDN-0178] Remaining channel (1868.0600, 2200.2400) - (2018.4800, 2217.0400) on met1 for nets: VPWR
    [WARNING PDN-0178] Remaining channel (1983.9850, 3013.5200) - (1986.2800, 3139.1200) on met1 for nets: VPWR, VGND
    [WARNING PDN-0178] Remaining channel (405.0400, 2861.3960) - (1021.0400, 2952.9130) on met4 for nets: VGND
    [WARNING PDN-0178] Remaining channel (405.0400, 2861.3960) - (1328.2400, 2958.9000) on met4 for nets: VGND
    [WARNING PDN-0178] Remaining channel (712.2400, 2925.4250) - (1328.2400, 2958.9000) on met4 for nets: VGND
    [ERROR PDN-0179] Unable to repair all channels.
    PDN-0179

Thanks!

Jun 25 '22 19:06 AyaseErii

Please attach a test case

Jun 25 '22 19:06 maliberty

Thanks for your reply, Matt! Here you go: openroad_issue_reproducible.tar.gz

Jun 25 '22 20:06 AyaseErii

@AyaseErii I took a quick look at the testcase and it looks like have a tons of overlapping macros. macros

I'm not sure the issue is with PDNGEN, but with the macro placement.

Jun 27 '22 01:06 gadfort

@AyaseErii Can you share your /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/config.tcl ? Possible share your updated repo link as well.

Jun 27 '22 05:06 vijayank88

@AyaseErii If you're using OpenLane flow by default macro halo spacing set to 0.

set ::env(PL_MACRO_CHANNEL) {0 0}
set ::env(PL_MACRO_HALO) {0 0}

So update with min spacing value like 5 or 10 and run the flow again.

Jun 27 '22 10:06 vijayank88

@arlpetergadfort Thanks for your quick check! I am not sure why there are so many overlaps happening among macros. I believe those macros are separately generated and some of them should be placed repeatedly according to the core design.

Jun 27 '22 13:06 AyaseErii

@AyaseErii Can you share your /openlane/designs/mydesign_core/runs/RUN_2022.06.24_20.24.07/config.tcl ? Possible share your updated repo link as well.

Unfortuneately, I cleaned the work space but I tried a large absolute die area which still generated the similar error. Please find the repo with the config.tcl below: openroad_issue_repo_with_config_tcl.tar.gz (This is the updated right one. I realized I uploaded a wrong repo file....)

@AyaseErii If you're using OpenLane flow by default macro halo spacing set to 0.
set ::env(PL_MACRO_CHANNEL) {0 0}
set ::env(PL_MACRO_HALO) {0 0}
So update with min spacing value like 5 or 10 and run the flow again.

I will try something like:

set ::env(PL_MACRO_CHANNEL) {10 10}
set ::env(PL_MACRO_HALO) {10 10}

Once it was done, I will let you know. Since the design is large, it will take some time to finish.

Thanks!

Jun 27 '22 14:06 AyaseErii

@vijayank88 Thanks for the suggestion! I set the spacing as below:

set ::env(PL_MACRO_CHANNEL) {40 40}
set ::env(PL_MACRO_HALO) {40 40}

This did solve the overlapping issue! However, the tool shows another error in the stage 17 resizing:

[STEP 17]
[INFO]: Running Global Routing Resizer Timing Optimizations...
[ERROR]: during executing openroad script /openlane/scripts/openroad/resizer_routing_timing.tcl
[ERROR]: Exit code: 1
[ERROR]: full log: designs/mydesign_core/runs/RUN_2022.06.27_15.34.28/logs/routing/17-resizer.log
[ERROR]: Last 10 lines:
[INFO GRT-0101] Running extra iterations to remove overflow.
[INFO GRT-0103] Extra Run for hard benchmark.
[INFO GRT-0197] Via related to pin nodes: 85370
[INFO GRT-0198] Via related Steiner nodes: 183
[INFO GRT-0199] Via filling finished.
[INFO GRT-0111] Final number of vias: 447743
[INFO GRT-0112] Final usage 3D: 7584702
[ERROR GRT-0118] Routing congestion too high.
Error: resizer_routing_timing.tcl, 53 GRT-0118
child process exited abnormally

Again, I put the newly repo file with config.tcl inside as below: openroad_issue_repo_with_config_after_setting_spaces.tar.gz

Any suggestion regarding this error? I will appreciate it!

Thanks!

Jun 28 '22 02:06 AyaseErii

@AyaseErii Do you have git repo with all design data? I'm trying to reproduce same error, but more than 3Hrs still its running. Loading DEF file in GUI view not clear. Also try with set ::env(DIODE_INSERTION_STRATEGY) 4

Jun 28 '22 09:06 vijayank88

@AyaseErii Do you have git repo with all design data? I'm trying to reproduce same error, but more than 3Hrs still its running. Loading DEF file in GUI view not clear. Also try with set ::env(DIODE_INSERTION_STRATEGY) 4

@vijayank88 Sorry, I do not have git repo since I am running the design on the local server.

Thanks for the suggestion! I will try the set ::env(DIODE_INSERTION_STRATEGY) 4 later on. Appreciate it!

Jun 28 '22 13:06 AyaseErii

@vijayank88 Thanks again for the suggestion. It looks like set ::env(DIODE_INSERTION_STRATEGY) 4 does not help with passing stage 17 resizer. Pleased find the repo with config.tcl below: openroad_issue_reproducible_with_config_tcl.tar.gz

It shows the error message that the routing congestion too high. I am not sure what that means.

[STEP 17]
[INFO]: Running Global Routing Resizer Timing Optimizations...
[ERROR]: during executing openroad script /openlane/scripts/openroad/resizer_routing_timing.tcl
[ERROR]: Exit code: 1
[ERROR]: full log: designs/mydesign_core/runs/RUN_2022.06.29_02.37.37/logs/routing/17-resizer.log
[ERROR]: Last 10 lines:
[INFO GRT-0101] Running extra iterations to remove overflow.
[INFO GRT-0103] Extra Run for hard benchmark.
[INFO GRT-0197] Via related to pin nodes: 85370
[INFO GRT-0198] Via related Steiner nodes: 183
[INFO GRT-0199] Via filling finished.
[INFO GRT-0111] Final number of vias: 447743
[INFO GRT-0112] Final usage 3D: 7584702
[ERROR GRT-0118] Routing congestion too high.
Error: resizer_routing_timing.tcl, 53 GRT-0118
child process exited abnormally

BTW, do you think manual macro placement will be helpful?

Jun 29 '22 13:06 AyaseErii

Yes you can try manual macro placement as well.

But it will be good if you provide git repo link with all input data, to debug or try with other configuration for auto macro placement.

also share designs/mydesign_core/config.tcl.

Jun 30 '22 05:06 vijayank88

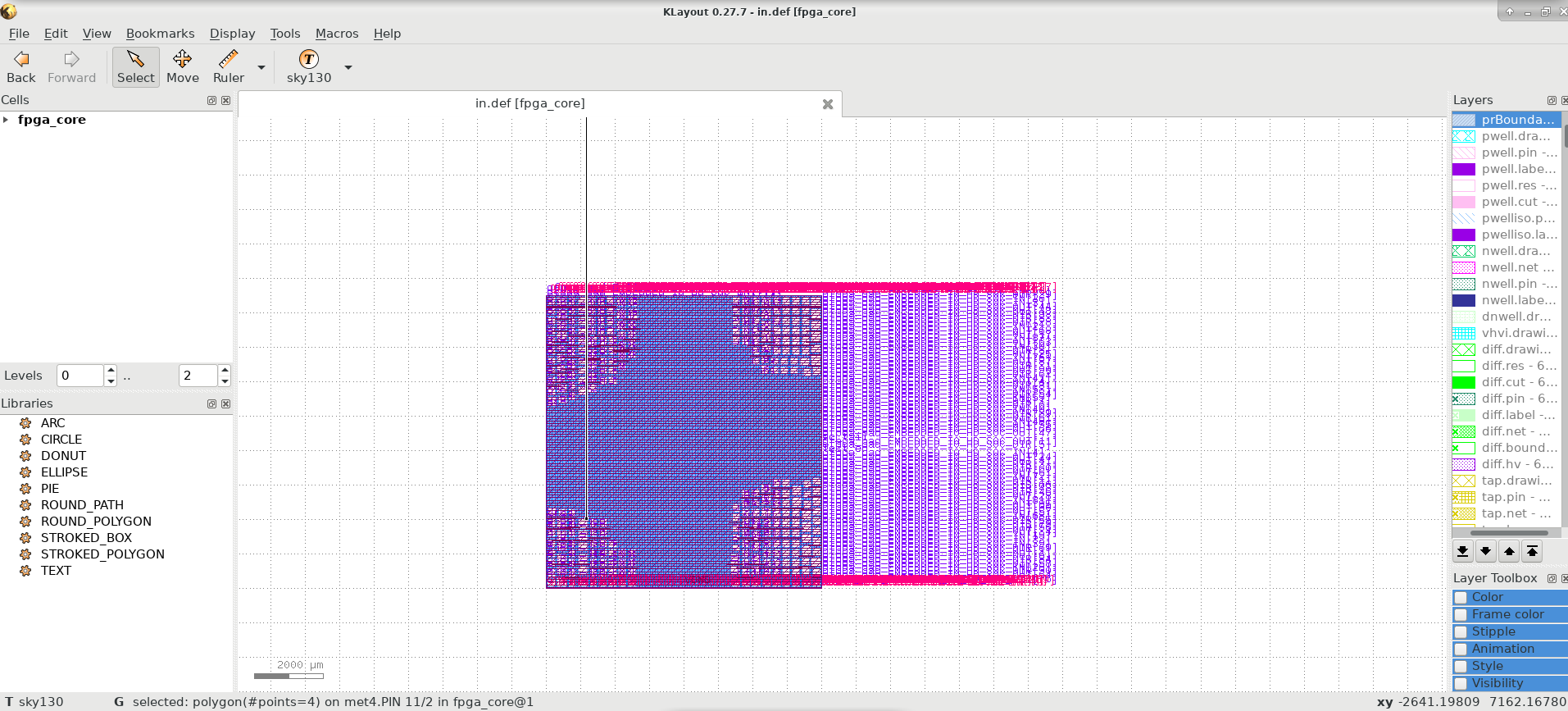

@AyaseErii Check below layout view. There is wrong placement, some connection going outside the DIE area. Screenshot from 2022-06-30 11-56-42

Jun 30 '22 06:06 vijayank88

Yes you can try manual macro placement as well.

But it will be good if you provide git repo link with all input data, to debug or try with other configuration for auto macro placement.

also share designs/mydesign_core/config.tcl.

@vijayank88 Thanks for the suggestion! I am running a relatively small design to implement a manual macro placement.

Here is the git repo: https://github.com/AyaseErii/my_openlane_project.git I believe everything is included.

@AyaseErii Check below layout view. There is wrong placement, some connection going outside the DIE area.

I am not sure why such a thing occurs since I was doing an auto/basic macro placement....

Jun 30 '22 18:06 AyaseErii

@AyaseErii have you tried manual macro placement?

Jul 01 '22 11:07 vijayank88

@vijayank88 For this large design, I have not tried yet because the macros are too many (100+) and I have not developed an efficient way to make a .cfg list. For a smaller design, I tried manual macro placement. The tool works.

Jul 01 '22 13:07 AyaseErii

I cloned your source files and running it. More than 3 hrs still macro placement going on. Will update once flow completes.

Jul 01 '22 13:07 vijayank88

@AyaseErii I just took relative die size calculated by tool. DIE_AREA is 0 0 11695 11705. Now running global routing. Is that die size ok? But still seeing below warning:

[WARNING GRT-0040] Net VGND has wires outside die area.
[WARNING GRT-0040] Net VPWR has wires outside die area.
[WARNING GRT-0040] Net VPWR has wires outside die area.

Jul 02 '22 12:07 vijayank88

@AyaseErii I just took relative die size calculated by tool. DIE_AREA is 0 0 11695 11705. Now running global routing. Is that die size ok? But still seeing below warning:
[WARNING GRT-0040] Net VGND has wires outside die area.
[WARNING GRT-0040] Net VPWR has wires outside die area.
[WARNING GRT-0040] Net VPWR has wires outside die area.

@vijayank88 Yes, the die size is ok. Just out of curiosity, how do you let the tool calculate the relative die size? Do you use ::env(FP_CORE_UTIL) "10" or something else?

I am not sure if the warning will really make the flow fail.

Jul 02 '22 12:07 AyaseErii

@vijayank88 Hi, how is the flow going? Could you let me know if you successfully got the GDSII? Thanks!

Jul 06 '22 19:07 AyaseErii

@AyaseErii Update OpenROAD app: https://github.com/The-OpenROAD-Project/OpenLane/blob/b718fd064063333703734ce3ae8bb56aa6810b0b/dependencies/tool_metadata.yml#L61 to latest commit: 809c4384658c8b4e9f37b47252ff2a23c4f866c1 and update the commit in ./dependencies/tool_metadata.yml then go into docker/ and type make build-openroad_app and after that finishes, make merge

Run the flow again. This will pass routing stage.

Update config.tcl with set ::env(GLB_RT_ADJUSTMENT) {0.15}

Jul 07 '22 09:07 vijayank88
