Unable to log in 22 or 3E mode on MQB-A0-IN platform cars. VW/Skoda

[nkonk]

Hi, I made the clone and I was able to log basic data but when I switched the logging mode to 22 or 3E and go to the logging screen i get an error "Failed to read Workshop Code"

What could the issue be? Is the ecu not from simos anymore?

[Switchleg1]

"Failed to read Workshop Code" will come up when trying to log 3E when you do not have a patched ECU, this is normal. On the other hand you should be able to log with mode 22 if this is a simos ECU.

[nkonk]

I get failed to read workshop code in mode 22. I was able to get ecu details, how do I know if it's a simos ecu ?

[Switchleg1]

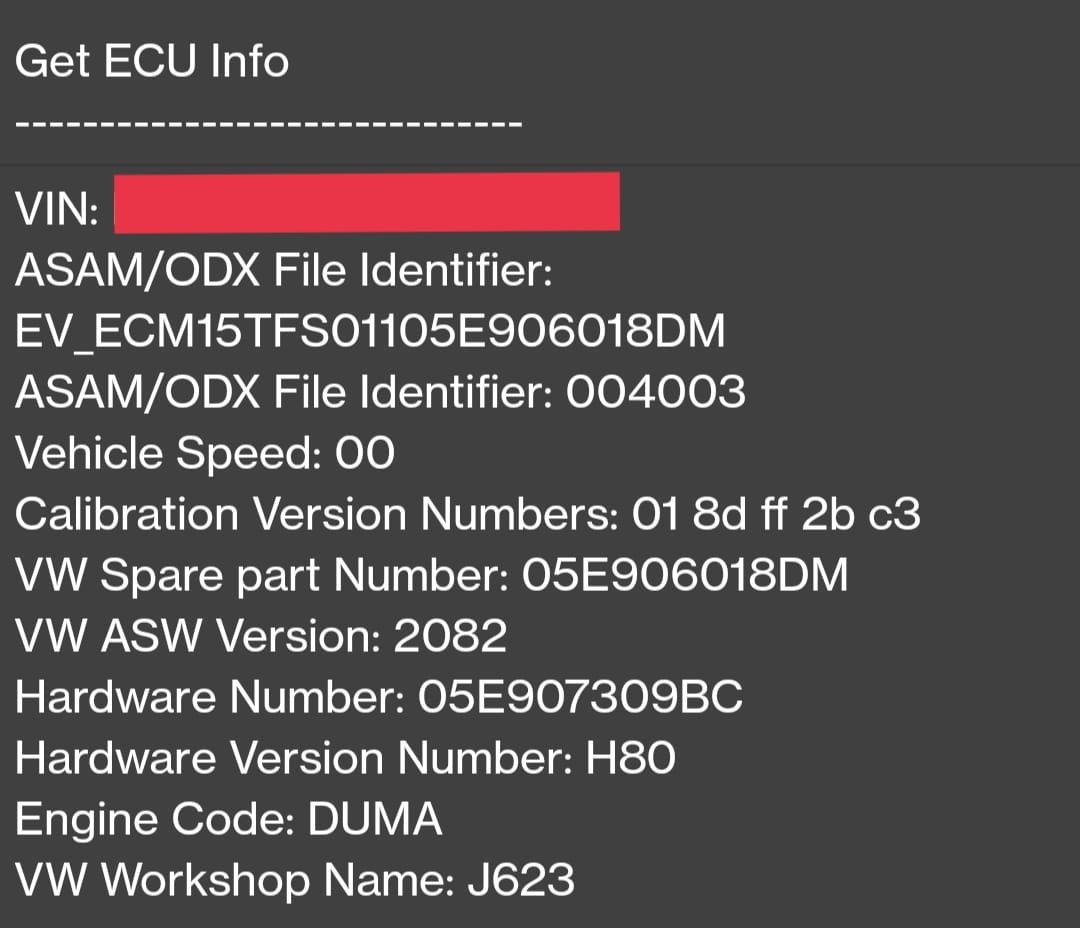

Are you able to post a screenshot of your 'get ecu info'?

[nkonk]

Yes, here it is.

[aarons3]

It looks like it's a Bosch MG1 ECU

On Thu, Nov 9, 2023 at 9:03 AM Naresh Kumar @.***> wrote:

Yes, here it is.

[image: WhatsApp Image 2023-11-09 at 20 32 22] https://user-images.githubusercontent.com/6452437/281775083-6900a2d6-0d50-4924-b3af-e29a8bb438c4.jpeg
