"add_face" Creates Extra Edge

[NeilBurkholder]

trafficstars

When creating a face with an edge that is in exactly the same place as two shorter edges, a new long edge is used instead of using the existing short edges. This results in geometry that is non-solid.

Here is the code to reproduce the issue.

def clear_model
  Sketchup.active_model.entities.clear!
  Sketchup.active_model.definitions.purge_unused
end

def test_non_solid
  d = Sketchup.active_model.definitions.add("Non-Solid")
  Sketchup.active_model.entities.add_instance(d, IDENTITY)
  d.entities.add_face([5, 0, 10], [5, 10, 10], [0, 10, 10], [0, 0, 10])
  d.entities.add_face([5, 0, 10], [5, 10, 10], [10, 10, 10], [10, 0, 10])
  d.entities.add_face([0, 0, 10], [0, 10, 10], [0, 10, 0], [0, 0, 0])
  d.entities.add_face([10, 0, 10], [10, 10, 10], [10, 10, 0], [10, 0, 0])
  d.entities.add_face([0, 10, 10], [10, 10, 10], [10, 10, 0], [0, 10, 0])
  d.entities.add_face([0, 0, 10], [10, 0, 10], [10, 0, 0], [0, 0, 0])
  d.entities.add_face([0, 0, 0], [10, 0, 0], [10, 10, 0], [0, 10, 0])
end

def test_solid
  d = Sketchup.active_model.definitions.add("Solid")
  Sketchup.active_model.entities.add_instance(d, Geom::Point3d.new(0, 20, 0))
  d.entities.add_face([0, 0, 10], [0, 10, 10], [0, 10, 0], [0, 0, 0])
  d.entities.add_face([0, 10, 10], [10, 10, 10], [10, 10, 0], [0, 10, 0])
  d.entities.add_face([10, 0, 10], [10, 10, 10], [10, 10, 0], [10, 0, 0])
  d.entities.add_face([0, 0, 10], [10, 0, 10], [10, 0, 0], [0, 0, 0])
  d.entities.add_face([0, 0, 0], [10, 0, 0], [10, 10, 0], [0, 10, 0])
  d.entities.add_face([0, 0, 10], [0, 10, 10], [5, 10, 10], [5, 0, 10])
  d.entities.add_face([5, 0, 10], [5, 10, 10], [10, 10, 10], [10, 0, 10])
end

def do_tests
  clear_model
  test_non_solid
  test_solid
end

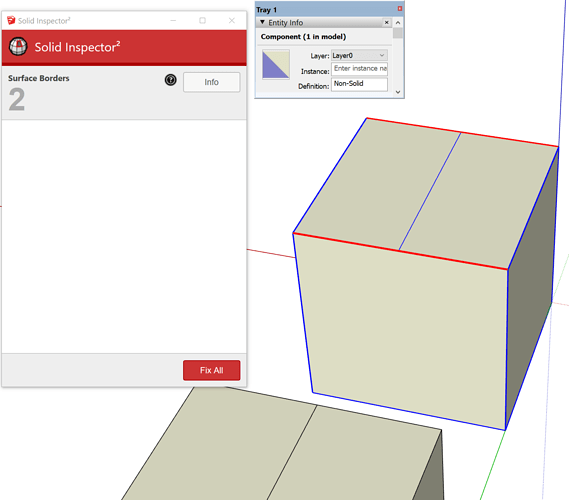

Here are the results:

[MSP-Greg]

I've noticed this issue for several versions of SU. Some 3D programs I worked with could export a 'model' as a plane list, each defined by its vertices.

Some would minimize the number of vertices, so in the cube shown above, the top would be two planes, and the facing side, being a square, would have four vertices.

[thomthom]

I wonder, does Fix Model fix anything? Or does it think everything is just fine?

[NeilBurkholder]

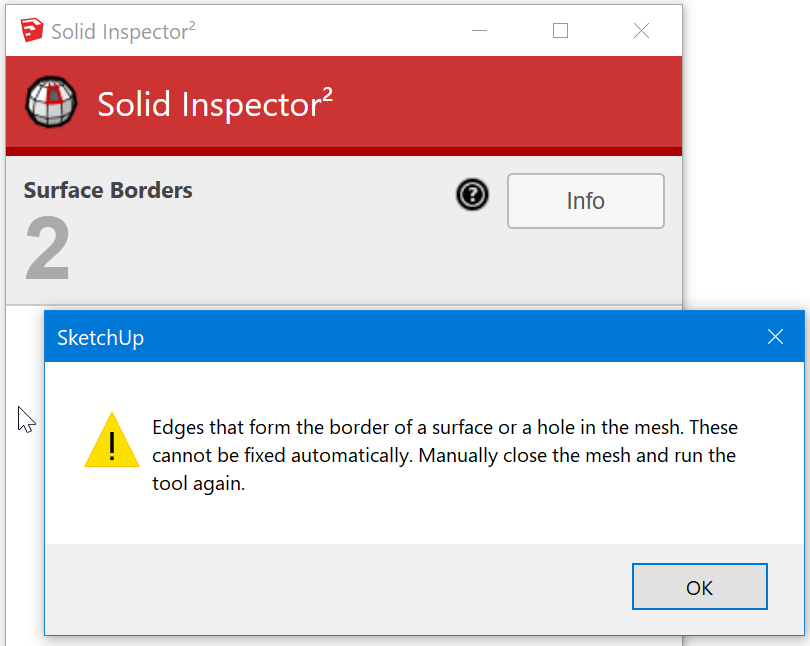

Clicking Info shows this message:

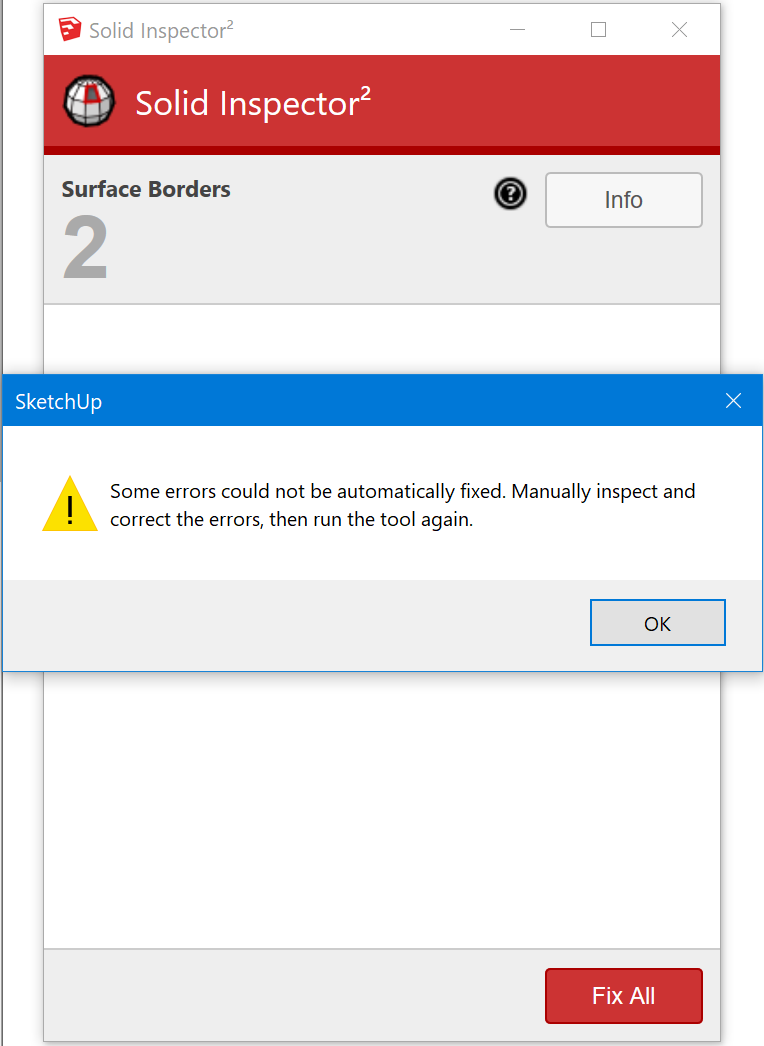

Clicking Fix All shows this:

[MSP-Greg]

Its been a while...

I wonder, does Fix Model fix anything?

I did write code to show the problem edges. So I assume not.

'could not be automatically fixed'

I think I did the above because I concluded that it required 'user intervention', iow, code couldn't fix them. Right now, I don't recall why.

EDIT: The external programs I was working with had issues with what I'd call 'donuts' and 'sliced donuts' (various forms of a face being bounded by concentric edges), that may have been part of the reason I couldn't fix them in code...

[thomthom]

@NeilBurkholder - I mean from Model Info > Statistics. SketchUp's own model validity check.

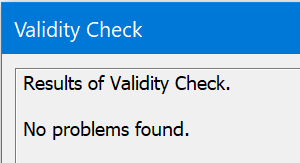

[NeilBurkholder]

No

[sketchupbot]

Logged as: SKEXT-2916

[kalpana-ghodeswar]

Hi NeilBurkholder,

As part of reproducing old bugs, I encountered this one, looks like this has been fixed in versions SU2023.1 , SU2024.0 and SU2025.0 Could you please confirm the same?

Thank you
