Bottom and top gridline longitude labels not displaying for x axis
Description

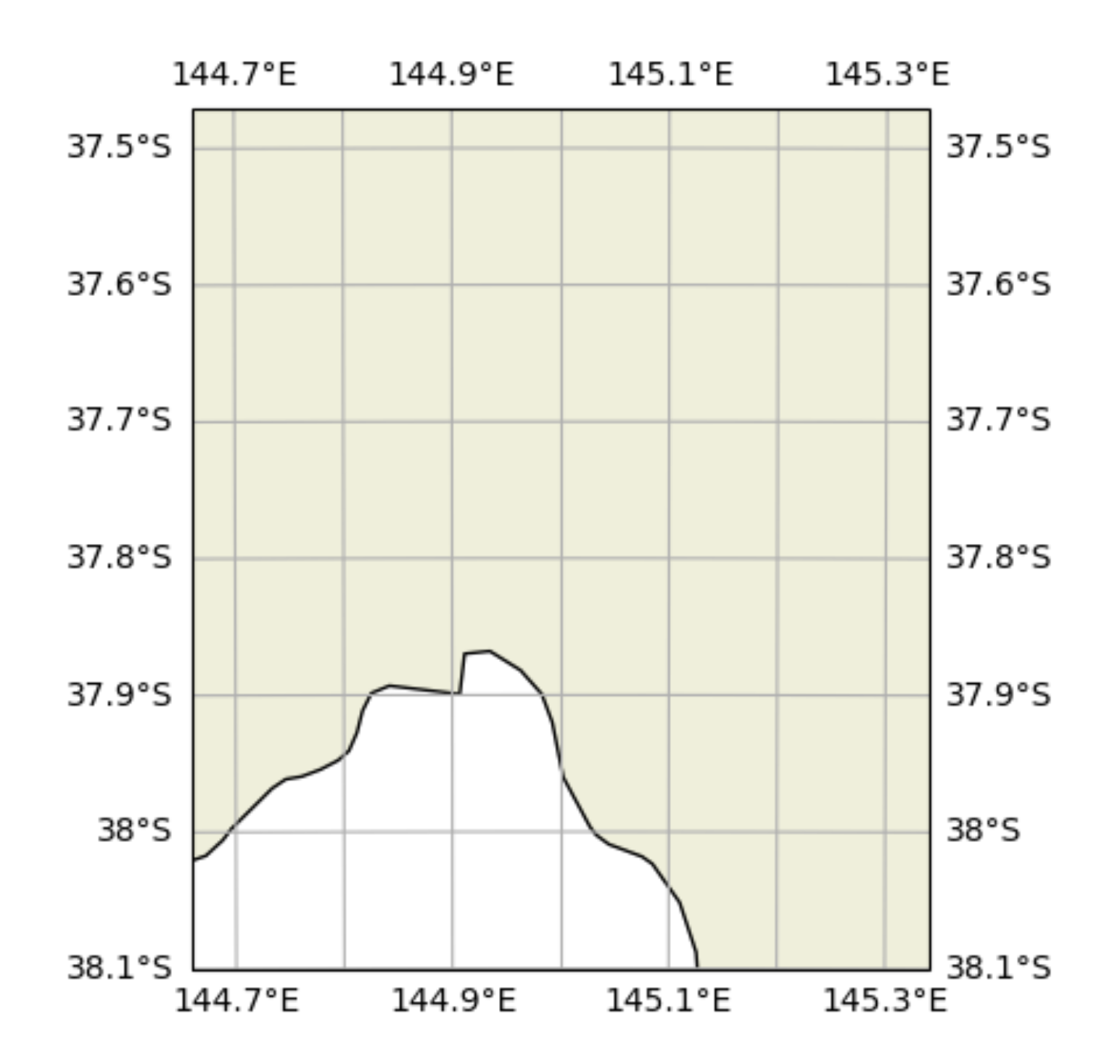

I cannot display bottom or top labels for LambertConformal projections.
Code to reproduce
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
crs = ccrs.LambertConformal(central_longitude=145,
central_latitude=-37.2, standard_parallels=(-37, -38))
ax = plt.axes(projection=crs)
bounds = [-30000, 30000, -100000, -30000]
ax.set_extent(bounds, crs=crs)
ax.add_feature(cfeature.LAND)
ax.add_feature(cfeature.COASTLINE)
gl = ax.gridlines(crs=ccrs.PlateCarree(), draw_labels=True)
plt.show()
Full environment definition
Operating system
Windows 10
Cartopy version
0.20.1
