Validate format constraints on string properties as described in OpenAPI 3.0 spec

[daffinm]

For example, the following fragment gives no warnings or errors and yet it is not legal according to the specification.

---
openapi: "3.0.0"
info:
  version: "1.0.0"
  title: Whatever you like
  description: API_description
  termsOfService: EXPECT ERROR: Spec says "MUST be in the format of a URL."
  contact:
    name: contact_name
    url: EXPECT ERROR: Spec says "MUST be in the format of a URL."
    email: EXPECT ERROR: Spec says "MUST be in the format of an email address."
  license:
    name: MIT
    url: EXPECT ERROR: Spec says "MUST be in the format of a URL."
paths: {}

@tedepstein comments:

It's a general problem that traces back to the fact that our JSON schema is auto-generated by a markdown spec-scraping utility built by Tim Burks for the Google Gnostic OSS project. That utility doesn't scrape the format requirement, so we have to scour the spec for these constraints. A search through the spec for "Must be in the format" should help here.

[tedepstein]

@daffinm , thanks for logging this. Please apply the "OpenAPIv3" label to these issues, as I've done on this one.

[ghillairet]

PR #415 shows how to add email validation.

[ghillairet]

In PR #415 I put some screencasts showing the current state of url/email validation. Those work in the v2 editor because the v2 schema includes the format email and uri for those properties.

But as shown in the screencasts the validation of url values may be not what we expect (for example a value foo is consider valid URI). The JSON schema validator that we are using, constructs a java.net.URI object to validate those values (see code). According to the JSON schema specification, this is correct because only the format uri is considered. There is a discussion about whether adding url as format for URL validation should be considered or not.

The OpenAPI v3 specification states that those properties should be valid URL. If that means that in this case URI should not be considered, then we could implement our own URL validator (that uses java.net.URL instead of java.net.URI). Or we could consider the current validation sufficient and only adds the missing format properties in the v3 schema.

[tedepstein]

@ghillairet, I didn't read the entire background on URI vs. URL. But another aspect of this is relative vs. absolute URIs / URLs. Assuming relative URLs are allowed, something like "foo" might actually be valid, syntactically.

In general. I don't think it's worth implementing our own validation for URL syntax.

Where the URL is used as part of a Reference Object (or other reference-object-like construct), we have the additional validation to ensure that the URL resolves to a valid object of the expected type. I think that covers the most important cases for us.

[daffinm]

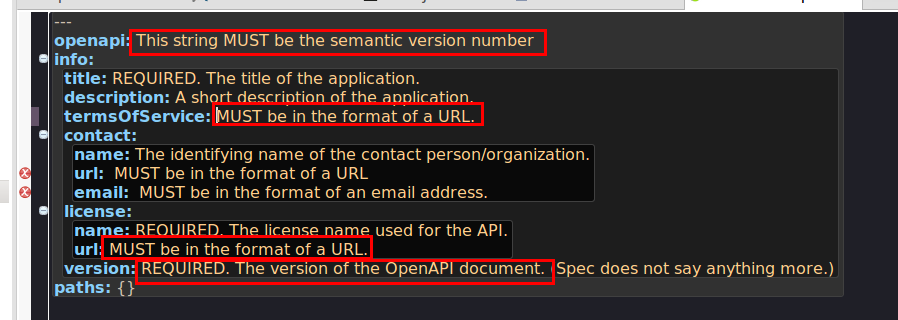

Just looking at this again as I prep the new release. In the following code sample the values are all direct quotations from the spec. I now get 2 errors instead of none. But I am expecting to see 4, perhaps 6 errors in total:

The contact url and email errors are spot on. But what about errors for info/termsOfService & license/url? (The other two are possibilities. Is a sentence value for openapi really valid?)

Note also that the spec clearly says URL and not URI. Why can't we just use a regex?

[tedepstein]

I think openapi should report an error if the value doesn't conform to a semantic version with the major component 3.

info/version should probably not be validated, except that it must be present and (I guess) must be a non-null value. Users can have different ways of expressing versions.

URLs are what we discussed in this PR, above. I'm open to trying a regex as our own custom validation of URL-format string properties. But I really don't want to burn a lot of development time or support time on this. If we think the URL regex will be foolproof, OK, let's try it.
