Grafana GUI not showing roofline model

Open afanfa opened this issue 2 years ago • 4 comments

When using ROCm-5.4.x with versions 1.0.7 and 1.0.6 of Omniperf, the lines of the roofline model do not show up in the Grafana GUI. When using the web GUI the roofline is displayed correctly. Even though the profile was run on GCD 0 of MI250X, on both the Grafana and web GUI it shows as being collected on GCD 4. If I manually change the data gathered during the profile in the roofline.txt file from being captured from GCD 0 to GCD 4 the roofline shows up correctly on the Grafana GUI.

afanfa avatar Feb 27 '23 17:02 afanfa

Investigating whether or not this is a Thera specific issue. Findings below:

Notice in Case 1 (ran on Thera), pmc_perf.csv is reporting gpu-id of 8. This is unexpected, my expectation and what is usually reported is id 0.

Why roofline plot isn't visible?

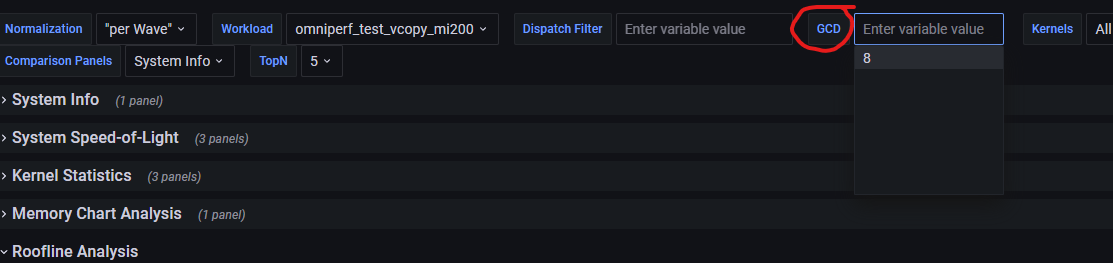

Grafana UI offers a gpu-id filter, which lists all unique values from pmc_perf.csv's gpu-id column. In Case 1, that would be image

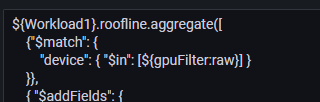

Roofline analysis is plotted such that gpu-id is first filtered from the roofline.csv data image

However, we can see device id 8 is not present in roofline.csv which is why no lines are plotted.

Case 1:

$ salloc -p pumice -N 1 --exclusive -t 01:00:00
$ omniperf profile -n vcopy -- ~/vcopy 1048576 256
....

$ cat workloads/vcopy/mi200/pmc_perf.csv
Index,KernelName,gpu-id,queue-id,queue-index,pid,...
0,"vecCopy(double*, double*, double*, int, int) [clone .kd]",8,0,0,3009914,...

$ cat workloads/vcopy/mi200/roofline.csv
device,HBMBw,...
0,1387.9971,...
1,1388.309,...
2,1388.412,...
3,1388.55,...
