docs: fix typo diagramm

[forresst]

What is it?

• [ ] Feature / enhancement
• [ ] Bug
• [X] Docs / tests

Description

The life cycle diagram contains errors.

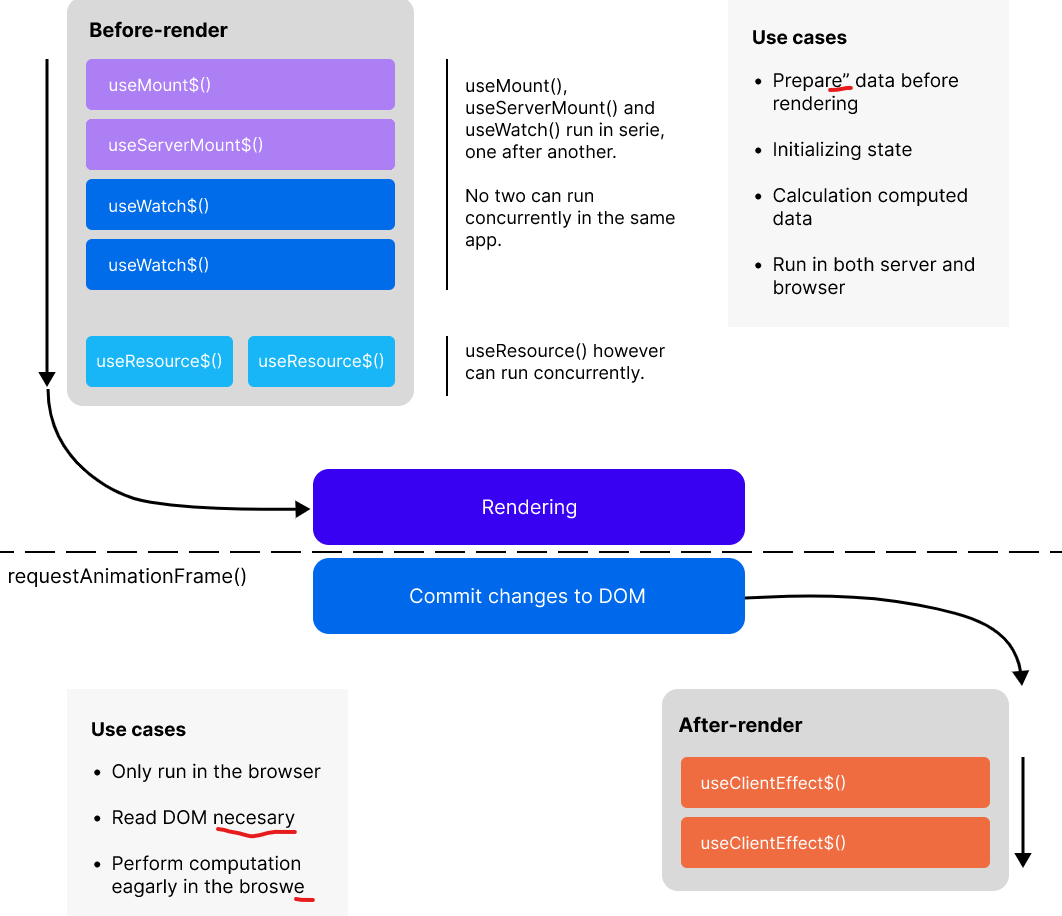

Before:

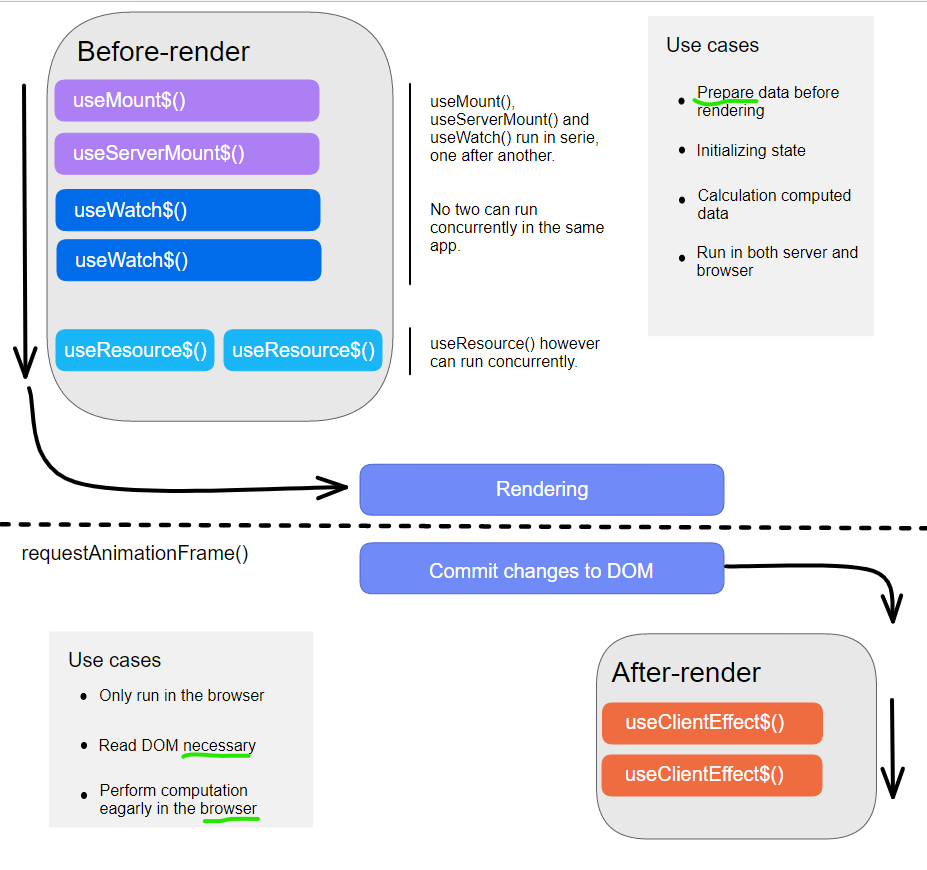

After:

I decided to redraw the diagram with Excalidraw trying to respect the original SVG.

There are several advantages to this:

• The file size is smaller (271 ko -> 53 ko)
• the SVG contains the Excalidraw scene, so it will be easier to modify it by opening this file in Excalidraw.

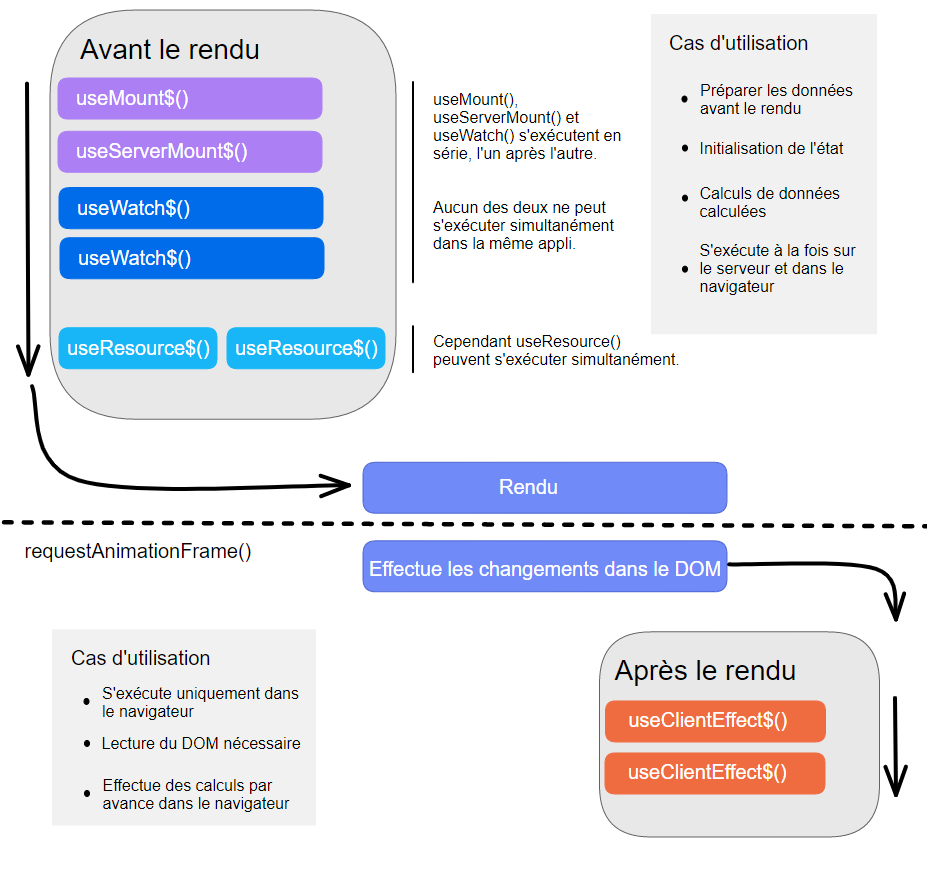

• it also makes it easier to translate the diagram into another language. Here is the example in French using Excalidraw:

Use cases and why

Nope

Checklist:

• [X] My code follows the developer guidelines of this project
• [X] I have performed a self-review of my own code
• [X] I have made corresponding changes to the documentation
• [ ] Added new tests to cover the fix / functionality

[bolt-new-by-stackblitz[bot]]

Run & review this pull request in StackBlitz Codeflow.

[zanettin]

Hi @forresst Thanks a lot for updating this file 🙏 Just wanted to check where the file is actually used and it looks like it is imported but never displayed atm 🙈 (or i am just blind.. 👀 😆 ) docs page: https://qwik.builder.io/docs/components/lifecycle/ docs file: https://github.com/BuilderIO/qwik/blob/main/packages/docs/src/routes/docs/components/lifecycle/index.mdx

[shairez]

yeah this was changed @zanettin you are correct, thanks for checking!

Thanks so much for this @forresst ! sorry this hasn't got merged, we appreciate your work on this!

[forresst]

OK if it is not visible, it is not interesting.
