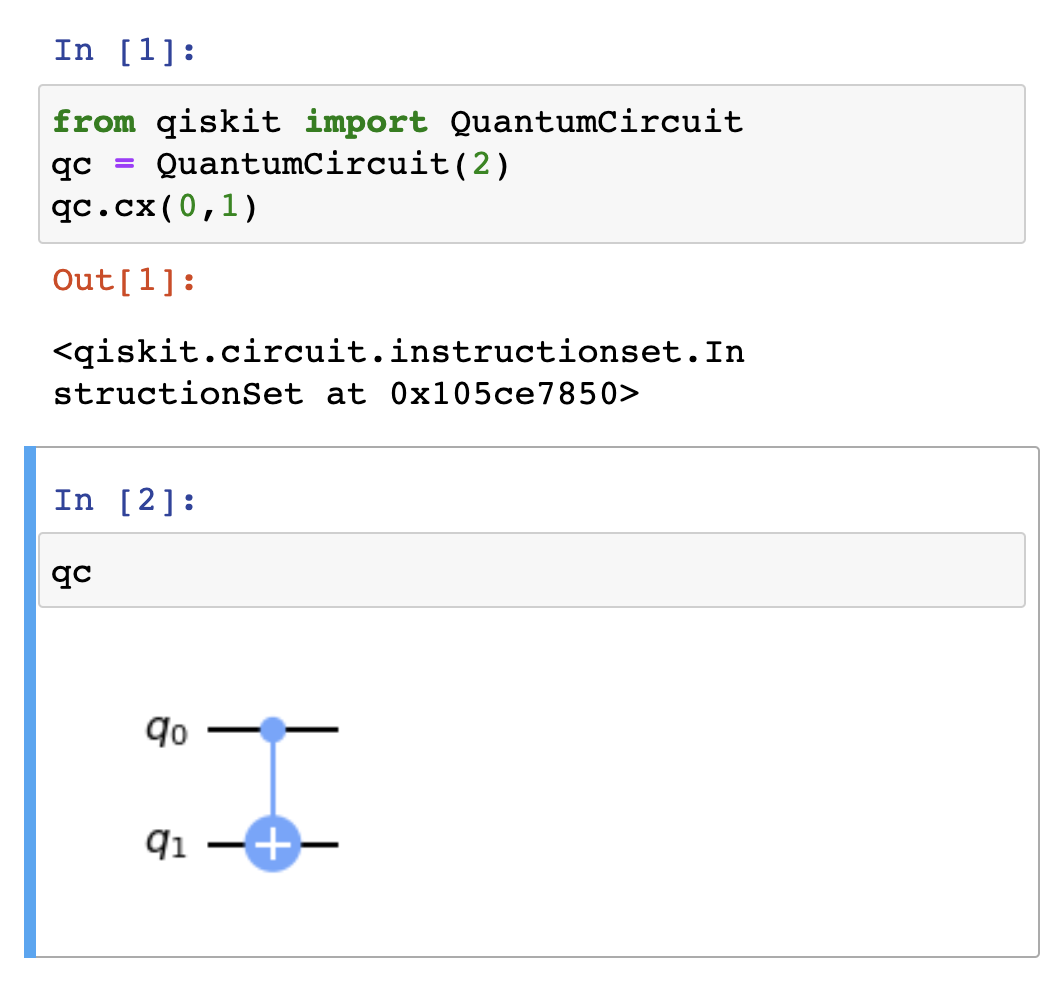

_repr_png_ in QuantumCircuit allows nice output when circuits are the last stmt in jupyter notebooks
By extending QuantumCircuit with _ipython_display_ "drawing" circuits in jupyter notebooks is even more direct.
Before, qc.draw('mpl') needs to be used. This PR chooses 'mpl' drawer if matplotlib is installed, 'text' otherwise.
This probably needs extra logic as you can easily hang an users system at large circuit sizes when auto drawing.
Good point. Do you limiting this to a particular circuit depth would also help? For example, draw only when circuit depth is less than 30. Same for size. What a good limit would be?
In c72b492 I added limits. If self.width() > 70 or self.size() > 100 or self.depth() > 30, the output is the default one and does not try to draw it.
