Problème de Téléversement

[Tam-Koowan]

Bonjour, j'ai essayé de téléverser sur mon arduino mais j'ai une erreur: Fonts/Aurebesh_6pt.h: No such file or directory

Pourriez-vous m'aider ?

Hello, I tried to upload on my arduino but I have an error: Fonts / Aurebesh_6pt.h: No such file or directory Could you help me ?

[PropTroniX]

Here is the Font needed.

Unzip it to a folder called Fonts inside your Arduino Libraries Folder Aurebesh_6pt.h.zip

[Tam-Koowan]

I did it but it did not change anything I always have the same mistake

Je l'ai fait mais cela n'a rien changer j'ai toujours la même erreur

[Tam-Koowan]

I found the problem. I replaced the <> by "in the next line #include "Fonts / Aurebesh_6pt.h" in the tab: "OLED.CPP"

[likemike973]

Has anyone seen this issue? I cannot download the program because of a missing file. I cannot find the file in the zip file. Thanks! sketch\Adafruit-GFX-Library-master\fontconvert\fontconvert.c:23:22: fatal error: ft2build.h: No such file or directory

#include <ft2build.h>

[PropTroniX]

Hi, on a Mac is part of the system located here - /opt/X11/include/freetype2/ft2build.h

Not sure about Widows though

Its to do with Freetype Fonts

Regards Phil

[Protonerd]

Interesting, I also do not have this file on my WIN PC, but I never had this error message. The fontconverter is a utility of the GFX library and not strictly speaking needed by FX-BlasterOS. I also did not find the link between the GFX lib referencing to the fontconverter...can you try simply deleting the fontconverter library?

One hint: when you download a new board package for the Arduino IDE, some default libraries will be downloaded with it. Therefore please check if you have multiple copies of the Adafruit_GFX library. Delete all of them bar the one you placed in your library folder (see https://github.com/Protonerd/FX-SaberOS/wiki/Setting-up-Arduino Step 6)

[PropTroniX]

It would help if you could add the code/file you are trying to upload. Also what version of the GFX Library are you using?

[dinho1967]

I did not realize yet how to connect (wire) scope, I just wired other display....I m noobie in arduino, but as far I know in order to connect two Oled at same time will be required to change address (physically) in one display or add a multiplexer board...question do you folks have wiring diagram for MK-X?

[Protonerd]

You can only connect either the status display or the scope as Oled, not both. The former needs an Oled if size 128x32, latter one with 64x44. Wiring-wise they both use I2C

[dinho1967]

Tks Andras!!! 2 more questions:

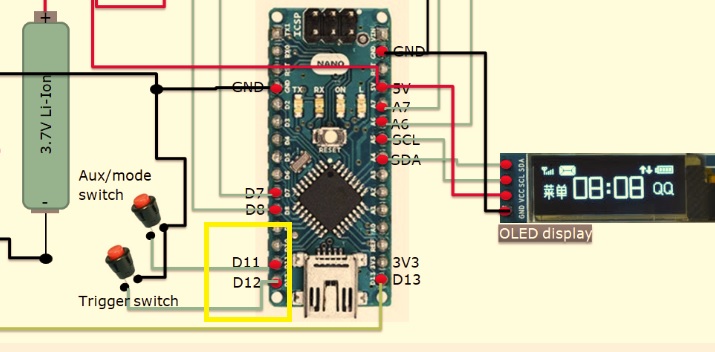

a) How about buttons wiring, I saw in the old diagram that arduino pin D12 wires with "Trigger" and D11 with Auxiliar Mode, but in the arduino code appears "#define AUX_BUTTON 4"...

a) Operation...how to swap between one display and other? should we define in the code library first or we do that by Buttons?

[Tam-Koowan]

J'ai maintenant un nouveau problème de téléversement, je suis l'IDE 1.8.13 et lors du téléversement j'ai cette erreur :

In file included from D:\Créations\Star Wars\Sons Sabre et Blaster\FX-BlasterOS\FX-BlasterOS-master\FX-BlasterOS\FX-BlasterOS.ino:10:0: D:\Créations\Star Wars\Sons Sabre et Blaster\FX-BlasterOS\FX-BlasterOS-master\FX-BlasterOS\FX-BlasterOS.ino: In function 'void sleepNow()': FX-BlasterOS:872:18: error: 'BODS' was not declared in this scope C:\Users\Tam Koowan\AppData\Local\Arduino15\packages\arduino\hardware\avr\1.8.3\cores\arduino/Arduino.h:124:25: note: in definition of macro 'bit' #define bit(b) (1UL << (b)) ^ D:\Créations\Star Wars\Sons Sabre et Blaster\FX-BlasterOS\FX-BlasterOS-master\FX-BlasterOS\FX-BlasterOS.ino:872:18: note: suggested alternative: 'BORF' C:\Users\Tam Koowan\AppData\Local\Arduino15\packages\arduino\hardware\avr\1.8.3\cores\arduino/Arduino.h:124:25: note: in definition of macro 'bit' #define bit(b) (1UL << (b)) ^ FX-BlasterOS:872:31: error: 'BODSE' was not declared in this scope C:\Users\Tam Koowan\AppData\Local\Arduino15\packages\arduino\hardware\avr\1.8.3\cores\arduino/Arduino.h:124:25: note: in definition of macro 'bit' #define bit(b) (1UL << (b)) ^ Plusieurs bibliothèque trouvées pour "SPI.h" Utilisé : C:\Users\Tam Koowan\AppData\Local\Arduino15\packages\arduino\hardware\avr\1.8.3\libraries\SPI Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\SPI Plusieurs bibliothèque trouvées pour "Wire.h" Utilisé : C:\Users\Tam Koowan\AppData\Local\Arduino15\packages\arduino\hardware\avr\1.8.3\libraries\Wire Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Wire Plusieurs bibliothèque trouvées pour "Adafruit_GFX.h" Utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Adafruit_GFX_Library Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Adafruit-GFX-Library-master Plusieurs bibliothèque trouvées pour "Adafruit_SSD1306.h" Utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Adafruit_SSD1306 Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Adafruit_SSD1306-master Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\Adafruit_SSD1306-master_64x32 Plusieurs bibliothèque trouvées pour "DFPlayer.h" Utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\DFPlayer Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\FX-SaberOS Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\DFPlayer_LSOS Non utilisé : C:\Users\Tam Koowan\Documents\Arduino\libraries\LightSaberOS exit status 1 'BODS' was not declared in this scope

Pouvez-vous m'aidez svp
