Delete annotation from anno list

Open mejackreed opened this issue 5 years ago • 0 comments

Split out from #6

Delete annotation

  • Tooltip: Delete
  • Icon: delete_forever - https://material.io/resources/icons/?search=trash&icon=delete_forever&style=sharp

If the user selects the Delete action:

  • Update the sidebar annotation item and canvas target highlighting
  • Display a Dialog component (I think we want an "alert" style, in that it should be pretty simple.)

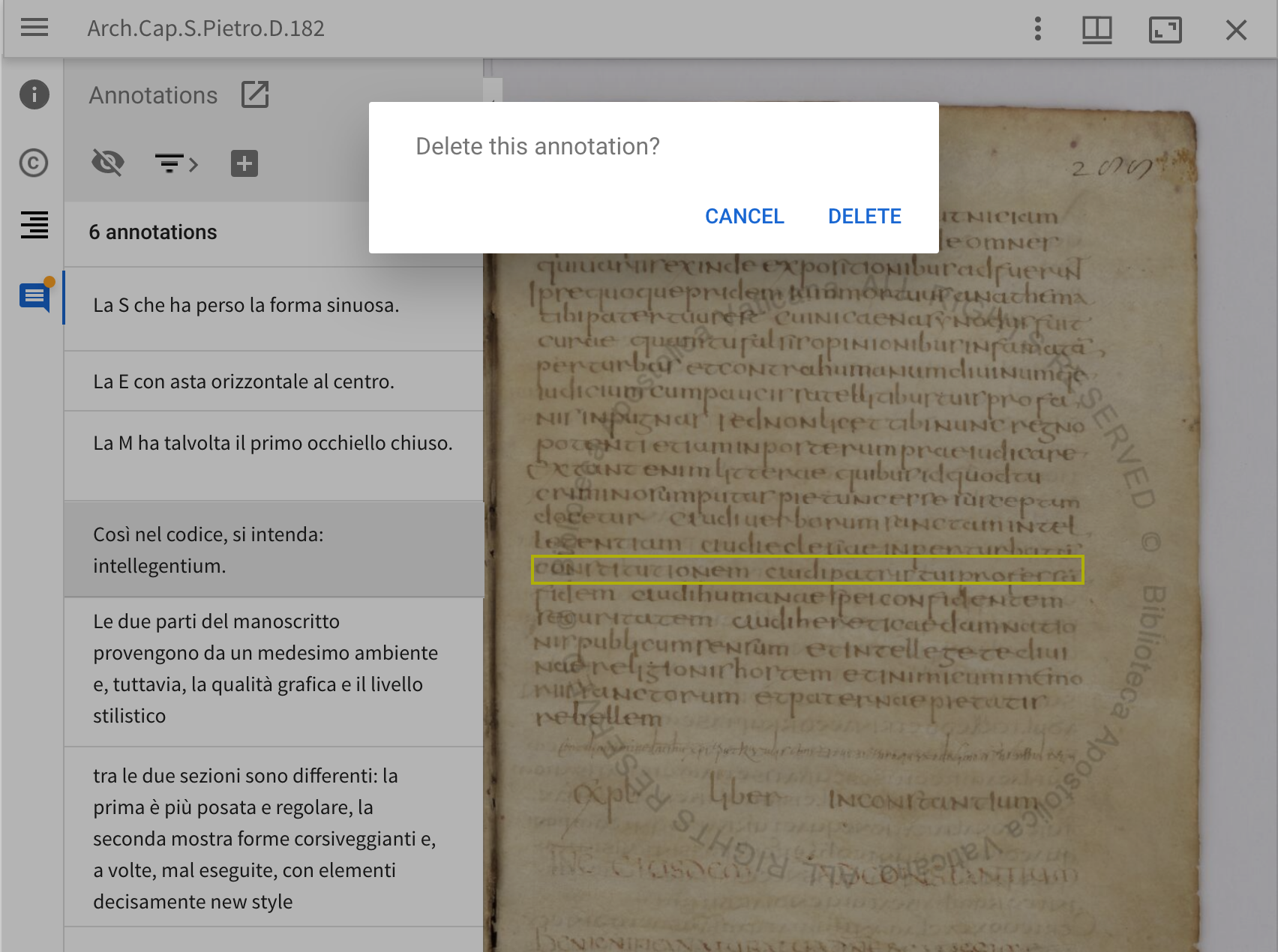

Screen Shot 2020-05-14 at 4 43 11 PM

Dialog details:

  • Text: Delete this annotation?
  • Buttons: CANCEL and DELETE

If the user selects the Cancel button, the dialog disappears and we remove the current annotation item highlighting.

If the user selects the DELETE button:

  • Remove the annotation from the annotationpage
  • Update the annotation sidebar to reflect the deleted annotation's removal and update the new annotation count message
  • Display a snackbar component with a confirmation message:
Screen Shot 2020-05-14 at 4 10 43 PM

Snackbar details:

  • Position: top-center
  • Background color: primary_color
  • Text: Annotation saved
  • Button: DISMISS
  • Auto-dismiss: after 3 seconds

mejackreed avatar May 19 '20 11:05 mejackreed
