I met a segmentation fault
Following is code:
#include <cstdlib>
#include <iostream>
#include <stdexcept>
#include <GLFW/glfw3.h>
#include <vulkan/vulkan.h>
#define GLFW_INCLUDE_VULKAN
const uint32_t WIDTH = 800;
const uint32_t HEIGHT = 600;
class HTA {
public:
void run();
private:
GLFWwindow *window;
VkInstance instance;
void initWindow();
void initVulkan();
void mainLoop();
void cleanUp();
void createInstance();
};
void HTA::run()
{
initWindow();
initVulkan();
mainLoop();
cleanUp();
}
void HTA::initWindow()
{
glfwInit();
glfwWindowHint(GLFW_CLIENT_API, GLFW_NO_API);
glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE);
window = glfwCreateWindow(WIDTH, HEIGHT, "Vulkan Triangle", nullptr, nullptr);
}
void HTA::initVulkan()
{
createInstance();
}
void HTA::mainLoop()
{
while (!glfwWindowShouldClose(window)) {
glfwPollEvents();
}
}
void HTA::cleanUp()
{
vkDestroyInstance(instance, nullptr);
glfwDestroyWindow(window);
glfwTerminate();
}
void HTA::createInstance()
{
VkApplicationInfo appInfo{};
appInfo.sType = VK_STRUCTURE_TYPE_APPLICATION_INFO;
appInfo.apiVersion = VK_API_VERSION_1_0;
appInfo.pEngineName = "No Engine";
appInfo.engineVersion = VK_MAKE_VERSION(1, 0, 0);
appInfo.pApplicationName = "Hello Triangle";
appInfo.applicationVersion = VK_MAKE_VERSION(1, 0, 0);
VkInstanceCreateInfo createInfo;
createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
createInfo.pApplicationInfo = &appInfo;
uint32_t glfwExtensionCount = 0;
const char **glfwExtensions = glfwGetRequiredInstanceExtensions(&glfwExtensionCount);
createInfo.enabledExtensionCount = glfwExtensionCount;
createInfo.ppEnabledExtensionNames = glfwExtensions;
createInfo.enabledLayerCount = 0;
if (vkCreateInstance(&createInfo, nullptr, &instance) != VK_SUCCESS) {
throw std::runtime_error("failed to create Vulkan Instance!");
}
}
int main()
{
HTA app;
try {
app.run();
} catch (const std::exception &e) {
std::cerr << e.what() << "\n";
return EXIT_FAILURE;
}
return EXIT_SUCCESS;
}
compile with:
g++ --std=c++17 -Wall -Wextra -O2 -lglfw -lvulkan -ldl -lpthread -lX11 -lXxf86vm -lXrandr -lXi -o 00base 00base.cpp
gcc version is 10.2
show me the segmentation fault when i run it
zsh: segmentation fault (core dumped) ./00base
what's the problem?
Can you run it with debugger to see where it comes from ? it's always a good way to find a bug.
I can see a thing from the code standpoint: the GLFW_INCLUDE_VULKAN define have to be defined before including glfw, but you either include vulkan yourself or let glfw do it for you with the define, but don't do the two.
I already add -g option to compiled and run with gdb.
Set many breakpoint and run it. But no found.
(also no coredump file generator)
I tried to change GLFW_INCLUDE_VULKAN as your suggested.
The same result.
Okay, can you modify the glfw initialization step like this :
void HTA::initWindow()
{
if (!glfwInit()) {
exit -1;
}
glfwWindowHint(GLFW_CLIENT_API, GLFW_NO_API);
glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE);
window = glfwCreateWindow(WIDTH, HEIGHT, "Vulkan Triangle", nullptr, nullptr);
if (window == NULL) {
exit -2;
}
}
It should help telling if it comes from glfw.
I just tested your exemple, and I did not get any error, so I suggest you verify if your installation is correct: GLFW is installed as a library and a development library, and same for vulkan (or via the sdk).
I tested this code:
void HTA::initWindow()
{
if (!glfwInit()) {
exit -1;
}
glfwWindowHint(GLFW_CLIENT_API, GLFW_NO_API);
glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE);
window = glfwCreateWindow(WIDTH, HEIGHT, "Vulkan Triangle", nullptr, nullptr);
if (window == NULL) {
exit -2;
}
}
Also the same result.
I think the GLFW is no problem with installation.
I wrote other GLFW program can work as normal.
Maybe the Vulkancan has problem.

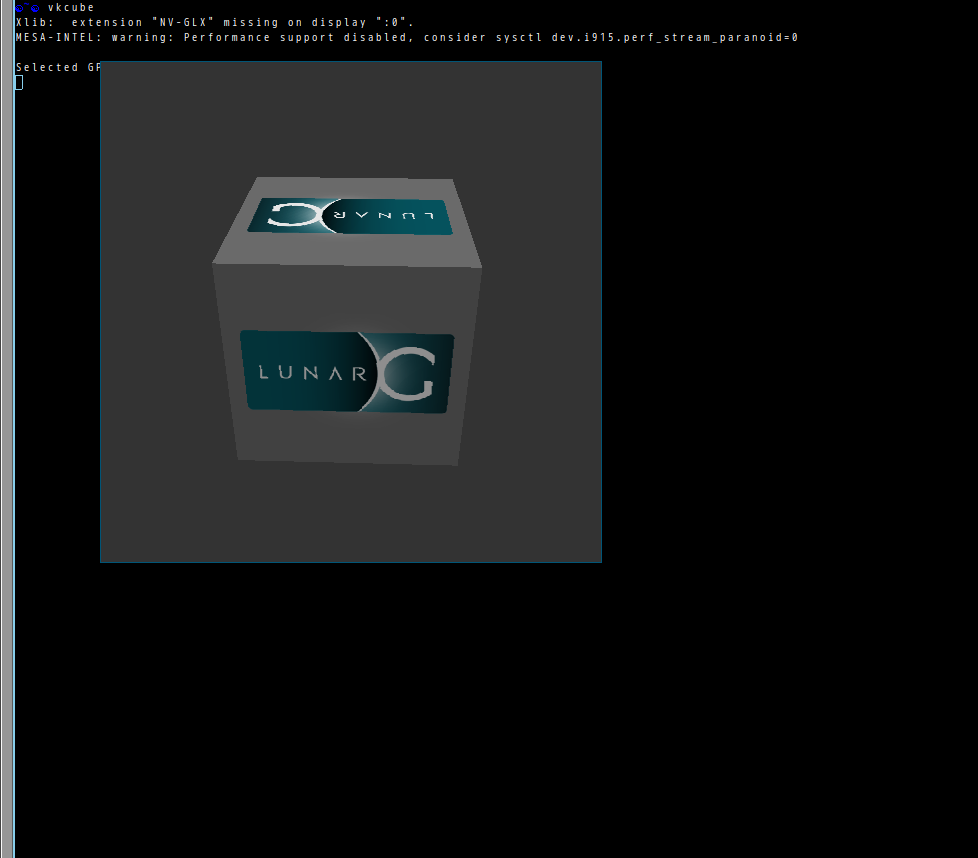

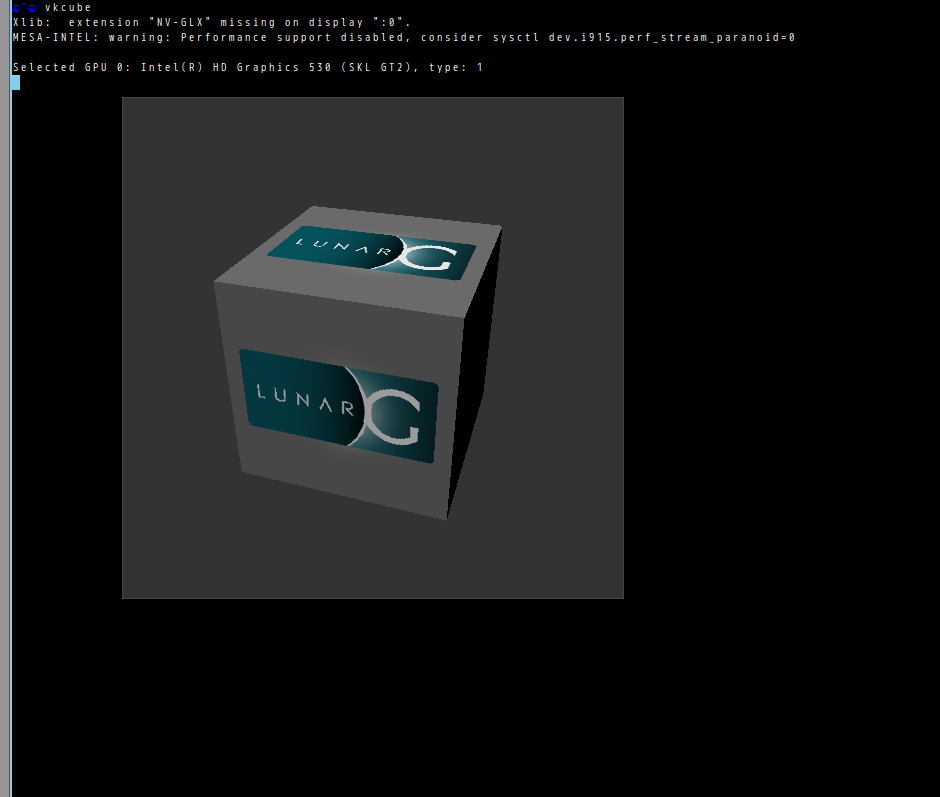

But i run the vkcube is normal.
Following is what Vulkan package i installed.
extra/spirv-tools 2020.6-1 (vulkan-devel) [installed]
extra/vulkan-headers 1:1.2.171-1 (vulkan-devel) [installed]
extra/vulkan-icd-loader 1.2.171-1 [installed]
extra/vulkan-intel 20.3.4-3 [installed]
extra/vulkan-tools 1.2.171-1 (vulkan-devel) [installed]
extra/vulkan-validation-layers 1.2.166-1 (vulkan-devel) [installed]
I use Arch Linux and installed that with pacman.
Did not download the SDK directly.
Is that a problem?
It's odd, I also developed some Vulkan programs on an Arch machine and never had this behavior.
Are the examples running ? like vulkaninfo or vkcube
@fake-rookie do you have more than one GPU?
Since I updated kernel recently, I got segfaults that I don't remember having before.
I've got an intel GPU and discrete nvidia in my laptop, running Arch.
Have a feeling this is different from your issue, as you can run vkcube without something like the following.
VK_ICD_FILENAMES=/usr/share/vulkan/icd.d/intel_icd.x86_64.json vkcube
^ the icd file may of course be different
The information of vulkaninfo:
==========
VULKANINFO
==========
Vulkan Instance Version: 1.2.171
Instance Extensions: count = 18
===============================
VK_EXT_acquire_xlib_display : extension revision 1
VK_EXT_debug_report : extension revision 6
VK_EXT_debug_utils : extension revision 2
VK_EXT_direct_mode_display : extension revision 1
VK_EXT_display_surface_counter : extension revision 1
VK_KHR_device_group_creation : extension revision 1
VK_KHR_display : extension revision 21
VK_KHR_external_fence_capabilities : extension revision 1
VK_KHR_external_memory_capabilities : extension revision 1
VK_KHR_external_semaphore_capabilities : extension revision 1
VK_KHR_get_display_properties2 : extension revision 1
VK_KHR_get_physical_device_properties2 : extension revision 1
VK_KHR_get_surface_capabilities2 : extension revision 1
VK_KHR_surface : extension revision 25
VK_KHR_surface_protected_capabilities : extension revision 1
VK_KHR_wayland_surface : extension revision 6
VK_KHR_xcb_surface : extension revision 6
VK_KHR_xlib_surface : extension revision 6
Layers: count = 2
=================
VK_LAYER_KHRONOS_validation (Khronos Validation Layer) Vulkan version 1.2.166, layer version 1:
Layer Extensions: count = 3
VK_EXT_debug_report : extension revision 9
VK_EXT_debug_utils : extension revision 1
VK_EXT_validation_features : extension revision 2
Devices: count = 1
GPU id = 0 (Intel(R) HD Graphics 530 (SKL GT2))
Layer-Device Extensions: count = 3
VK_EXT_debug_marker : extension revision 4
VK_EXT_tooling_info : extension revision 1
VK_EXT_validation_cache : extension revision 1
VK_LAYER_LUNARG_vktrace (Vktrace tracing library) Vulkan version 1.2.141, layer version 1:
Layer Extensions: count = 0
Devices: count = 1
GPU id = 0 (Intel(R) HD Graphics 530 (SKL GT2))
Layer-Device Extensions: count = 0
Presentable Surfaces:
=====================
GPU id : 0 (Intel(R) HD Graphics 530 (SKL GT2)):
Surface types: count = 2
VK_KHR_xcb_surface
VK_KHR_xlib_surface
Formats: count = 2
SurfaceFormat[0]:
format = FORMAT_B8G8R8A8_SRGB
colorSpace = COLOR_SPACE_SRGB_NONLINEAR_KHR
SurfaceFormat[1]:
format = FORMAT_B8G8R8A8_UNORM
colorSpace = COLOR_SPACE_SRGB_NONLINEAR_KHR
Present Modes: count = 4
PRESENT_MODE_IMMEDIATE_KHR
PRESENT_MODE_MAILBOX_KHR
PRESENT_MODE_FIFO_KHR
PRESENT_MODE_FIFO_RELAXED_KHR
VkSurfaceCapabilitiesKHR:
-------------------------
minImageCount = 3
maxImageCount = 0
currentExtent:
width = 256
height = 256
minImageExtent:
width = 256
height = 256
maxImageExtent:
width = 256
height = 256
maxImageArrayLayers = 1
supportedTransforms: count = 1
SURFACE_TRANSFORM_IDENTITY_BIT_KHR
currentTransform = SURFACE_TRANSFORM_IDENTITY_BIT_KHR
supportedCompositeAlpha: count = 2
COMPOSITE_ALPHA_OPAQUE_BIT_KHR
COMPOSITE_ALPHA_INHERIT_BIT_KHR
supportedUsageFlags: count = 5
IMAGE_USAGE_TRANSFER_SRC_BIT
IMAGE_USAGE_TRANSFER_DST_BIT
IMAGE_USAGE_SAMPLED_BIT
IMAGE_USAGE_STORAGE_BIT
IMAGE_USAGE_COLOR_ATTACHMENT_BIT
VkSurfaceCapabilities2EXT:
--------------------------
supportedSurfaceCounters: count = 0
None
VkSurfaceProtectedCapabilitiesKHR:
----------------------------------
supportsProtected = false
Device Groups:
==============
Group 0:
Properties:
physicalDevices: count = 1
Intel(R) HD Graphics 530 (SKL GT2) (ID: 0)
subsetAllocation = 0
Present Capabilities:
Intel(R) HD Graphics 530 (SKL GT2) (ID: 0):
Can present images from the following devices: count = 1
Intel(R) HD Graphics 530 (SKL GT2) (ID: 0)
Present modes: count = 1
DEVICE_GROUP_PRESENT_MODE_LOCAL_BIT_KHR
Device Properties and Extensions:
=================================
GPU0:
VkPhysicalDeviceProperties:
---------------------------
apiVersion = 4202641 (1.2.145)
driverVersion = 83898372 (0x5003004)
vendorID = 0x8086
deviceID = 0x191b
deviceType = PHYSICAL_DEVICE_TYPE_INTEGRATED_GPU
deviceName = Intel(R) HD Graphics 530 (SKL GT2)
VkPhysicalDeviceLimits:
-----------------------
maxImageDimension1D = 16384
maxImageDimension2D = 16384
maxImageDimension3D = 2048
maxImageDimensionCube = 16384
maxImageArrayLayers = 2048
maxTexelBufferElements = 134217728
maxUniformBufferRange = 134217728
maxStorageBufferRange = 1073741824
maxPushConstantsSize = 128
maxMemoryAllocationCount = 4294967295
maxSamplerAllocationCount = 65536
bufferImageGranularity = 0x00000040
sparseAddressSpaceSize = 0x00000000
maxBoundDescriptorSets = 8
maxPerStageDescriptorSamplers = 65535
maxPerStageDescriptorUniformBuffers = 64
maxPerStageDescriptorStorageBuffers = 65535
maxPerStageDescriptorSampledImages = 65535
maxPerStageDescriptorStorageImages = 65535
maxPerStageDescriptorInputAttachments = 64
maxPerStageResources = 4294967295
maxDescriptorSetSamplers = 393210
maxDescriptorSetUniformBuffers = 384
maxDescriptorSetUniformBuffersDynamic = 8
maxDescriptorSetStorageBuffers = 393210
maxDescriptorSetStorageBuffersDynamic = 8
maxDescriptorSetSampledImages = 393210
maxDescriptorSetStorageImages = 393210
maxDescriptorSetInputAttachments = 256
maxVertexInputAttributes = 28
maxVertexInputBindings = 28
maxVertexInputAttributeOffset = 2047
maxVertexInputBindingStride = 2048
maxVertexOutputComponents = 128
maxTessellationGenerationLevel = 64
maxTessellationPatchSize = 32
maxTessellationControlPerVertexInputComponents = 128
maxTessellationControlPerVertexOutputComponents = 128
maxTessellationControlPerPatchOutputComponents = 128
maxTessellationControlTotalOutputComponents = 2048
maxTessellationEvaluationInputComponents = 128
maxTessellationEvaluationOutputComponents = 128
maxGeometryShaderInvocations = 32
maxGeometryInputComponents = 64
maxGeometryOutputComponents = 128
maxGeometryOutputVertices = 256
maxGeometryTotalOutputComponents = 1024
maxFragmentInputComponents = 116
maxFragmentOutputAttachments = 8
maxFragmentDualSrcAttachments = 1
maxFragmentCombinedOutputResources = 8
maxComputeSharedMemorySize = 65536
maxComputeWorkGroupCount: count = 3
65535
65535
65535
maxComputeWorkGroupInvocations = 1792
maxComputeWorkGroupSize: count = 3
1792
1792
1792
subPixelPrecisionBits = 8
subTexelPrecisionBits = 8
mipmapPrecisionBits = 8
maxDrawIndexedIndexValue = 4294967295
maxDrawIndirectCount = 4294967295
maxSamplerLodBias = 16
maxSamplerAnisotropy = 16
maxViewports = 16
maxViewportDimensions: count = 2
16384
16384
viewportBoundsRange: count = 2
-32768
32767
viewportSubPixelBits = 13
minMemoryMapAlignment = 4096
minTexelBufferOffsetAlignment = 0x00000010
minUniformBufferOffsetAlignment = 0x00000040
minStorageBufferOffsetAlignment = 0x00000004
minTexelOffset = -8
maxTexelOffset = 7
minTexelGatherOffset = -32
maxTexelGatherOffset = 31
minInterpolationOffset = -0.5
maxInterpolationOffset = 0.4375
subPixelInterpolationOffsetBits = 4
maxFramebufferWidth = 16384
maxFramebufferHeight = 16384
maxFramebufferLayers = 2048
framebufferColorSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
framebufferDepthSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
framebufferStencilSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
framebufferNoAttachmentsSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
maxColorAttachments = 8
sampledImageColorSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
sampledImageIntegerSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
sampledImageDepthSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
sampledImageStencilSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
storageImageSampleCounts: count = 1
SAMPLE_COUNT_1_BIT
maxSampleMaskWords = 1
timestampComputeAndGraphics = true
timestampPeriod = 83.3333
maxClipDistances = 8
maxCullDistances = 8
maxCombinedClipAndCullDistances = 8
discreteQueuePriorities = 2
pointSizeRange: count = 2
0.125
255.875
lineWidthRange: count = 2
0
2047.99
pointSizeGranularity = 0.125
lineWidthGranularity = 0.0078125
strictLines = false
standardSampleLocations = true
optimalBufferCopyOffsetAlignment = 0x00000080
optimalBufferCopyRowPitchAlignment = 0x00000080
nonCoherentAtomSize = 0x00000040
VkPhysicalDeviceSparseProperties:
---------------------------------
residencyStandard2DBlockShape = false
residencyStandard2DMultisampleBlockShape = false
residencyStandard3DBlockShape = false
residencyAlignedMipSize = false
residencyNonResidentStrict = false
VkPhysicalDeviceCustomBorderColorPropertiesEXT:
-----------------------------------------------
maxCustomBorderColorSamplers = 4096
VkPhysicalDeviceDepthStencilResolveProperties:
----------------------------------------------
supportedDepthResolveModes: count = 4
RESOLVE_MODE_SAMPLE_ZERO_BIT
RESOLVE_MODE_AVERAGE_BIT
RESOLVE_MODE_MIN_BIT
RESOLVE_MODE_MAX_BIT
supportedStencilResolveModes: count = 3
RESOLVE_MODE_SAMPLE_ZERO_BIT
RESOLVE_MODE_MIN_BIT
RESOLVE_MODE_MAX_BIT
independentResolveNone = true
independentResolve = true
VkPhysicalDeviceDescriptorIndexingProperties:
---------------------------------------------
maxUpdateAfterBindDescriptorsInAllPools = 1048576
shaderUniformBufferArrayNonUniformIndexingNative = false
shaderSampledImageArrayNonUniformIndexingNative = false
shaderStorageBufferArrayNonUniformIndexingNative = true
shaderStorageImageArrayNonUniformIndexingNative = false
shaderInputAttachmentArrayNonUniformIndexingNative = false
robustBufferAccessUpdateAfterBind = true
quadDivergentImplicitLod = false
maxPerStageDescriptorUpdateAfterBindSamplers = 1048576
maxPerStageDescriptorUpdateAfterBindUniformBuffers = 64
maxPerStageDescriptorUpdateAfterBindStorageBuffers = 4294967295
maxPerStageDescriptorUpdateAfterBindSampledImages = 1048576
maxPerStageDescriptorUpdateAfterBindStorageImages = 1048576
maxPerStageDescriptorUpdateAfterBindInputAttachments = 64
maxPerStageUpdateAfterBindResources = 4294967295
maxDescriptorSetUpdateAfterBindSamplers = 1048576
maxDescriptorSetUpdateAfterBindUniformBuffers = 384
maxDescriptorSetUpdateAfterBindUniformBuffersDynamic = 8
maxDescriptorSetUpdateAfterBindStorageBuffers = 4294967295
maxDescriptorSetUpdateAfterBindStorageBuffersDynamic = 8
maxDescriptorSetUpdateAfterBindSampledImages = 1048576
maxDescriptorSetUpdateAfterBindStorageImages = 1048576
maxDescriptorSetUpdateAfterBindInputAttachments = 256
VkPhysicalDeviceDriverProperties:
---------------------------------
driverID = DRIVER_ID_INTEL_OPEN_SOURCE_MESA
driverName = Intel open-source Mesa driver
driverInfo = Mesa 20.3.4
conformanceVersion = 1.2.0.0
VkPhysicalDeviceExternalMemoryHostPropertiesEXT:
------------------------------------------------
minImportedHostPointerAlignment = 0x00001000
VkPhysicalDeviceFloatControlsProperties:
----------------------------------------
denormBehaviorIndependence = SHADER_FLOAT_CONTROLS_INDEPENDENCE_ALL
roundingModeIndependence = SHADER_FLOAT_CONTROLS_INDEPENDENCE_NONE
shaderSignedZeroInfNanPreserveFloat16 = true
shaderSignedZeroInfNanPreserveFloat32 = true
shaderSignedZeroInfNanPreserveFloat64 = true
shaderDenormPreserveFloat16 = true
shaderDenormPreserveFloat32 = true
shaderDenormPreserveFloat64 = true
shaderDenormFlushToZeroFloat16 = false
shaderDenormFlushToZeroFloat32 = true
shaderDenormFlushToZeroFloat64 = true
shaderRoundingModeRTEFloat16 = true
shaderRoundingModeRTEFloat32 = true
shaderRoundingModeRTEFloat64 = true
shaderRoundingModeRTZFloat16 = true
shaderRoundingModeRTZFloat32 = true
shaderRoundingModeRTZFloat64 = true
VkPhysicalDeviceIDProperties:
-----------------------------
deviceUUID = 0112d384-bb34-477c-d4d9-3834ee059975
driverUUID = 222f4573-0cc7-4afd-1e64-6feddc42ab47
deviceNodeMask = 0
deviceLUIDValid = false
VkPhysicalDeviceInlineUniformBlockPropertiesEXT:
------------------------------------------------
maxInlineUniformBlockSize = 4096
maxPerStageDescriptorInlineUniformBlocks = 32
maxPerStageDescriptorUpdateAfterBindInlineUniformBlocks = 32
maxDescriptorSetInlineUniformBlocks = 32
maxDescriptorSetUpdateAfterBindInlineUniformBlocks = 32
VkPhysicalDeviceLineRasterizationPropertiesEXT:
-----------------------------------------------
lineSubPixelPrecisionBits = 4
VkPhysicalDeviceMaintenance3Properties:
---------------------------------------
maxPerSetDescriptors = 1024
maxMemoryAllocationSize = 0x80000000
VkPhysicalDeviceMultiviewProperties:
------------------------------------
maxMultiviewViewCount = 16
maxMultiviewInstanceIndex = 268435455
VkPhysicalDevicePCIBusInfoPropertiesEXT:
----------------------------------------
pciDomain = 0
pciBus = 0
pciDevice = 2
pciFunction = 0
VkPhysicalDevicePointClippingProperties:
----------------------------------------
pointClippingBehavior = POINT_CLIPPING_BEHAVIOR_USER_CLIP_PLANES_ONLY
VkPhysicalDeviceProtectedMemoryProperties:
------------------------------------------
protectedNoFault = false
VkPhysicalDevicePushDescriptorPropertiesKHR:
--------------------------------------------
maxPushDescriptors = 32
VkPhysicalDeviceRobustness2PropertiesEXT:
-----------------------------------------
robustStorageBufferAccessSizeAlignment = 0x00000004
robustUniformBufferAccessSizeAlignment = 0x00000040
VkPhysicalDeviceSamplerFilterMinmaxProperties:
----------------------------------------------
filterMinmaxSingleComponentFormats = true
filterMinmaxImageComponentMapping = true
VkPhysicalDeviceSubgroupProperties:
-----------------------------------
subgroupSize = 32
supportedStages: count = 8
SHADER_STAGE_VERTEX_BIT
SHADER_STAGE_TESSELLATION_CONTROL_BIT
SHADER_STAGE_TESSELLATION_EVALUATION_BIT
SHADER_STAGE_GEOMETRY_BIT
SHADER_STAGE_FRAGMENT_BIT
SHADER_STAGE_COMPUTE_BIT
SHADER_STAGE_ALL_GRAPHICS
SHADER_STAGE_ALL
supportedOperations: count = 8
SUBGROUP_FEATURE_BASIC_BIT
SUBGROUP_FEATURE_VOTE_BIT
SUBGROUP_FEATURE_ARITHMETIC_BIT
SUBGROUP_FEATURE_BALLOT_BIT
SUBGROUP_FEATURE_SHUFFLE_BIT
SUBGROUP_FEATURE_SHUFFLE_RELATIVE_BIT
SUBGROUP_FEATURE_CLUSTERED_BIT
SUBGROUP_FEATURE_QUAD_BIT
quadOperationsInAllStages = true
VkPhysicalDeviceSubgroupSizeControlPropertiesEXT:
-------------------------------------------------
minSubgroupSize = 8
maxSubgroupSize = 32
maxComputeWorkgroupSubgroups = 56
requiredSubgroupSizeStages: count = 2
SHADER_STAGE_COMPUTE_BIT
SHADER_STAGE_ALL
VkPhysicalDeviceTexelBufferAlignmentPropertiesEXT:
--------------------------------------------------
storageTexelBufferOffsetAlignmentBytes = 0x00000010
storageTexelBufferOffsetSingleTexelAlignment = true
uniformTexelBufferOffsetAlignmentBytes = 0x00000001
uniformTexelBufferOffsetSingleTexelAlignment = false
VkPhysicalDeviceTimelineSemaphoreProperties:
--------------------------------------------
maxTimelineSemaphoreValueDifference = 18446744073709551615
VkPhysicalDeviceTransformFeedbackPropertiesEXT:
-----------------------------------------------
maxTransformFeedbackStreams = 4
maxTransformFeedbackBuffers = 4
maxTransformFeedbackBufferSize = 0x100000000
maxTransformFeedbackStreamDataSize = 512
maxTransformFeedbackBufferDataSize = 512
maxTransformFeedbackBufferDataStride = 2048
transformFeedbackQueries = true
transformFeedbackStreamsLinesTriangles = false
transformFeedbackRasterizationStreamSelect = false
transformFeedbackDraw = true
VkPhysicalDeviceVertexAttributeDivisorPropertiesEXT:
----------------------------------------------------
maxVertexAttribDivisor = 268435455
VkPhysicalDeviceVulkan11Properties:
-----------------------------------
deviceUUID = 0112d384-bb34-477c-d4d9-3834ee059975
driverUUID = 222f4573-0cc7-4afd-1e64-6feddc42ab47
deviceNodeMask = 0
deviceLUIDValid = false
subgroupSize = 32
subgroupSupportedStages: count = 8
SHADER_STAGE_VERTEX_BIT
SHADER_STAGE_TESSELLATION_CONTROL_BIT
SHADER_STAGE_TESSELLATION_EVALUATION_BIT
SHADER_STAGE_GEOMETRY_BIT
SHADER_STAGE_FRAGMENT_BIT
SHADER_STAGE_COMPUTE_BIT
SHADER_STAGE_ALL_GRAPHICS
SHADER_STAGE_ALL
subgroupSupportedOperations: count = 8
SUBGROUP_FEATURE_BASIC_BIT
SUBGROUP_FEATURE_VOTE_BIT
SUBGROUP_FEATURE_ARITHMETIC_BIT
SUBGROUP_FEATURE_BALLOT_BIT
SUBGROUP_FEATURE_SHUFFLE_BIT
SUBGROUP_FEATURE_SHUFFLE_RELATIVE_BIT
SUBGROUP_FEATURE_CLUSTERED_BIT
SUBGROUP_FEATURE_QUAD_BIT
subgroupQuadOperationsInAllStages = true
pointClippingBehavior = POINT_CLIPPING_BEHAVIOR_USER_CLIP_PLANES_ONLY
maxMultiviewViewCount = 16
maxMultiviewInstanceIndex = 268435455
protectedNoFault = false
maxPerSetDescriptors = 1024
maxMemoryAllocationSize = 0x80000000
VkPhysicalDeviceVulkan12Properties:
-----------------------------------
driverID = DRIVER_ID_INTEL_OPEN_SOURCE_MESA
driverName = Intel open-source Mesa driver
driverInfo = Mesa 20.3.4
conformanceVersion = 1.2.0.0
denormBehaviorIndependence = SHADER_FLOAT_CONTROLS_INDEPENDENCE_ALL
roundingModeIndependence = SHADER_FLOAT_CONTROLS_INDEPENDENCE_NONE
shaderSignedZeroInfNanPreserveFloat16 = true
shaderSignedZeroInfNanPreserveFloat32 = true
shaderSignedZeroInfNanPreserveFloat64 = true
shaderDenormPreserveFloat16 = true
shaderDenormPreserveFloat32 = true
shaderDenormPreserveFloat64 = true
shaderDenormFlushToZeroFloat16 = false
shaderDenormFlushToZeroFloat32 = true
shaderDenormFlushToZeroFloat64 = true
shaderRoundingModeRTEFloat16 = true
shaderRoundingModeRTEFloat32 = true
shaderRoundingModeRTEFloat64 = true
shaderRoundingModeRTZFloat16 = true
shaderRoundingModeRTZFloat32 = true
:
shaderRoundingModeRTZFloat64 = true
maxUpdateAfterBindDescriptorsInAllPools = 1048576
shaderUniformBufferArrayNonUniformIndexingNative = false
shaderSampledImageArrayNonUniformIndexingNative = false
shaderStorageBufferArrayNonUniformIndexingNative = true
shaderStorageImageArrayNonUniformIndexingNative = false
shaderInputAttachmentArrayNonUniformIndexingNative = false
robustBufferAccessUpdateAfterBind = true
quadDivergentImplicitLod = false
maxPerStageDescriptorUpdateAfterBindSamplers = 1048576
maxPerStageDescriptorUpdateAfterBindUniformBuffers = 64
maxPerStageDescriptorUpdateAfterBindStorageBuffers = 4294967295
maxPerStageDescriptorUpdateAfterBindSampledImages = 1048576
maxPerStageDescriptorUpdateAfterBindStorageImages = 1048576
maxPerStageDescriptorUpdateAfterBindInputAttachments = 64
maxPerStageUpdateAfterBindResources = 4294967295
maxDescriptorSetUpdateAfterBindSamplers = 1048576
maxDescriptorSetUpdateAfterBindUniformBuffers = 384
maxDescriptorSetUpdateAfterBindUniformBuffersDynamic = 8
maxDescriptorSetUpdateAfterBindStorageBuffers = 4294967295
maxDescriptorSetUpdateAfterBindStorageBuffersDynamic = 8
maxDescriptorSetUpdateAfterBindSampledImages = 1048576
maxDescriptorSetUpdateAfterBindStorageImages = 1048576
maxDescriptorSetUpdateAfterBindInputAttachments = 256
supportedDepthResolveModes: count = 4
RESOLVE_MODE_SAMPLE_ZERO_BIT
RESOLVE_MODE_AVERAGE_BIT
RESOLVE_MODE_MIN_BIT
RESOLVE_MODE_MAX_BIT
supportedStencilResolveModes: count = 3
RESOLVE_MODE_SAMPLE_ZERO_BIT
RESOLVE_MODE_MIN_BIT
RESOLVE_MODE_MAX_BIT
independentResolveNone = true
independentResolve = true
filterMinmaxSingleComponentFormats = true
filterMinmaxImageComponentMapping = true
maxTimelineSemaphoreValueDifference = 18446744073709551615
framebufferIntegerColorSampleCounts: count = 5
SAMPLE_COUNT_1_BIT
SAMPLE_COUNT_2_BIT
SAMPLE_COUNT_4_BIT
SAMPLE_COUNT_8_BIT
SAMPLE_COUNT_16_BIT
Device Extensions: count = 92
VK_EXT_4444_formats : extension revision 1
VK_EXT_buffer_device_address : extension revision 2
VK_EXT_calibrated_timestamps : extension revision 1
VK_EXT_conditional_rendering : extension revision 2
VK_EXT_custom_border_color : extension revision 12
VK_EXT_depth_clip_enable : extension revision 1
VK_EXT_descriptor_indexing : extension revision 2
VK_EXT_display_control : extension revision 1
VK_EXT_extended_dynamic_state : extension revision 1
VK_EXT_external_memory_dma_buf : extension revision 1
VK_EXT_external_memory_host : extension revision 1
VK_EXT_fragment_shader_interlock : extension revision 1
VK_EXT_global_priority : extension revision 2
VK_EXT_host_query_reset : extension revision 1
VK_EXT_image_robustness : extension revision 1
VK_EXT_index_type_uint8 : extension revision 1
VK_EXT_inline_uniform_block : extension revision 1
VK_EXT_line_rasterization : extension revision 1
VK_EXT_memory_budget : extension revision 1
VK_EXT_pci_bus_info : extension revision 2
VK_EXT_pipeline_creation_cache_control : extension revision 3
VK_EXT_pipeline_creation_feedback : extension revision 1
VK_EXT_post_depth_coverage : extension revision 1
VK_EXT_private_data : extension revision 1
VK_EXT_robustness2 : extension revision 1
VK_EXT_sampler_filter_minmax : extension revision 2
VK_EXT_scalar_block_layout : extension revision 1
VK_EXT_separate_stencil_usage : extension revision 1
VK_EXT_shader_atomic_float : extension revision 1
VK_EXT_shader_demote_to_helper_invocation : extension revision 1
VK_EXT_shader_stencil_export : extension revision 1
VK_EXT_shader_subgroup_ballot : extension revision 1
VK_EXT_shader_subgroup_vote : extension revision 1
VK_EXT_shader_viewport_index_layer : extension revision 1
VK_EXT_subgroup_size_control : extension revision 2
VK_EXT_texel_buffer_alignment : extension revision 1
VK_EXT_transform_feedback : extension revision 1
VK_EXT_vertex_attribute_divisor : extension revision 3
VK_EXT_ycbcr_image_arrays : extension revision 1
VK_GOOGLE_decorate_string : extension revision 1
VK_GOOGLE_hlsl_functionality1 : extension revision 1
VK_GOOGLE_user_type : extension revision 1
VK_INTEL_shader_integer_functions2 : extension revision 1
VK_KHR_16bit_storage : extension revision 1
VK_KHR_8bit_storage : extension revision 1
VK_KHR_bind_memory2 : extension revision 1
VK_KHR_buffer_device_address : extension revision 1
VK_KHR_copy_commands2 : extension revision 1
VK_KHR_create_renderpass2 : extension revision 1
VK_KHR_dedicated_allocation : extension revision 3
VK_KHR_depth_stencil_resolve : extension revision 1
VK_KHR_descriptor_update_template : extension revision 1
VK_KHR_device_group : extension revision 4
VK_KHR_draw_indirect_count : extension revision 1
VK_KHR_driver_properties : extension revision 1
VK_KHR_external_fence : extension revision 1
VK_KHR_external_fence_fd : extension revision 1
VK_KHR_external_memory : extension revision 1
VK_KHR_external_memory_fd : extension revision 1
VK_KHR_external_semaphore : extension revision 1
VK_KHR_external_semaphore_fd : extension revision 1
VK_KHR_get_memory_requirements2 : extension revision 1
VK_KHR_image_format_list : extension revision 1
VK_KHR_imageless_framebuffer : extension revision 1
VK_KHR_incremental_present : extension revision 1
VK_KHR_maintenance1 : extension revision 2
VK_KHR_maintenance2 : extension revision 1
VK_KHR_maintenance3 : extension revision 1
VK_KHR_multiview : extension revision 1
VK_KHR_pipeline_executable_properties : extension revision 1
VK_KHR_push_descriptor : extension revision 2
VK_KHR_relaxed_block_layout : extension revision 1
VK_KHR_sampler_mirror_clamp_to_edge : extension revision 3
VK_KHR_sampler_ycbcr_conversion : extension revision 14
VK_KHR_separate_depth_stencil_layouts : extension revision 1
VK_KHR_shader_atomic_int64 : extension revision 1
VK_KHR_shader_clock : extension revision 1
VK_KHR_shader_draw_parameters : extension revision 1
VK_KHR_shader_float16_int8 : extension revision 1
VK_KHR_shader_float_controls : extension revision 4
VK_KHR_shader_non_semantic_info : extension revision 1
VK_KHR_shader_subgroup_extended_types : extension revision 1
VK_KHR_shader_terminate_invocation : extension revision 1
VK_KHR_spirv_1_4 : extension revision 1
VK_KHR_storage_buffer_storage_class : extension revision 1
VK_KHR_swapchain : extension revision 70
VK_KHR_swapchain_mutable_format : extension revision 1
VK_KHR_timeline_semaphore : extension revision 2
VK_KHR_uniform_buffer_standard_layout : extension revision 1
VK_KHR_variable_pointers : extension revision 1
VK_KHR_vulkan_memory_model : extension revision 3
VK_NV_compute_shader_derivatives : extension revision 1
VkQueueFamilyProperties:
========================
queueProperties[0]:
-------------------
minImageTransferGranularity = (1,1,1)
queueCount = 1
queueFlags = QUEUE_GRAPHICS | QUEUE_COMPUTE | QUEUE_TRANSFER
timestampValidBits = 36
present support = true
VkPhysicalDeviceMemoryProperties:
=================================
memoryHeaps: count = 1
memoryHeaps[0]:
size = 1952466944 (0x74604800) (1.82 GiB)
budget = 1952448512 (0x74600000) (1.82 GiB)
usage = 0 (0x00000000) (0.00 B)
flags: count = 1
MEMORY_HEAP_DEVICE_LOCAL_BIT
memoryTypes: count = 1
memoryTypes[0]:
heapIndex = 0
propertyFlags = 0x000f: count = 4
MEMORY_PROPERTY_DEVICE_LOCAL_BIT
MEMORY_PROPERTY_HOST_VISIBLE_BIT
MEMORY_PROPERTY_HOST_COHERENT_BIT
MEMORY_PROPERTY_HOST_CACHED_BIT
usable for:
IMAGE_TILING_OPTIMAL:
color images
FORMAT_D16_UNORM
FORMAT_X8_D24_UNORM_PACK32
FORMAT_D32_SFLOAT
FORMAT_S8_UINT
FORMAT_D24_UNORM_S8_UINT
FORMAT_D32_SFLOAT_S8_UINT
(non-sparse)
IMAGE_TILING_LINEAR:
color images
(non-sparse)
VkPhysicalDeviceFeatures:
=========================
robustBufferAccess = true
fullDrawIndexUint32 = true
imageCubeArray = true
independentBlend = true
geometryShader = true
tessellationShader = true
sampleRateShading = true
dualSrcBlend = true
logicOp = true
multiDrawIndirect = true
drawIndirectFirstInstance = true
depthClamp = true
depthBiasClamp = true
fillModeNonSolid = true
depthBounds = false
wideLines = true
largePoints = true
alphaToOne = true
multiViewport = true
samplerAnisotropy = true
textureCompressionETC2 = true
textureCompressionASTC_LDR = true
textureCompressionBC = true
occlusionQueryPrecise = true
pipelineStatisticsQuery = true
vertexPipelineStoresAndAtomics = true
fragmentStoresAndAtomics = true
shaderTessellationAndGeometryPointSize = true
shaderImageGatherExtended = true
shaderStorageImageExtendedFormats = true
shaderStorageImageMultisample = false
shaderStorageImageReadWithoutFormat = false
shaderStorageImageWriteWithoutFormat = true
shaderUniformBufferArrayDynamicIndexing = true
shaderSampledImageArrayDynamicIndexing = true
shaderStorageBufferArrayDynamicIndexing = true
shaderStorageImageArrayDynamicIndexing = true
shaderClipDistance = true
shaderCullDistance = true
shaderFloat64 = true
shaderInt64 = true
shaderInt16 = true
shaderResourceResidency = false
shaderResourceMinLod = true
sparseBinding = false
sparseResidencyBuffer = false
sparseResidencyImage2D = false
sparseResidencyImage3D = false
sparseResidency2Samples = false
sparseResidency4Samples = false
sparseResidency8Samples = false
sparseResidency16Samples = false
sparseResidencyAliased = false
variableMultisampleRate = true
inheritedQueries = true
VkPhysicalDevice16BitStorageFeatures:
-------------------------------------
storageBuffer16BitAccess = true
uniformAndStorageBuffer16BitAccess = true
storagePushConstant16 = true
storageInputOutput16 = false
VkPhysicalDevice4444FormatsFeaturesEXT:
---------------------------------------
formatA4R4G4B4 = true
formatA4B4G4R4 = false
VkPhysicalDevice8BitStorageFeatures:
------------------------------------
storageBuffer8BitAccess = true
uniformAndStorageBuffer8BitAccess = true
storagePushConstant8 = true
VkPhysicalDeviceBufferDeviceAddressFeatures:
--------------------------------------------
bufferDeviceAddress = true
bufferDeviceAddressCaptureReplay = true
bufferDeviceAddressMultiDevice = false
VkPhysicalDeviceBufferDeviceAddressFeaturesEXT:
-----------------------------------------------
bufferDeviceAddress = true
bufferDeviceAddressCaptureReplay = false
bufferDeviceAddressMultiDevice = false
VkPhysicalDeviceConditionalRenderingFeaturesEXT:
------------------------------------------------
conditionalRendering = true
inheritedConditionalRendering = true
VkPhysicalDeviceCustomBorderColorFeaturesEXT:
---------------------------------------------
customBorderColors = true
customBorderColorWithoutFormat = true
VkPhysicalDeviceDepthClipEnableFeaturesEXT:
-------------------------------------------
depthClipEnable = true
VkPhysicalDeviceDescriptorIndexingFeatures:
-------------------------------------------
shaderInputAttachmentArrayDynamicIndexing = false
shaderUniformTexelBufferArrayDynamicIndexing = true
shaderStorageTexelBufferArrayDynamicIndexing = true
shaderUniformBufferArrayNonUniformIndexing = false
shaderSampledImageArrayNonUniformIndexing = true
shaderStorageBufferArrayNonUniformIndexing = true
shaderStorageImageArrayNonUniformIndexing = true
shaderInputAttachmentArrayNonUniformIndexing = false
shaderUniformTexelBufferArrayNonUniformIndexing = true
shaderStorageTexelBufferArrayNonUniformIndexing = true
descriptorBindingUniformBufferUpdateAfterBind = false
descriptorBindingSampledImageUpdateAfterBind = true
descriptorBindingStorageImageUpdateAfterBind = true
descriptorBindingStorageBufferUpdateAfterBind = true
descriptorBindingUniformTexelBufferUpdateAfterBind = true
descriptorBindingStorageTexelBufferUpdateAfterBind = true
descriptorBindingUpdateUnusedWhilePending = true
descriptorBindingPartiallyBound = true
descriptorBindingVariableDescriptorCount = true
runtimeDescriptorArray = true
VkPhysicalDeviceExtendedDynamicStateFeaturesEXT:
------------------------------------------------
extendedDynamicState = true
VkPhysicalDeviceFragmentShaderInterlockFeaturesEXT:
---------------------------------------------------
fragmentShaderSampleInterlock = true
fragmentShaderPixelInterlock = true
fragmentShaderShadingRateInterlock = false
VkPhysicalDeviceHostQueryResetFeatures:
---------------------------------------
hostQueryReset = true
VkPhysicalDeviceImageRobustnessFeaturesEXT:
-------------------------------------------
robustImageAccess = true
VkPhysicalDeviceImagelessFramebufferFeatures:
---------------------------------------------
imagelessFramebuffer = true
VkPhysicalDeviceIndexTypeUint8FeaturesEXT:
------------------------------------------
indexTypeUint8 = true
VkPhysicalDeviceInlineUniformBlockFeaturesEXT:
----------------------------------------------
inlineUniformBlock = true
descriptorBindingInlineUniformBlockUpdateAfterBind = true
VkPhysicalDeviceLineRasterizationFeaturesEXT:
---------------------------------------------
rectangularLines = true
bresenhamLines = true
smoothLines = true
stippledRectangularLines = false
stippledBresenhamLines = true
stippledSmoothLines = false
VkPhysicalDeviceMultiviewFeatures:
----------------------------------
multiview = true
multiviewGeometryShader = true
multiviewTessellationShader = true
VkPhysicalDevicePipelineCreationCacheControlFeaturesEXT:
--------------------------------------------------------
pipelineCreationCacheControl = true
VkPhysicalDevicePipelineExecutablePropertiesFeaturesKHR:
--------------------------------------------------------
pipelineExecutableInfo = true
VkPhysicalDevicePrivateDataFeaturesEXT:
---------------------------------------
privateData = true
VkPhysicalDeviceProtectedMemoryFeatures:
----------------------------------------
protectedMemory = false
VkPhysicalDeviceRobustness2FeaturesEXT:
---------------------------------------
robustBufferAccess2 = true
robustImageAccess2 = true
nullDescriptor = true
VkPhysicalDeviceSamplerYcbcrConversionFeatures:
-----------------------------------------------
samplerYcbcrConversion = true
VkPhysicalDeviceScalarBlockLayoutFeatures:
------------------------------------------
scalarBlockLayout = true
VkPhysicalDeviceSeparateDepthStencilLayoutsFeatures:
----------------------------------------------------
separateDepthStencilLayouts = true
VkPhysicalDeviceShaderAtomicFloatFeaturesEXT:
---------------------------------------------
shaderBufferFloat32Atomics = true
shaderBufferFloat32AtomicAdd = false
shaderBufferFloat64Atomics = false
shaderBufferFloat64AtomicAdd = false
shaderSharedFloat32Atomics = true
shaderSharedFloat32AtomicAdd = false
shaderSharedFloat64Atomics = false
shaderSharedFloat64AtomicAdd = false
shaderImageFloat32Atomics = true
shaderImageFloat32AtomicAdd = false
sparseImageFloat32Atomics = false
sparseImageFloat32AtomicAdd = false
VkPhysicalDeviceShaderAtomicInt64Features:
------------------------------------------
shaderBufferInt64Atomics = true
shaderSharedInt64Atomics = false
VkPhysicalDeviceShaderClockFeaturesKHR:
---------------------------------------
shaderSubgroupClock = true
shaderDeviceClock = false
VkPhysicalDeviceShaderDemoteToHelperInvocationFeaturesEXT:
----------------------------------------------------------
shaderDemoteToHelperInvocation = true
VkPhysicalDeviceShaderDrawParametersFeatures:
---------------------------------------------
shaderDrawParameters = true
VkPhysicalDeviceShaderFloat16Int8Features:
------------------------------------------
shaderFloat16 = true
shaderInt8 = true
VkPhysicalDeviceShaderSubgroupExtendedTypesFeatures:
----------------------------------------------------
shaderSubgroupExtendedTypes = true
VkPhysicalDeviceShaderTerminateInvocationFeaturesKHR:
-----------------------------------------------------
shaderTerminateInvocation = true
VkPhysicalDeviceSubgroupSizeControlFeaturesEXT:
-----------------------------------------------
subgroupSizeControl = true
computeFullSubgroups = true
VkPhysicalDeviceTexelBufferAlignmentFeaturesEXT:
------------------------------------------------
texelBufferAlignment = true
VkPhysicalDeviceTimelineSemaphoreFeatures:
------------------------------------------
timelineSemaphore = true
VkPhysicalDeviceTransformFeedbackFeaturesEXT:
---------------------------------------------
transformFeedback = true
geometryStreams = true
VkPhysicalDeviceUniformBufferStandardLayoutFeatures:
----------------------------------------------------
uniformBufferStandardLayout = true
VkPhysicalDeviceVariablePointersFeatures:
-----------------------------------------
variablePointersStorageBuffer = true
variablePointers = true
VkPhysicalDeviceVertexAttributeDivisorFeaturesEXT:
--------------------------------------------------
vertexAttributeInstanceRateDivisor = true
vertexAttributeInstanceRateZeroDivisor = true
VkPhysicalDeviceVulkan11Features:
---------------------------------
storageBuffer16BitAccess = true
uniformAndStorageBuffer16BitAccess = true
storagePushConstant16 = true
storageInputOutput16 = false
multiview = true
multiviewGeometryShader = true
multiviewTessellationShader = true
variablePointersStorageBuffer = true
variablePointers = true
protectedMemory = false
samplerYcbcrConversion = true
shaderDrawParameters = true
VkPhysicalDeviceVulkan12Features:
---------------------------------
samplerMirrorClampToEdge = true
drawIndirectCount = true
storageBuffer8BitAccess = true
uniformAndStorageBuffer8BitAccess = true
storagePushConstant8 = true
shaderBufferInt64Atomics = true
shaderSharedInt64Atomics = false
shaderFloat16 = true
shaderInt8 = true
descriptorIndexing = true
shaderInputAttachmentArrayDynamicIndexing = false
shaderUniformTexelBufferArrayDynamicIndexing = true
shaderStorageTexelBufferArrayDynamicIndexing = true
shaderUniformBufferArrayNonUniformIndexing = false
shaderSampledImageArrayNonUniformIndexing = true
shaderStorageBufferArrayNonUniformIndexing = true
shaderStorageImageArrayNonUniformIndexing = true
shaderInputAttachmentArrayNonUniformIndexing = false
shaderUniformTexelBufferArrayNonUniformIndexing = true
shaderStorageTexelBufferArrayNonUniformIndexing = true
descriptorBindingUniformBufferUpdateAfterBind = false
descriptorBindingSampledImageUpdateAfterBind = true
descriptorBindingStorageImageUpdateAfterBind = true
descriptorBindingStorageBufferUpdateAfterBind = true
descriptorBindingUniformTexelBufferUpdateAfterBind = true
descriptorBindingStorageTexelBufferUpdateAfterBind = true
descriptorBindingUpdateUnusedWhilePending = true
descriptorBindingPartiallyBound = true
descriptorBindingVariableDescriptorCount = true
runtimeDescriptorArray = true
samplerFilterMinmax = true
scalarBlockLayout = true
imagelessFramebuffer = true
uniformBufferStandardLayout = true
shaderSubgroupExtendedTypes = true
separateDepthStencilLayouts = true
hostQueryReset = true
timelineSemaphore = true
bufferDeviceAddress = true
bufferDeviceAddressCaptureReplay = true
bufferDeviceAddressMultiDevice = false
vulkanMemoryModel = true
vulkanMemoryModelDeviceScope = true
vulkanMemoryModelAvailabilityVisibilityChains = true
shaderOutputViewportIndex = true
shaderOutputLayer = true
subgroupBroadcastDynamicId = true
VkPhysicalDeviceVulkanMemoryModelFeatures:
------------------------------------------
vulkanMemoryModel = true
vulkanMemoryModelDeviceScope = true
vulkanMemoryModelAvailabilityVisibilityChains = true
VkPhysicalDeviceYcbcrImageArraysFeaturesEXT:
--------------------------------------------
ycbcrImageArrays = true
The picture of running vkcube:
The issue is an uninitialized pNext pointer in VkInstanceCreateInfo createInfo;
Change it to VkInstanceCreateInfo createInfo{}; and the crash will go away.
ALWAYS initialize vulkan structs (even if to zero). Many of them have pointers in them that the driver nor validation layers have no clue if they are valid or not. If they aren't null, they assume its valid because there is no other way to check. So always initializing everything to zero (just by putting {} after the name) is good practice.
@ mj-saunders
Yes. Has two GPUs on my laptop. Same of one Intel and one Nvidia.
And the F****** Nvidia driver also bothered me.
One times make me reinstall the OS.
Replace this code
VkInstanceCreateInfo createInfo;
createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
createInfo.pApplicationInfo = &appInfo;
with this.
VkInstanceCreateInfo createInfo{}; //Note the {} after the name
createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
createInfo.pApplicationInfo = &appInfo;
The crash will go away.
VkInstanceCreateInfo has a member called pNext of type const void*. When you don't provide a value for it (or don't use {} to reset it to zero), the value is uninitialized. This means the value is literally whatever was in the memory before hand. And because there is no way to tell if a pointer 'is valid', eg points to something inside the process address space, the driver will try to dereference it. When it does this, you get a crash because it isn't a valid pointer.
Replace this code
VkInstanceCreateInfo createInfo; createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO; createInfo.pApplicationInfo = &appInfo;with this.
VkInstanceCreateInfo createInfo{}; //Note the {} after the name createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO; createInfo.pApplicationInfo = &appInfo;The crash will go away.
VkInstanceCreateInfohas a member calledpNextof typeconst void*. When you don't provide a value for it (or don't use{}to reset it to zero), the value is uninitialized. This means the value is literally whatever was in the memory before hand. And because there is no way to tell if a pointer 'is valid', eg points to something inside the process address space, the driver will try to dereference it. When it does this, you get a crash because it isn't a valid pointer.
Thank you!!!!!!
