[NXT] Cannot initialize empty list in NXC

Open stex opened this issue 7 years ago • 2 comments

Describe the bug

Originally, this ticket was about expanding a list in NXC, but then I noticed, this starts even earlier:

Orlab allows me to initialize a variable with an empty list. This doesn't work in the generated NXC code as its ArrayBuild function expects the array to fill and at least one element.

I'd therefore expect either not being able to create an empty list in orlab or to convert it to a construct in NXC that emulates the desired behaviour.

To Reproduce Steps to reproduce the behavior:

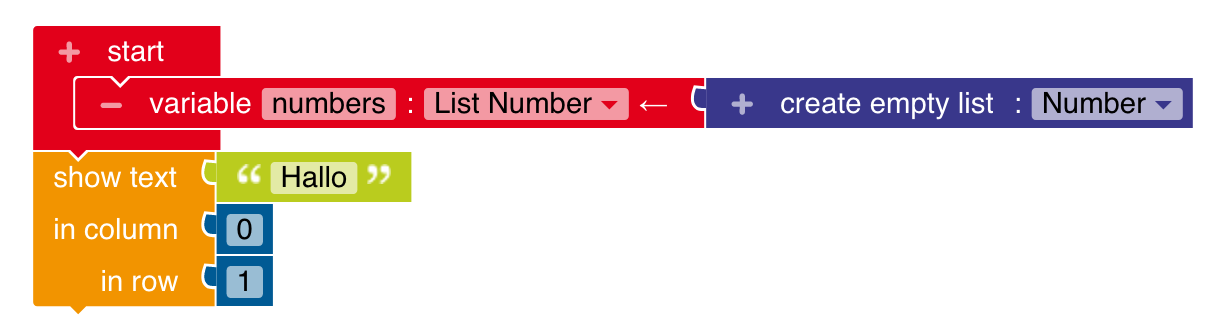

  1. Write a program like the following: image

  2. Run it in the simulator

  3. Be happy that it works

  4. Try to send it to the brick

  5. Get a compiler error

The generated NXC code:

#define WHEELDIAMETER 5.6
#define TRACKWIDTH 12.0
#define MAXLINES 8
#include "NEPODefs.h" // contains NEPO declarations for the NXC NXT API resources

float numbers[0];
task main() {
    float __numbers[] = {};
    numbers = __numbers;
    SetSensor(S1, SENSOR_TOUCH);
    SetSensor(S2, SENSOR_SOUND);
    SetSensor(S3, SENSOR_LIGHT);
    SetSensor(S4, SENSOR_LOWSPEED);
    TextOut(0, (MAXLINES - 1) * MAXLINES, "Hallo");
}

The compiler error:

# Error: Invalid number of arguments: at least 2 expected, 1 found
File "/home/pi/workspace/bug_expand_empty_list.nxc" ; line 8
#   	arrbuild __main_7qG2___numbers_7qG2_000

Expected behavior The program compiles.

stex avatar Nov 08 '18 19:11 stex

  • Initialisation of arrays with zero elements should (and will) be removed from blockly for nxt.

VinArt avatar Nov 16 '18 11:11 VinArt

What is the current state of this issue?

bjost2s avatar Feb 21 '19 19:02 bjost2s
