Well logs - Stack curves option problem

Open EdmundStephens opened this issue 3 years ago • 0 comments

[2020.06.0] Something wierd is happening with the Stack curves option in well log plots.

  • Vertical scale is wrong for the 'Stack curve' track
  • X axis scales are reset
  • Colouring is disturbed

Attached a small example project. CANUELO2.zip

Well log plot with a sim well: CANUELO2-sim_well_logs

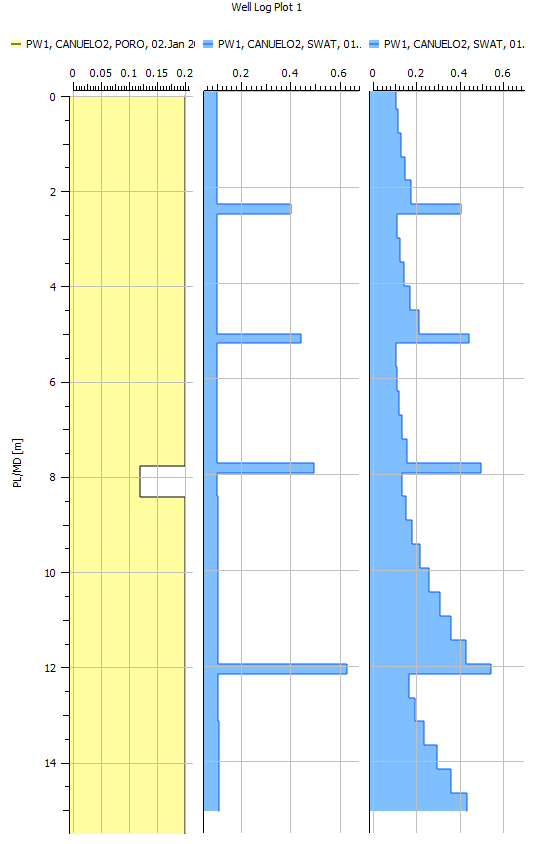

For PORO track, click on 'Stack curves': CANUELO2-sim_well_stack_curve

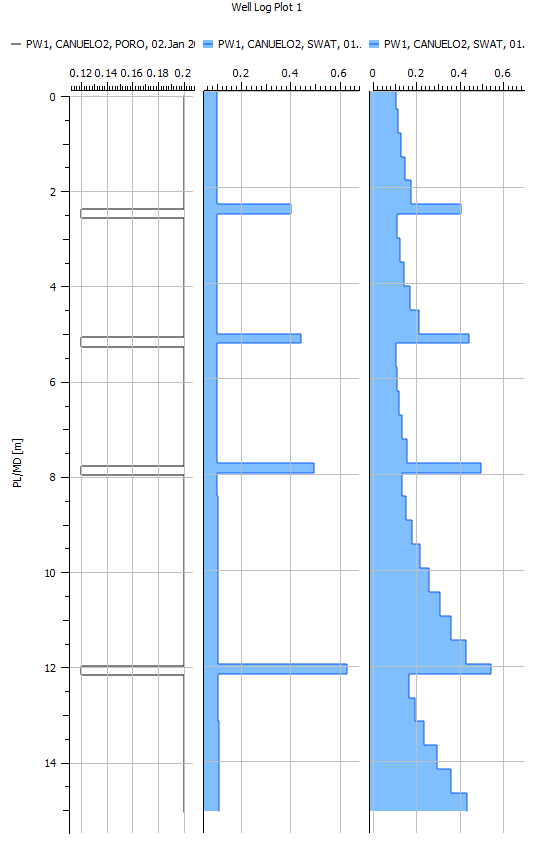

And unclicked: CANUELO2-sim_well_unstacked

With a well path the behaviour is slightly different: CANUELO2-well_path_logs

For PORO track, click on 'Stack curves': CANUELO2-well_path_stack_curve

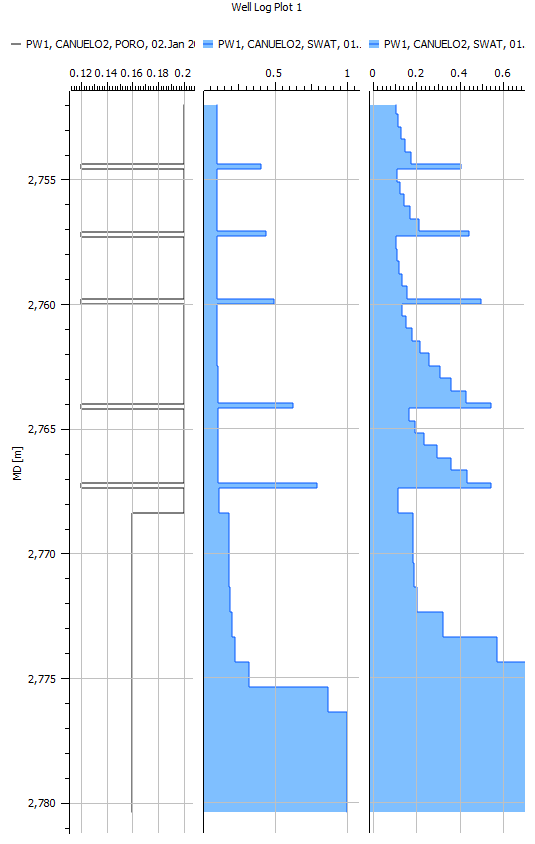

And unclicked: CANUELO2-well_path_unstacked
