Volume dashboard / QOS graphs show no data.

Open slater0013 opened this issue 3 years ago • 5 comments

Describe the bug Hello, In the cDOT/ONTAP:Volume dashboard, when selecting a Datacenter, a Cluster, a SVM, and wether you select or not a volume, the rows "Top Volume End-to-End QoS Drilldown" and "Top Volume QoS Resource Latency Drilldown" only show "No data" pannels.

Environment

  • Harvest version: harvest version 22.08.0-1 (commit 93db10a) (build date 2022-08-19T09:08:45-0400) linux/amd64
  • OS: Debian 11.4
  • Install method: debian package
  • ONTAP Version: 9.8P11

Actual behavior image

Thanks ;) GS

slater0013 avatar Sep 23 '22 14:09 slater0013

hi @slater0013 can you double check that you enabled the QOS counters here?

cgrinds avatar Sep 23 '22 14:09 cgrinds

Hello, You are right, QOS Counters were commented.

But...

To see the QOS Datas, I need to unselect the volume in dashboard filters. Even when I have more than 10 volumes in the volume list for one SVM, the graph only shows 2 volume QOS datas (root volume + 1)

When I run "vol show -vserver MyVserver -fields qos-policy-group" the 2 volumes that do not have any qos policy are graphed.

Volumes associated with a QOS policy do not show up on graphs.

Thanks, GS.

slater0013 avatar Sep 26 '22 15:09 slater0013

Thanks for confirming @slater0013 Thanks for the additional details, you are hitting issue #1264. Harvest was ignored user-defined workloads. This has been fixed and if you want, you can grab the latest nightly build.

Let us know if that works for you.

cgrinds avatar Sep 26 '22 15:09 cgrinds

Thanks !

The grafana will be used by our clients, so we'll stick to the stable branch ! Hope the next release is coming soon :D

GS

slater0013 avatar Sep 26 '22 17:09 slater0013

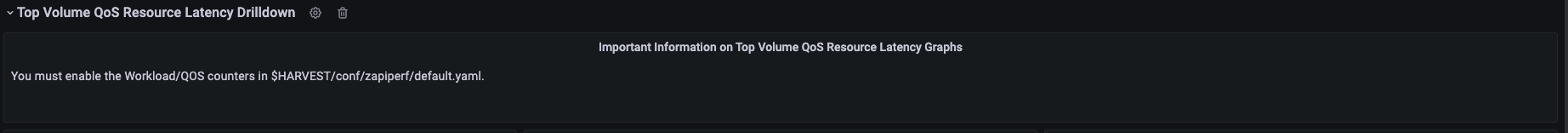

@slater0013 We have also added a description as below to make it easier


rahulguptajss avatar Sep 29 '22 14:09 rahulguptajss

Covered in #1264

cgrinds avatar Nov 09 '22 13:11 cgrinds

Hi, I've un-commented the QoS counters on zapiperf/default.yaml, re-started harvest however I'm still unable to see the QoS graphs on Grafana dashboard. I see some random data, and the query type is set to 'Randon Walk' instead of the QoS queries, anyone have any clue?

v3nt0 avatar Nov 28 '22 19:11 v3nt0

hi @v3nt0 what version of Harvest are you using? We don't use random walk in our dashboards.

cgrinds avatar Nov 28 '22 20:11 cgrinds

hi @cgrinds I'm using harvest-21.08.0-6_linux_amd64. I also found some other dashboards with random walk, really not sure what happened.

v3nt0 avatar Nov 28 '22 21:11 v3nt0

@v3nt0 21.08 is an year old version. We had several fixes since then. Could you try out latest release 22.11 and see if it resolves the issue.

rahulguptajss avatar Nov 29 '22 12:11 rahulguptajss
