LaserWeb4 SVG issues.

Hi,

It would seem some SVGs are not being read by laserweb for some reason. Below are a selection of files generated from,

http://boxdesigner.frag-den-spatz.de/ and http://www.festi.info/boxes.py/

Some lines work but others are completely ignored by laser web.

I have attached some example files.

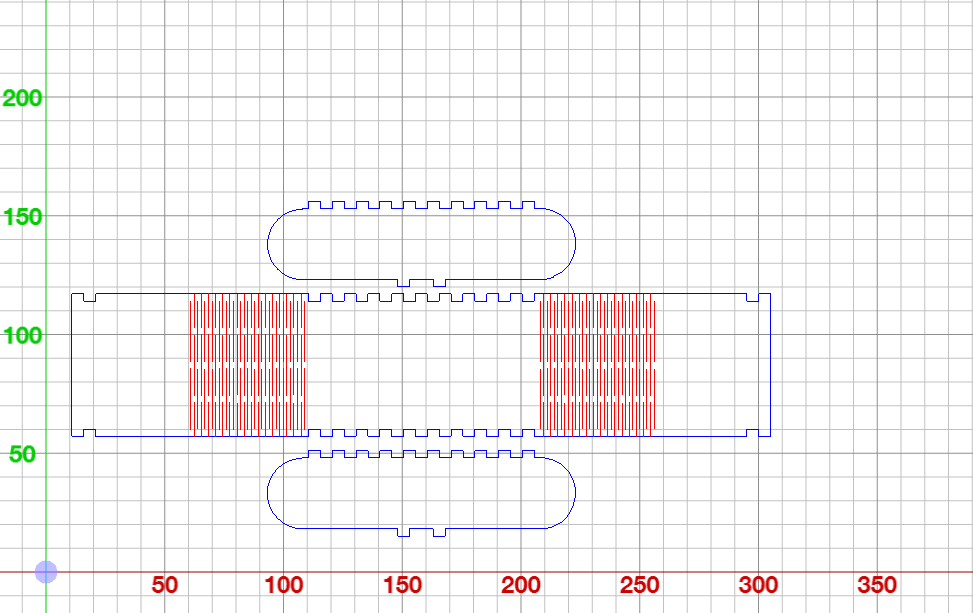

File loaded

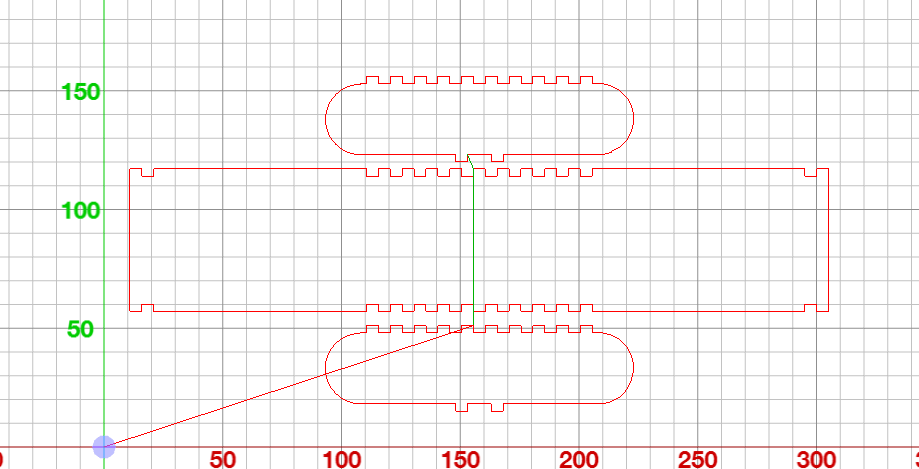

After generating g code

Example files.zip

Dec 16 '17 15:12 FabCreator

Boxes.py is known for generate ugly svg with collinear shapes. Lw library clipperjs does not handle collinear well. The only way for now is cleaning double paths on editors like AI, and even there is a challenging task.

El 16 dic. 2017 16:48, "FabCreator" [email protected] escribió:

Hi,

It would seem some SVGs are not being read by laserweb for some reason. Below are a selection of files generated from,

http://boxdesigner.frag-den-spatz.de/ and http://www.festi.info/boxes.py/

Some lines work but others are completely ignored by laser web.

I have attached some example files.

File loaded [image: image] https://user-images.githubusercontent.com/19230933/34072054-de6cf0f4-e280-11e7-8e02-02c84593c093.png

After generating g code [image: image] https://user-images.githubusercontent.com/19230933/34072062-f0578edc-e280-11e7-85e7-75dc88156190.png

Example files.zip https://github.com/LaserWeb/LaserWeb4/files/1564892/Example.files.zip
