LaserWeb
Drawable Machine Control
Moving to separate issue. Related to #378 and https://github.com/LaserWeb/lw.comm-server/issues/47
Current idea:
- End users may draw control UIs using Inkscape and post them online
- Custom layouts
- My be geared toward specific machines
- My be anything from simple UIs targeted at beginners to full UIs supporting the entire set of gcode offsets for users with bigger needs
- https://github.com/LaserWeb/lw.controller will provide:
- A non-UI component for managing comms
- A connection toolbar
- A component for displaying and hooking up SVGs
- A stand-alone version with the above and a configurable SVG URL
- https://github.com/LaserWeb/lw.comm-server will:
- Provide more status and config info. e.g. the entire set of gcode offsets
- Unify its messaging
- LW4 will:
- Use lw.controller's non-UI component
- Use lw.controller's connection toolbar
- Use lw.controller's drawable UI in 2 locations:
- Existing tab: compact display with configurable SVG URL
- New tab: full-screen display with configurable SVG URL

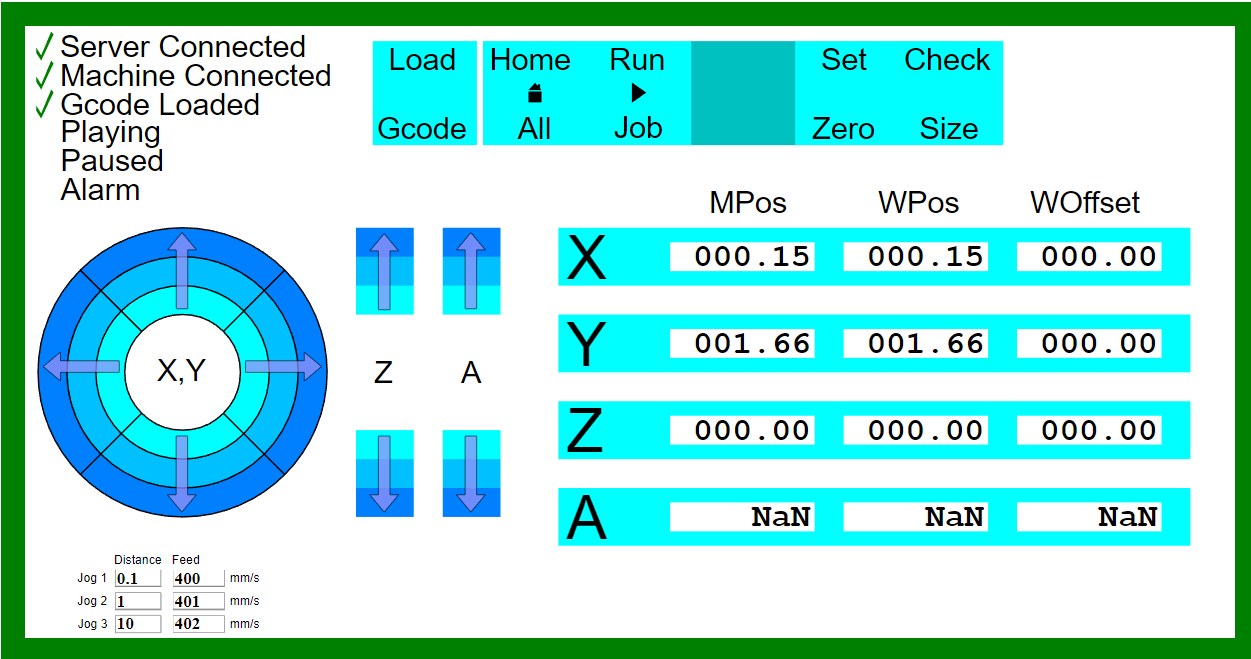

Jogging's now working with configurable distance and feed for each level.
Cool! Lovely work!
El 12 ago. 2017 17:49, "Todd Fleming" [email protected] escribió:
Jogging's now working with configurable distance and feed for each level.
[image: image] https://user-images.githubusercontent.com/418464/29242084-31ea9d5c-7f54-11e7-9cb3-61964d4e6a7a.png
— You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub https://github.com/LaserWeb/LaserWeb4/issues/393#issuecomment-321989189, or mute the thread https://github.com/notifications/unsubscribe-auth/ABoIYNrZU0Cd3SDAkHyMxBLhLJ7BnWtDks5sXcmZgaJpZM4O1aGH .
@tbfleming How does this system work with the current LW interface? Does it replace it, overlay on to it, sit beside it? Do you have any plans to add in a workspace view element?
@domenic-d both. It will be a standalone app, a small version will replace the existing control tab, and a large version on a new tab will cover the whole screen. No plans for a workspace view element since the small version will be to the left of the workspace.
@tbfleming That sounds great. What level of control will developers have? For instance, can they create their own UI to have: Ability to load/save workspaces? Ability to load gcode?
It's only for machine control. It can load gcode and edit settings but won't touch the workspace, documents, or CAM.
@tbfleming But we still need position update for the workspace to show the cursor position.
@cprezzi com.js will update the store with the complete machine state. The workspace will monitor the store for the cursor position.
