Aqara FP1 sensor immediately joins and leaves the network with Sonoff ZBDONGLE-E adapter (EFR32MG21)

[olivr2s]

What happened?

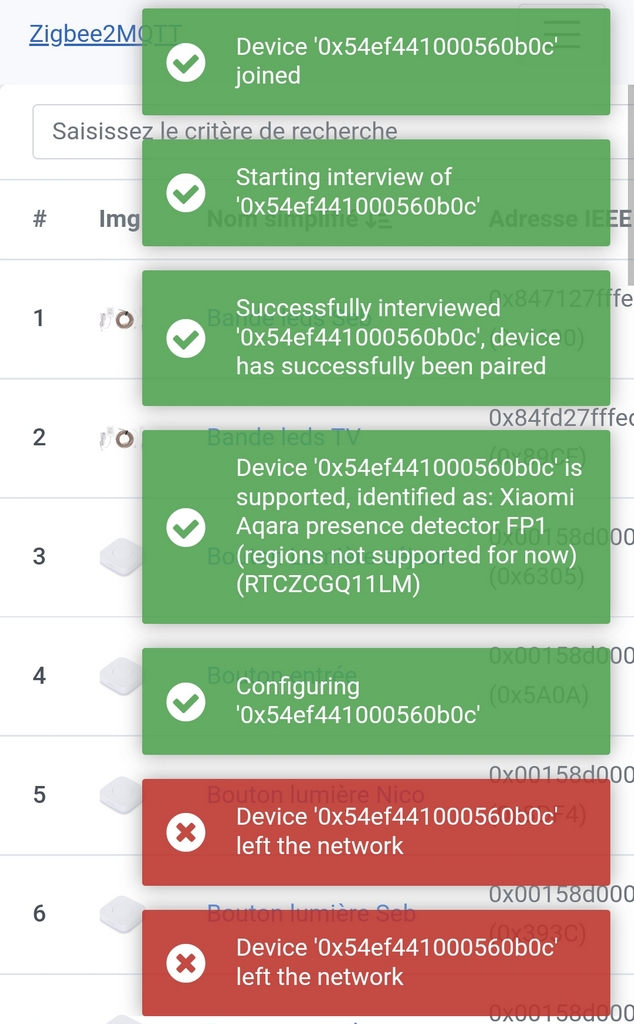

I tried several times to add the aqara FP1 sensor in Z2M and each time it is recognized and configured but immediately removed from the network.

What did you expect to happen?

No response

How to reproduce it (minimal and precise)

No response

Zigbee2MQTT version

1.28.2-dev (commit #66c4ca0)

Adapter firmware version

7.1.1.0 build 273

Adapter

SONOFF ZBDONGLE-E (EFR32MG21)

Debug log

info 2022-11-26 10:45:27: Logging to console and directory: '/app/data/log/2022-11-26.10-45-27' filename: log.txt info 2022-11-26 10:45:27: Starting Zigbee2MQTT version 1.28.2-dev (commit #66c4ca0) info 2022-11-26 10:45:27: Starting zigbee-herdsman (0.14.76) info 2022-11-26 10:45:30: zigbee-herdsman started (resumed) info 2022-11-26 10:45:30: Coordinator firmware version: '{"meta":{"maintrel":"1 ","majorrel":"7","minorrel":"1","product":9,"revision":"7.1.1.0 build 273"},"type":"EZSP v9"}' info 2022-11-26 10:45:30: Currently 60 devices are joined: info 2022-11-26 11:18:08: MQTT publish: topic 'zigbee2mqtt/bridge/response/options', payload '{"data":{"restart_required":false},"status":"ok","transaction":"3u0de-4"}' debug 2022-11-26 11:18:19: Received MQTT message on 'zigbee2mqtt/bridge/request/permit_join' with data '{"device":"Coordinator","time":254,"transaction":"3u0de-5","value":true}' info 2022-11-26 11:18:19: Zigbee: allowing new devices to join via Coordinator. info 2022-11-26 11:18:41: Device '0x54ef441000560b0c' joined info 2022-11-26 11:18:41: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_joined"}' info 2022-11-26 11:18:41: Starting interview of '0x54ef441000560b0c' info 2022-11-26 11:18:41: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c","status":"started"},"type":"device_interview"}' warn 2022-11-26 11:18:42: Device '0x54ef441000560b0c' left the network info 2022-11-26 11:18:42: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_leave"}' warn 2022-11-26 11:18:42: Device '0x54ef441000560b0c' left the network info 2022-11-26 11:18:42: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_leave"}' info 2022-11-26 11:18:58: Device '0x54ef441000560b0c' joined info 2022-11-26 11:18:58: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_joined"}' info 2022-11-26 11:18:58: Starting interview of '0x54ef441000560b0c' info 2022-11-26 11:18:58: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c","status":"started"},"type":"device_interview"}' debug 2022-11-26 11:18:58: Received Zigbee message from '0x54ef441000560b0c', type 'readResponse', cluster 'genBasic', data '{"swBuildId":""}' from endpoint 1 with groupID 0 info 2022-11-26 11:18:58: Successfully interviewed '0x54ef441000560b0c', device has successfully been paired info 2022-11-26 11:18:58: Device '0x54ef441000560b0c' is supported, identified as: Xiaomi Aqara presence detector FP1 (regions not supported for now) (RTCZCGQ11LM) info 2022-11-26 11:18:58: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"definition":{"description":"Aqara presence detector FP1 (regions not supported for now)","exposes":[{"access":5,"description":"Indicates whether the device detected presence","name":"presence","property":"presence","type":"binary","value_off":false,"value_on":true},{"access":1,"description":"Presence events: "enter", "leave", "left_enter", "right_leave", "right_enter", "left_leave", "approach", "away"","name":"presence_event","property":"presence_event","type":"enum","values":["enter","leave","left_enter","right_leave","right_enter","left_leave","approach","away"]},{"access":7,"description":"Monitoring mode with or without considering right and left sides","name":"monitoring_mode","property":"monitoring_mode","type":"enum","values":["undirected","left_right"]},{"access":7,"description":"The distance at which the sensor detects approaching","name":"approach_distance","property":"approach_distance","type":"enum","values":["far","medium","near"]},{"access":7,"description":"Different sensitivities means different static human body recognition rate and response speed of occupied","name":"motion_sensitivity","property":"motion_sensitivity","type":"enum","values":["low","medium","high"]},{"access":2,"description":"Reset the status of no presence","name":"reset_nopresence_status","property":"reset_nopresence_status","type":"enum","values":[""]},{"access":1,"description":"Temperature of the device","name":"device_temperature","property":"device_temperature","type":"numeric","unit":"°C"},{"access":1,"description":"Number of power outages (since last pairing)","name":"power_outage_count","property":"power_outage_count","type":"numeric"},{"access":1,"description":"Link quality (signal strength)","name":"linkquality","property":"linkquality","type":"numeric","unit":"lqi","value_max":255,"value_min":0}],"model":"RTCZCGQ11LM","options":[{"access":2,"description":"Calibrates the device_temperature value (absolute offset), takes into effect on next report of device.","name":"device_temperature_calibration","property":"device_temperature_calibration","type":"numeric"}],"supports_ota":true,"vendor":"Xiaomi"},"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c","status":"successful","supported":true},"type":"device_interview"}' info 2022-11-26 11:18:58: Configuring '0x54ef441000560b0c' debug 2022-11-26 11:18:58: Received Zigbee message from '0x54ef441000560b0c', type 'readResponse', cluster 'aqaraOpple', data '{"268":3}' from endpoint 1 with groupID 0 debug 2022-11-26 11:18:58: lumi.motion.ac01: Processed data into payload {"motion_sensitivity":"high"} info 2022-11-26 11:18:58: MQTT publish: topic 'zigbee2mqtt/0x54ef441000560b0c', payload '{"device":{"applicationVersion":54,"dateCode":"20210121","friendlyName":"0x54ef441000560b0c","hardwareVersion":1,"ieeeAddr":"0x54ef441000560b0c","manufacturerID":4660,"manufacturerName":"aqara","model":"RTCZCGQ11LM","networkAddress":52026,"powerSource":"DC Source","softwareBuildID":"","stackVersion":2,"type":"EndDevice","zclVersion":3},"linkquality":255,"motion_sensitivity":"high"}' warn 2022-11-26 11:18:58: Device '0x54ef441000560b0c' left the network info 2022-11-26 11:18:58: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_leave"}' warn 2022-11-26 11:18:58: Device '0x54ef441000560b0c' left the network info 2022-11-26 11:18:59: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x54ef441000560b0c","ieee_address":"0x54ef441000560b0c"},"type":"device_leave"}' debug 2022-11-26 11:19:07: Received MQTT message on 'zigbee2mqtt/bridge/request/permit_join' with data '{"device":"Coordinator","time":254,"transaction":"3u0de-6","value":false}' info 2022-11-26 11:19:07: Zigbee: disabling joining new devices. debug 2022-11-26 11:19:07: Received Zigbee message from 'Coordinator', type 'commandNotification', cluster 'greenPower', data '{"data":[25,23,2,10,0,0],"type":"Buffer"}' from endpoint 242 with groupID null, ignoring since it is from coordinator info 2022-11-26 11:19:07: MQTT publish: topic 'zigbee2mqtt/bridge/response/permit_join', payload '{"data":{"device":"Coordinator","time":254,"value":false},"status":"ok","transaction":"3u0de-6"}' error 2022-11-26 11:19:19: Failed to configure '0x54ef441000560b0c', attempt 3 (Error: Read 0x54ef441000560b0c/1 aqaraOpple([322], {"sendWhen":"immediate","timeout":10000,"disableResponse":false,"disableRecovery":false,"disableDefaultResponse":true,"direction":0,"srcEndpoint":null,"reservedBits":0,"manufacturerCode":4447,"transactionSequenceNumber":null,"writeUndiv":false}) failed (Timeout - 52026 - 1 - 22 - 64704 - 1 after 10000ms) at Timeout._onTimeout (/app/node_modules/zigbee-herdsman/src/utils/waitress.ts:64:35) at listOnTimeout (node:internal/timers:564:17) at processTimers (node:internal/timers:507:7))

[Hessenpower01]

Is this the actual firmware? Try updating.

[olivr2s]

Is this the actual firmware? Try updating.

This is the firmware from this github: https://github.com/xsp1989/zigbeeFirmware/tree/master/firmware/Zigbee3.0_Dongle-NoSigned/EZSP

Recommended in this thread: https://github.com/Koenkk/zigbee-herdsman/issues/319

It's with this firmware that I have the best stability and integration of sensors. I have 57 devices that work with this firmware.

[github-actions[bot]]

This issue is stale because it has been open 30 days with no activity. Remove stale label or comment or this will be closed in 7 days

[TyzzyT]

I'm experiencing the same problem. My Aqara FP1 was connected to Z2M and because I'm stupid I pressed Permit join and tried to re-pair the FP1 which was already connected. I then saw the FP1 leaving the network, trying to join again, but since then after joining the network, the device immediately leaves the network again. I also tried to pair the FP1 to ZHA with a Sonoff Zigbee Bridge (WiFi) and seeing the same behavior there. So I believe this is an FP1 issue and I'm not sure if this is something we can fix within Z2M.
