Kemet ex2 series mechanical relays

Open yankee14 opened this issue 5 years ago • 1 comments

This PR is to add a set of mechanical relays by Kemet.

I made use of the Lattice2 workbench by DeepSOIC to do the pin arrays and attachments.

Datasheet: https://content.kemet.com/datasheets/KEM_R7002_EC2_EE2.pdf#page=2&zoom=auto,-267,730

Symbol PR: https://github.com/KiCad/kicad-symbols/pull/2631 Footprint PR: https://github.com/KiCad/kicad-footprints/pull/2230 Packages3D-source PR: https://github.com/KiCad/kicad-packages3D-source/pull/280

There are 4 relevant models:

  1. THT for non-latching and single coil, missing 2 columns of pins
  2. THT for double coil latching, missing 1 column of pins
  3. SMD for non-latching and single coil, missing 2 columns of pins
  4. SMD for double coil latching, missing 1 column of pins

The two SMD models have additional variations regarding high density footprints, increased solder strength, or breakdown voltage improvement.

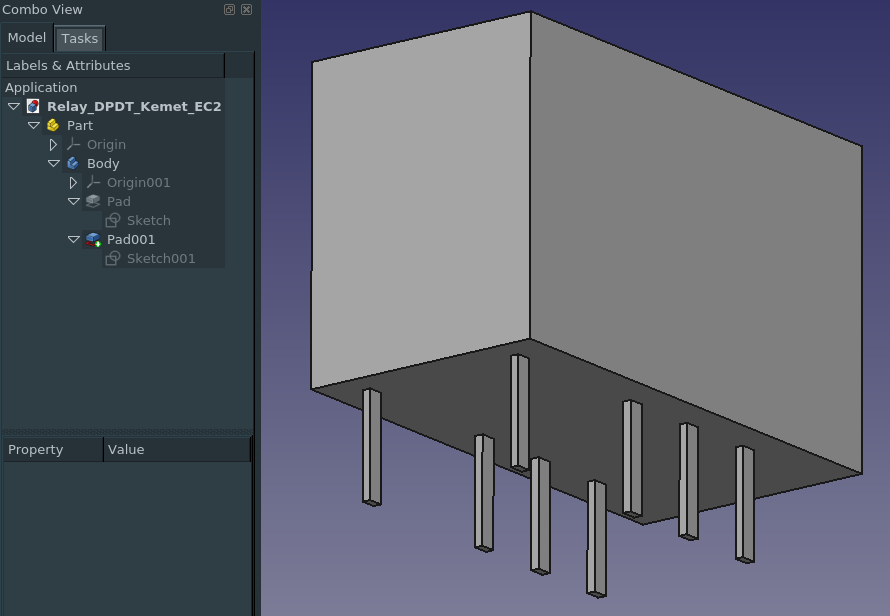

THT-NU and THT-SNU image

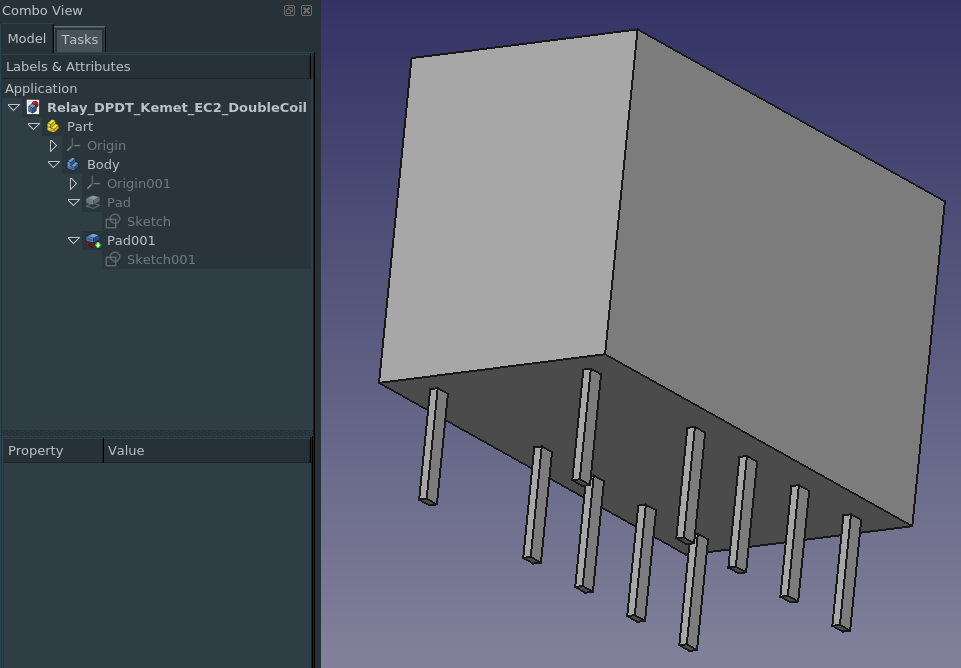

THT-TNU image

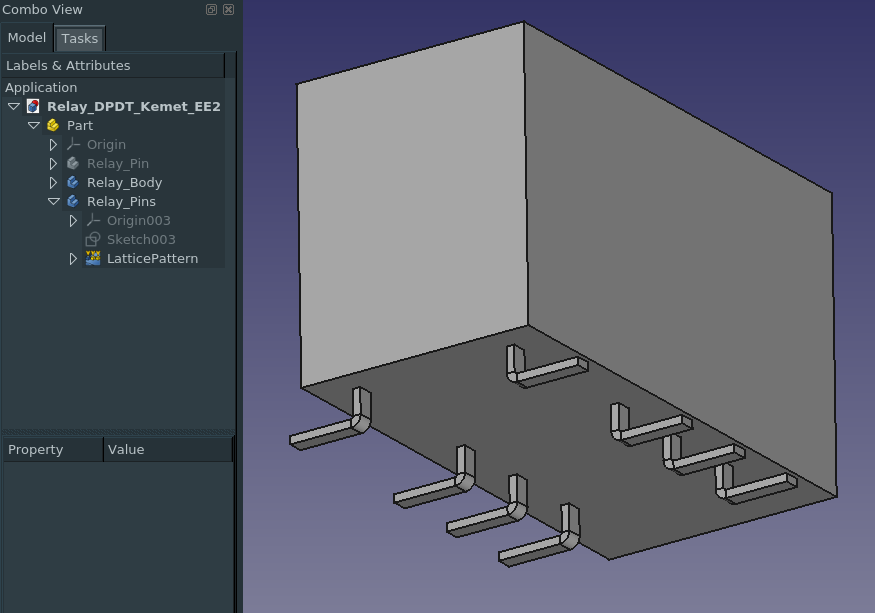

SMD-NU and SMD-SNU image

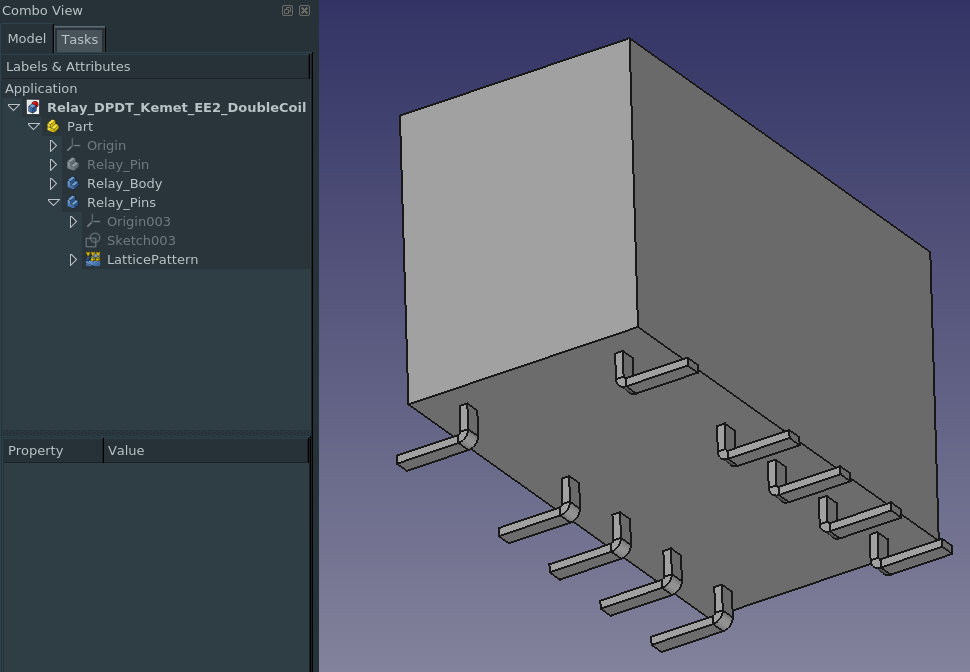

SMD-TNU image

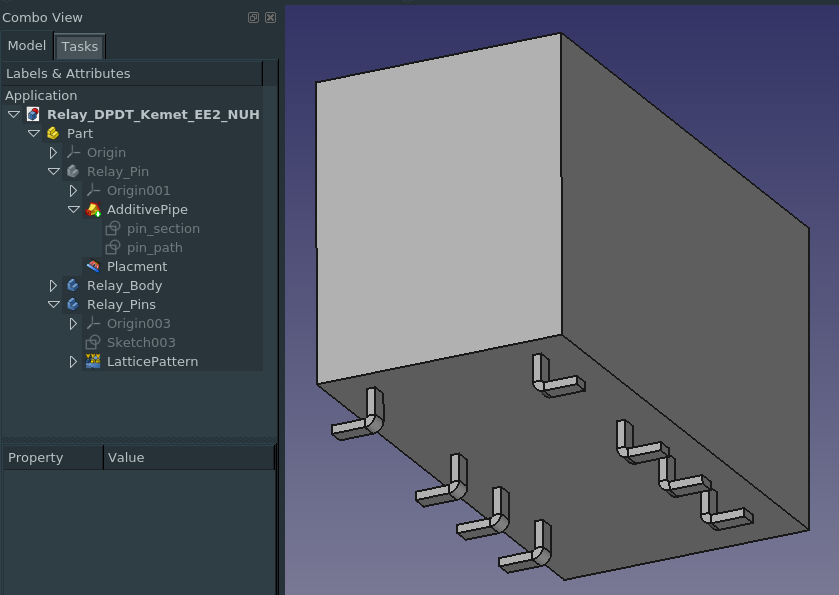

SMD-NUH and SMD-SNUH image

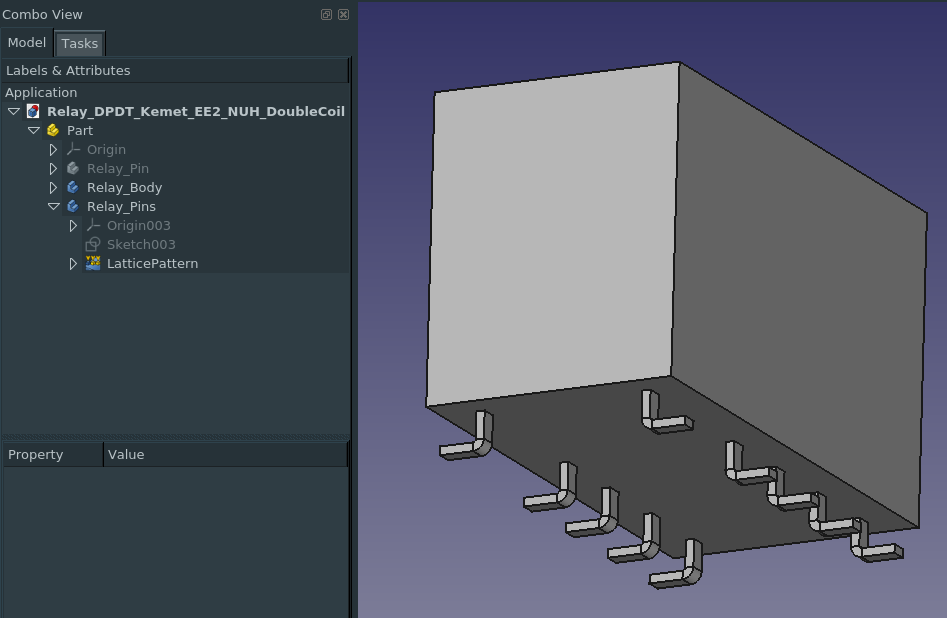

SMD-TNUH image

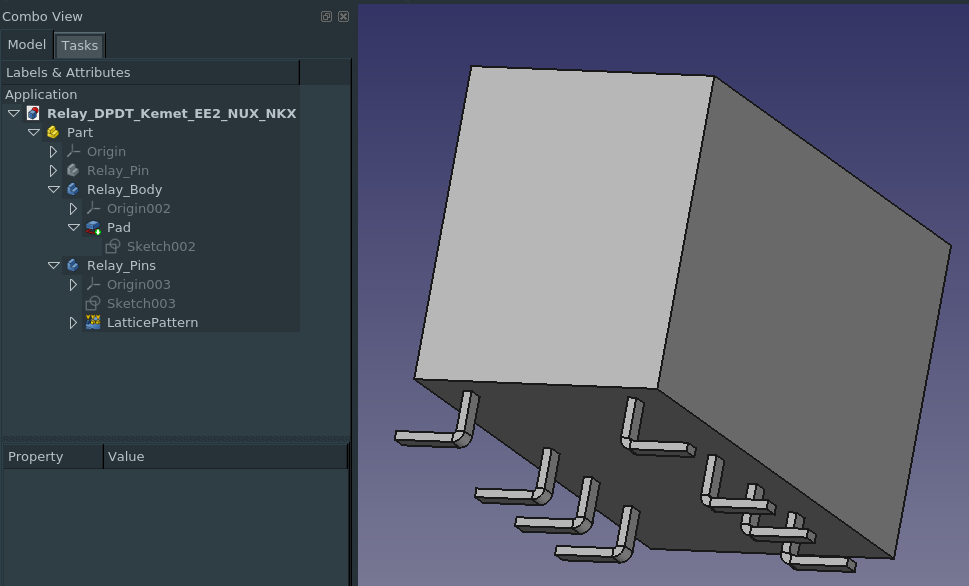

SMD-NUX and SMD-SNUX and SMD-NKX image

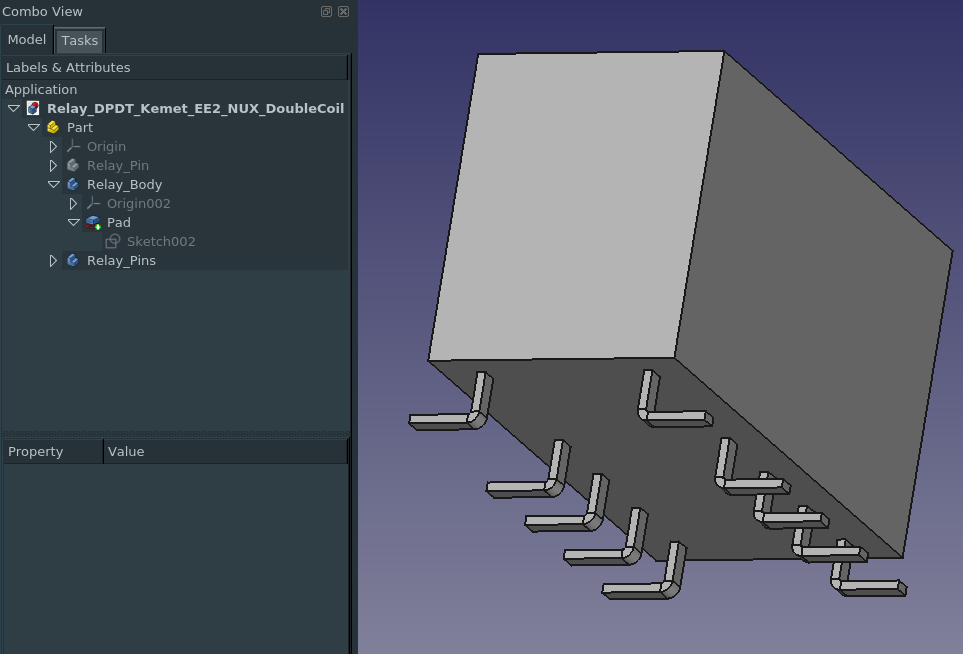

SMD-TNUX image

I'm not really sure how to use StepUp to properly fine tune these, sorry about that.
