Sizing issue

Open klayoutmatthias opened this issue 6 years ago • 0 comments

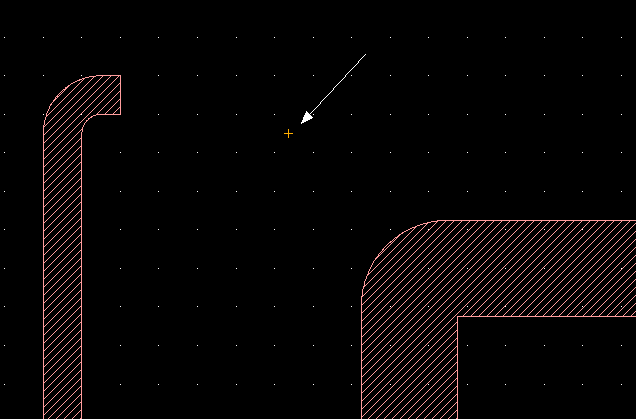

The attached GDS file produces an artefact sliver on this (extreme) undersize:

input(36, 0).sized(-127.um).output(1000, 0)

m5.gds.zip


klayoutmatthias avatar Oct 06 '19 20:10 klayoutmatthias
