Mac DMGs for 0.27.11

[Kazzz-S]

Dear @klayoutmatthias,

Thank you for the maintenance release.

As usual, different DMG packages of KLayout 0.27.11 for Mac are available as below (0.27.11 Dropbox Link). Please note that LW-*.dmg 1. uses Ruby 3.1 instead of 2.[5|7] from version 0.27.11, and 2. includes pymod(*.whl, *.egg) from version 0.27.9 for experimental purposes.

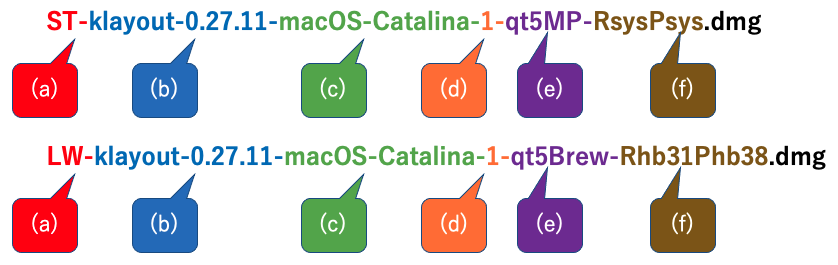

DMG file naming convention

0.27.11 for Catalina is taken as an example here.

where (a) Type of package: ST-: standard; LW-: lightweight; HW-: heavyweight (b) KLayout version (c) Target OS (d) Package serial number (e) Qt5 type: qt5MP: MacPorts; qt5Brew: Homebrew; qt5Ana3: Anaconda3 (f) Ruby type: sys: OS-bundled; mp31: Ruby3.1 from MacPorts; hb31: Ruby3.1 from Homebrew; ana3: Ruby3.1 from Anaconda3 (f) Python type: sys: OS-bundled; mp38: Python 3.8 from MacPorts; hb38: Python 3.8 from Homebrew; ana3: Python3.8 from Anaconda3

For the primary platform, macOS Catalina (10.15.7)

Five macOS DMGs for Catalina are available. They were built on an Intel-CPU-based (not M1 chip) VMware Fusion 12.2.4 on Monterey (12.5).

LW- and HW- packages use Python 3.8 in MacPorts, Homebrew and Anaconda3.

Srl.No.	Target OS	DMG file name	Qt5	Ruby	Python	Remarks
1	Catalina (10.15)	ST-klayout-0.27.11-macOS-Catalina-1-qt5MP-RsysPsys.dmg	MacPorts	OS-bundled	OS-bundled	(1)
2	Catalina (10.15) with MacPorts dev. env.	LW-klayout-0.27.11-macOS-Catalina-1-qt5MP-Rmp31Pmp38.dmg	MacPorts	MacPorts	MacPorts	(2)
3	Catalina (10.15) with Homebrew dev. env.	LW-klayout-0.27.11-macOS-Catalina-1-qt5Brew-Rhb31Phb38.dmg	Homebrew	Homebrew	Homebrew	(3)
4	Catalina (10.15) with Anaconda3 dev. env.	LW-klayout-0.27.11-macOS-Catalina-1-qt5Ana3-Rana3Pana3.dmg	Anaconda3	Anaconda3	Anaconda3	(4)
5	Catalina (10.15)	HW-klayout-0.27.11-macOS-Catalina-1-qt5Brew-RsysPhb38.dmg	Homebrew	OS-bundled	Homebrew	(5)

(1) shares OS-bundled Ruby2.6 and Python-2.7; Qt5 from MacPorts is embedded, which is the standard (ST-). (2) experimental; shares MacPorts development environment; for those with the matching dev. env. (3) experimental; shares Homebrew development environment; for those who have the matching dev. env. (4) experimental; shares Anaconda3 development environment; for those who have the matching dev. env. (5) experimental; shares OS-bundled Ruby2.6; Qt5 and Python-3.8 from Homebrew are embedded, hence, heavy.

For macOS Big Sur (11.6.8)

Four macOS DMGs for Big Sur are available. They were built on an Intel-CPU-based (not M1 chip) VMware Fusion 12.2.4 on Monterey (12.5).

LW- and HW- packages use Python 3.8 in MacPorts, Homebrew and Anaconda3.

Srl.No.	Target OS	DMG file name	Qt5	Ruby	Python	Remarks
21a	~~BigSur (11.6)~~	~~ST-klayout-0.27.11-macOS-BigSur-1-qt5MP-RsysPsys.dmg~~	~~MacPorts~~	~~OS-bundled~~	~~OS-bundled~~	(21a)
21b	Catalina (10.15)	ST-klayout-0.27.11-macOS-Catalina-1-qt5MP-RsysPsys.dmg	MacPorts	OS-bundled	OS-bundled	(21b)
22	BigSur (11.6) with MacPorts dev. env.	LW-klayout-0.27.11-macOS-BigSur-1-qt5MP-Rmp31Pmp38.dmg	MacPorts	MacPorts	MacPorts	(22)
23	BigSur (11.6) with Homebrew dev. env.	LW-klayout-0.27.11-macOS-BigSur-1-qt5Brew-Rhb31Phb38.dmg	Homebrew	Homebrew	Homebrew	(23)
24	BigSur (11.6) with Anaconda3 dev. env.	LW-klayout-0.27.11-macOS-BigSur-1-qt5Ana3-Rana3Pana3.dmg	Anaconda3	Anaconda3	Anaconda3	(24)
25	BigSur (11.6)	HW-klayout-0.27.11-macOS-BigSur-1-qt5Brew-RsysPhb38.dmg	Homebrew	OS-bundled	Homebrew	(25)

(21a) NOT PROVIDED; The ST-* package is no longer provided since Xcode >= 13.1 does not link the legacy Python 2.7 library. (21b) However, ST*.dmg for Catalina that shares OS-bundled Ruby2.6 and Python-2.7, and Qt5 from MacPorts is embedded, can run on Big Sur. (22) experimental; shares MacPorts development environment; for those who have the matching dev. env. (23) experimental; shares Homebrew development environment; for those who have the matching dev. env. (24) experimental; shares Anaconda3 development environment; for those who have the matching dev. env. (25) experimental; shares OS-bundled Ruby2.6; Qt5 and Python-3.8 from Homebrew are embedded, hence, heavy.

For the latest macOS Monterey (12.5)

Four macOS DMGs for Monterey are available.

LW- and HW- packages use Python 3.8 in MacPorts, Homebrew and Anaconda3.

Srl.No.	Target OS	DMG file name	Qt5	Ruby	Python	Remarks
31a	~~Monterey (12.5)~~	~~ST-klayout-0.27.11-macOS-Monterey-1-qt5MP-RsysPsys.dmg~~	~~MacPorts~~	~~OS-bundled~~	~~OS-bundled~~	(31a)
31b	~~Catalina (10.15)~~	~~ST-klayout-0.27.11-macOS-Catalina-1-qt5MP-RsysPsys.dmg~~	~~MacPorts~~	~~OS-bundled~~	~~OS-bundled~~	(31b)
32	Monterey (12.5) with MacPorts dev. env.	LW-klayout-0.27.11-macOS-Monterey-1-qt5MP-Rmp31Pmp38.dmg	MacPorts	MacPorts	MacPorts	(22)
33	Monterey (12.5) with Homebrew dev. env.	LW-klayout-0.27.11-macOS-Monterey-1-qt5Brew-Rhb31Phb38.dmg	Homebrew	Homebrew	Homebrew	(33)
34	Monterey (12.5) with Anaconda3 dev. env.	LW-klayout-0.27.11-macOS-Monterey-1-qt5Ana3-Rana3Pana3.dmg	Anaconda3	Anaconda3	Anaconda3	(34)
35	Monterey (12.5)	HW-klayout-0.27.11-macOS-Monterey-1-qt5Brew-RsysPhb38.dmg	Homebrew	OS-bundled	Homebrew	(35)

(31a) NOT PROVIDED; The ST-* package is no longer provided since Xcode >= 13.1 does not link the legacy Python 2.7 library. (31b) Monterey 12.3.1 finally eliminated Python-2.7 binary. Hence, ST-* package no longer runs. (32) experimental; shares MacPorts development environment; for those who have the matching dev. env. (33) experimental; shares Homebrew development environment; for those who have the matching dev. env. (34) experimental; shares Anaconda3 development environment; for those who have the matching dev. env. (35) experimental; shares OS-bundled Ruby2.6; Qt5 and Python-3.8 from Homebrew are embedded, hence, heavy.

For previous OS

Srl.No.	Target OS	DMG file name	Qt5	Ruby	Python	Remarks
6	Mojave (10.14)	From 0.27.x onward, DMGs will not be provided for this OS.				(1p)
7	HighSierra (10.13)	From 0.27.x onward, DMGs will not be provided for this OS.				(1p)
8	Sierra (10.12)	From 0.27.x onward, DMGs will not be provided for this OS.				(1p)
9	ElCapitan (10.11)	From 0.27.x onward, DMGs will not be provided for this OS.				(1p)
x	Yosemite (10.10)	has been dropped due to the compiler issue reported in #360.

(1p) I expect that build is still possible.

Would you please close this ticket after publishing the packages? With warm regards, Kazzz-S
