PNG output broken for parallel coordinates plot

[MaHaWo]

trafficstars

Describe the bug If I create a parallel coordinates plot for largish data DataFrame with 20342 rows, 17 columns and some 25 groups in the following way:

mytrace = parcoords(;line = attr(color=filtered.species_numbered, colorscale="Portland"),
        dimensions = [
            attr(range = [minimum(filtered.start),maximum(filtered.start)],
                 label = "start", values = filtered.start),
            attr(range = [minimum(filtered.stop),maximum(filtered.stop)],
            label = "stop", values = filtered.stop),
            attr(range = [minimum(filtered.start_mod),maximum(filtered.start_mod)],
                 label = "start_mod", values = filtered.start_mod),
            attr(range = [minimum(filtered.stop_mod),maximum(filtered.stop_mod)],
                 label = "stop_mod", values = filtered.stop_mod)
        ]);

myplot = plot(mytrace)

with start, stop, start_mod, stop_mod being some of the 17 dimensions of the data, coloured by the mentioned groups, and try to save the resulting plot via

savefig(myplot, "test.png", format = "png")

many of the lines that are present in the plot as displayed by Jupyterlab or in JUNO are missing in the png file. If I use the camera symbol, no lines are visible at all.

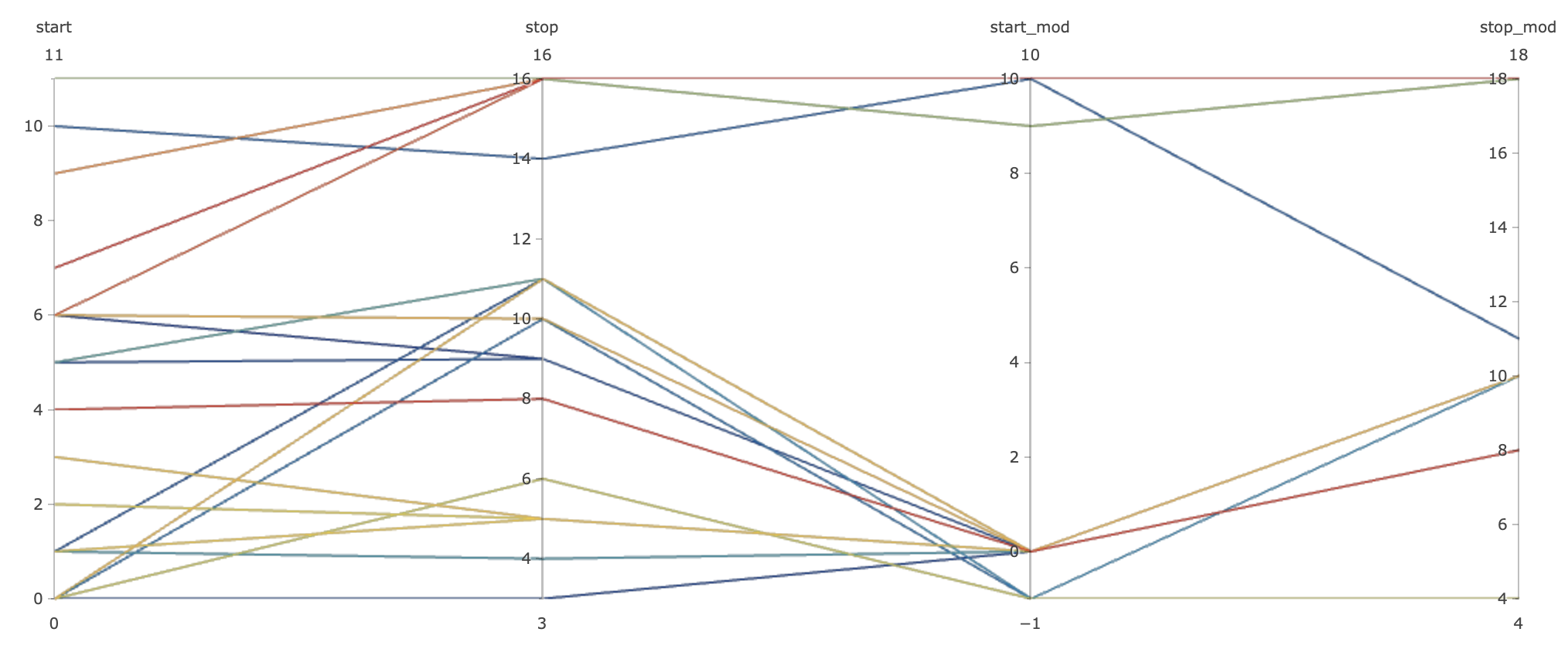

Plot as displayed:

Plot as saved to png:

Plot as saved via camera symbol:

Moreover, this seems to be the case for all output formats except for html, where everything works normal. Yet again, using the camera symbol in a html file thus produced results in missing lines.

Version info

0. System: macOS Catalina, using homebrew as package manager

1. output of julia command versioninfo():

Julia Version 1.4.0
Commit b8e9a9ecc6 (2020-03-21 16:36 UTC)
Platform Info:
  OS: macOS (x86_64-apple-darwin18.6.0)
  CPU: Intel(R) Core(TM) i5-8500 CPU @ 3.00GHz
  WORD_SIZE: 64
  LIBM: libopenlibm
  LLVM: libLLVM-8.0.1 (ORCJIT, skylake)

2. Output running the following in Julia 0.7 or greater: using Pkg; pkg"status" (if you are on Julia 0.6 or earlier run Pkg.status()):

julia> using Pkg

julia> pkg"status"

Status `~/.julia/environments/v1.4/Project.toml`
  [5d742f6a] CSVFiles v1.0.0
  [aaaa29a8] Clustering v0.13.5
  [5721bf48] DataVoyager v1.0.0
  [d872a56f] ElectronDisplay v1.0.0
  [28b8d3ca] GR v0.48.0
  [f67ccb44] HDF5 v0.13.1
  [7073ff75] IJulia v1.20.0
  [ee78f7c6] Makie v0.9.6
  [6f286f6a] MultivariateStats v0.7.0
  [47be7bcc] ORCA v0.3.1
  [eadc2687] Pandas v1.4.0
  [f0f68f2c] PlotlyJS v0.13.1
  [91a5bcdd] Plots v1.0.5
  [438e738f] PyCall v1.91.4
  [d330b81b] PyPlot v2.9.0
  [1a8c2f83] Query v0.12.2
  [2913bbd2] StatsBase v0.32.2
  [65254759] StatsMakie v0.1.5
  [f3b207a7] StatsPlots v0.14.4
  [112f6efa] VegaLite v2.1.3
  [0f1e0344] WebIO v0.8.11
  [9a3f8284] Random

julia>

This happens in exactly the same way on another system which uses macports instead of homebrew.

This bug renders PlotlyJS basically useless for me, because I heavily rely on features like parallel-coordinates-plots for high-dimensional data visualization for exploration of my data.

[sglyon]

Sorry for the trouble here and extra sorry for long delay without a response

If this is something you'd still like help with please post a full example. I don't have accessed to the filtered object so I can't replicate the issue.

We've had some recent changes to how figures are saved, so I'm hoping this will "just work" now :crossed_fingers:

[MaHaWo]

Hey, thanks for the answer and sorry for the missing example. I think that I will try it out again as soon as I can, but this might take a little while, since I moved on to other topics since posting this. Once done, I will come back 🤞
