Uneven border width when using `RoundedCornerShape`

[ragunathjawahar]

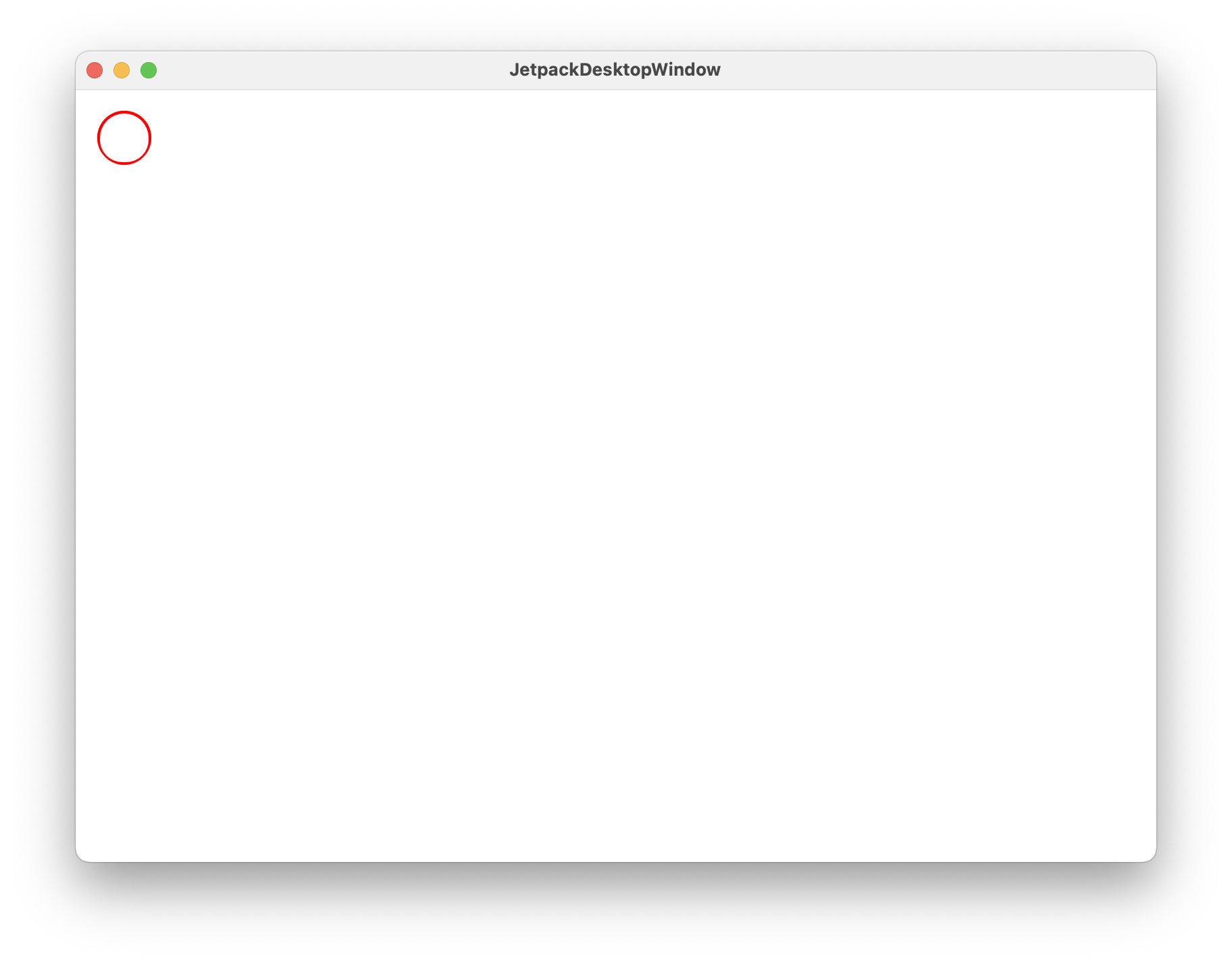

Example

fun main() = Window {
  Box(
    modifier = Modifier
      .padding(16.dp)
      .preferredWidth(40.dp)
      .preferredHeight(40.dp)
      .background(color = Color.White)
      .border(2.dp, Color.Red, shape = RoundedCornerShape(20.dp))
  )
}

[olonho]

Could you please clarify, what is expected result here?

[ragunathjawahar]

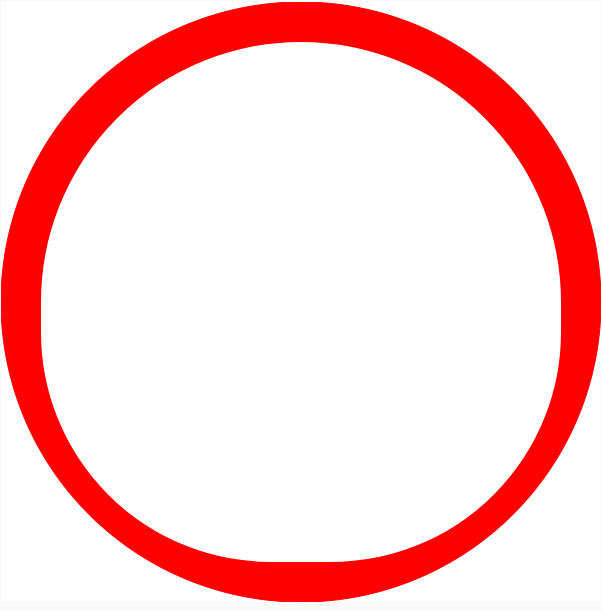

The entire circle border should have the same width. If you look closely, the top half looks uniform but the bottom half does not.

[olonho]

Indeed, it's somewhat distorted. Is Android behavior the same?

[igordmn]

Same on Android

            Box(
                modifier = Modifier
                    .padding(16.dp)
                    .width(300.dp)
                    .height(300.dp)
                    .background(color = Color.White)
                    .border(20.dp, Color.Red, shape = RoundedCornerShape(150.dp))
            )

[okushnikov]

Please check the following ticket on YouTrack for follow-ups to this issue. GitHub issues will be closed in the coming weeks.
