Bugs in some games

Open AITUS95 opened this issue 2 years ago • 9 comments

Hello, first of all I want to thank the author who had the idea of starting this splendid project, this is very useful to the community and I hope it can go very far! That said, I'd like to show a few games that didn't work, unfortunately these are the first 3 I've tried and failed:

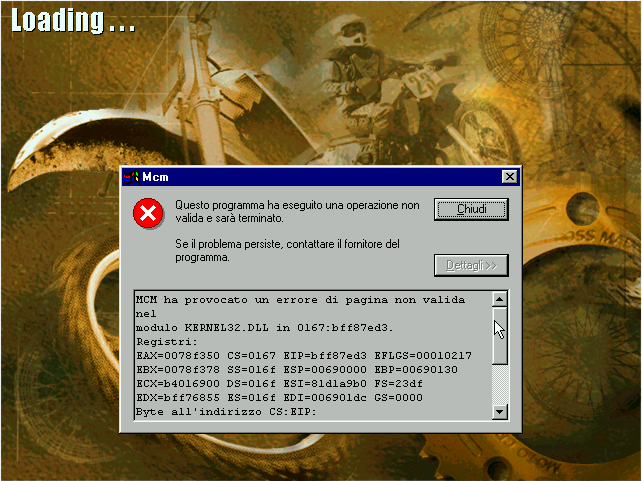

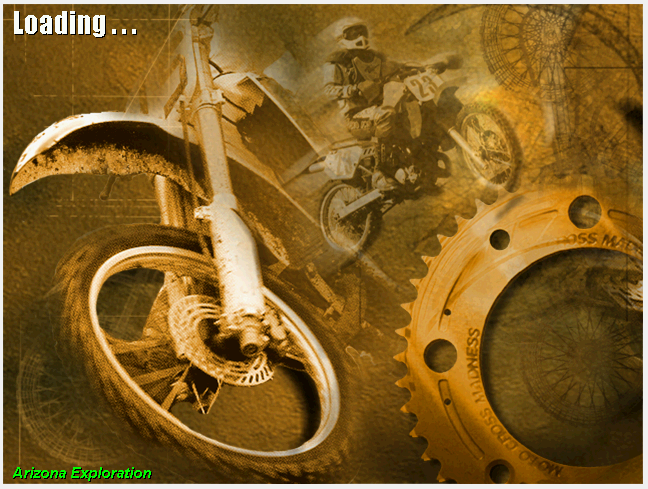

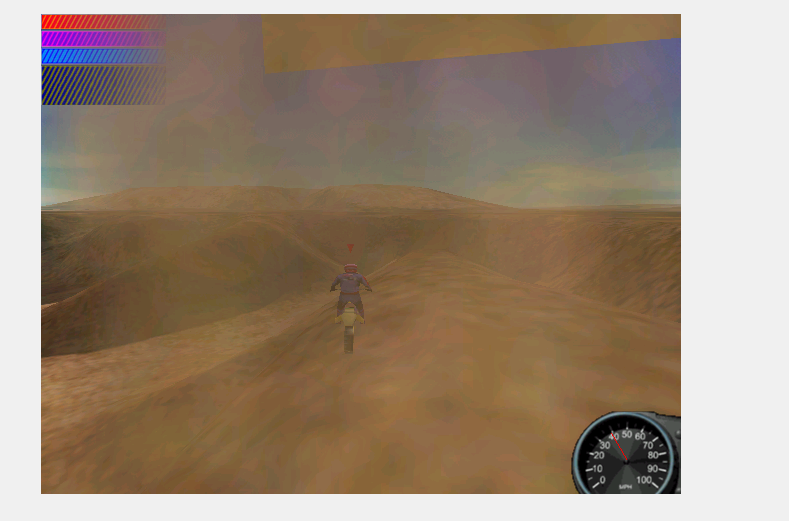

MOTOCROSS MADNESS The game starts, the intro is shown regularly but when trying to start a race the following error message is shown

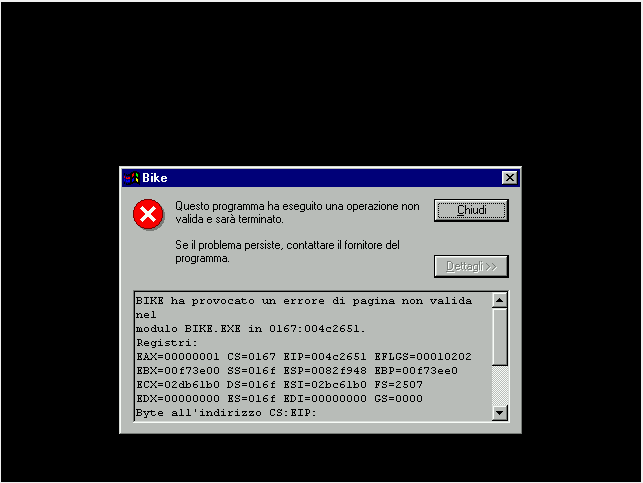

CASTROL HONDA SUPERBIKE 2000 The game starts, but there is no sound in both intro and menu, when I try to start a race it shows the following error message

TANK RACER

After installing the game, the menu looked like this without showing anything

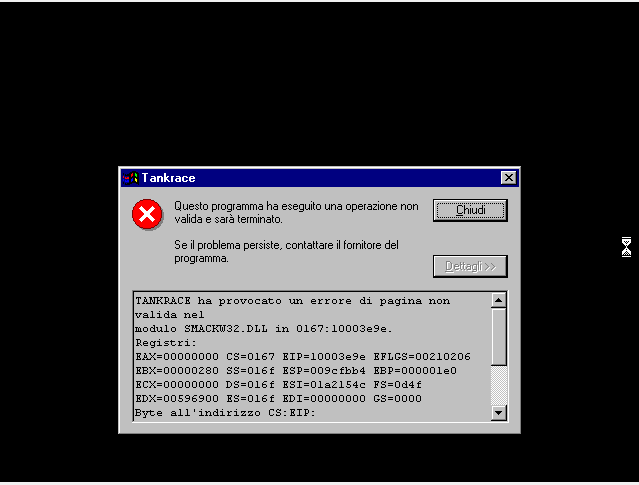

After restarting the game the following error message is shown

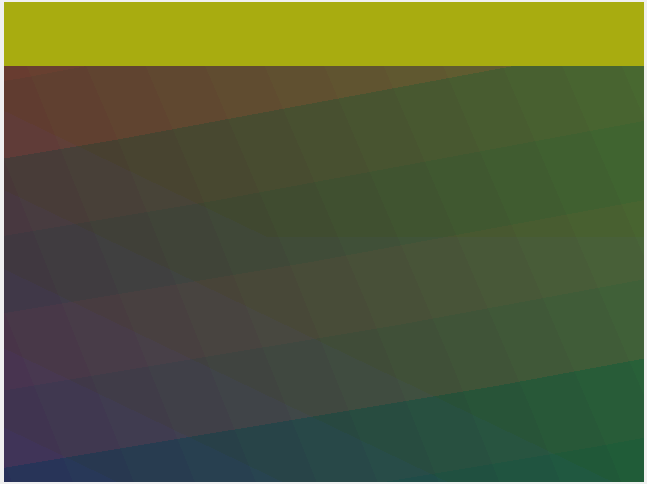

The Direct3D tests show a black screen without displaying the rotating cube, while the DirectDraw tests only show the moving white square, while the others fail, obviously I'm using the latest version of Virtualbox with all the settings described in the guide on github, being an alpha release I am aware that there are many problems and I hope this commit will help for future releases.

P.S: My OS is windows 10 with i5 9600k cpu and I'm running windows 98 on Virtualbox 7.0.8

Apr 26 '23 21:04 AITUS95

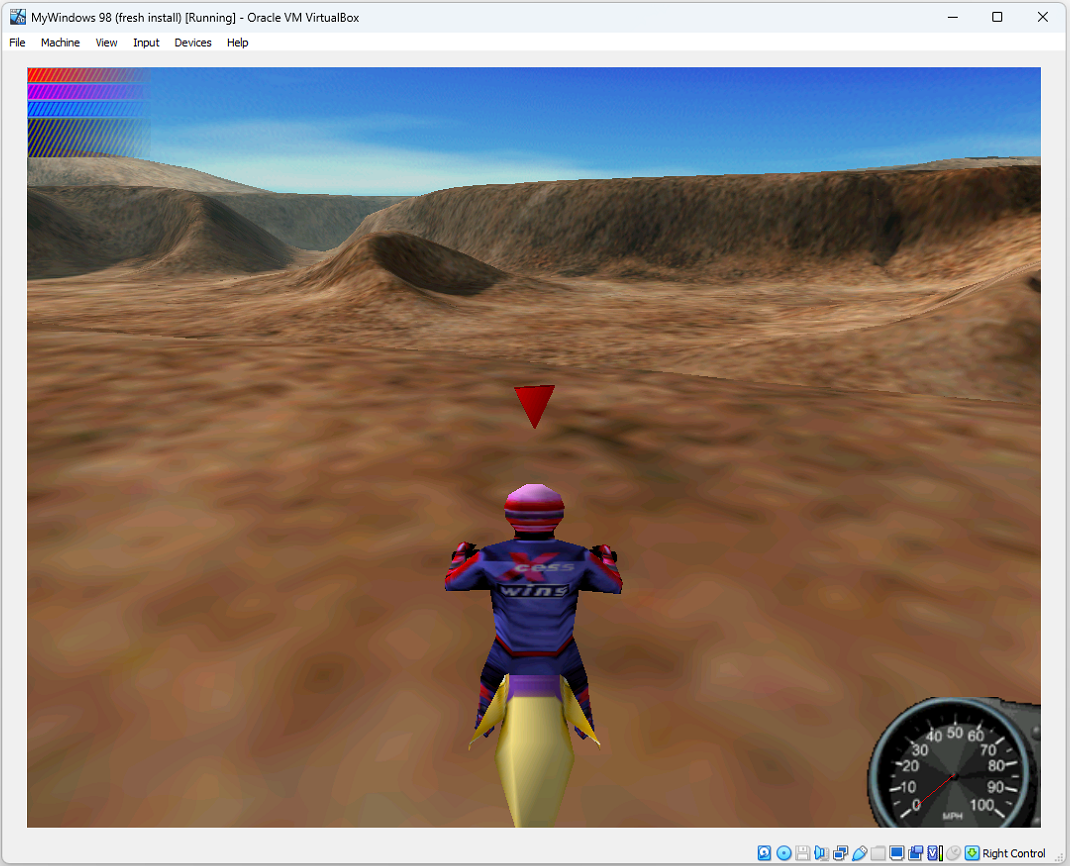

Hello, thanks for your report! Unfortunately, many games don’t work. I’m afraid that I many cases a lot of work will need to be done. Still, I found simple bugfix for Motocross Madness – game still has graphical glitches but not crashing now. If you want to try it, download updated Wine9x: https://github.com/JHRobotics/wine9x/releases/tag/v1.7.55.6 and replace dwine.dll, wined3d.dll, d3d8.dll and d3d9.dll in WINDOWS/SYSTEM directory.

mmm-softgpu

I'm writing the other two on the list of games for testing (I also probably have the original CD of CHS2000 somewhere) and I hope that I will be able to make them work in the future.

In Windows 98, dxdiag should be able to run all test successfully. Do you have latest DirectX9 installed? Please write Windows 98 version and DX version and I’ll try to simulate it.

Apr 28 '23 22:04 JHRobotics

I think there is something wrong as expected in my virtual machine, I tried to replace the libraries in WINDOWS\SYSTEM but I get this screen:

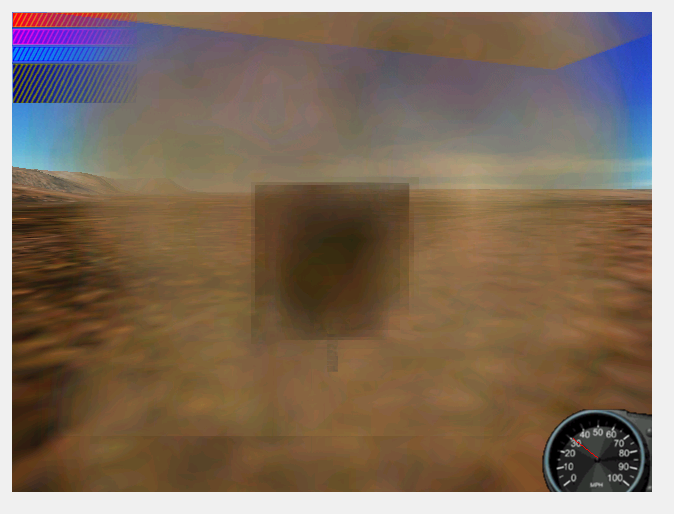

the race is running but the screen stays as pictured, i can pause the game and exit.

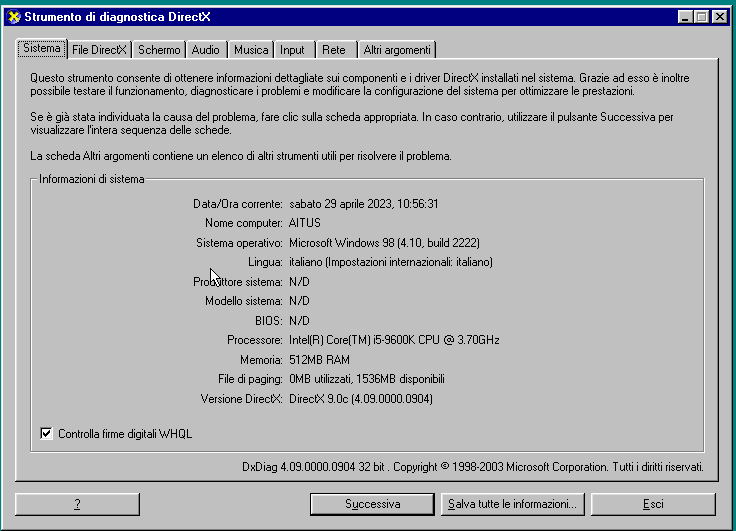

VM SPECS

When I test on dxdiag, the directdraw test now passes while the direct3D test always shows the same results:

DIRECTX 7 TEST

Directx 7 test

DIRECTX 8 TEST

Directx 8 test

DIRECTX 9 TEST

Directx 9 test

If it helps, I exported my virtual machine to .ova so you can check if it's the same for you too.

WINDOWS 98 OVA

Apr 29 '23 12:04 AITUS95

Your Virtual Machine looks fine, after import, everything works to me. I even made a video of it: https://youtu.be/m7xeUl3aQjU

I think the problem is in your real GPU, can you please send me part of VM log file? Look at line started with D3D9 adapter: and type this and all following lines with VMSVGA3d at begin.

Here is example (integrated AMD GPU):

00:00:03.330879 D3D9 adapter: AMD Radeon(TM) Graphics 1002:1638 [aticfx64.dll, version 31.0.12042.4]
00:00:03.330881
00:00:03.330881 D3D device caps: DevCaps2:
00:00:03.330881  - D3DDEVCAPS2_CAN_STRETCHRECT_FROM_TEXTURES
00:00:03.330882  - D3DDEVCAPS2_PRESAMPLEDDMAPNPATCH
00:00:03.330882  - D3DDEVCAPS2_STREAMOFFSET
00:00:03.330882  - D3DDEVCAPS2_VERTEXELEMENTSCANSHARESTREAMOFFSET
00:00:03.330882
00:00:03.330882 Caps2:
00:00:03.330883  - D3DCAPS2_CANAUTOGENMIPMAP
00:00:03.330883  - D3DCAPS2_CANSHARERESOURCE
00:00:03.330883  - D3DCAPS2_DYNAMICTEXTURES
00:00:03.330883  - D3DCAPS2_FULLSCREENGAMMA
00:00:03.330883
00:00:03.330883 Caps3:
00:00:03.330883  - D3DCAPS3_ALPHA_FULLSCREEN_FLIP_OR_DISCARD
00:00:03.330883  - D3DCAPS3_COPY_TO_VIDMEM
00:00:03.330884  - D3DCAPS3_COPY_TO_SYSTEMMEM
00:00:03.330884  - D3DCAPS3_LINEAR_TO_SRGB_PRESENTATION
00:00:03.330884
00:00:03.330884 PresentationIntervals:
00:00:03.330884  - D3DPRESENT_INTERVAL_IMMEDIATE
00:00:03.330884  - D3DPRESENT_INTERVAL_ONE
00:00:03.330884  - D3DPRESENT_INTERVAL_TWO
00:00:03.330885  - D3DPRESENT_INTERVAL_THREE
00:00:03.330885  - D3DPRESENT_INTERVAL_FOUR
00:00:03.330885
00:00:03.330885 Devcaps:
00:00:03.330885  - D3DDEVCAPS_CANBLTSYSTONONLOCAL
00:00:03.330885  - D3DDEVCAPS_CANRENDERAFTERFLIP
00:00:03.330885  - D3DDEVCAPS_DRAWPRIMITIVES2
00:00:03.330885  - D3DDEVCAPS_DRAWPRIMITIVES2EX
00:00:03.330886  - D3DDEVCAPS_DRAWPRIMTLVERTEX
00:00:03.330886  - D3DDEVCAPS_EXECUTESYSTEMMEMORY
00:00:03.330886  - D3DDEVCAPS_EXECUTEVIDEOMEMORY
00:00:03.330886  - D3DDEVCAPS_HWRASTERIZATION
00:00:03.330886  - D3DDEVCAPS_HWTRANSFORMANDLIGHT
00:00:03.330886  - D3DDEVCAPS_PUREDEVICE
00:00:03.330888  - D3DDEVCAPS_TEXTURENONLOCALVIDMEM
00:00:03.330888  - D3DDEVCAPS_TEXTUREVIDEOMEMORY
00:00:03.330888  - D3DDEVCAPS_TLVERTEXSYSTEMMEMORY
00:00:03.330888  - D3DDEVCAPS_TLVERTEXVIDEOMEMORY
00:00:03.330888
00:00:03.330888 TextureCaps:
00:00:03.330889  - D3DPTEXTURECAPS_ALPHA
00:00:03.330889  - D3DPTEXTURECAPS_CUBEMAP
00:00:03.330889  - D3DPTEXTURECAPS_MIPCUBEMAP
00:00:03.330889  - D3DPTEXTURECAPS_MIPMAP
00:00:03.330889  - D3DPTEXTURECAPS_MIPVOLUMEMAP
00:00:03.330889  - D3DPTEXTURECAPS_PERSPECTIVE
00:00:03.330889  - D3DPTEXTURECAPS_PROJECTED
00:00:03.330890  - D3DPTEXTURECAPS_TEXREPEATNOTSCALEDBYSIZE
00:00:03.330890  - D3DPTEXTURECAPS_VOLUMEMAP
00:00:03.330890
00:00:03.330890 TextureFilterCaps
00:00:03.330890  - D3DPTFILTERCAPS_MAGFPOINT
00:00:03.330890  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:03.330890  - D3DPTFILTERCAPS_MAGFANISOTROPIC
00:00:03.330891  - D3DPTFILTERCAPS_MINFPOINT
00:00:03.330891  - D3DPTFILTERCAPS_MINFLINEAR
00:00:03.330892  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:03.330892  - D3DPTFILTERCAPS_MIPFPOINT
00:00:03.330892  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:03.330892
00:00:03.330892 CubeTextureFilterCaps
00:00:03.330892  - D3DPTFILTERCAPS_MAGFPOINT
00:00:03.330893  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:03.330893  - D3DPTFILTERCAPS_MINFPOINT
00:00:03.330893  - D3DPTFILTERCAPS_MINFLINEAR
00:00:03.330893  - D3DPTFILTERCAPS_MIPFPOINT
00:00:03.330893  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:03.330893
00:00:03.330893 VolumeTextureFilterCaps
00:00:03.330893  - D3DPTFILTERCAPS_MAGFPOINT
00:00:03.330894  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:03.330894  - D3DPTFILTERCAPS_MAGFANISOTROPIC
00:00:03.330894  - D3DPTFILTERCAPS_MINFPOINT
00:00:03.330894  - D3DPTFILTERCAPS_MINFLINEAR
00:00:03.330894  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:03.330894  - D3DPTFILTERCAPS_MIPFPOINT
00:00:03.330894  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:03.330895
00:00:03.330895 TextureAddressCaps:
00:00:03.330895  - D3DPTADDRESSCAPS_BORDER
00:00:03.330895  - D3DPTADDRESSCAPS_CLAMP
00:00:03.330895  - D3DPTADDRESSCAPS_INDEPENDENTUV
00:00:03.330895  - D3DPTADDRESSCAPS_MIRROR
00:00:03.330895  - D3DPTADDRESSCAPS_MIRRORONCE
00:00:03.330895  - D3DPTADDRESSCAPS_WRAP
00:00:03.330896
00:00:03.330896 TextureOpCaps:
00:00:03.330896  - D3DTEXOPCAPS_DISABLE
00:00:03.330896  - D3DTEXOPCAPS_SELECTARG1
00:00:03.330896  - D3DTEXOPCAPS_SELECTARG2
00:00:03.330896  - D3DTEXOPCAPS_MODULATE
00:00:03.330896  - D3DTEXOPCAPS_MODULATE2X
00:00:03.330896  - D3DTEXOPCAPS_MODULATE4X
00:00:03.330897  - D3DTEXOPCAPS_ADD
00:00:03.330897  - D3DTEXOPCAPS_ADDSIGNED
00:00:03.330897  - D3DTEXOPCAPS_ADDSIGNED2X
00:00:03.330897  - D3DTEXOPCAPS_SUBTRACT
00:00:03.330897  - D3DTEXOPCAPS_ADDSMOOTH
00:00:03.330897  - D3DTEXOPCAPS_BLENDDIFFUSEALPHA
00:00:03.330897  - D3DTEXOPCAPS_BLENDTEXTUREALPHA
00:00:03.330898  - D3DTEXOPCAPS_BLENDFACTORALPHA
00:00:03.330898  - D3DTEXOPCAPS_BLENDTEXTUREALPHAPM
00:00:03.330898  - D3DTEXOPCAPS_BLENDCURRENTALPHA
00:00:03.330898  - D3DTEXOPCAPS_PREMODULATE
00:00:03.330898  - D3DTEXOPCAPS_MODULATEALPHA_ADDCOLOR
00:00:03.330898  - D3DTEXOPCAPS_MODULATECOLOR_ADDALPHA
00:00:03.330898  - D3DTEXOPCAPS_MODULATEINVALPHA_ADDCOLOR
00:00:03.330899  - D3DTEXOPCAPS_MODULATEINVCOLOR_ADDALPHA
00:00:03.330899  - D3DTEXOPCAPS_BUMPENVMAP
00:00:03.330899  - D3DTEXOPCAPS_BUMPENVMAPLUMINANCE
00:00:03.330899  - D3DTEXOPCAPS_DOTPRODUCT3
00:00:03.330899  - D3DTEXOPCAPS_MULTIPLYADD
00:00:03.330899  - D3DTEXOPCAPS_LERP
00:00:03.330899
00:00:03.330900 PixelShaderVersion:  0xffff0300 (3.0)
00:00:03.330900 VertexShaderVersion: 0xfffe0300 (3.0)
00:00:03.330900
00:00:03.330910 VMSVGA3d: cap[0]=0x00000001 {3D}
00:00:03.330911 VMSVGA3d: cap[1]=0x00000008 {MAX_LIGHTS}
00:00:03.330912 VMSVGA3d: cap[2]=0x00000008 {MAX_TEXTURES}
00:00:03.330912 VMSVGA3d: cap[3]=0x00000006 {MAX_CLIP_PLANES}
00:00:03.330912 VMSVGA3d: cap[4]=0x00000007 {VERTEX_SHADER_VERSION}
00:00:03.330912 VMSVGA3d: cap[5]=0x00000001 {VERTEX_SHADER}
00:00:03.330913 VMSVGA3d: cap[6]=0x0000000d {FRAGMENT_SHADER_VERSION}
00:00:03.330913 VMSVGA3d: cap[7]=0x00000001 {FRAGMENT_SHADER}
00:00:03.330913 VMSVGA3d: cap[8]=0x00000004 {MAX_RENDER_TARGETS}
00:00:03.330913 VMSVGA3d: cap[9]=failed rc=VERR_INVALID_PARAMETER {S23E8_TEXTURES}
00:00:03.330916 VMSVGA3d: cap[10]=failed rc=VERR_INVALID_PARAMETER {S10E5_TEXTURES}
00:00:03.330917 VMSVGA3d: cap[11]=0x00000000 {MAX_FIXED_VERTEXBLEND}
00:00:03.330917 VMSVGA3d: cap[12]=0x00000001 {D16_BUFFER_FORMAT}
00:00:03.330917 VMSVGA3d: cap[13]=0x00000001 {D24S8_BUFFER_FORMAT}
00:00:03.330918 VMSVGA3d: cap[14]=0x00000001 {D24X8_BUFFER_FORMAT}
00:00:03.330918 VMSVGA3d: cap[15]=0x00000000 {QUERY_TYPES}
00:00:03.330918 VMSVGA3d: cap[16]=0x00000000 {TEXTURE_GRADIENT_SAMPLING}
00:00:03.330919 VMSVGA3d: cap[17]=256.000000 {MAX_POINT_SIZE}
00:00:03.330919 VMSVGA3d: cap[18]=failed rc=VERR_INVALID_PARAMETER {MAX_SHADER_TEXTURES}
00:00:03.330919 VMSVGA3d: cap[19]=0x00004000 {MAX_TEXTURE_WIDTH}
00:00:03.330920 VMSVGA3d: cap[20]=0x00004000 {MAX_TEXTURE_HEIGHT}
00:00:03.330920 VMSVGA3d: cap[21]=0x00002000 {MAX_VOLUME_EXTENT}
00:00:03.330920 VMSVGA3d: cap[22]=0x00002000 {MAX_TEXTURE_REPEAT}
00:00:03.330921 VMSVGA3d: cap[23]=0x00002000 {MAX_TEXTURE_ASPECT_RATIO}
00:00:03.330921 VMSVGA3d: cap[24]=0x00000010 {MAX_TEXTURE_ANISOTROPY}
00:00:03.330921 VMSVGA3d: cap[25]=0x00555555 {MAX_PRIMITIVE_COUNT}
00:00:03.330921 VMSVGA3d: cap[26]=0x00ffffff {MAX_VERTEX_INDEX}
00:00:03.330922 VMSVGA3d: cap[27]=0x00008000 {MAX_VERTEX_SHADER_INSTRUCTIONS}
00:00:03.330922 VMSVGA3d: cap[28]=0x00008000 {MAX_FRAGMENT_SHADER_INSTRUCTIONS}
00:00:03.330922 VMSVGA3d: cap[29]=0x00000020 {MAX_VERTEX_SHADER_TEMPS}
00:00:03.330923 VMSVGA3d: cap[30]=0x00000020 {MAX_FRAGMENT_SHADER_TEMPS}
00:00:03.330923 VMSVGA3d: cap[31]=0x00000000 {TEXTURE_OPS}
00:00:03.330925 VMSVGA3d: cap[32]=0x00daec1f {SURFACEFMT_X8R8G8B8}
00:00:03.330926 VMSVGA3d: cap[33]=0x00dae11f {SURFACEFMT_A8R8G8B8}
00:00:03.330928 VMSVGA3d: cap[34]=0x00ca611f {SURFACEFMT_A2R10G10B10}
00:00:03.330929 VMSVGA3d: cap[35]=0x00ca6c1f {SURFACEFMT_X1R5G5B5}
00:00:03.330930 VMSVGA3d: cap[36]=0x00ca611f {SURFACEFMT_A1R5G5B5}
00:00:03.330931 VMSVGA3d: cap[37]=0x00ca611f {SURFACEFMT_A4R4G4B4}
00:00:03.330931 VMSVGA3d: cap[38]=0x00ca6c1f {SURFACEFMT_R5G6B5}
00:00:03.330932 VMSVGA3d: cap[39]=0x00c2401f {SURFACEFMT_LUMINANCE16}
00:00:03.330933 VMSVGA3d: cap[40]=0x00824007 {SURFACEFMT_LUMINANCE8_ALPHA8}
00:00:03.330934 VMSVGA3d: cap[41]=0x00c2401f {SURFACEFMT_ALPHA8}
00:00:03.330935 VMSVGA3d: cap[42]=0x00c2401f {SURFACEFMT_LUMINANCE8}
00:00:03.330936 VMSVGA3d: cap[43]=0x000000c1 {SURFACEFMT_Z_D16}
00:00:03.330936 VMSVGA3d: cap[44]=0x000000c1 {SURFACEFMT_Z_D24S8}
00:00:03.330937 VMSVGA3d: cap[45]=0x000000c1 {SURFACEFMT_Z_D24X8}
00:00:03.330938 VMSVGA3d: cap[46]=0x0082c007 {SURFACEFMT_DXT1}
00:00:03.330939 VMSVGA3d: cap[47]=0x0082c007 {SURFACEFMT_DXT2}
00:00:03.330940 VMSVGA3d: cap[48]=0x0082c007 {SURFACEFMT_DXT3}
00:00:03.330941 VMSVGA3d: cap[49]=0x0082c007 {SURFACEFMT_DXT4}
00:00:03.330942 VMSVGA3d: cap[50]=0x0082c007 {SURFACEFMT_DXT5}
00:00:03.330942 VMSVGA3d: cap[51]=0x00030007 {SURFACEFMT_BUMPX8L8V8U8}
00:00:03.330944 VMSVGA3d: cap[52]=0x00030007 {SURFACEFMT_A2W10V10U10}
00:00:03.330944 VMSVGA3d: cap[53]=0x00830007 {SURFACEFMT_BUMPU8V8}
00:00:03.330945 VMSVGA3d: cap[54]=0x0083401f {SURFACEFMT_Q8W8V8U8}
00:00:03.330946 VMSVGA3d: cap[55]=0x00000000 {SURFACEFMT_CxV8U8}
00:00:03.330947 VMSVGA3d: cap[56]=0x00c2401f {SURFACEFMT_R_S10E5}
00:00:03.330948 VMSVGA3d: cap[57]=0x00c2401f {SURFACEFMT_R_S23E8}
00:00:03.330950 VMSVGA3d: cap[58]=0x00c2401f {SURFACEFMT_RG_S10E5}
00:00:03.330951 VMSVGA3d: cap[59]=0x00c2401f {SURFACEFMT_RG_S23E8}
00:00:03.330952 VMSVGA3d: cap[60]=0x00c2401f {SURFACEFMT_ARGB_S10E5}
00:00:03.330953 VMSVGA3d: cap[61]=0x00c2401f {SURFACEFMT_ARGB_S23E8}
00:00:03.330953 VMSVGA3d: cap[62]=failed rc=VERR_INVALID_PARAMETER {MISSING62}
00:00:03.330954 VMSVGA3d: cap[63]=0x00000000 {MAX_VERTEX_SHADER_TEXTURES}
00:00:03.330954 VMSVGA3d: cap[64]=0x00000004 {MAX_SIMULTANEOUS_RENDER_TARGETS}
00:00:03.330955 VMSVGA3d: cap[65]=0x00830007 {SURFACEFMT_V16U16}
00:00:03.330956 VMSVGA3d: cap[66]=0x00c2401f {SURFACEFMT_G16R16}
00:00:03.330957 VMSVGA3d: cap[67]=0x00c2401f {SURFACEFMT_A16B16G16R16}
00:00:03.330958 VMSVGA3d: cap[68]=0x01244001 {SURFACEFMT_UYVY}
00:00:03.330959 VMSVGA3d: cap[69]=0x01244001 {SURFACEFMT_YUY2}
00:00:03.330959 VMSVGA3d: cap[70]=0x00000000 {DEAD4}
00:00:03.330959 VMSVGA3d: cap[71]=0x00000000 {DEAD5}
00:00:03.330960 VMSVGA3d: cap[72]=0x00000000 {DEAD7}
00:00:03.330960 VMSVGA3d: cap[73]=0x00000000 {DEAD6}
00:00:03.330960 VMSVGA3d: cap[74]=0x00000001 {AUTOGENMIPMAPS}
00:00:03.330961 VMSVGA3d: cap[75]=0x01244000 {SURFACEFMT_NV12}
00:00:03.330962 VMSVGA3d: cap[76]=0x01244000 {DEAD10}
00:00:03.330962 VMSVGA3d: cap[77]=0x00000100 {MAX_CONTEXT_IDS}
00:00:03.330962 VMSVGA3d: cap[78]=0x00008000 {MAX_SURFACE_IDS}
00:00:03.330963 VMSVGA3d: cap[79]=0x00000000 {SURFACEFMT_Z_DF16}
00:00:03.330963 VMSVGA3d: cap[80]=0x00000000 {SURFACEFMT_Z_DF24}
00:00:03.330963 VMSVGA3d: cap[81]=0x000000c1 {SURFACEFMT_Z_D24S8_INT}
00:00:03.330964 VMSVGA3d: cap[82]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI1}
00:00:03.330964 VMSVGA3d: cap[83]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI2}
00:00:03.330964 VMSVGA3d: cap[84]=failed rc=VERR_INVALID_PARAMETER {DEAD1}
00:00:03.330965 VMSVGA3d: cap[85]=failed rc=VERR_INVALID_PARAMETER {DEAD8}
00:00:03.330965 VMSVGA3d: cap[86]=failed rc=VERR_INVALID_PARAMETER {DEAD9}
00:00:03.330965 VMSVGA3d: cap[87]=failed rc=VERR_INVALID_PARAMETER {LINE_AA}
00:00:03.330966 VMSVGA3d: cap[88]=failed rc=VERR_INVALID_PARAMETER {LINE_STIPPLE}
00:00:03.330966 VMSVGA3d: cap[89]=failed rc=VERR_INVALID_PARAMETER {MAX_LINE_WIDTH}
00:00:03.330966 VMSVGA3d: cap[90]=failed rc=VERR_INVALID_PARAMETER {MAX_AA_LINE_WIDTH}
00:00:03.330967 VMSVGA3d: cap[91]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_YV12}
00:00:03.330967 VMSVGA3d: cap[92]=failed rc=VERR_INVALID_PARAMETER {DEAD3}
00:00:03.330967 VMSVGA3d: cap[93]=failed rc=VERR_INVALID_PARAMETER {TS_COLOR_KEY}
00:00:03.330968 VMSVGA3d: cap[94]=failed rc=VERR_INVALID_PARAMETER {DEAD2}
00:00:03.330968 VMSVGA3d: cap[95]=failed rc=VERR_INVALID_PARAMETER {DXCONTEXT}
00:00:03.330968 VMSVGA3d: cap[96]=failed rc=VERR_INVALID_PARAMETER {DEAD11}
00:00:03.330969 VMSVGA3d: cap[97]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_VERTEXBUFFERS}
00:00:03.330969 VMSVGA3d: cap[98]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_CONSTANT_BUFFERS}
00:00:03.330969 VMSVGA3d: cap[99]=failed rc=VERR_INVALID_PARAMETER {DX_PROVOKING_VERTEX}
00:00:03.330970 VMSVGA3d: cap[100]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8R8G8B8}
00:00:03.330970 VMSVGA3d: cap[101]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8R8G8B8}
00:00:03.330970 VMSVGA3d: cap[102]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R5G6B5}
00:00:03.330971 VMSVGA3d: cap[103]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X1R5G5B5}
00:00:03.330971 VMSVGA3d: cap[104]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A1R5G5B5}
00:00:03.330971 VMSVGA3d: cap[105]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A4R4G4B4}
00:00:03.330972 VMSVGA3d: cap[106]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D32}
00:00:03.330972 VMSVGA3d: cap[107]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D16}
00:00:03.330972 VMSVGA3d: cap[108]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8}
00:00:03.330973 VMSVGA3d: cap[109]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D15S1}
00:00:03.330973 VMSVGA3d: cap[110]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8}
00:00:03.330973 VMSVGA3d: cap[111]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE4_ALPHA4}
00:00:03.330974 VMSVGA3d: cap[112]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE16}
00:00:03.330974 VMSVGA3d: cap[113]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8_ALPHA8}
00:00:03.330974 VMSVGA3d: cap[114]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT1}
00:00:03.330975 VMSVGA3d: cap[115]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT2}
00:00:03.330975 VMSVGA3d: cap[116]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT3}
00:00:03.330975 VMSVGA3d: cap[117]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT4}
00:00:03.330976 VMSVGA3d: cap[118]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT5}
00:00:03.330976 VMSVGA3d: cap[119]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPU8V8}
00:00:03.330976 VMSVGA3d: cap[120]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPL6V5U5}
00:00:03.330977 VMSVGA3d: cap[121]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPX8L8V8U8}
00:00:03.330977 VMSVGA3d: cap[122]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD1}
00:00:03.330977 VMSVGA3d: cap[123]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S10E5}
00:00:03.330978 VMSVGA3d: cap[124]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S23E8}
00:00:03.330978 VMSVGA3d: cap[125]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2R10G10B10}
00:00:03.330978 VMSVGA3d: cap[126]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V8U8}
00:00:03.330979 VMSVGA3d: cap[127]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Q8W8V8U8}
00:00:03.330979 VMSVGA3d: cap[128]=failed rc=VERR_INVALID_PARAMETER {DXFMT_CxV8U8}
00:00:03.330979 VMSVGA3d: cap[129]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8L8V8U8}
00:00:03.330980 VMSVGA3d: cap[130]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2W10V10U10}
00:00:03.330980 VMSVGA3d: cap[131]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ALPHA8}
00:00:03.330980 VMSVGA3d: cap[132]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S10E5}
00:00:03.330981 VMSVGA3d: cap[133]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S23E8}
00:00:03.330981 VMSVGA3d: cap[134]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S10E5}
00:00:03.330982 VMSVGA3d: cap[135]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S23E8}
00:00:03.330982 VMSVGA3d: cap[136]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUFFER}
00:00:03.330982 VMSVGA3d: cap[137]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24X8}
00:00:03.330983 VMSVGA3d: cap[138]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V16U16}
00:00:03.330983 VMSVGA3d: cap[139]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G16R16}
00:00:03.330983 VMSVGA3d: cap[140]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A16B16G16R16}
00:00:03.330984 VMSVGA3d: cap[141]=failed rc=VERR_INVALID_PARAMETER {DXFMT_UYVY}
00:00:03.330984 VMSVGA3d: cap[142]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YUY2}
00:00:03.330984 VMSVGA3d: cap[143]=failed rc=VERR_INVALID_PARAMETER {DXFMT_NV12}
00:00:03.330985 VMSVGA3d: cap[144]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD2}
00:00:03.330985 VMSVGA3d: cap[145]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_TYPELESS}
00:00:03.330985 VMSVGA3d: cap[146]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_UINT}
00:00:03.330986 VMSVGA3d: cap[147]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_SINT}
00:00:03.330986 VMSVGA3d: cap[148]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_TYPELESS}
00:00:03.330986 VMSVGA3d: cap[149]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_FLOAT}
00:00:03.330987 VMSVGA3d: cap[150]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_UINT}
00:00:03.330987 VMSVGA3d: cap[151]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_SINT}
00:00:03.330987 VMSVGA3d: cap[152]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_TYPELESS}
00:00:03.330988 VMSVGA3d: cap[153]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UINT}
00:00:03.330988 VMSVGA3d: cap[154]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SNORM}
00:00:03.330988 VMSVGA3d: cap[155]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SINT}
00:00:03.330989 VMSVGA3d: cap[156]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_TYPELESS}
00:00:03.330989 VMSVGA3d: cap[157]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_UINT}
00:00:03.330989 VMSVGA3d: cap[158]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_SINT}
00:00:03.330990 VMSVGA3d: cap[159]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G8X24_TYPELESS}
00:00:03.330990 VMSVGA3d: cap[160]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT_S8X24_UINT}
00:00:03.330990 VMSVGA3d: cap[161]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT_X8X24}
00:00:03.330991 VMSVGA3d: cap[162]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X32_G8X24_UINT}
00:00:03.330991 VMSVGA3d: cap[163]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_TYPELESS}
00:00:03.330991 VMSVGA3d: cap[164]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UINT}
00:00:03.330992 VMSVGA3d: cap[165]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R11G11B10_FLOAT}
00:00:03.330992 VMSVGA3d: cap[166]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_TYPELESS}
00:00:03.330992 VMSVGA3d: cap[167]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM}
00:00:03.330993 VMSVGA3d: cap[168]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM_SRGB}
00:00:03.330993 VMSVGA3d: cap[169]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UINT}
00:00:03.330993 VMSVGA3d: cap[170]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SINT}
00:00:03.330994 VMSVGA3d: cap[171]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_TYPELESS}
00:00:03.330994 VMSVGA3d: cap[172]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UINT}
00:00:03.330994 VMSVGA3d: cap[173]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SINT}
00:00:03.330995 VMSVGA3d: cap[174]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_TYPELESS}
00:00:03.330995 VMSVGA3d: cap[175]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT}
00:00:03.330995 VMSVGA3d: cap[176]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_UINT}
00:00:03.330997 VMSVGA3d: cap[177]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_SINT}
00:00:03.330997 VMSVGA3d: cap[178]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24G8_TYPELESS}
00:00:03.330997 VMSVGA3d: cap[179]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D24_UNORM_S8_UINT}
00:00:03.330998 VMSVGA3d: cap[180]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24_UNORM_X8}
00:00:03.330998 VMSVGA3d: cap[181]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X24_G8_UINT}
00:00:03.330998 VMSVGA3d: cap[182]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_TYPELESS}
00:00:03.330999 VMSVGA3d: cap[183]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UNORM}
00:00:03.330999 VMSVGA3d: cap[184]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UINT}
00:00:03.331000 VMSVGA3d: cap[185]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SINT}
00:00:03.331000 VMSVGA3d: cap[186]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_TYPELESS}
00:00:03.331000 VMSVGA3d: cap[187]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UNORM}
00:00:03.331001 VMSVGA3d: cap[188]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UINT}
00:00:03.331001 VMSVGA3d: cap[189]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SNORM}
00:00:03.331001 VMSVGA3d: cap[190]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SINT}
00:00:03.331002 VMSVGA3d: cap[191]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_TYPELESS}
00:00:03.331002 VMSVGA3d: cap[192]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UNORM}
00:00:03.331003 VMSVGA3d: cap[193]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UINT}
00:00:03.331003 VMSVGA3d: cap[194]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SNORM}
00:00:03.331003 VMSVGA3d: cap[195]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SINT}
00:00:03.331004 VMSVGA3d: cap[196]=failed rc=VERR_INVALID_PARAMETER {DXFMT_P8}
00:00:03.331004 VMSVGA3d: cap[197]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R9G9B9E5_SHAREDEXP}
00:00:03.331004 VMSVGA3d: cap[198]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_B8G8_UNORM}
00:00:03.331005 VMSVGA3d: cap[199]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G8R8_G8B8_UNORM}
00:00:03.331005 VMSVGA3d: cap[200]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_TYPELESS}
00:00:03.331005 VMSVGA3d: cap[201]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM_SRGB}
00:00:03.331006 VMSVGA3d: cap[202]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_TYPELESS}
00:00:03.331006 VMSVGA3d: cap[203]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM_SRGB}
00:00:03.331006 VMSVGA3d: cap[204]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_TYPELESS}
00:00:03.331007 VMSVGA3d: cap[205]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM_SRGB}
00:00:03.331007 VMSVGA3d: cap[206]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_TYPELESS}
00:00:03.331007 VMSVGA3d: cap[207]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI1}
00:00:03.331008 VMSVGA3d: cap[208]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_SNORM}
00:00:03.331008 VMSVGA3d: cap[209]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_TYPELESS}
00:00:03.331008 VMSVGA3d: cap[210]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI2}
00:00:03.331009 VMSVGA3d: cap[211]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_SNORM}
00:00:03.331009 VMSVGA3d: cap[212]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10_XR_BIAS_A2_UNORM}
00:00:03.331009 VMSVGA3d: cap[213]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_TYPELESS}
00:00:03.331010 VMSVGA3d: cap[214]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM_SRGB}
00:00:03.331010 VMSVGA3d: cap[215]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_TYPELESS}
00:00:03.331011 VMSVGA3d: cap[216]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM_SRGB}
00:00:03.331011 VMSVGA3d: cap[217]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF16}
00:00:03.331011 VMSVGA3d: cap[218]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF24}
00:00:03.331012 VMSVGA3d: cap[219]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8_INT}
00:00:03.331012 VMSVGA3d: cap[220]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YV12}
00:00:03.331012 VMSVGA3d: cap[221]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_FLOAT}
00:00:03.331013 VMSVGA3d: cap[222]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_FLOAT}
00:00:03.331013 VMSVGA3d: cap[223]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UNORM}
00:00:03.331013 VMSVGA3d: cap[224]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_FLOAT}
00:00:03.331014 VMSVGA3d: cap[225]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UNORM}
00:00:03.331014 VMSVGA3d: cap[226]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SNORM}
00:00:03.331014 VMSVGA3d: cap[227]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_FLOAT}
00:00:03.331015 VMSVGA3d: cap[228]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UNORM}
00:00:03.331015 VMSVGA3d: cap[229]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SNORM}
00:00:03.331015 VMSVGA3d: cap[230]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT}
00:00:03.331016 VMSVGA3d: cap[231]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SNORM}
00:00:03.331016 VMSVGA3d: cap[232]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_FLOAT}
00:00:03.331016 VMSVGA3d: cap[233]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D16_UNORM}
00:00:03.331017 VMSVGA3d: cap[234]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8_UNORM}
00:00:03.331017 VMSVGA3d: cap[235]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM}
00:00:03.331017 VMSVGA3d: cap[236]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM}
00:00:03.331018 VMSVGA3d: cap[237]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM}
00:00:03.331018 VMSVGA3d: cap[238]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G6R5_UNORM}
00:00:03.331018 VMSVGA3d: cap[239]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G5R5A1_UNORM}
00:00:03.331019 VMSVGA3d: cap[240]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM}
00:00:03.331019 VMSVGA3d: cap[241]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM}
00:00:03.331019 VMSVGA3d: cap[242]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_UNORM}
00:00:03.331020 VMSVGA3d: cap[243]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_UNORM}
00:00:03.331020 VMSVGA3d: cap[244]=failed rc=VERR_INVALID_PARAMETER {SM41}
00:00:03.331020 VMSVGA3d: cap[245]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_2X}
00:00:03.331021 VMSVGA3d: cap[246]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_4X}
00:00:03.331021 VMSVGA3d: cap[247]=failed rc=VERR_INVALID_PARAMETER {MS_FULL_QUALITY}
00:00:03.331021 VMSVGA3d: cap[248]=failed rc=VERR_INVALID_PARAMETER {LOGICOPS}
00:00:03.331022 VMSVGA3d: cap[249]=failed rc=VERR_INVALID_PARAMETER {LOGIC_BLENDOPS}
00:00:03.331022 VMSVGA3d: cap[250]=failed rc=VERR_INVALID_PARAMETER {RESERVED_1}
00:00:03.331022 VMSVGA3d: cap[251]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_TYPELESS}
00:00:03.331023 VMSVGA3d: cap[252]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_UF16}
00:00:03.331023 VMSVGA3d: cap[253]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_SF16}
00:00:03.331023 VMSVGA3d: cap[254]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_TYPELESS}
00:00:03.331024 VMSVGA3d: cap[255]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM}
00:00:03.331024 VMSVGA3d: cap[256]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM_SRGB}
00:00:03.331024 VMSVGA3d: cap[257]=failed rc=VERR_INVALID_PARAMETER {RESERVED_2}
00:00:03.331025 VMSVGA3d: cap[258]=failed rc=VERR_INVALID_PARAMETER {SM5}
00:00:03.331025 VMSVGA3d: cap[259]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_8X}

You can also try to installing/upgrade the GPU driver (on real machine). Sometimes outdated driver can do this.

May 05 '23 13:05 JHRobotics

so the problem is my rtx 2070, i tried to update the drivers but the direct3d tests still fail, so i deactivated my rtx so that the VM recognizes my integrated gpu, everything finally works ! below I leave the logs of the two gpu:

RTX 2070 MOBILE

00:00:05.160681 D3D9 adapter: NVIDIA GeForce RTX 2070 10de:1f50 [nvldumdx.dll, version 31.0.15.3141]
00:00:05.160683
00:00:05.160683 D3D device caps: DevCaps2:
00:00:05.160683  - D3DDEVCAPS2_CAN_STRETCHRECT_FROM_TEXTURES
00:00:05.160684  - D3DDEVCAPS2_STREAMOFFSET
00:00:05.160684  - D3DDEVCAPS2_VERTEXELEMENTSCANSHARESTREAMOFFSET
00:00:05.160684
00:00:05.160684 Caps2:
00:00:05.160685  - D3DCAPS2_CANAUTOGENMIPMAP
00:00:05.160685  - D3DCAPS2_CANSHARERESOURCE
00:00:05.160685  - D3DCAPS2_DYNAMICTEXTURES
00:00:05.160685  - D3DCAPS2_FULLSCREENGAMMA
00:00:05.160685
00:00:05.160685 Caps3:
00:00:05.160686  - D3DCAPS3_ALPHA_FULLSCREEN_FLIP_OR_DISCARD
00:00:05.160686  - D3DCAPS3_COPY_TO_VIDMEM
00:00:05.160686  - D3DCAPS3_COPY_TO_SYSTEMMEM
00:00:05.160686  - D3DCAPS3_DXVAHD
00:00:05.160686  - D3DCAPS3_LINEAR_TO_SRGB_PRESENTATION
00:00:05.160687
00:00:05.160687 PresentationIntervals:
00:00:05.160687  - D3DPRESENT_INTERVAL_IMMEDIATE
00:00:05.160687  - D3DPRESENT_INTERVAL_ONE
00:00:05.160687  - D3DPRESENT_INTERVAL_TWO
00:00:05.160688  - D3DPRESENT_INTERVAL_THREE
00:00:05.160688  - D3DPRESENT_INTERVAL_FOUR
00:00:05.160688
00:00:05.160688 Devcaps:
00:00:05.160688  - D3DDEVCAPS_CANBLTSYSTONONLOCAL
00:00:05.160688  - D3DDEVCAPS_CANRENDERAFTERFLIP
00:00:05.160689  - D3DDEVCAPS_DRAWPRIMITIVES2
00:00:05.160689  - D3DDEVCAPS_DRAWPRIMITIVES2EX
00:00:05.160689  - D3DDEVCAPS_DRAWPRIMTLVERTEX
00:00:05.160689  - D3DDEVCAPS_EXECUTESYSTEMMEMORY
00:00:05.160690  - D3DDEVCAPS_EXECUTEVIDEOMEMORY
00:00:05.160690  - D3DDEVCAPS_HWRASTERIZATION
00:00:05.160690  - D3DDEVCAPS_HWTRANSFORMANDLIGHT
00:00:05.160690  - D3DDEVCAPS_PUREDEVICE
00:00:05.160700  - D3DDEVCAPS_TEXTURENONLOCALVIDMEM
00:00:05.160700  - D3DDEVCAPS_TEXTUREVIDEOMEMORY
00:00:05.160701  - D3DDEVCAPS_TLVERTEXSYSTEMMEMORY
00:00:05.160701  - D3DDEVCAPS_TLVERTEXVIDEOMEMORY
00:00:05.160701
00:00:05.160701 TextureCaps:
00:00:05.160701  - D3DPTEXTURECAPS_ALPHA
00:00:05.160702  - D3DPTEXTURECAPS_ALPHAPALETTE
00:00:05.160702  - D3DPTEXTURECAPS_CUBEMAP
00:00:05.160702  - D3DPTEXTURECAPS_MIPCUBEMAP
00:00:05.160702  - D3DPTEXTURECAPS_MIPMAP
00:00:05.160702  - D3DPTEXTURECAPS_MIPVOLUMEMAP
00:00:05.160703  - D3DPTEXTURECAPS_PERSPECTIVE
00:00:05.160703  - D3DPTEXTURECAPS_PROJECTED
00:00:05.160703  - D3DPTEXTURECAPS_TEXREPEATNOTSCALEDBYSIZE
00:00:05.160703  - D3DPTEXTURECAPS_VOLUMEMAP
00:00:05.160703
00:00:05.160704 TextureFilterCaps
00:00:05.160704  - D3DPTFILTERCAPS_MAGFPOINT
00:00:05.160704  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:05.160704  - D3DPTFILTERCAPS_MINFPOINT
00:00:05.160704  - D3DPTFILTERCAPS_MINFLINEAR
00:00:05.160713  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:05.160714  - D3DPTFILTERCAPS_MIPFPOINT
00:00:05.160714  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:05.160714
00:00:05.160714 CubeTextureFilterCaps
00:00:05.160714  - D3DPTFILTERCAPS_MAGFPOINT
00:00:05.160714  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:05.160715  - D3DPTFILTERCAPS_MINFPOINT
00:00:05.160715  - D3DPTFILTERCAPS_MINFLINEAR
00:00:05.160715  - D3DPTFILTERCAPS_MIPFPOINT
00:00:05.160715  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:05.160715
00:00:05.160716 VolumeTextureFilterCaps
00:00:05.160716  - D3DPTFILTERCAPS_MAGFPOINT
00:00:05.160716  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:05.160716  - D3DPTFILTERCAPS_MINFPOINT
00:00:05.160716  - D3DPTFILTERCAPS_MINFLINEAR
00:00:05.160717  - D3DPTFILTERCAPS_MIPFPOINT
00:00:05.160717  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:05.160717
00:00:05.160717 TextureAddressCaps:
00:00:05.160717  - D3DPTADDRESSCAPS_BORDER
00:00:05.160717  - D3DPTADDRESSCAPS_CLAMP
00:00:05.160718  - D3DPTADDRESSCAPS_INDEPENDENTUV
00:00:05.160718  - D3DPTADDRESSCAPS_MIRROR
00:00:05.160718  - D3DPTADDRESSCAPS_MIRRORONCE
00:00:05.160718  - D3DPTADDRESSCAPS_WRAP
00:00:05.160719
00:00:05.160719 TextureOpCaps:
00:00:05.160719  - D3DTEXOPCAPS_DISABLE
00:00:05.160719  - D3DTEXOPCAPS_SELECTARG1
00:00:05.160719  - D3DTEXOPCAPS_SELECTARG2
00:00:05.160719  - D3DTEXOPCAPS_MODULATE
00:00:05.160720  - D3DTEXOPCAPS_MODULATE2X
00:00:05.160720  - D3DTEXOPCAPS_MODULATE4X
00:00:05.160720  - D3DTEXOPCAPS_ADD
00:00:05.160720  - D3DTEXOPCAPS_ADDSIGNED
00:00:05.160720  - D3DTEXOPCAPS_ADDSIGNED2X
00:00:05.160721  - D3DTEXOPCAPS_SUBTRACT
00:00:05.160721  - D3DTEXOPCAPS_ADDSMOOTH
00:00:05.160721  - D3DTEXOPCAPS_BLENDDIFFUSEALPHA
00:00:05.160721  - D3DTEXOPCAPS_BLENDTEXTUREALPHA
00:00:05.160721  - D3DTEXOPCAPS_BLENDFACTORALPHA
00:00:05.160722  - D3DTEXOPCAPS_BLENDTEXTUREALPHAPM
00:00:05.160722  - D3DTEXOPCAPS_BLENDCURRENTALPHA
00:00:05.160722  - D3DTEXOPCAPS_MODULATEALPHA_ADDCOLOR
00:00:05.160722  - D3DTEXOPCAPS_MODULATECOLOR_ADDALPHA
00:00:05.160722  - D3DTEXOPCAPS_MODULATEINVALPHA_ADDCOLOR
00:00:05.160723  - D3DTEXOPCAPS_MODULATEINVCOLOR_ADDALPHA
00:00:05.160723  - D3DTEXOPCAPS_BUMPENVMAP
00:00:05.160723  - D3DTEXOPCAPS_BUMPENVMAPLUMINANCE
00:00:05.160723  - D3DTEXOPCAPS_DOTPRODUCT3
00:00:05.160723  - D3DTEXOPCAPS_MULTIPLYADD
00:00:05.160724  - D3DTEXOPCAPS_LERP
00:00:05.160724
00:00:05.160724 PixelShaderVersion:  0xffff0300 (3.0)
00:00:05.160725 VertexShaderVersion: 0xfffe0300 (3.0)
00:00:05.160725
00:00:05.160766 VMSVGA3d: cap[0]=0x00000001 {3D}
00:00:05.160776 VMSVGA3d: cap[1]=0x00000008 {MAX_LIGHTS}
00:00:05.160777 VMSVGA3d: cap[2]=0x00000008 {MAX_TEXTURES}
00:00:05.160777 VMSVGA3d: cap[3]=0x00000008 {MAX_CLIP_PLANES}
00:00:05.160777 VMSVGA3d: cap[4]=0x00000007 {VERTEX_SHADER_VERSION}
00:00:05.160778 VMSVGA3d: cap[5]=0x00000001 {VERTEX_SHADER}
00:00:05.160778 VMSVGA3d: cap[6]=0x0000000d {FRAGMENT_SHADER_VERSION}
00:00:05.160778 VMSVGA3d: cap[7]=0x00000001 {FRAGMENT_SHADER}
00:00:05.160779 VMSVGA3d: cap[8]=0x00000004 {MAX_RENDER_TARGETS}
00:00:05.160779 VMSVGA3d: cap[9]=failed rc=VERR_INVALID_PARAMETER {S23E8_TEXTURES}
00:00:05.160792 VMSVGA3d: cap[10]=failed rc=VERR_INVALID_PARAMETER {S10E5_TEXTURES}
00:00:05.160792 VMSVGA3d: cap[11]=0x00000000 {MAX_FIXED_VERTEXBLEND}
00:00:05.160793 VMSVGA3d: cap[12]=0x00000001 {D16_BUFFER_FORMAT}
00:00:05.160793 VMSVGA3d: cap[13]=0x00000001 {D24S8_BUFFER_FORMAT}
00:00:05.160793 VMSVGA3d: cap[14]=0x00000001 {D24X8_BUFFER_FORMAT}
00:00:05.160793 VMSVGA3d: cap[15]=0x00000000 {QUERY_TYPES}
00:00:05.160794 VMSVGA3d: cap[16]=0x00000000 {TEXTURE_GRADIENT_SAMPLING}
00:00:05.160794 VMSVGA3d: cap[17]=8192.000000 {MAX_POINT_SIZE}
00:00:05.160795 VMSVGA3d: cap[18]=failed rc=VERR_INVALID_PARAMETER {MAX_SHADER_TEXTURES}
00:00:05.160795 VMSVGA3d: cap[19]=0x00004000 {MAX_TEXTURE_WIDTH}
00:00:05.160796 VMSVGA3d: cap[20]=0x00004000 {MAX_TEXTURE_HEIGHT}
00:00:05.160796 VMSVGA3d: cap[21]=0x00000800 {MAX_VOLUME_EXTENT}
00:00:05.160797 VMSVGA3d: cap[22]=0x00002000 {MAX_TEXTURE_REPEAT}
00:00:05.160797 VMSVGA3d: cap[23]=0x00004000 {MAX_TEXTURE_ASPECT_RATIO}
00:00:05.160797 VMSVGA3d: cap[24]=0x00000010 {MAX_TEXTURE_ANISOTROPY}
00:00:05.160798 VMSVGA3d: cap[25]=0x00ffffff {MAX_PRIMITIVE_COUNT}
00:00:05.160798 VMSVGA3d: cap[26]=0x00ffffff {MAX_VERTEX_INDEX}
00:00:05.160798 VMSVGA3d: cap[27]=0x00001000 {MAX_VERTEX_SHADER_INSTRUCTIONS}
00:00:05.160799 VMSVGA3d: cap[28]=0x00001000 {MAX_FRAGMENT_SHADER_INSTRUCTIONS}
00:00:05.160799 VMSVGA3d: cap[29]=0x00000020 {MAX_VERTEX_SHADER_TEMPS}
00:00:05.160799 VMSVGA3d: cap[30]=0x00000020 {MAX_FRAGMENT_SHADER_TEMPS}
00:00:05.160800 VMSVGA3d: cap[31]=0x00000000 {TEXTURE_OPS}
00:00:05.160812 VMSVGA3d: cap[32]=0x0058ec1f {SURFACEFMT_X8R8G8B8}
00:00:05.160813 VMSVGA3d: cap[33]=0x00d8e11f {SURFACEFMT_A8R8G8B8}
00:00:05.160815 VMSVGA3d: cap[34]=0x0048611f {SURFACEFMT_A2R10G10B10}
00:00:05.160816 VMSVGA3d: cap[35]=0x0048ec1f {SURFACEFMT_X1R5G5B5}
00:00:05.160817 VMSVGA3d: cap[36]=0x0008e107 {SURFACEFMT_A1R5G5B5}
00:00:05.160818 VMSVGA3d: cap[37]=0x0008e107 {SURFACEFMT_A4R4G4B4}
00:00:05.160820 VMSVGA3d: cap[38]=0x0008ec07 {SURFACEFMT_R5G6B5}
00:00:05.160821 VMSVGA3d: cap[39]=0x0040001f {SURFACEFMT_LUMINANCE16}
00:00:05.160822 VMSVGA3d: cap[40]=0x00008007 {SURFACEFMT_LUMINANCE8_ALPHA8}
00:00:05.160824 VMSVGA3d: cap[41]=0x0000001f {SURFACEFMT_ALPHA8}
00:00:05.160825 VMSVGA3d: cap[42]=0x0040801f {SURFACEFMT_LUMINANCE8}
00:00:05.160826 VMSVGA3d: cap[43]=0x000000c1 {SURFACEFMT_Z_D16}
00:00:05.160826 VMSVGA3d: cap[44]=0x000000c1 {SURFACEFMT_Z_D24S8}
00:00:05.160826 VMSVGA3d: cap[45]=0x000000c1 {SURFACEFMT_Z_D24X8}
00:00:05.160828 VMSVGA3d: cap[46]=0x00008007 {SURFACEFMT_DXT1}
00:00:05.160829 VMSVGA3d: cap[47]=0x00008007 {SURFACEFMT_DXT2}
00:00:05.160830 VMSVGA3d: cap[48]=0x00008007 {SURFACEFMT_DXT3}
00:00:05.160832 VMSVGA3d: cap[49]=0x00008007 {SURFACEFMT_DXT4}
00:00:05.160833 VMSVGA3d: cap[50]=0x00008007 {SURFACEFMT_DXT5}
00:00:05.160834 VMSVGA3d: cap[51]=0x00010001 {SURFACEFMT_BUMPX8L8V8U8}
00:00:05.160835 VMSVGA3d: cap[52]=0x00000000 {SURFACEFMT_A2W10V10U10}
00:00:05.160837 VMSVGA3d: cap[53]=0x00010001 {SURFACEFMT_BUMPU8V8}
00:00:05.160838 VMSVGA3d: cap[54]=0x00000005 {SURFACEFMT_Q8W8V8U8}
00:00:05.160839 VMSVGA3d: cap[55]=0x00000000 {SURFACEFMT_CxV8U8}
00:00:05.160841 VMSVGA3d: cap[56]=0x00c0401f {SURFACEFMT_R_S10E5}
00:00:05.160842 VMSVGA3d: cap[57]=0x00c0401f {SURFACEFMT_R_S23E8}
00:00:05.160852 VMSVGA3d: cap[58]=0x00c0401f {SURFACEFMT_RG_S10E5}
00:00:05.160854 VMSVGA3d: cap[59]=0x00c0401f {SURFACEFMT_RG_S23E8}
00:00:05.160855 VMSVGA3d: cap[60]=0x00c0401f {SURFACEFMT_ARGB_S10E5}
00:00:05.160857 VMSVGA3d: cap[61]=0x00c0401f {SURFACEFMT_ARGB_S23E8}
00:00:05.160857 VMSVGA3d: cap[62]=failed rc=VERR_INVALID_PARAMETER {MISSING62}
00:00:05.160857 VMSVGA3d: cap[63]=0x00000000 {MAX_VERTEX_SHADER_TEXTURES}
00:00:05.160858 VMSVGA3d: cap[64]=0x00000004 {MAX_SIMULTANEOUS_RENDER_TARGETS}
00:00:05.160859 VMSVGA3d: cap[65]=0x00000007 {SURFACEFMT_V16U16}
00:00:05.160861 VMSVGA3d: cap[66]=0x0040401f {SURFACEFMT_G16R16}
00:00:05.160862 VMSVGA3d: cap[67]=0x0040401f {SURFACEFMT_A16B16G16R16}
00:00:05.160863 VMSVGA3d: cap[68]=0x01244001 {SURFACEFMT_UYVY}
00:00:05.160865 VMSVGA3d: cap[69]=0x01244001 {SURFACEFMT_YUY2}
00:00:05.160865 VMSVGA3d: cap[70]=0x00000000 {DEAD4}
00:00:05.160865 VMSVGA3d: cap[71]=0x00000000 {DEAD5}
00:00:05.160866 VMSVGA3d: cap[72]=0x00000000 {DEAD7}
00:00:05.160866 VMSVGA3d: cap[73]=0x00000000 {DEAD6}
00:00:05.160866 VMSVGA3d: cap[74]=0x00000001 {AUTOGENMIPMAPS}
00:00:05.160868 VMSVGA3d: cap[75]=0x01244000 {SURFACEFMT_NV12}
00:00:05.160869 VMSVGA3d: cap[76]=0x01244000 {DEAD10}
00:00:05.160869 VMSVGA3d: cap[77]=0x00000100 {MAX_CONTEXT_IDS}
00:00:05.160870 VMSVGA3d: cap[78]=0x00008000 {MAX_SURFACE_IDS}
00:00:05.160870 VMSVGA3d: cap[79]=0x00000000 {SURFACEFMT_Z_DF16}
00:00:05.160871 VMSVGA3d: cap[80]=0x00000000 {SURFACEFMT_Z_DF24}
00:00:05.160871 VMSVGA3d: cap[81]=0x000000c1 {SURFACEFMT_Z_D24S8_INT}
00:00:05.160871 VMSVGA3d: cap[82]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI1}
00:00:05.160872 VMSVGA3d: cap[83]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI2}
00:00:05.160872 VMSVGA3d: cap[84]=failed rc=VERR_INVALID_PARAMETER {DEAD1}
00:00:05.160873 VMSVGA3d: cap[85]=failed rc=VERR_INVALID_PARAMETER {DEAD8}
00:00:05.160873 VMSVGA3d: cap[86]=failed rc=VERR_INVALID_PARAMETER {DEAD9}
00:00:05.160873 VMSVGA3d: cap[87]=failed rc=VERR_INVALID_PARAMETER {LINE_AA}
00:00:05.160874 VMSVGA3d: cap[88]=failed rc=VERR_INVALID_PARAMETER {LINE_STIPPLE}
00:00:05.160874 VMSVGA3d: cap[89]=failed rc=VERR_INVALID_PARAMETER {MAX_LINE_WIDTH}
00:00:05.160875 VMSVGA3d: cap[90]=failed rc=VERR_INVALID_PARAMETER {MAX_AA_LINE_WIDTH}
00:00:05.160875 VMSVGA3d: cap[91]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_YV12}
00:00:05.160876 VMSVGA3d: cap[92]=failed rc=VERR_INVALID_PARAMETER {DEAD3}
00:00:05.160876 VMSVGA3d: cap[93]=failed rc=VERR_INVALID_PARAMETER {TS_COLOR_KEY}
00:00:05.160876 VMSVGA3d: cap[94]=failed rc=VERR_INVALID_PARAMETER {DEAD2}
00:00:05.160877 VMSVGA3d: cap[95]=failed rc=VERR_INVALID_PARAMETER {DXCONTEXT}
00:00:05.160877 VMSVGA3d: cap[96]=failed rc=VERR_INVALID_PARAMETER {DEAD11}
00:00:05.160878 VMSVGA3d: cap[97]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_VERTEXBUFFERS}
00:00:05.160878 VMSVGA3d: cap[98]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_CONSTANT_BUFFERS}
00:00:05.160879 VMSVGA3d: cap[99]=failed rc=VERR_INVALID_PARAMETER {DX_PROVOKING_VERTEX}
00:00:05.160879 VMSVGA3d: cap[100]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8R8G8B8}
00:00:05.160879 VMSVGA3d: cap[101]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8R8G8B8}
00:00:05.160880 VMSVGA3d: cap[102]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R5G6B5}
00:00:05.160880 VMSVGA3d: cap[103]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X1R5G5B5}
00:00:05.160881 VMSVGA3d: cap[104]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A1R5G5B5}
00:00:05.160881 VMSVGA3d: cap[105]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A4R4G4B4}
00:00:05.160882 VMSVGA3d: cap[106]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D32}
00:00:05.160882 VMSVGA3d: cap[107]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D16}
00:00:05.160882 VMSVGA3d: cap[108]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8}
00:00:05.160883 VMSVGA3d: cap[109]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D15S1}
00:00:05.160883 VMSVGA3d: cap[110]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8}
00:00:05.160884 VMSVGA3d: cap[111]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE4_ALPHA4}
00:00:05.160884 VMSVGA3d: cap[112]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE16}
00:00:05.160885 VMSVGA3d: cap[113]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8_ALPHA8}
00:00:05.160885 VMSVGA3d: cap[114]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT1}
00:00:05.160885 VMSVGA3d: cap[115]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT2}
00:00:05.160886 VMSVGA3d: cap[116]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT3}
00:00:05.160886 VMSVGA3d: cap[117]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT4}
00:00:05.160887 VMSVGA3d: cap[118]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT5}
00:00:05.160887 VMSVGA3d: cap[119]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPU8V8}
00:00:05.160888 VMSVGA3d: cap[120]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPL6V5U5}
00:00:05.160888 VMSVGA3d: cap[121]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPX8L8V8U8}
00:00:05.160888 VMSVGA3d: cap[122]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD1}
00:00:05.160889 VMSVGA3d: cap[123]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S10E5}
00:00:05.160889 VMSVGA3d: cap[124]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S23E8}
00:00:05.160890 VMSVGA3d: cap[125]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2R10G10B10}
00:00:05.160890 VMSVGA3d: cap[126]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V8U8}
00:00:05.160891 VMSVGA3d: cap[127]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Q8W8V8U8}
00:00:05.160891 VMSVGA3d: cap[128]=failed rc=VERR_INVALID_PARAMETER {DXFMT_CxV8U8}
00:00:05.160891 VMSVGA3d: cap[129]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8L8V8U8}
00:00:05.160892 VMSVGA3d: cap[130]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2W10V10U10}
00:00:05.160892 VMSVGA3d: cap[131]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ALPHA8}
00:00:05.160893 VMSVGA3d: cap[132]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S10E5}
00:00:05.160893 VMSVGA3d: cap[133]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S23E8}
00:00:05.160894 VMSVGA3d: cap[134]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S10E5}
00:00:05.160894 VMSVGA3d: cap[135]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S23E8}
00:00:05.160894 VMSVGA3d: cap[136]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUFFER}
00:00:05.160895 VMSVGA3d: cap[137]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24X8}
00:00:05.160895 VMSVGA3d: cap[138]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V16U16}
00:00:05.160896 VMSVGA3d: cap[139]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G16R16}
00:00:05.160896 VMSVGA3d: cap[140]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A16B16G16R16}
00:00:05.160896 VMSVGA3d: cap[141]=failed rc=VERR_INVALID_PARAMETER {DXFMT_UYVY}
00:00:05.160897 VMSVGA3d: cap[142]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YUY2}
00:00:05.160897 VMSVGA3d: cap[143]=failed rc=VERR_INVALID_PARAMETER {DXFMT_NV12}
00:00:05.160898 VMSVGA3d: cap[144]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD2}
00:00:05.160898 VMSVGA3d: cap[145]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_TYPELESS}
00:00:05.160899 VMSVGA3d: cap[146]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_UINT}
00:00:05.160899 VMSVGA3d: cap[147]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_SINT}
00:00:05.160899 VMSVGA3d: cap[148]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_TYPELESS}
00:00:05.160900 VMSVGA3d: cap[149]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_FLOAT}
00:00:05.160900 VMSVGA3d: cap[150]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_UINT}
00:00:05.160903 VMSVGA3d: cap[151]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_SINT}
00:00:05.160904 VMSVGA3d: cap[152]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_TYPELESS}
00:00:05.160904 VMSVGA3d: cap[153]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UINT}
00:00:05.160905 VMSVGA3d: cap[154]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SNORM}
00:00:05.160905 VMSVGA3d: cap[155]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SINT}
00:00:05.160906 VMSVGA3d: cap[156]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_TYPELESS}
00:00:05.160906 VMSVGA3d: cap[157]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_UINT}
00:00:05.160906 VMSVGA3d: cap[158]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_SINT}
00:00:05.160907 VMSVGA3d: cap[159]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G8X24_TYPELESS}
00:00:05.160907 VMSVGA3d: cap[160]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT_S8X24_UINT}
00:00:05.160908 VMSVGA3d: cap[161]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT_X8X24}
00:00:05.160908 VMSVGA3d: cap[162]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X32_G8X24_UINT}
00:00:05.160909 VMSVGA3d: cap[163]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_TYPELESS}
00:00:05.160909 VMSVGA3d: cap[164]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UINT}
00:00:05.160909 VMSVGA3d: cap[165]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R11G11B10_FLOAT}
00:00:05.160910 VMSVGA3d: cap[166]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_TYPELESS}
00:00:05.160910 VMSVGA3d: cap[167]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM}
00:00:05.160911 VMSVGA3d: cap[168]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM_SRGB}
00:00:05.160911 VMSVGA3d: cap[169]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UINT}
00:00:05.160912 VMSVGA3d: cap[170]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SINT}
00:00:05.160912 VMSVGA3d: cap[171]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_TYPELESS}
00:00:05.160912 VMSVGA3d: cap[172]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UINT}
00:00:05.160913 VMSVGA3d: cap[173]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SINT}
00:00:05.160913 VMSVGA3d: cap[174]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_TYPELESS}
00:00:05.160914 VMSVGA3d: cap[175]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT}
00:00:05.160914 VMSVGA3d: cap[176]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_UINT}
00:00:05.160924 VMSVGA3d: cap[177]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_SINT}
00:00:05.160924 VMSVGA3d: cap[178]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24G8_TYPELESS}
00:00:05.160924 VMSVGA3d: cap[179]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D24_UNORM_S8_UINT}
00:00:05.160925 VMSVGA3d: cap[180]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24_UNORM_X8}
00:00:05.160925 VMSVGA3d: cap[181]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X24_G8_UINT}
00:00:05.160926 VMSVGA3d: cap[182]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_TYPELESS}
00:00:05.160926 VMSVGA3d: cap[183]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UNORM}
00:00:05.160927 VMSVGA3d: cap[184]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UINT}
00:00:05.160927 VMSVGA3d: cap[185]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SINT}
00:00:05.160927 VMSVGA3d: cap[186]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_TYPELESS}
00:00:05.160928 VMSVGA3d: cap[187]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UNORM}
00:00:05.160928 VMSVGA3d: cap[188]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UINT}
00:00:05.160929 VMSVGA3d: cap[189]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SNORM}
00:00:05.160929 VMSVGA3d: cap[190]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SINT}
00:00:05.160929 VMSVGA3d: cap[191]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_TYPELESS}
00:00:05.160930 VMSVGA3d: cap[192]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UNORM}
00:00:05.160930 VMSVGA3d: cap[193]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UINT}
00:00:05.160931 VMSVGA3d: cap[194]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SNORM}
00:00:05.160931 VMSVGA3d: cap[195]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SINT}
00:00:05.160932 VMSVGA3d: cap[196]=failed rc=VERR_INVALID_PARAMETER {DXFMT_P8}
00:00:05.160932 VMSVGA3d: cap[197]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R9G9B9E5_SHAREDEXP}
00:00:05.160932 VMSVGA3d: cap[198]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_B8G8_UNORM}
00:00:05.160933 VMSVGA3d: cap[199]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G8R8_G8B8_UNORM}
00:00:05.160933 VMSVGA3d: cap[200]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_TYPELESS}
00:00:05.160934 VMSVGA3d: cap[201]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM_SRGB}
00:00:05.160934 VMSVGA3d: cap[202]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_TYPELESS}
00:00:05.160935 VMSVGA3d: cap[203]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM_SRGB}
00:00:05.160935 VMSVGA3d: cap[204]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_TYPELESS}
00:00:05.160935 VMSVGA3d: cap[205]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM_SRGB}
00:00:05.160936 VMSVGA3d: cap[206]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_TYPELESS}
00:00:05.160936 VMSVGA3d: cap[207]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI1}
00:00:05.160937 VMSVGA3d: cap[208]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_SNORM}
00:00:05.160937 VMSVGA3d: cap[209]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_TYPELESS}
00:00:05.160938 VMSVGA3d: cap[210]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI2}
00:00:05.160938 VMSVGA3d: cap[211]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_SNORM}
00:00:05.160938 VMSVGA3d: cap[212]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10_XR_BIAS_A2_UNORM}
00:00:05.160939 VMSVGA3d: cap[213]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_TYPELESS}
00:00:05.160939 VMSVGA3d: cap[214]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM_SRGB}
00:00:05.160940 VMSVGA3d: cap[215]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_TYPELESS}
00:00:05.160940 VMSVGA3d: cap[216]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM_SRGB}
00:00:05.160941 VMSVGA3d: cap[217]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF16}
00:00:05.160941 VMSVGA3d: cap[218]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF24}
00:00:05.160941 VMSVGA3d: cap[219]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8_INT}
00:00:05.160942 VMSVGA3d: cap[220]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YV12}
00:00:05.160942 VMSVGA3d: cap[221]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_FLOAT}
00:00:05.160943 VMSVGA3d: cap[222]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_FLOAT}
00:00:05.160943 VMSVGA3d: cap[223]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UNORM}
00:00:05.160943 VMSVGA3d: cap[224]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_FLOAT}
00:00:05.160944 VMSVGA3d: cap[225]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UNORM}
00:00:05.160944 VMSVGA3d: cap[226]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SNORM}
00:00:05.160945 VMSVGA3d: cap[227]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_FLOAT}
00:00:05.160945 VMSVGA3d: cap[228]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UNORM}
00:00:05.160946 VMSVGA3d: cap[229]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SNORM}
00:00:05.160946 VMSVGA3d: cap[230]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT}
00:00:05.160946 VMSVGA3d: cap[231]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SNORM}
00:00:05.160947 VMSVGA3d: cap[232]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_FLOAT}
00:00:05.160947 VMSVGA3d: cap[233]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D16_UNORM}
00:00:05.160948 VMSVGA3d: cap[234]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8_UNORM}
00:00:05.160948 VMSVGA3d: cap[235]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM}
00:00:05.160949 VMSVGA3d: cap[236]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM}
00:00:05.160949 VMSVGA3d: cap[237]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM}
00:00:05.160949 VMSVGA3d: cap[238]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G6R5_UNORM}
00:00:05.160950 VMSVGA3d: cap[239]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G5R5A1_UNORM}
00:00:05.160950 VMSVGA3d: cap[240]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM}
00:00:05.160951 VMSVGA3d: cap[241]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM}
00:00:05.160951 VMSVGA3d: cap[242]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_UNORM}
00:00:05.160951 VMSVGA3d: cap[243]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_UNORM}
00:00:05.160952 VMSVGA3d: cap[244]=failed rc=VERR_INVALID_PARAMETER {SM41}
00:00:05.160952 VMSVGA3d: cap[245]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_2X}
00:00:05.160953 VMSVGA3d: cap[246]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_4X}
00:00:05.160953 VMSVGA3d: cap[247]=failed rc=VERR_INVALID_PARAMETER {MS_FULL_QUALITY}
00:00:05.160954 VMSVGA3d: cap[248]=failed rc=VERR_INVALID_PARAMETER {LOGICOPS}
00:00:05.160954 VMSVGA3d: cap[249]=failed rc=VERR_INVALID_PARAMETER {LOGIC_BLENDOPS}
00:00:05.160954 VMSVGA3d: cap[250]=failed rc=VERR_INVALID_PARAMETER {RESERVED_1}
00:00:05.160955 VMSVGA3d: cap[251]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_TYPELESS}
00:00:05.160955 VMSVGA3d: cap[252]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_UF16}
00:00:05.160956 VMSVGA3d: cap[253]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_SF16}
00:00:05.160956 VMSVGA3d: cap[254]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_TYPELESS}
00:00:05.160957 VMSVGA3d: cap[255]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM}
00:00:05.160957 VMSVGA3d: cap[256]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM_SRGB}
00:00:05.160957 VMSVGA3d: cap[257]=failed rc=VERR_INVALID_PARAMETER {RESERVED_2}
00:00:05.160958 VMSVGA3d: cap[258]=failed rc=VERR_INVALID_PARAMETER {SM5}
00:00:05.160958 VMSVGA3d: cap[259]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_8X}

Intel IGPU (I5-9600K)

00:00:04.255327 D3D9 adapter: Microsoft Basic Render Driver 1414:8c [d3d10warp.dll, version 10.0.19041.2788]
00:00:04.255329
00:00:04.255329 D3D device caps: DevCaps2:
00:00:04.255329  - D3DDEVCAPS2_ADAPTIVETESSRTPATCH
00:00:04.255330  - D3DDEVCAPS2_ADAPTIVETESSNPATCH
00:00:04.255330  - D3DDEVCAPS2_CAN_STRETCHRECT_FROM_TEXTURES
00:00:04.255330  - D3DDEVCAPS2_DMAPNPATCH
00:00:04.255330  - D3DDEVCAPS2_PRESAMPLEDDMAPNPATCH
00:00:04.255331  - D3DDEVCAPS2_STREAMOFFSET
00:00:04.255331  - D3DDEVCAPS2_VERTEXELEMENTSCANSHARESTREAMOFFSET
00:00:04.255331
00:00:04.255331 Caps2:
00:00:04.255331  - D3DCAPS2_CANAUTOGENMIPMAP
00:00:04.255332  - D3DCAPS2_CANSHARERESOURCE
00:00:04.255332  - D3DCAPS2_DYNAMICTEXTURES
00:00:04.255332
00:00:04.255332 Caps3:
00:00:04.255332  - D3DCAPS3_ALPHA_FULLSCREEN_FLIP_OR_DISCARD
00:00:04.255332  - D3DCAPS3_COPY_TO_VIDMEM
00:00:04.255333  - D3DCAPS3_COPY_TO_SYSTEMMEM
00:00:04.255333  - D3DCAPS3_LINEAR_TO_SRGB_PRESENTATION
00:00:04.255333
00:00:04.255333 PresentationIntervals:
00:00:04.255333  - D3DPRESENT_INTERVAL_IMMEDIATE
00:00:04.255334  - D3DPRESENT_INTERVAL_ONE
00:00:04.255334  - D3DPRESENT_INTERVAL_TWO
00:00:04.255334  - D3DPRESENT_INTERVAL_THREE
00:00:04.255334  - D3DPRESENT_INTERVAL_FOUR
00:00:04.255334
00:00:04.255335 Devcaps:
00:00:04.255335  - D3DDEVCAPS_CANBLTSYSTONONLOCAL
00:00:04.255335  - D3DDEVCAPS_CANRENDERAFTERFLIP
00:00:04.255335  - D3DDEVCAPS_DRAWPRIMITIVES2
00:00:04.255335  - D3DDEVCAPS_DRAWPRIMITIVES2EX
00:00:04.255336  - D3DDEVCAPS_DRAWPRIMTLVERTEX
00:00:04.255336  - D3DDEVCAPS_EXECUTESYSTEMMEMORY
00:00:04.255336  - D3DDEVCAPS_EXECUTEVIDEOMEMORY
00:00:04.255336  - D3DDEVCAPS_HWRASTERIZATION
00:00:04.255336  - D3DDEVCAPS_HWTRANSFORMANDLIGHT
00:00:04.255337  - D3DDEVCAPS_PUREDEVICE
00:00:04.255338  - D3DDEVCAPS_TEXTURESYSTEMMEMORY
00:00:04.255338  - D3DDEVCAPS_TEXTUREVIDEOMEMORY
00:00:04.255339  - D3DDEVCAPS_TLVERTEXSYSTEMMEMORY
00:00:04.255339  - D3DDEVCAPS_TLVERTEXVIDEOMEMORY
00:00:04.255339
00:00:04.255339 TextureCaps:
00:00:04.255339  - D3DPTEXTURECAPS_ALPHA
00:00:04.255340  - D3DPTEXTURECAPS_ALPHAPALETTE
00:00:04.255340  - D3DPTEXTURECAPS_CUBEMAP
00:00:04.255340  - D3DPTEXTURECAPS_MIPCUBEMAP
00:00:04.255340  - D3DPTEXTURECAPS_MIPMAP
00:00:04.255340  - D3DPTEXTURECAPS_MIPVOLUMEMAP
00:00:04.255341  - D3DPTEXTURECAPS_PERSPECTIVE
00:00:04.255341  - D3DPTEXTURECAPS_PROJECTED
00:00:04.255341  - D3DPTEXTURECAPS_TEXREPEATNOTSCALEDBYSIZE
00:00:04.255341  - D3DPTEXTURECAPS_VOLUMEMAP
00:00:04.255341
00:00:04.255342 TextureFilterCaps
00:00:04.255342  - D3DPTFILTERCAPS_MAGFPOINT
00:00:04.255342  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:04.255342  - D3DPTFILTERCAPS_MAGFANISOTROPIC
00:00:04.255342  - D3DPTFILTERCAPS_MINFPOINT
00:00:04.255342  - D3DPTFILTERCAPS_MINFLINEAR
00:00:04.255344  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:04.255344  - D3DPTFILTERCAPS_MIPFPOINT
00:00:04.255345  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:04.255345
00:00:04.255345 CubeTextureFilterCaps
00:00:04.255345  - D3DPTFILTERCAPS_MAGFPOINT
00:00:04.255345  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:04.255345  - D3DPTFILTERCAPS_MAGFANISOTROPIC
00:00:04.255346  - D3DPTFILTERCAPS_MINFPOINT
00:00:04.255346  - D3DPTFILTERCAPS_MINFLINEAR
00:00:04.255346  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:04.255346  - D3DPTFILTERCAPS_MIPFPOINT
00:00:04.255346  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:04.255347
00:00:04.255347 VolumeTextureFilterCaps
00:00:04.255347  - D3DPTFILTERCAPS_MAGFPOINT
00:00:04.255347  - D3DPTFILTERCAPS_MAGFLINEAR
00:00:04.255347  - D3DPTFILTERCAPS_MAGFANISOTROPIC
00:00:04.255348  - D3DPTFILTERCAPS_MINFPOINT
00:00:04.255348  - D3DPTFILTERCAPS_MINFLINEAR
00:00:04.255348  - D3DPTFILTERCAPS_MINFANISOTROPIC
00:00:04.255348  - D3DPTFILTERCAPS_MIPFPOINT
00:00:04.255348  - D3DPTFILTERCAPS_MIPFLINEAR
00:00:04.255349
00:00:04.255349 TextureAddressCaps:
00:00:04.255349  - D3DPTADDRESSCAPS_BORDER
00:00:04.255349  - D3DPTADDRESSCAPS_CLAMP
00:00:04.255349  - D3DPTADDRESSCAPS_INDEPENDENTUV
00:00:04.255350  - D3DPTADDRESSCAPS_MIRROR
00:00:04.255350  - D3DPTADDRESSCAPS_MIRRORONCE
00:00:04.255350  - D3DPTADDRESSCAPS_WRAP
00:00:04.255350
00:00:04.255350 TextureOpCaps:
00:00:04.255350  - D3DTEXOPCAPS_DISABLE
00:00:04.255351  - D3DTEXOPCAPS_SELECTARG1
00:00:04.255351  - D3DTEXOPCAPS_SELECTARG2
00:00:04.255351  - D3DTEXOPCAPS_MODULATE
00:00:04.255351  - D3DTEXOPCAPS_MODULATE2X
00:00:04.255351  - D3DTEXOPCAPS_MODULATE4X
00:00:04.255352  - D3DTEXOPCAPS_ADD
00:00:04.255352  - D3DTEXOPCAPS_ADDSIGNED
00:00:04.255352  - D3DTEXOPCAPS_ADDSIGNED2X
00:00:04.255352  - D3DTEXOPCAPS_SUBTRACT
00:00:04.255352  - D3DTEXOPCAPS_ADDSMOOTH
00:00:04.255353  - D3DTEXOPCAPS_BLENDDIFFUSEALPHA
00:00:04.255353  - D3DTEXOPCAPS_BLENDTEXTUREALPHA
00:00:04.255353  - D3DTEXOPCAPS_BLENDFACTORALPHA
00:00:04.255353  - D3DTEXOPCAPS_BLENDTEXTUREALPHAPM
00:00:04.255353  - D3DTEXOPCAPS_BLENDCURRENTALPHA
00:00:04.255354  - D3DTEXOPCAPS_PREMODULATE
00:00:04.255354  - D3DTEXOPCAPS_MODULATEALPHA_ADDCOLOR
00:00:04.255354  - D3DTEXOPCAPS_MODULATECOLOR_ADDALPHA
00:00:04.255354  - D3DTEXOPCAPS_MODULATEINVALPHA_ADDCOLOR
00:00:04.255355  - D3DTEXOPCAPS_MODULATEINVCOLOR_ADDALPHA
00:00:04.255355  - D3DTEXOPCAPS_BUMPENVMAP
00:00:04.255355  - D3DTEXOPCAPS_BUMPENVMAPLUMINANCE
00:00:04.255355  - D3DTEXOPCAPS_DOTPRODUCT3
00:00:04.255355  - D3DTEXOPCAPS_MULTIPLYADD
00:00:04.255356  - D3DTEXOPCAPS_LERP
00:00:04.255356
00:00:04.255356 PixelShaderVersion:  0xffff0300 (3.0)
00:00:04.255357 VertexShaderVersion: 0xfffe0300 (3.0)
00:00:04.255357
00:00:04.255358 VMSVGA: texture format INTZ not supported!!!
00:00:04.255369 VMSVGA: surface format NULL not supported!!!
00:00:04.255374 VMSVGA: texture format D3DFMT_D16 not supported
00:00:04.255378 VMSVGA: texture format D3DFMT_D24X8 not supported
00:00:04.255381 VMSVGA: texture format D3DFMT_D24S8 not supported
00:00:04.255384 VMSVGA: texture format D3DFMT_A8B8G8R8 supported
00:00:04.255393 VMSVGA3d: cap[0]=0x00000001 {3D}
00:00:04.255395 VMSVGA3d: cap[1]=0x00000008 {MAX_LIGHTS}
00:00:04.255395 VMSVGA3d: cap[2]=0x00000008 {MAX_TEXTURES}
00:00:04.255396 VMSVGA3d: cap[3]=0x00000008 {MAX_CLIP_PLANES}
00:00:04.255396 VMSVGA3d: cap[4]=0x00000007 {VERTEX_SHADER_VERSION}
00:00:04.255396 VMSVGA3d: cap[5]=0x00000001 {VERTEX_SHADER}
00:00:04.255397 VMSVGA3d: cap[6]=0x0000000d {FRAGMENT_SHADER_VERSION}
00:00:04.255397 VMSVGA3d: cap[7]=0x00000001 {FRAGMENT_SHADER}
00:00:04.255397 VMSVGA3d: cap[8]=0x00000004 {MAX_RENDER_TARGETS}
00:00:04.255398 VMSVGA3d: cap[9]=failed rc=VERR_INVALID_PARAMETER {S23E8_TEXTURES}
00:00:04.255401 VMSVGA3d: cap[10]=failed rc=VERR_INVALID_PARAMETER {S10E5_TEXTURES}
00:00:04.255401 VMSVGA3d: cap[11]=0x00000000 {MAX_FIXED_VERTEXBLEND}
00:00:04.255402 VMSVGA3d: cap[12]=0x00000001 {D16_BUFFER_FORMAT}
00:00:04.255402 VMSVGA3d: cap[13]=0x00000001 {D24S8_BUFFER_FORMAT}
00:00:04.255402 VMSVGA3d: cap[14]=0x00000001 {D24X8_BUFFER_FORMAT}
00:00:04.255403 VMSVGA3d: cap[15]=0x00000000 {QUERY_TYPES}
00:00:04.255403 VMSVGA3d: cap[16]=0x00000000 {TEXTURE_GRADIENT_SAMPLING}
00:00:04.255404 VMSVGA3d: cap[17]=8192.000000 {MAX_POINT_SIZE}
00:00:04.255404 VMSVGA3d: cap[18]=failed rc=VERR_INVALID_PARAMETER {MAX_SHADER_TEXTURES}
00:00:04.255405 VMSVGA3d: cap[19]=0x00004000 {MAX_TEXTURE_WIDTH}
00:00:04.255405 VMSVGA3d: cap[20]=0x00004000 {MAX_TEXTURE_HEIGHT}
00:00:04.255405 VMSVGA3d: cap[21]=0x00004000 {MAX_VOLUME_EXTENT}
00:00:04.255406 VMSVGA3d: cap[22]=0x00002000 {MAX_TEXTURE_REPEAT}
00:00:04.255406 VMSVGA3d: cap[23]=0x00002000 {MAX_TEXTURE_ASPECT_RATIO}
00:00:04.255406 VMSVGA3d: cap[24]=0x00000010 {MAX_TEXTURE_ANISOTROPY}
00:00:04.255407 VMSVGA3d: cap[25]=0x007fffff {MAX_PRIMITIVE_COUNT}
00:00:04.255407 VMSVGA3d: cap[26]=0x00ffffff {MAX_VERTEX_INDEX}
00:00:04.255408 VMSVGA3d: cap[27]=0x00008000 {MAX_VERTEX_SHADER_INSTRUCTIONS}
00:00:04.255408 VMSVGA3d: cap[28]=0x00008000 {MAX_FRAGMENT_SHADER_INSTRUCTIONS}
00:00:04.255408 VMSVGA3d: cap[29]=0x00000020 {MAX_VERTEX_SHADER_TEMPS}
00:00:04.255409 VMSVGA3d: cap[30]=0x00000020 {MAX_FRAGMENT_SHADER_TEMPS}
00:00:04.255409 VMSVGA3d: cap[31]=0x00000000 {TEXTURE_OPS}
00:00:04.255412 VMSVGA3d: cap[32]=0x009aec1f {SURFACEFMT_X8R8G8B8}
00:00:04.255413 VMSVGA3d: cap[33]=0x00dae11f {SURFACEFMT_A8R8G8B8}
00:00:04.255415 VMSVGA3d: cap[34]=0x00ca611f {SURFACEFMT_A2R10G10B10}
00:00:04.255416 VMSVGA3d: cap[35]=0x00ca6c1f {SURFACEFMT_X1R5G5B5}
00:00:04.255417 VMSVGA3d: cap[36]=0x00ca611f {SURFACEFMT_A1R5G5B5}
00:00:04.255418 VMSVGA3d: cap[37]=0x00ca611f {SURFACEFMT_A4R4G4B4}
00:00:04.255419 VMSVGA3d: cap[38]=0x00ca6c1f {SURFACEFMT_R5G6B5}
00:00:04.255420 VMSVGA3d: cap[39]=0x00c2401f {SURFACEFMT_LUMINANCE16}
00:00:04.255421 VMSVGA3d: cap[40]=0x00c2401f {SURFACEFMT_LUMINANCE8_ALPHA8}
00:00:04.255422 VMSVGA3d: cap[41]=0x00c2401f {SURFACEFMT_ALPHA8}
00:00:04.255423 VMSVGA3d: cap[42]=0x00c2401f {SURFACEFMT_LUMINANCE8}
00:00:04.255423 VMSVGA3d: cap[43]=0x000000c1 {SURFACEFMT_Z_D16}
00:00:04.255424 VMSVGA3d: cap[44]=0x000000c1 {SURFACEFMT_Z_D24S8}
00:00:04.255424 VMSVGA3d: cap[45]=0x000000c1 {SURFACEFMT_Z_D24X8}
00:00:04.255426 VMSVGA3d: cap[46]=0x00828007 {SURFACEFMT_DXT1}
00:00:04.255427 VMSVGA3d: cap[47]=0x00828007 {SURFACEFMT_DXT2}
00:00:04.255428 VMSVGA3d: cap[48]=0x00828007 {SURFACEFMT_DXT3}
00:00:04.255429 VMSVGA3d: cap[49]=0x00828007 {SURFACEFMT_DXT4}
00:00:04.255430 VMSVGA3d: cap[50]=0x00828007 {SURFACEFMT_DXT5}
00:00:04.255431 VMSVGA3d: cap[51]=0x00000000 {SURFACEFMT_BUMPX8L8V8U8}
00:00:04.255432 VMSVGA3d: cap[52]=0x00000000 {SURFACEFMT_A2W10V10U10}
00:00:04.255433 VMSVGA3d: cap[53]=0x0083401f {SURFACEFMT_BUMPU8V8}
00:00:04.255434 VMSVGA3d: cap[54]=0x0083401f {SURFACEFMT_Q8W8V8U8}
00:00:04.255435 VMSVGA3d: cap[55]=0x00000000 {SURFACEFMT_CxV8U8}
00:00:04.255436 VMSVGA3d: cap[56]=0x00c2401f {SURFACEFMT_R_S10E5}
00:00:04.255437 VMSVGA3d: cap[57]=0x00c2401f {SURFACEFMT_R_S23E8}
00:00:04.255439 VMSVGA3d: cap[58]=0x00c2401f {SURFACEFMT_RG_S10E5}
00:00:04.255440 VMSVGA3d: cap[59]=0x00c2401f {SURFACEFMT_RG_S23E8}
00:00:04.255441 VMSVGA3d: cap[60]=0x00c2401f {SURFACEFMT_ARGB_S10E5}
00:00:04.255443 VMSVGA3d: cap[61]=0x00c2401f {SURFACEFMT_ARGB_S23E8}
00:00:04.255443 VMSVGA3d: cap[62]=failed rc=VERR_INVALID_PARAMETER {MISSING62}
00:00:04.255443 VMSVGA3d: cap[63]=0x00000000 {MAX_VERTEX_SHADER_TEXTURES}
00:00:04.255444 VMSVGA3d: cap[64]=0x00000004 {MAX_SIMULTANEOUS_RENDER_TARGETS}
00:00:04.255445 VMSVGA3d: cap[65]=0x0083401f {SURFACEFMT_V16U16}
00:00:04.255446 VMSVGA3d: cap[66]=0x00c2401f {SURFACEFMT_G16R16}
00:00:04.255447 VMSVGA3d: cap[67]=0x00c2401f {SURFACEFMT_A16B16G16R16}
00:00:04.255448 VMSVGA3d: cap[68]=0x00000001 {SURFACEFMT_UYVY}
00:00:04.255449 VMSVGA3d: cap[69]=0x01244001 {SURFACEFMT_YUY2}
00:00:04.255449 VMSVGA3d: cap[70]=0x00000000 {DEAD4}
00:00:04.255450 VMSVGA3d: cap[71]=0x00000000 {DEAD5}
00:00:04.255450 VMSVGA3d: cap[72]=0x00000000 {DEAD7}
00:00:04.255450 VMSVGA3d: cap[73]=0x00000000 {DEAD6}
00:00:04.255451 VMSVGA3d: cap[74]=0x00000001 {AUTOGENMIPMAPS}
00:00:04.255451 VMSVGA3d: cap[75]=0x00000000 {SURFACEFMT_NV12}
00:00:04.255453 VMSVGA3d: cap[76]=0x01244000 {DEAD10}
00:00:04.255453 VMSVGA3d: cap[77]=0x00000100 {MAX_CONTEXT_IDS}
00:00:04.255453 VMSVGA3d: cap[78]=0x00008000 {MAX_SURFACE_IDS}
00:00:04.255454 VMSVGA3d: cap[79]=0x00000000 {SURFACEFMT_Z_DF16}
00:00:04.255454 VMSVGA3d: cap[80]=0x00000000 {SURFACEFMT_Z_DF24}
00:00:04.255455 VMSVGA3d: cap[81]=0x000000c1 {SURFACEFMT_Z_D24S8_INT}
00:00:04.255455 VMSVGA3d: cap[82]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI1}
00:00:04.255455 VMSVGA3d: cap[83]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_ATI2}
00:00:04.255456 VMSVGA3d: cap[84]=failed rc=VERR_INVALID_PARAMETER {DEAD1}
00:00:04.255456 VMSVGA3d: cap[85]=failed rc=VERR_INVALID_PARAMETER {DEAD8}
00:00:04.255457 VMSVGA3d: cap[86]=failed rc=VERR_INVALID_PARAMETER {DEAD9}
00:00:04.255457 VMSVGA3d: cap[87]=failed rc=VERR_INVALID_PARAMETER {LINE_AA}
00:00:04.255458 VMSVGA3d: cap[88]=failed rc=VERR_INVALID_PARAMETER {LINE_STIPPLE}
00:00:04.255458 VMSVGA3d: cap[89]=failed rc=VERR_INVALID_PARAMETER {MAX_LINE_WIDTH}
00:00:04.255458 VMSVGA3d: cap[90]=failed rc=VERR_INVALID_PARAMETER {MAX_AA_LINE_WIDTH}
00:00:04.255459 VMSVGA3d: cap[91]=failed rc=VERR_INVALID_PARAMETER {SURFACEFMT_YV12}
00:00:04.255459 VMSVGA3d: cap[92]=failed rc=VERR_INVALID_PARAMETER {DEAD3}
00:00:04.255460 VMSVGA3d: cap[93]=failed rc=VERR_INVALID_PARAMETER {TS_COLOR_KEY}
00:00:04.255460 VMSVGA3d: cap[94]=failed rc=VERR_INVALID_PARAMETER {DEAD2}
00:00:04.255460 VMSVGA3d: cap[95]=failed rc=VERR_INVALID_PARAMETER {DXCONTEXT}
00:00:04.255461 VMSVGA3d: cap[96]=failed rc=VERR_INVALID_PARAMETER {DEAD11}
00:00:04.255461 VMSVGA3d: cap[97]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_VERTEXBUFFERS}
00:00:04.255462 VMSVGA3d: cap[98]=failed rc=VERR_INVALID_PARAMETER {DX_MAX_CONSTANT_BUFFERS}
00:00:04.255462 VMSVGA3d: cap[99]=failed rc=VERR_INVALID_PARAMETER {DX_PROVOKING_VERTEX}
00:00:04.255463 VMSVGA3d: cap[100]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8R8G8B8}
00:00:04.255463 VMSVGA3d: cap[101]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8R8G8B8}
00:00:04.255464 VMSVGA3d: cap[102]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R5G6B5}
00:00:04.255464 VMSVGA3d: cap[103]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X1R5G5B5}
00:00:04.255464 VMSVGA3d: cap[104]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A1R5G5B5}
00:00:04.255465 VMSVGA3d: cap[105]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A4R4G4B4}
00:00:04.255465 VMSVGA3d: cap[106]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D32}
00:00:04.255466 VMSVGA3d: cap[107]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D16}
00:00:04.255466 VMSVGA3d: cap[108]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8}
00:00:04.255467 VMSVGA3d: cap[109]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D15S1}
00:00:04.255467 VMSVGA3d: cap[110]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8}
00:00:04.255467 VMSVGA3d: cap[111]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE4_ALPHA4}
00:00:04.255468 VMSVGA3d: cap[112]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE16}
00:00:04.255468 VMSVGA3d: cap[113]=failed rc=VERR_INVALID_PARAMETER {DXFMT_LUMINANCE8_ALPHA8}
00:00:04.255469 VMSVGA3d: cap[114]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT1}
00:00:04.255469 VMSVGA3d: cap[115]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT2}
00:00:04.255470 VMSVGA3d: cap[116]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT3}
00:00:04.255470 VMSVGA3d: cap[117]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT4}
00:00:04.255470 VMSVGA3d: cap[118]=failed rc=VERR_INVALID_PARAMETER {DXFMT_DXT5}
00:00:04.255471 VMSVGA3d: cap[119]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPU8V8}
00:00:04.255471 VMSVGA3d: cap[120]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPL6V5U5}
00:00:04.255472 VMSVGA3d: cap[121]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUMPX8L8V8U8}
00:00:04.255472 VMSVGA3d: cap[122]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD1}
00:00:04.255473 VMSVGA3d: cap[123]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S10E5}
00:00:04.255473 VMSVGA3d: cap[124]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ARGB_S23E8}
00:00:04.255473 VMSVGA3d: cap[125]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2R10G10B10}
00:00:04.255474 VMSVGA3d: cap[126]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V8U8}
00:00:04.255474 VMSVGA3d: cap[127]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Q8W8V8U8}
00:00:04.255475 VMSVGA3d: cap[128]=failed rc=VERR_INVALID_PARAMETER {DXFMT_CxV8U8}
00:00:04.255475 VMSVGA3d: cap[129]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X8L8V8U8}
00:00:04.255476 VMSVGA3d: cap[130]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A2W10V10U10}
00:00:04.255476 VMSVGA3d: cap[131]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ALPHA8}
00:00:04.255476 VMSVGA3d: cap[132]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S10E5}
00:00:04.255477 VMSVGA3d: cap[133]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R_S23E8}
00:00:04.255477 VMSVGA3d: cap[134]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S10E5}
00:00:04.255478 VMSVGA3d: cap[135]=failed rc=VERR_INVALID_PARAMETER {DXFMT_RG_S23E8}
00:00:04.255478 VMSVGA3d: cap[136]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BUFFER}
00:00:04.255478 VMSVGA3d: cap[137]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24X8}
00:00:04.255479 VMSVGA3d: cap[138]=failed rc=VERR_INVALID_PARAMETER {DXFMT_V16U16}
00:00:04.255479 VMSVGA3d: cap[139]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G16R16}
00:00:04.255480 VMSVGA3d: cap[140]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A16B16G16R16}
00:00:04.255480 VMSVGA3d: cap[141]=failed rc=VERR_INVALID_PARAMETER {DXFMT_UYVY}
00:00:04.255481 VMSVGA3d: cap[142]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YUY2}
00:00:04.255481 VMSVGA3d: cap[143]=failed rc=VERR_INVALID_PARAMETER {DXFMT_NV12}
00:00:04.255481 VMSVGA3d: cap[144]=failed rc=VERR_INVALID_PARAMETER {DXFMT_FORMAT_DEAD2}
00:00:04.255482 VMSVGA3d: cap[145]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_TYPELESS}
00:00:04.255482 VMSVGA3d: cap[146]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_UINT}
00:00:04.255483 VMSVGA3d: cap[147]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_SINT}
00:00:04.255483 VMSVGA3d: cap[148]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_TYPELESS}
00:00:04.255484 VMSVGA3d: cap[149]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_FLOAT}
00:00:04.255484 VMSVGA3d: cap[150]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_UINT}
00:00:04.255484 VMSVGA3d: cap[151]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32_SINT}
00:00:04.255485 VMSVGA3d: cap[152]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_TYPELESS}
00:00:04.255485 VMSVGA3d: cap[153]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UINT}
00:00:04.255486 VMSVGA3d: cap[154]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SNORM}
00:00:04.255486 VMSVGA3d: cap[155]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_SINT}
00:00:04.255487 VMSVGA3d: cap[156]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_TYPELESS}
00:00:04.255487 VMSVGA3d: cap[157]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_UINT}
00:00:04.255488 VMSVGA3d: cap[158]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_SINT}
00:00:04.255488 VMSVGA3d: cap[159]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G8X24_TYPELESS}
00:00:04.255488 VMSVGA3d: cap[160]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT_S8X24_UINT}
00:00:04.255489 VMSVGA3d: cap[161]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT_X8X24}
00:00:04.255489 VMSVGA3d: cap[162]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X32_G8X24_UINT}
00:00:04.255490 VMSVGA3d: cap[163]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_TYPELESS}
00:00:04.255490 VMSVGA3d: cap[164]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UINT}
00:00:04.255491 VMSVGA3d: cap[165]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R11G11B10_FLOAT}
00:00:04.255491 VMSVGA3d: cap[166]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_TYPELESS}
00:00:04.255491 VMSVGA3d: cap[167]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM}
00:00:04.255492 VMSVGA3d: cap[168]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UNORM_SRGB}
00:00:04.255492 VMSVGA3d: cap[169]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_UINT}
00:00:04.255493 VMSVGA3d: cap[170]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SINT}
00:00:04.255493 VMSVGA3d: cap[171]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_TYPELESS}
00:00:04.255494 VMSVGA3d: cap[172]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UINT}
00:00:04.255494 VMSVGA3d: cap[173]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SINT}
00:00:04.255494 VMSVGA3d: cap[174]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_TYPELESS}
00:00:04.255495 VMSVGA3d: cap[175]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D32_FLOAT}
00:00:04.255495 VMSVGA3d: cap[176]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_UINT}
00:00:04.255497 VMSVGA3d: cap[177]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_SINT}
00:00:04.255497 VMSVGA3d: cap[178]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24G8_TYPELESS}
00:00:04.255498 VMSVGA3d: cap[179]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D24_UNORM_S8_UINT}
00:00:04.255498 VMSVGA3d: cap[180]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R24_UNORM_X8}
00:00:04.255499 VMSVGA3d: cap[181]=failed rc=VERR_INVALID_PARAMETER {DXFMT_X24_G8_UINT}
00:00:04.255499 VMSVGA3d: cap[182]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_TYPELESS}
00:00:04.255500 VMSVGA3d: cap[183]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UNORM}
00:00:04.255500 VMSVGA3d: cap[184]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_UINT}
00:00:04.255500 VMSVGA3d: cap[185]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SINT}
00:00:04.255501 VMSVGA3d: cap[186]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_TYPELESS}
00:00:04.255501 VMSVGA3d: cap[187]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UNORM}
00:00:04.255502 VMSVGA3d: cap[188]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_UINT}
00:00:04.255502 VMSVGA3d: cap[189]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SNORM}
00:00:04.255503 VMSVGA3d: cap[190]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_SINT}
00:00:04.255503 VMSVGA3d: cap[191]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_TYPELESS}
00:00:04.255503 VMSVGA3d: cap[192]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UNORM}
00:00:04.255504 VMSVGA3d: cap[193]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_UINT}
00:00:04.255504 VMSVGA3d: cap[194]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SNORM}
00:00:04.255505 VMSVGA3d: cap[195]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8_SINT}
00:00:04.255505 VMSVGA3d: cap[196]=failed rc=VERR_INVALID_PARAMETER {DXFMT_P8}
00:00:04.255506 VMSVGA3d: cap[197]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R9G9B9E5_SHAREDEXP}
00:00:04.255506 VMSVGA3d: cap[198]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_B8G8_UNORM}
00:00:04.255506 VMSVGA3d: cap[199]=failed rc=VERR_INVALID_PARAMETER {DXFMT_G8R8_G8B8_UNORM}
00:00:04.255507 VMSVGA3d: cap[200]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_TYPELESS}
00:00:04.255507 VMSVGA3d: cap[201]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM_SRGB}
00:00:04.255508 VMSVGA3d: cap[202]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_TYPELESS}
00:00:04.255508 VMSVGA3d: cap[203]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM_SRGB}
00:00:04.255509 VMSVGA3d: cap[204]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_TYPELESS}
00:00:04.255509 VMSVGA3d: cap[205]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM_SRGB}
00:00:04.255509 VMSVGA3d: cap[206]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_TYPELESS}
00:00:04.255510 VMSVGA3d: cap[207]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI1}
00:00:04.255510 VMSVGA3d: cap[208]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_SNORM}
00:00:04.255511 VMSVGA3d: cap[209]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_TYPELESS}
00:00:04.255511 VMSVGA3d: cap[210]=failed rc=VERR_INVALID_PARAMETER {DXFMT_ATI2}
00:00:04.255512 VMSVGA3d: cap[211]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_SNORM}
00:00:04.255512 VMSVGA3d: cap[212]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10_XR_BIAS_A2_UNORM}
00:00:04.255512 VMSVGA3d: cap[213]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_TYPELESS}
00:00:04.255513 VMSVGA3d: cap[214]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM_SRGB}
00:00:04.255513 VMSVGA3d: cap[215]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_TYPELESS}
00:00:04.255514 VMSVGA3d: cap[216]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM_SRGB}
00:00:04.255514 VMSVGA3d: cap[217]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF16}
00:00:04.255515 VMSVGA3d: cap[218]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_DF24}
00:00:04.255515 VMSVGA3d: cap[219]=failed rc=VERR_INVALID_PARAMETER {DXFMT_Z_D24S8_INT}
00:00:04.255515 VMSVGA3d: cap[220]=failed rc=VERR_INVALID_PARAMETER {DXFMT_YV12}
00:00:04.255516 VMSVGA3d: cap[221]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32B32A32_FLOAT}
00:00:04.255516 VMSVGA3d: cap[222]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_FLOAT}
00:00:04.255517 VMSVGA3d: cap[223]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16B16A16_UNORM}
00:00:04.255517 VMSVGA3d: cap[224]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32G32_FLOAT}
00:00:04.255518 VMSVGA3d: cap[225]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R10G10B10A2_UNORM}
00:00:04.255518 VMSVGA3d: cap[226]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8B8A8_SNORM}
00:00:04.255518 VMSVGA3d: cap[227]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_FLOAT}
00:00:04.255519 VMSVGA3d: cap[228]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_UNORM}
00:00:04.255519 VMSVGA3d: cap[229]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16G16_SNORM}
00:00:04.255520 VMSVGA3d: cap[230]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R32_FLOAT}
00:00:04.255520 VMSVGA3d: cap[231]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R8G8_SNORM}
00:00:04.255521 VMSVGA3d: cap[232]=failed rc=VERR_INVALID_PARAMETER {DXFMT_R16_FLOAT}
00:00:04.255521 VMSVGA3d: cap[233]=failed rc=VERR_INVALID_PARAMETER {DXFMT_D16_UNORM}
00:00:04.255521 VMSVGA3d: cap[234]=failed rc=VERR_INVALID_PARAMETER {DXFMT_A8_UNORM}
00:00:04.255522 VMSVGA3d: cap[235]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC1_UNORM}
00:00:04.255522 VMSVGA3d: cap[236]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC2_UNORM}
00:00:04.255523 VMSVGA3d: cap[237]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC3_UNORM}
00:00:04.255523 VMSVGA3d: cap[238]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G6R5_UNORM}
00:00:04.255523 VMSVGA3d: cap[239]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B5G5R5A1_UNORM}
00:00:04.255524 VMSVGA3d: cap[240]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8A8_UNORM}
00:00:04.255524 VMSVGA3d: cap[241]=failed rc=VERR_INVALID_PARAMETER {DXFMT_B8G8R8X8_UNORM}
00:00:04.255525 VMSVGA3d: cap[242]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC4_UNORM}
00:00:04.255525 VMSVGA3d: cap[243]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC5_UNORM}
00:00:04.255526 VMSVGA3d: cap[244]=failed rc=VERR_INVALID_PARAMETER {SM41}
00:00:04.255526 VMSVGA3d: cap[245]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_2X}
00:00:04.255526 VMSVGA3d: cap[246]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_4X}
00:00:04.255527 VMSVGA3d: cap[247]=failed rc=VERR_INVALID_PARAMETER {MS_FULL_QUALITY}
00:00:04.255527 VMSVGA3d: cap[248]=failed rc=VERR_INVALID_PARAMETER {LOGICOPS}
00:00:04.255528 VMSVGA3d: cap[249]=failed rc=VERR_INVALID_PARAMETER {LOGIC_BLENDOPS}
00:00:04.255528 VMSVGA3d: cap[250]=failed rc=VERR_INVALID_PARAMETER {RESERVED_1}
00:00:04.255529 VMSVGA3d: cap[251]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_TYPELESS}
00:00:04.255529 VMSVGA3d: cap[252]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_UF16}
00:00:04.255529 VMSVGA3d: cap[253]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC6H_SF16}
00:00:04.255530 VMSVGA3d: cap[254]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_TYPELESS}
00:00:04.255530 VMSVGA3d: cap[255]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM}
00:00:04.255531 VMSVGA3d: cap[256]=failed rc=VERR_INVALID_PARAMETER {DXFMT_BC7_UNORM_SRGB}
00:00:04.255531 VMSVGA3d: cap[257]=failed rc=VERR_INVALID_PARAMETER {RESERVED_2}
00:00:04.255532 VMSVGA3d: cap[258]=failed rc=VERR_INVALID_PARAMETER {SM5}
00:00:04.255532 VMSVGA3d: cap[259]=failed rc=VERR_INVALID_PARAMETER {MULTISAMPLE_8X}

Motocross Madness has finally worked with the IGPU, but it has some graphical issues as in the picture:

May 05 '23 19:05 AITUS95

Yep, MCM still have graphical glitches (If you turn off particles and set graphic quality to maximum in settings, it'll help a little). I still haven't trace source of these problems.

With your Nvidia it looks like VirtualBox bug, I described and report it here: https://www.virtualbox.org/ticket/21643

And some good news, with newest Wine9x (https://github.com/JHRobotics/wine9x/releases/tag/v1.7.55.9) should Tank Racer works:

tank-racer

tank-racer2

May 10 '23 09:05 JHRobotics

Hello again, I created better workaround for VirtualBox R5G6B5 bug, so with latest SoftGPU release (https://github.com/JHRobotics/softgpu/releases/tag/v0.4.2023.11) your NVIDIA GPU should now work. If you try it, please report the results :-)

May 14 '23 07:05 JHRobotics

i can confirm that the problem with my nvidia gpu is fixed, the fixes in the games you mentioned work on my nvidia gpu too :-), regarding CHS 2000 i had forgotten that there was a patch (i don't know if official) for TNT2, GeForce, voodoo and intel, so I applied the one for TNT2 and Geforce and magic:

CHS2000

it just has some speed problems at the beginning of the race, but I think it's also due to my cpu, in any case everything works as it should, I'm keeping the commit open only for those graphical bugs on MCM.

P.S: in all games unfortunately I don't get the audio tracks played.

May 14 '23 10:05 AITUS95

Thanks for report and support ☕

These games are using CD audio, and these are problems with it:

You must have the game on image with audio tracks (usually CUE+BIN)
Virtual drive must support multiple tracks and CD access in CDDA or MODE1/2352 (VirtualBox supporting nothing)
Tracts are playing from first CD drive even if game is in another drive

Solution is a bit tricky:

install Daemon tools for Windows 9x (requires Windows Installer 2.0), both are in this ZIP: https://emulace.cz/patcher9x/daemon-9x.zip
copy CD images to HDD in you VM
remove optical drive in VM settings (now you have only one drive – Daemon tool virtual drive)
mount CD image in VM to virtual drive
some games can’t start if you installed them from CD drive with different letter – reinstall the game or change virtual drive letter to same as old drive had
start the game – you should hear music now

May 16 '23 23:05 JHRobotics

unfortunately the sound still missing, i tried with daemon tools installed on win98 but i get the same results, usually i use daemon tools from host pc to mount .cue .bin, it seems that blood II is exception regarding playing music, it works fine, but other games don't even play the initial intro sound like CHS2000, also the AC97 device crashes when starting some games.

May 20 '23 19:05 AITUS95
