Left-handed orientation is discarded when saving a .dcm file

[jond01]

Description

Out of 48 possible orientations for a 3d image, the 24 left-handed orientations are treated incorrectly when saving a multi-frame dicom file or series.

• Examples for right-handed orientations (24 in total):
  • RAI
  • SAR
• Left-handed (24 in total):
  • RAS
  • RPI

Steps to Reproduce

1. Download nih nifti example: avg152T1_LR_nifti.nii.gz (From: https://nifti.nimh.nih.gov/nifti-1/data) This nifti's orientation is RPI - left-handed.
2. Run the following code in python:

import itk

nifti_image = itk.imread('avg152T1_LR_nifti.nii.gz')
nifti_direction = itk.array_from_vnl_matrix(
    nifti_image.GetDirection().GetVnlMatrix().as_matrix())
# save as a dicom
itk.imwrite(nifti_image, 'avg152T1_LR_nifti.dcm')
# read the saved dicom
dicom_image = itk.imread('avg152T1_LR_nifti.dcm')
dicom_direction = itk.array_from_vnl_matrix(
    dicom_image.GetDirection().GetVnlMatrix().as_matrix())

print(nifti_direction)
# [[ 1.  0.  0.]
#  [ 0. -1.  0.]
#  [ 0.  0.  1.]]

print(dicom_direction)
# [[ 1.  0.  0.]
#  [ 0. -1.  0.]
#  [ 0.  0. -1.]]

3. Open in itk-snap/slicer the original nifti and then the dicom. The dicom is flipped up-down.

Expected behavior

1. The direction matrix should be the same
2. The saved dicom image should not be flipped up-down

Actually, 1 leads to 2. I should emphasize that this is not a bug of slicer nor itk-snap. The bug is in our dicom writer.

Actual behavior

1. The direction matrices are different. The original direction matrix of the nifti (RPI):

[[ 1.  0.  0.]
 [ 0. -1.  0.]
 [ 0.  0.  1.]]

The dicom's direction matrix (corresponding to RPS):

[[ 1.  0.  0.]
 [ 0. -1.  0.]
 [ 0.  0. -1.]]

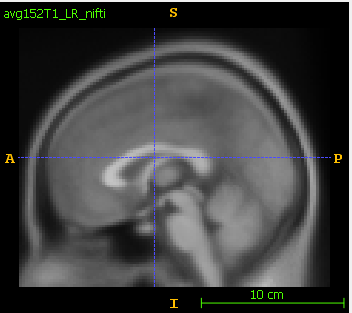

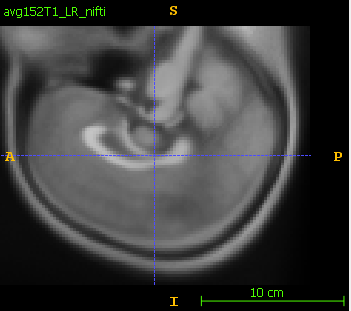

2. In itk-snap, the original nifti is: The saved dicom is flipped in S-I axis:

Reproducibility

100% for saving an image with left-handed orientation in multi-frame dicom, both single file (as shown here) and a series of 2d slices. In general, it's relevant for 3d images with left-handed orientations (50% of all possible orientations).

Versions

Itk 5.2.0

Environment

Python 3.9.4, macOS Big Sur (probably irrelevant)

Additional Information

The issue and some possible solutions have already been discussed here: https://discourse.itk.org/t/nifti-rpi-orientation-file-exported-to-dicom-wrong-orientation/1612

Explanation of the bug

The dicom orientation is encoded in the 6 numbers of Image Orientation (Patient) tag. These 6 numbers correspond to the first and second column of the direction matrix. Let's call these columns u, v (vectors of length 3). When saving the dicom, the 3rd column of nifti_direction - n, is discarded. When reading the dicom, it is inferred as the cross product of u and v:

• n = u x v

However, in this way it can never be (-n)!

Possible fixes

1. Raise an error when saving a dicom with a left-handed orientation. The orientation is easy to check: the determinant of the direction matrix (a rotation matrix) is either +1 or (-1). +1 - right-handed orientation, go ahead (-1) - error.
2. As Mihail Isakov suggested, if the image is left-handed - reorient it to the nearest right handed orientation.
3. Encode the orientation direction in the sign of Spacing Between Slices tag

[thewtex]

+1 for Fix 1.

[jond01]

The following table shows the original orientation of the image in itk vs. the orientation of the saved 3d dicom file (.dcm) corresponding to this image. There are different columns for RGB and non-RGB cases:

Orientation	Right/Left-handed orientation	Success	Saved orientation	RGB success	RGB saved orientation
RAI	R	TRUE	RAI	TRUE	RAI
IPR	R	TRUE	IPR	TRUE	IPR
PLS	R	TRUE	PLS	TRUE	PLS
LSP	R	TRUE	LSP	TRUE	LSP
ILP	R	TRUE	ILP	TRUE	ILP
PIL	R	TRUE	PIL	TRUE	PIL
LPI	R	TRUE	LPI	TRUE	LPI
SLA	R	TRUE	SLA	TRUE	SLA
ASL	R	TRUE	ASL	TRUE	ASL
LAS	R	TRUE	LAS	TRUE	LAS
IAL	R	TRUE	IAL	TRUE	IAL
ALI	R	TRUE	ALI	TRUE	ALI
LIA	R	TRUE	LIA	TRUE	LIA
SRP	R	TRUE	SRP	TRUE	SRP
PSR	R	TRUE	PSR	TRUE	PSR
RPS	R	TRUE	RPS	TRUE	RPS
SPL	R	TRUE	SPL	TRUE	SPL
SAR	R	TRUE	SAR	TRUE	SAR
RIP	R	TRUE	RIP	TRUE	RIP
ARS	R	TRUE	ARS	TRUE	ARS
IRA	R	TRUE	IRA	TRUE	IRA
AIR	R	TRUE	AIR	TRUE	AIR
RSA	R	TRUE	RSA	TRUE	RSA
PRI	R	TRUE	PRI	TRUE	PRI
ARI	L	FALSE	ARS	FALSE	ARS
LPS	L	FALSE	LPI	FALSE	LPI
SAL	L	FALSE	SAR	FALSE	SAR
IPL	L	FALSE	IPR	FALSE	IPR
PSL	L	FALSE	PSR	FALSE	PSR
IAR	L	FALSE	IAL	FALSE	IAL
PLI	L	FALSE	PLS	FALSE	PLS
LIP	L	FALSE	LIA	FALSE	LIA
RAS	L	FALSE	RAI	FALSE	RAI
SLP	L	FALSE	SLA	FALSE	SLA
IRP	L	FALSE	IRA	FALSE	IRA
ALS	L	FALSE	ALI	FALSE	ALI
PIR	L	FALSE	PIL	FALSE	PIL
LSA	L	FALSE	LSP	FALSE	LSP
ASR	L	FALSE	ASL	FALSE	ASL
SRA	L	FALSE	SRP	FALSE	SRP
ILA	L	FALSE	ILP	FALSE	ILP
AIL	L	FALSE	AIR	FALSE	AIR
RPI	L	FALSE	RPS	FALSE	RPS
RIA	L	FALSE	RIP	FALSE	RIP
SPR	L	FALSE	SPL	FALSE	SPL
PRS	L	FALSE	PRI	FALSE	PRI
RSP	L	FALSE	RSA	FALSE	RSA
LAI	L	FALSE	LAS	FALSE	LAS

Conclusions:

• Saving a non-channeled 3d dicom works only for right-handed orientations (as the original issue suggests)
• ~~Saving an RGB 3d dicom works only for RAI orientation~~

The table can be viewed also here: https://docs.google.com/spreadsheets/d/1ieM8uYYDOBUwoA3_O8FBf7E_72HRb7exE5Sj6KFA0CY/edit?usp=sharing

The code for creating this table: https://gist.github.com/jond01/c77fd1877aa20f6e9ac3cdb8755ec1be

(Edit: sorted the table by R/L.)

---

Edit: updated the table for ITK v5.2.0. RGB and non-RGB is the same.

[jond01]

@thewtex So after the issue has been characterized (+-), I prefer fix 3 with negative Spacing Between Slices because it will not block the user from some orientations. Regarding the failures in RGB 3d dicom - do you have any idea what is the reason behind that?

[thewtex]

@jond01 outstanding investigation! :clap:

Many codes, including ITK, assume that spacing is a physical length that will always be positive, and undefined behavior, which may be wrong, can result when processing, so I think fix 1 is still preferred.

Not sure about the RGB limitation, @malaterre may have ideas.

[issakomi]

Spacing Between Slices (0018, 0088) is not taken into account for z-spacing calculation at all in GDCM/ITK in most cases. Long story why, but IMHO it is correct. Most tools rely only on image position (patient) and image orientation (patient) attributes and don't believe anything else.

[malaterre]

I've briefly browse through the report, the first thing that pops up is the direct reference to NM module. I must admit I never realized negative value for Spacing Between Slices was acceptable. In my mind this was always like the Enh MR Image Storage:

• http://dicom.nema.org/medical/dicom/current/output/chtml/part03/sect_C.7.6.16.2.html#table_C.7.6.16-2

I'll clarify that GDCM always compute the non-negative Spacing Between Slices in all cases.

[jond01]

Ok, thank you all! So negative Spacing Between Slices is not a possible/adequate way of fixing left-handed orientations. Therefore, I conclude that there should be no left-handed dicoms, leading us to fix 1. I hope to make a PR for this issue in the coming weeks, at least for the non-RGB case.

Another peculiar point which I did not mention - saving RGB dicom series is possible with all right-handed orientations and not only RAI.

---

Update: The relevant lines in GDCM IO writer: https://github.com/InsightSoftwareConsortium/ITK/blob/27258efa6ba74228958af7b5a620d005c644da51/Modules/IO/GDCM/src/itkGDCMImageIO.cxx#L1000-L1043

[jond01]

Update regarding the 3d RGB case: I dug into the writer's internals - including GDCM - and turns out it's all fine. The direction cosines are set properly, which can be verified with pydicom for example:

import pydicom

ds = pydicom.dcmread('path/to/3d_channelled_ARS.dcm')
orientation = ds.SharedFunctionalGroupsSequence[0].PlaneOrientationSequence[0].ImageOrientationPatient
print(orientation)
# [-0, 1, 0, 1, -0, 0]

Whereas in itk:

import itk

img = itk.imread('path/to/3d_channelled_ARS.dcm')
direction = itk.array_from_vnl_matrix(img.GetDirection().GetVnlMatrix().as_matrix())
print(direction)
# [[1. 0. 0.]
#  [0. 1. 0.]
#  [0. 0. 1.]]

The expected direction matrix is

[[-0.  1.  0.]
 [ 1. -0.  0.]
 [ 0.  0. -1.]]

(The first two columns of direction are the orientation in pydicom, the 3rd is their cross product.)

Perhaps, it deserves a different issue and PR as being related to the reader component and not the writer.

[issakomi]

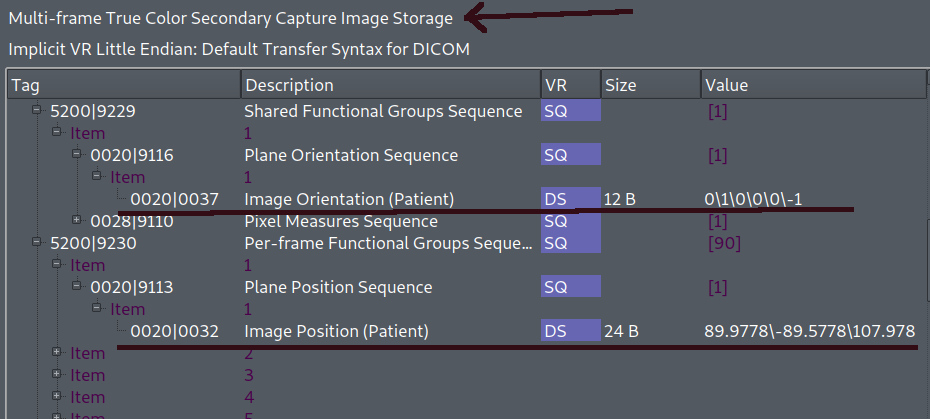

I could not reproduce problem with RGB image. Took MHA RGB image in ASL orientation, exported to DICOM (actual ITK master), result is correct - Multi-frame True Color Secondary Capture Image Storage has proper orientation. S. the test and input file (trivial, just read and write). Import DICOM, export MHA seems to work too. May be something was updated, i remember i saw similar issue in the past, but now seems to work well. May be try latest release or master.

[jond01]

Hi @issakomi, thank you very much for your example and interest! (I used a very similar example to test the RGB images, after changing the number of dimensions to 3.)

I reproduced your example, but there are still two separate issues regarding RGB dicom images:

1. Writing: Not always the image is written with the correct direction cosines (although the SOP class supports it). For example, with your data in python:

   img = itk.imread('test_rgb/input/t0.mha', pixel_type=itk.RGBPixel[itk.UC])
   # the direction matrix is correct:
   # itk.array_from_vnl_matrix(img.GetDirection().GetVnlMatrix().as_matrix())
   itk.imwrite(img, 'test_rgb/input/t0_itkpy.dcm')


   The saved dicom is missing the physical data (positions, orientation...). In C++, itk performs the writing well - as you show with Aliza.

The result of your example is here: t0.zip

2. Reading: If you open the above zipped dcm file with itk-snap, the orientation is evidently wrong (RAI instead of ASL). Itk's reader seems to ignore the physical data in this case. I suppose Aliza's reader uses bare gdcm and treats the metadata itself?

[issakomi]

Yes, itk-snap shows wrong orientation. Probably it was fixed here

https://github.com/malaterre/GDCM/commit/1767b5daae50e29da608ecddd3106ffd90c46bf4#diff-646c7508e8b2ed56649fd3d72843b0a5
