@pz-max @davide-f This is a simple pypsa example with the block diagram Max drew. ```python n = pypsa.Network() n.add("Bus", "storage_bus", carrier="heat") n.add("Bus", "thermal_bus", carrier="heat") n.add("Bus", "electricity_bus", carrier="AC") n.add("Link", "heat_exchanger", bus0="storage_bus",...

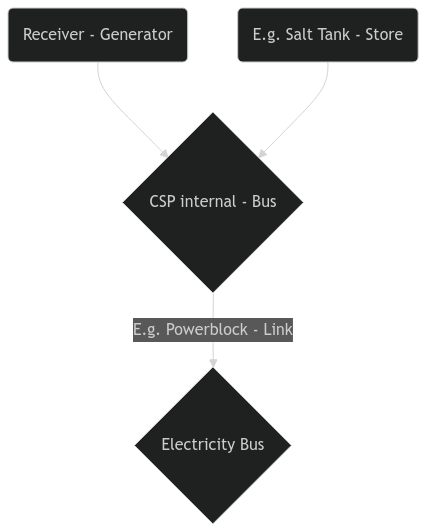

I got confused earlier. Thanks @ekatef. I have reproduced the design suggested by @davide using [Mermaid](https://mermaid.live/edit#pako:eNotUM1uwjAMfpXIJ5AoD9AD0gpoF5CqldOUi5cYiJomk3FBqPDuc9v5ZPv70WcP4LInKOEc88NdkcWcdjYZrY_FFzkKd2JTmE9KxCiZl6YoNqYatk1tQhLihFHxqr-9Z9n3Yr--rE2DUa0wtQo2qqN_4UyqpuE1Mev8IP6J2Y3UQ0jtazvsIznh4II8J2tYQUfcYfAadRg9LMiVOrJQauuRWws2jTzsJTfP5KAU7mkF_a9HoV3AC2MH5RnjTbfkg4Y6zrdPL3j_AZZ3VXs) [](https://mermaid.live/edit#pako:eNotUM1uwjAMfpXIJ5AoD9AD0gpoF5CqldOUi5cYiJomk3FBqPDuc9v5ZPv70WcP4LInKOEc88NdkcWcdjYZrY_FFzkKd2JTmE9KxCiZl6YoNqYatk1tQhLihFHxqr-9Z9n3Yr--rE2DUa0wtQo2qqN_4UyqpuE1Mev8IP6J2Y3UQ0jtazvsIznh4II8J2tYQUfcYfAadRg9LMiVOrJQauuRWws2jTzsJTfP5KAU7mkF_a9HoV3AC2MH5RnjTbfkg4Y6zrdPL3j_AZZ3VXs)

This is the adjusted sample for pypsa-network ```python # initialize network n = pypsa.Network() # add buses n.add("Bus", "csp_internal_bus", carrier="heat", v_nom=20.0) n.add("Bus", "electricity_bus", carrier="AC", v_nom=18.0) # add links n.add("Link", "power_block",...

Here is the revised block diagram, what are your thoughts @davide-f @pz-max @ekatef

Hi @ekatef @pz-max @davide-f Here is another revised block diagram for the csp design. Ready for review

Hello @davide-f @pz-max @ekatef I have created a simple pypsa example in my repo [here](https://github.com/GbotemiB/csp-design) for easy review. Here is the notebook with the csp design https://github.com/GbotemiB/csp-design/blob/main/csp.ipynb

@davide-f, thanks for the review.  I have also updated the notebook [here](https://github.com/GbotemiB/csp-design/blob/main/csp.ipynb) How does it look now?

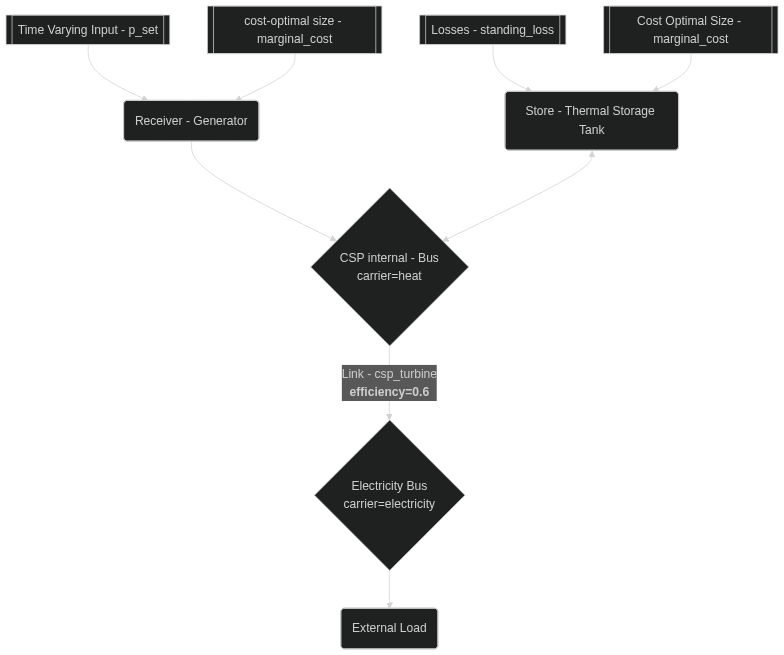

Hi @ekatef, @davide-f, @pz-max I have included the suggestions into the design implementation [here](https://github.com/GbotemiB/csp-design/blob/main/csp.ipynb) I have also translated the block diagram into [mermaid](https://mermaid.live/edit#pako:eNp1Us1PwjAU_1eaniBhxpOHRUxgIJpgNEI8sJHl2b1tDVu7tJ06J_-7bxvEcLCn9v0-3ldbLnSC3OdpoT9FDsax7SJSjM5s9IoC5Qca5rEVKjTgtBkzz7tj8zbYvDCpHBoFBeHz2rJBJsAYiWaaI7jjENqNNqREom1zNCUJujdkyLagDmN221sO3Hnv_7OW6kB8YavY1eZdKhzgOMY0lUKiEs30-uomjn-CdlmgcIairukKuawD_8BTOUGfYjFafp3KX2tIxgO2DMO1thYtJbcOVCJVFhcU2e971W6g3YdhoK1jz5WTfT_yu2uvBJNJcowFgZeKVRhuZYnsDUxDnuxRVbUjSRVbPFNnA_UhDDu9p0_m9n_zGaOp8wkvu7HKhPbYdh4RdzmWGHGfrgmYQ8QjdSQe1E5vGiW470yNE15XCThcSMgMlNxPobAUxUTSfp6Gj9H_jwmvQO20PnOOv4xYuGY) [](https://mermaid.live/edit#pako:eNp1Us1PwjAU_1eaniBhxpOHRUxgIJpgNEI8sJHl2b1tDVu7tJ06J_-7bxvEcLCn9v0-3ldbLnSC3OdpoT9FDsax7SJSjM5s9IoC5Qca5rEVKjTgtBkzz7tj8zbYvDCpHBoFBeHz2rJBJsAYiWaaI7jjENqNNqREom1zNCUJujdkyLagDmN221sO3Hnv_7OW6kB8YavY1eZdKhzgOMY0lUKiEs30-uomjn-CdlmgcIairukKuawD_8BTOUGfYjFafp3KX2tIxgO2DMO1thYtJbcOVCJVFhcU2e971W6g3YdhoK1jz5WTfT_yu2uvBJNJcowFgZeKVRhuZYnsDUxDnuxRVbUjSRVbPFNnA_UhDDu9p0_m9n_zGaOp8wkvu7HKhPbYdh4RdzmWGHGfrgmYQ8QjdSQe1E5vGiW470yNE15XCThcSMgMlNxPobAUxUTSfp6Gj9H_jwmvQO20PnOOv4xYuGY)
