[bug] Shifted segmentation and image

[domidemps]

Description

The aim is to display a brain segmentation overlapped on a T1 MRI image (both Nifti) using AMI. The problem is that the brain segmentation appears shifted from the T1. However, when I load these images with Papaya web viewer, FreeView or MRView, everything is properly registered.

Live Demo

You can find a minimal live example here (a modified version of the example viewers_labelmap): https://codesandbox.io/s/mqx57mwzlp

Steps to Reproduce

Please load the example with Google Chrome, I think its not working with Mozilla Firefox. Just wait for the images to be loaded and displayed.

Expected Results

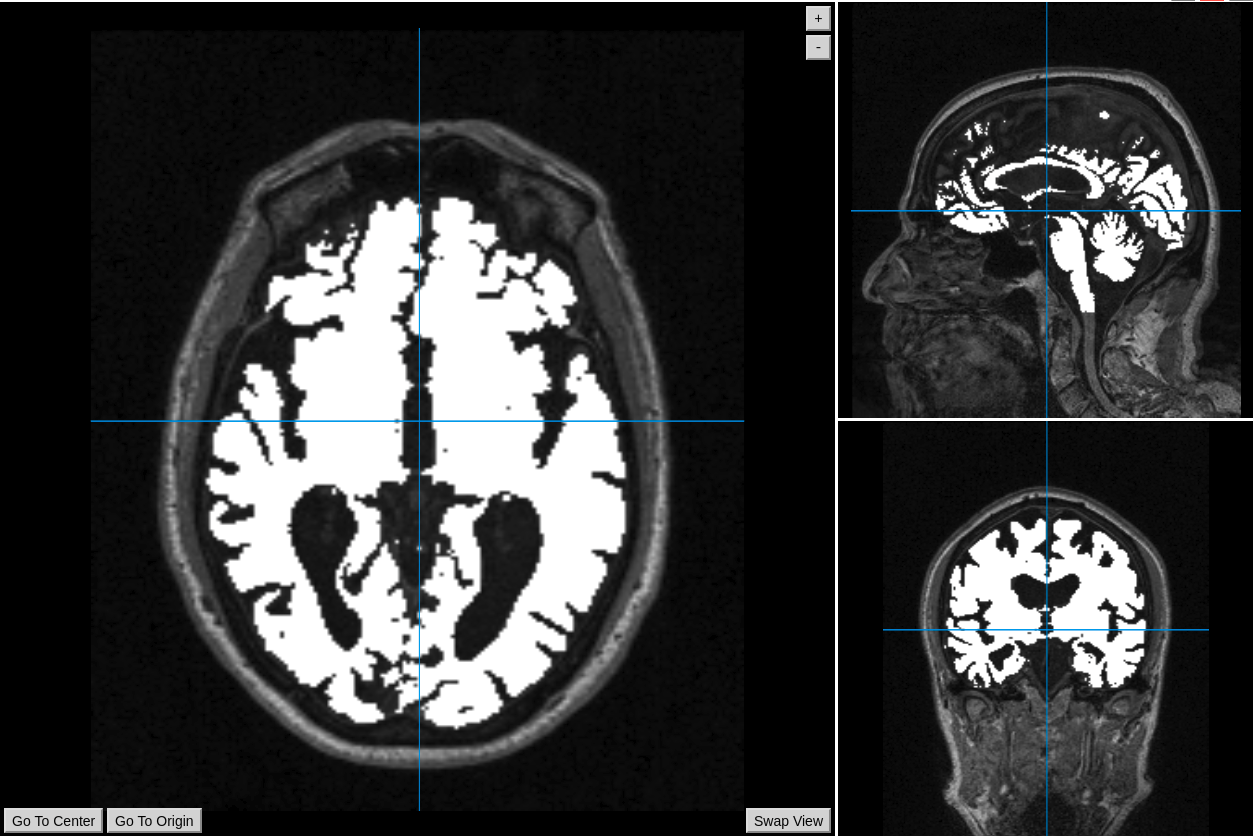

Image properly registered, loaded with the Papaya web viewer.

Actual Results

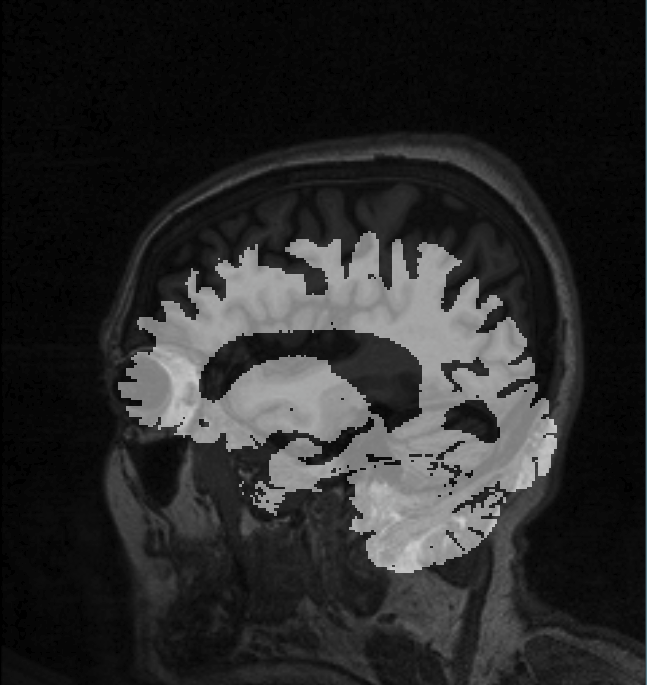

Image badly registered, loaded with AMI.js (code example given just above)

Browsers Affected

• [ ] All
• [X] Chrome
• [X] Firefox
• [ ] Edge
• [ ] Safari 9
• [ ] Safari 8
• [ ] IE 11

Versions

• AMI: v0.22.0
• THREEJS: v0.92.23

[TheBrainChain]

I had the same issue using segmentations and a T1 processed by Freesurfer. I addressed it by moving each individual frame in the stack. stack._frame.forEach(frame => { frame._imagePosition = [-128, 128, 128] })

[domidemps]

This seems a good fix, @TheBrainChain! Thank you for the suggestion :+1: Nevertheless, it would be awesome to find a better fix, I mean, correcting the Nifti parsing that does not seem correct for now.
