Nightly 2.8 - Yaapu LUA screen slightly off-center

[robustini]

Is there an existing issue for this problem?

• [X] I have searched the existing issues

What part of EdgeTX is the focus of this bug?

Transmitter firmware

Current Behavior

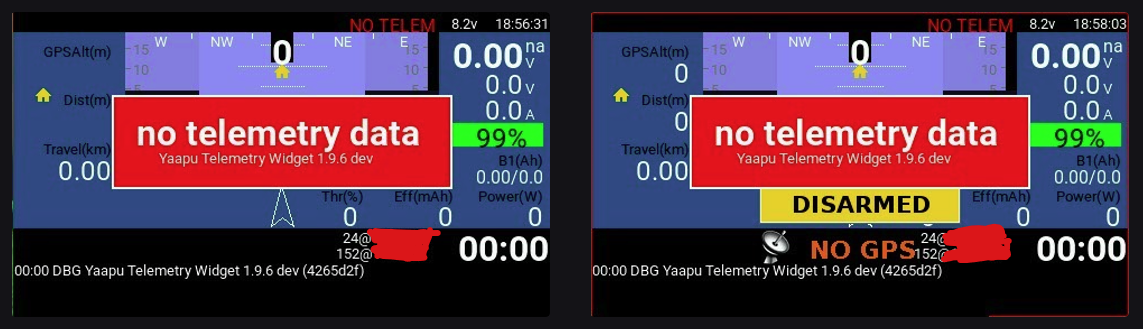

As you can see from the image I posted, Yaapu LUA's screen is slightly off-center to the right, as can be seen from the vertical white band on the left. It is absolutely a small thing but it would be better to bring it back to center. I believe that the same imperfection also exists with other LUAs.

Expected Behavior

That the image was centered

Steps To Reproduce

1. Flash the latest nightly build
2. Install Yaapu LUA script
3. Add the Yaapu widget on a new fullscreen screen layout with no other controls shown , and switch to that screen

Version

Nightly (7e54059)

Transmitter

FrSky X10 Express / X10S Express (ACCESS)

Anything else?

[pfeerick]

Reproducible with Yaapu telemetry widget 1.9.6-dev-4265d2f. The red outline frame which is shown if there is no telemetry is also off-screen by one column.

[stronnag]

Same affect is seen with the INAV telemetry widget.

[pfeerick]

I noticed an interesting behaviour - if you make the widget enter full-screen (interactive) mode... it then aligns properly... 🤔

i.e. on the left it's just "normal" fullscreen, and you can see that 1px sliver on the left. I then press 'n held, choose "full screen" and now on the right it's correctly positioned as you can see the full red outline for 'no telem'

[stronnag]

Me too!!!! INAV widget behaves the same way (looks correct on manual Full Screen).

[robustini]

@yaapu what do you think?

[raphaelcoeffic]

Smells like LVGL style border or similar.

[banyaszg]

It is reproducible with a simple full screen widget which just fills the area with a color. The left line is the background image. If I add one more screen with a fullscreen widget, then there will be a slight space between them and the baground image will be visible during the scroll between the pages.
