Overlayd cells with multiple sections and constant cross-sections

Open ewerthen opened this issue 3 years ago • 1 comments

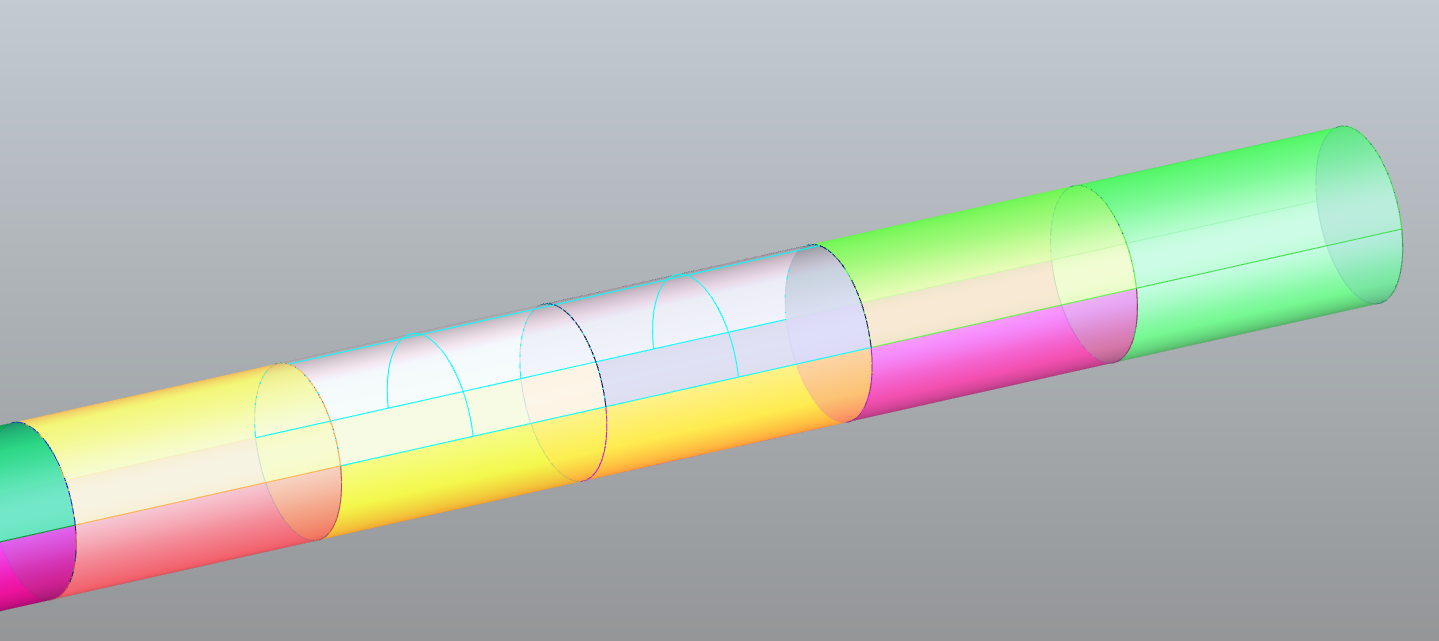

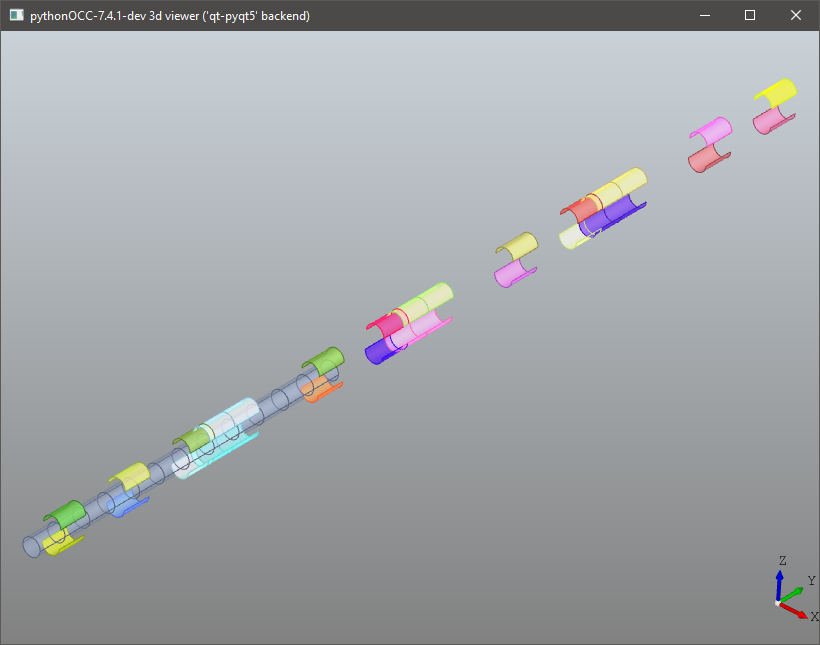

Multiple Cells are going over 2 sections allthough they are defined correctly in the cpacs file: analytical_example_circ_beam_loads_composite_12_CPACS.zip

grafik

grafik

ewerthen avatar Nov 22 '22 10:11 ewerthen

This is related to #933. Also a tolerance issue when the inner/outer borders coincide with the segment borders. This is a bug, bt similarly to the before-mentioned issue, a workaround is to move the cell borders slightly away from the segment borders.
