Nested JSON to CSV resulting in single row with multiple columns instead of multiple rows

[rohit3d2003]

trafficstars

I am trying to convert a dynamic nested JSON to CSV and it ends up creating CSV with single row with multiple headers. Refer below example

JSON: { "Latitude": "10.00", "Longitude": "11.00", "Floor": [ { "Floor ID": "FL01", "Toilet": [ { "Sink": "Test", "Handdryer": "Test", "Urinal": "10" }, { "Sink": "5", "Handdryer": "Test", "Urinal": "Test" } ] }, { "Floor ID": "FL02", "Floor Level": "Level 2", "Floor Name": "Floor2", "Cubicles": { "Desk Type": "20", "Foot Rest": "30", "Separator Type": "Test" } } ], "Elevator": [ { "Number": "Elevator1" }, { "Number": "Elevator2", "Led Light": { "Number": "123" } } ] }

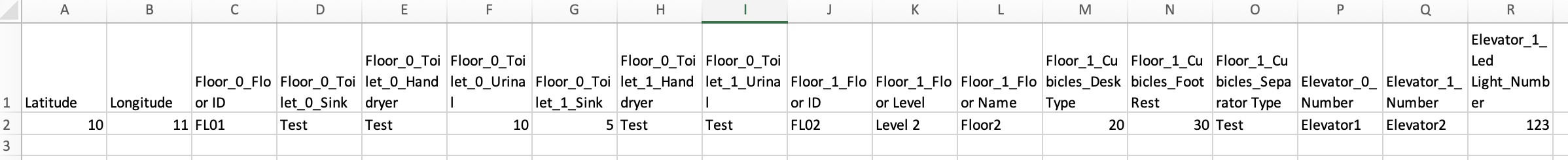

Output CSV:

Expected Output:

Code Snippet:

[Cinchoo]

Well, this is some complex requirement. Will need heavy lifting to achieve the expected output. Here is how you can do it with Cinchoo ETL

PS: Pls take the latest version from nuget, v1.2.1.15

string jsonFilePath = "sample141.json";
List<dynamic> objs = new List<dynamic>();
using (var r = new ChoJSONReader(jsonFilePath)
    .IgnoreField("Elevator")
    .UseJsonSerialization()
    )
{
    var r1 = r.FlattenBy("Floor", "Toilet");
    objs.AddRange(r1.ToArray());
}
using (var r = new ChoJSONReader(jsonFilePath)
    .IgnoreField("Elevator")
    .UseJsonSerialization()
    )
{
    var r1 = r.FlattenBy("Floor", "Cubicles");
    objs.AddRange(r1.ToArray());
}

using (var r = new ChoJSONReader(jsonFilePath)
    .WithJSONPath("$..Elevator")
    .UseJsonSerialization()
    )
{
    objs.AddRange(r.ToArray());
}

StringBuilder csv = new StringBuilder();
using (var w = new ChoCSVWriter(csv)
    .WithFirstLineHeader()
    .ThrowAndStopOnMissingField(false)
    .WithMaxScanRows(10)
    )
{

    w.Write(objs);
}

Console.WriteLine(csv.ToString());

Output:

Latitude,Longitude,Floor ID,Sink,Handdryer,Urinal,Floor Level,Floor Name,Desk Type,Foot Rest,Separator Type,Number,Led Light_Number
10.00,11.00,FL01,Test,Test,10,,,,,,,
10.00,11.00,FL01,5,Test,Test,,,,,,,
10.00,11.00,FL02,,,,Level 2,Floor2,20,30,Test,,
,,,,,,,,,,,Elevator1,
,,,,,,,,,,,Elevator2,123

[rohit3d2003]

Thanks for suggesting this solution. Our challenge is that JSON is dynamic and we don’t know schema upfront. Even the nested arrays are not deterministic. I may have to come up with an approach of doing it generically. Any suggestions along those lines?

[Cinchoo]

I doubt there is straight approach for your requirement.

[rohit3d2003]

The requirement is any nested array in json should result in multiple rows of data instead of multiple columns. I have seen lot of posts where people are looking to structure csv in this way and I am gonna give it a shot. Will keep you posted if I make any progress
