[WIP] Fix Bugs w/ Current Correction and Vay Deposition

Open EZoni opened this issue 3 years ago • 0 comments

Fix #3232. Filtering will also need to be moved to the right locations, though (depends on another open PR).

To-do: merge #3302 first and rebase afterwards.

Currently not supporting (to be addressed in future PRs):

  • Vay deposition and current correction at the same time;
  • Vay deposition with periodic single box (cumulative sums to be fixed).

Tests:

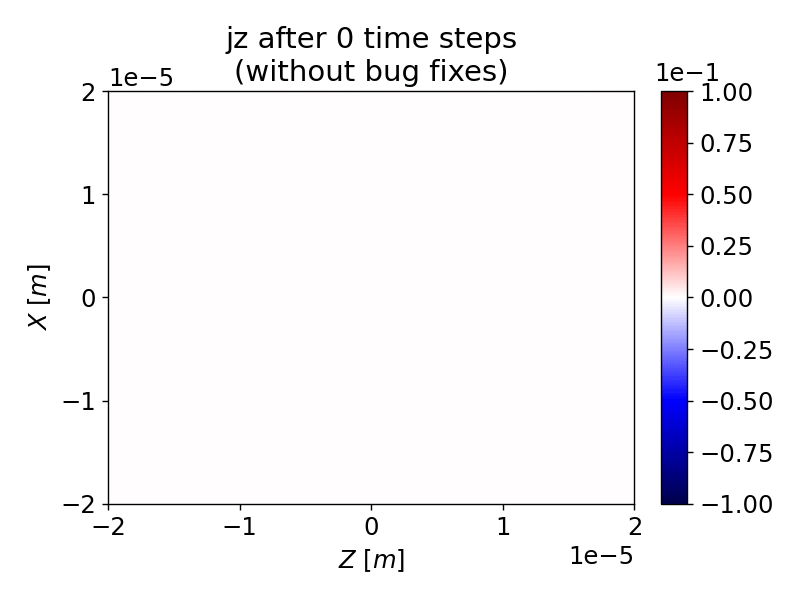

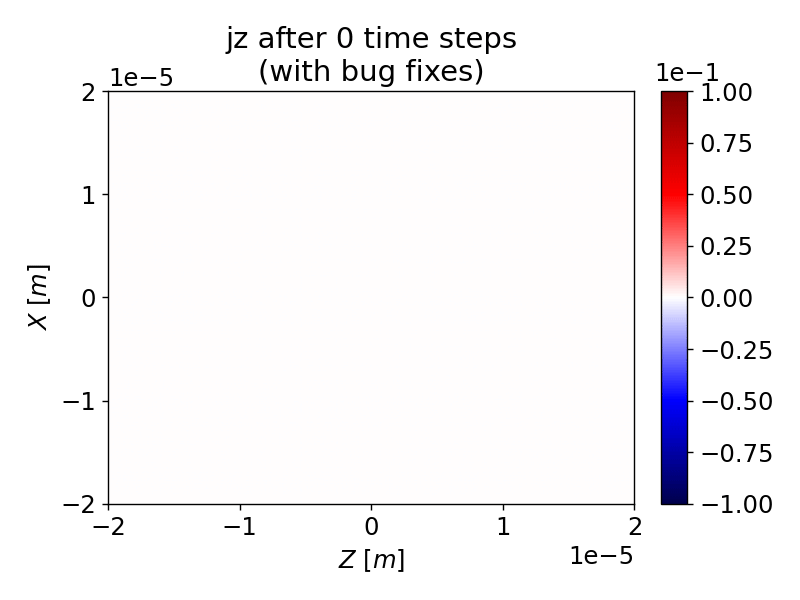

  • Example with 2D Langmuir test with 2x2 grids, with current correction and direct deposition (inputs_2d.txt):

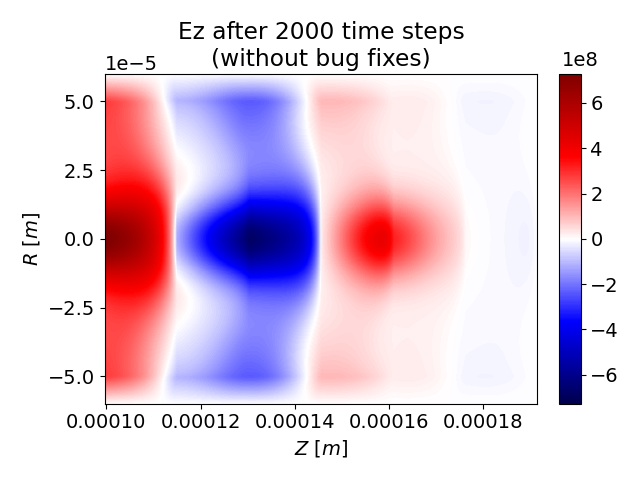

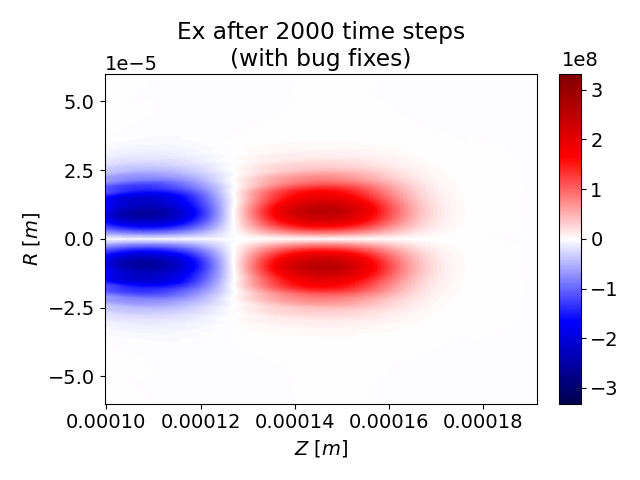

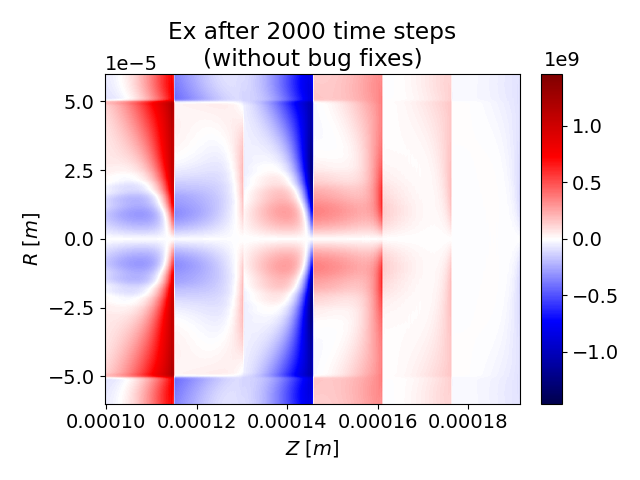

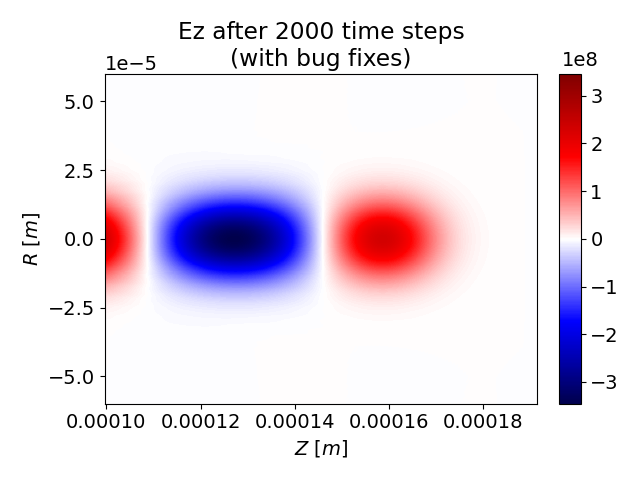

  • Example with RZ LWFA with 1x6 grids, with current correction and direct deposition (input deck attached as first test case reported in #3232, modified by adding warpx.numprocs = 1 6 to have one grid per GPU):

EZoni avatar Aug 05 '22 21:08 EZoni
