IFC meshing is bloated: can meshing be better optimised, especially where fillets occur?
In any extruded profile where there is a fillet, when exported to IFC where Revit converts it either to a FacetedBrep or to a IfcPolygonalFaceSet, it seems as though the meshing process creates rather bizzarre, bloated meshes. This is described in full here: https://wiki.osarch.org/index.php?title=Revit_and_IFC_Geometry - but for end users, this means that export times grow out of control, IFC filesizes are also bloated, and importing IFCs back into Revit basically become an impossibility. So - it wastes time for the consultant exporting, the consultant downloading, and the consultant importing - 3X the time wasted. A current project I'm on now has doors coming out with 17,000 polygons, or referenced 3D DWGs of relatively simple objects suddenly becoming 250,000 polygons, simply because they combine fillets with other arcs. I've attached what a sensible meshing of a fillet should perhaps look like:

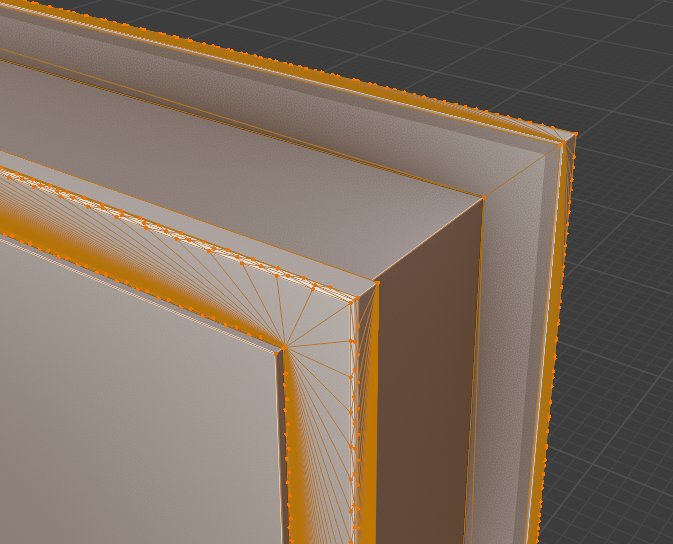

... compared to what Revit does ...
Users then have to recreate their families to avoid this problem.
This issue is also reported in Jira as "REVIT-240334" and is currently in the "Open" status.
