SVC fxo545CXGE 10 GigE support

Open roman-raisin opened this issue 4 years ago • 11 comments

SVC fxo545CXGE 10 GigE camera is not working with Aravis.

I'm trying to use Aravis (first time) with SVC fxo545CXGE 10 Gbit camera: https://www.svs-vistek.com/en/industrial-cameras/svs-camera-detail.php?id=fxo545CXGE

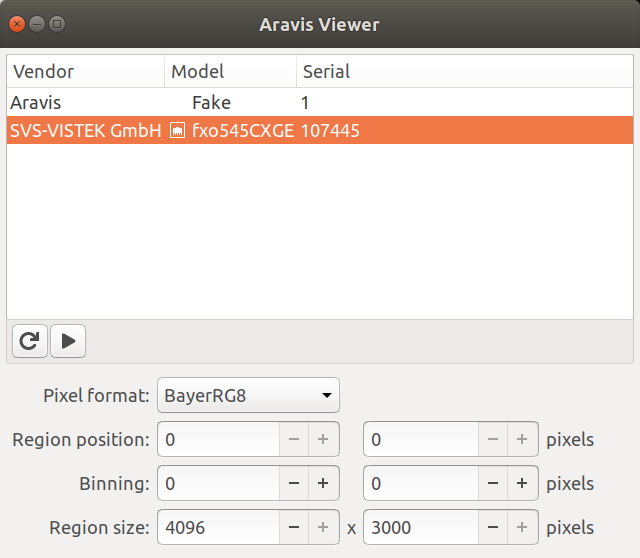

Started with arv-viewer: camera is visible (format: BayerRG8), but it shows black screen (0 fps, 0 image / 0errors).

Then I tried to play with Features using arv-tool - successful.

Then I ran arv-test with the following result:

Testing 'SVS-VISTEK GmbH:fxo545CXGE'
Genicam:Load                        SUCCESS
Genicam:Schema                      IGNORED
Properties:SensorSizeReadout        SUCCESS
Properties:SensorSizeCheck          IGNORED
Properties:GainReadout              SUCCESS
Properties:ExposureTimeReadout      SUCCESS
MultipleAcquisitionA:BufferCheck    FAILURE 0/10
MultipleAcquisitionA:FrameRate      FAILURE
SoftwareTrigger:BufferCheck         FAILURE 0/5
MultipleAcquisitionB:BufferCheck    FAILURE 0/10
MultipleAcquisitionB:FrameRate      FAILURE
SingleAcquisition:BufferCheck       FAILURE
Chunks:NoSupport                    FAILURE
GigEVision:NStreamChannels          SUCCESS
GigEVision:StreamChannel            SUCCESS

Camera description:

  • Manufacturer: SVC
  • Model: fxo545CXGE
  • Interface [10GigE]

Platform description:

  • Aravis version 0.8.20 (cloned master, commit 0c9a3de0)
  • OS: [Ubuntu 20.04 LTS]
  • Hardware [Intel 10 Gbit Ethernet Controller X540]

Additional context My camera is working well with the proprietary SVCamKit SDK from SVC. My build of Aravis is operational, I tested it with Basler USB camera (arv-viewer works, I have a live picture).

I tried to investigate the case and found that arv_stream_timeout_pop_buffer() is always returning NULL.

It causes MultipleAcquisitionA:BufferCheck, SoftwareTrigger:BufferCheck, MultipleAcquisitionB:BufferCheck and SingleAcquisition:BufferCheck to fail in arv-test.

I can attach the result of arv-test --debug=all:4 if it could help. I could also attach the tree of camera features in some form.

I'll be glad to contribute in supporting SVC 10GigE cameras if I could.

roman-raisin avatar Dec 23 '21 19:12 roman-raisin

Hi,

Thanks for your interest in Aravis.

I can attach the result of arv-test --debug=all:4 if it could help. I could also attach the tree of camera features in some form.

Please attach the output of arv-test-0.8 -d all -t Single* and the feature tree.

EmmanuelP avatar Dec 24 '21 14:12 EmmanuelP

Please attach the output of arv-test-0.8 -d all -t Single* and the feature tree.

Hi Emmanuel,

Thank you for reaching me back.

arv-test result

Actually I have two cameras on two 10 GBit interfaces, so I have limited my testing to one of them.

$ arv-test-0.8 -a 192.168.100.100 -d all -t Single*

[19:51:49.545] 🅸 interface> Found 0 USB3Vision device (among 11 USB devices)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 127.0.0.1 (127.0.0.1)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 172.16.60.3 (172.16.255.255)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 10.42.0.1 (10.42.0.255)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 192.168.100.1 (192.168.100.255)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 192.168.101.1 (192.168.101.255)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 172.16.32.1 (172.16.32.255)
[19:51:49.546] 🅸 interface> [GvDiscoverSocket::new] Add interface 172.16.136.1 (172.16.136.255)
[19:51:49.546] 🅸 interface> [GvInterface::discovery] Device 'SVS-VISTEK GmbH-fxo545CXGE-107444' found (interface 192.168.101.1) user_id 'Left-101' - MAC 'ac:4f:fc:01:6f:e8'
[19:51:49.546] 🅸 interface> [GvInterface::discovery] Device 'SVS-VISTEK GmbH-fxo545CXGE-107445' found (interface 192.168.100.1) user_id 'Right-100' - MAC 'ac:4f:fc:01:6f:e9'
Found 2 devices
[19:51:50.548] 🅸 interface> Found 0 USB3Vision device (among 11 USB devices)
[19:51:50.548] 🅸 device> [GvDevice::new] Interface address = 192.168.101.1
[19:51:50.548] 🅸 device> [GvDevice::new] Device address = 192.168.101.101
[19:51:50.549] 🅸 device> [GvDevice::load_genicam] xml url = 'Local:fxo545CXGE_v1.7.2_b2990.xml;10000;4C114' at 0x200
[19:51:50.549] 🅸 device> [GvDevice::load_genicam] Xml address = 0x10000 - size = 0x4c114 - fxo545CXGE_v1.7.2_b2990.xml
[19:51:50.757] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSDoNotFragment'
[19:51:50.757] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSBigEndian'
[19:51:50.757] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPAddrCalc'
[19:51:50.758] 🅸 device> [GvDevice::new] Device endianness = big
[19:51:50.758] 🅸 device> [GvDevice::new] Packet resend     = yes
[19:51:50.758] 🅸 device> [GvDevice::new] Write memory      = yes
[19:51:50.758] 🅸 device> [GvDevice::new] Legacy endianness handling = no
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
[19:51:50.759] 🅸 device> [GvDevice::create_stream] Number of stream channels = 1
[19:51:50.759] 🅸 device> [GvDevice::auto_packet_size] No GevSCPSFireTestPacket feature found
[19:51:50.760] 🅸 device> [GvStream::stream_new] Packet size = 576 byte(s)
[19:51:50.761] 🅸 stream> [GvStream::stream_new] Destination stream port = 59694
[19:51:50.761] 🅸 stream> [GvStream::stream_new] Source stream port = 0
[19:51:50.761] 🅸 stream> [GvStream::loop] Standard socket method
[19:51:51.763] 🅸 stream>     bins    ;frame_retent; packet_time;inter_packet
                                  0;           0;           0;           0
                       -------------
                       >=      2000;           0;           0;           0
                       <          0;           0;           0;           0
                       min         :         n/a;         n/a;         n/a
                       max         :         n/a;         n/a;         n/a
                       last max at :           0;           0;           0
                       counter     :           0:           0:           0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_completed_buffers    = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_failures             = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_underruns            = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_timeouts             = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_aborteds             = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_missing_frames       = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_size_mismatch_errors = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_received_packets     = 0
[19:51:51.763] 🅸 stream> [GvStream::finalize] n_missing_packets      = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_error_packets        = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_ignored_packets      = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_resend_requests      = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_resent_packets       = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_resend_ratio_reached = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_resend_disabled      = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_duplicated_packets   = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_transferred_bytes    = 0
[19:51:51.764] 🅸 stream> [GvStream::finalize] n_ignored_bytes        = 0
[19:51:51.764] 🅸 stream> [Stream::finalize] Flush 1 buffer[s] in input queue
[19:51:51.764] 🅸 stream> [Stream::finalize] Flush 0 buffer[s] in output queue
SingleAcquisition:BufferCheck       FAILURE
Genicam:RegisterCache               SUCCESS
[19:51:51.772] 🅸 interface> Found 0 USB3Vision device (among 11 USB devices)
[19:51:51.772] 🅸 device> [GvDevice::new] Interface address = 192.168.100.1
[19:51:51.772] 🅸 device> [GvDevice::new] Device address = 192.168.100.100
[19:51:51.773] 🅸 device> [GvDevice::load_genicam] xml url = 'Local:fxo545CXGE_v1.7.2_b2990.xml;10000;4C114' at 0x200
[19:51:51.773] 🅸 device> [GvDevice::load_genicam] Xml address = 0x10000 - size = 0x4c114 - fxo545CXGE_v1.7.2_b2990.xml
[19:51:51.997] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSDoNotFragment'
[19:51:51.997] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSBigEndian'
[19:51:51.997] 🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPAddrCalc'
[19:51:51.998] 🅸 device> [GvDevice::new] Device endianness = big
[19:51:51.998] 🅸 device> [GvDevice::new] Packet resend     = yes
[19:51:51.998] 🅸 device> [GvDevice::new] Write memory      = yes
[19:51:51.998] 🅸 device> [GvDevice::new] Legacy endianness handling = no
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
[19:51:51.999] 🅸 device> [GvDevice::create_stream] Number of stream channels = 1
[19:51:51.999] 🅸 device> [GvDevice::auto_packet_size] No GevSCPSFireTestPacket feature found
[19:51:52.000] 🅸 device> [GvStream::stream_new] Packet size = 576 byte(s)
[19:51:52.000] 🅸 stream> [GvStream::stream_new] Destination stream port = 47522
[19:51:52.000] 🅸 stream> [GvStream::stream_new] Source stream port = 0
[19:51:52.000] 🅸 stream> [GvStream::loop] Standard socket method
[19:51:53.002] 🅸 stream>     bins    ;frame_retent; packet_time;inter_packet
                                  0;           0;           0;           0
                       -------------
                       >=      2000;           0;           0;           0
                       <          0;           0;           0;           0
                       min         :         n/a;         n/a;         n/a
                       max         :         n/a;         n/a;         n/a
                       last max at :           0;           0;           0
                       counter     :           0:           0:           0
[19:51:53.002] 🅸 stream> [GvStream::finalize] n_completed_buffers    = 0
[19:51:53.002] 🅸 stream> [GvStream::finalize] n_failures             = 0
[19:51:53.002] 🅸 stream> [GvStream::finalize] n_underruns            = 0
[19:51:53.002] 🅸 stream> [GvStream::finalize] n_timeouts             = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_aborteds             = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_missing_frames       = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_size_mismatch_errors = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_received_packets     = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_missing_packets      = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_error_packets        = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_ignored_packets      = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_resend_requests      = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_resent_packets       = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_resend_ratio_reached = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_resend_disabled      = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_duplicated_packets   = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_transferred_bytes    = 0
[19:51:53.003] 🅸 stream> [GvStream::finalize] n_ignored_bytes        = 0
[19:51:53.003] 🅸 stream> [Stream::finalize] Flush 1 buffer[s] in input queue
[19:51:53.003] 🅸 stream> [Stream::finalize] Flush 0 buffer[s] in output queue
SingleAcquisition:BufferCheck       FAILURE
Genicam:RegisterCache               SUCCESS
The feature tree.
$arv-tool-0.8 -a 192.168.100.100  features

Category    : 'Root'
    Category    : 'DeviceControl'
        StringReg   : 'DeviceVendorName'
        StringReg   : 'DeviceModelName'
        StringReg   : 'DeviceManufacturerInfo'
        StringReg   : 'DeviceVersion'
        StringReg   : 'DeviceID'
        StringReg   : 'DeviceUserID'
        Enumeration : 'DeviceScanType'
            EnumEntry   : 'Areascan'
        Enumeration : 'DeviceTemperatureSelector'
              * DeviceTemperature
            EnumEntry   : 'Imager'
            EnumEntry   : 'FPGA'
            EnumEntry   : 'Power'
            EnumEntry   : 'Mainboard'
        Float       : 'DeviceTemperature'
        Enumeration : 'DeviceClockSelector'
              * DeviceClockFrequency
            EnumEntry   : 'Sensor'
        Float       : 'DeviceClockFrequency'
        Command     : 'DeviceReset'
        Enumeration : 'DeviceLinkThroughputLimitMode'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Integer     : 'DeviceLinkThroughputLimit'
        Integer     : 'MaxPacketsResend'
        Integer     : 'LEDIntensity'
        Enumeration : 'FanControl'
            EnumEntry   : 'AUTO'
            EnumEntry   : 'ON'
            EnumEntry   : 'OFF'
        Float       : 'FanControlThreshold'
        Float       : 'FanControlTacho'
    Category    : 'ImageFormatControl'
        Integer     : 'SensorWidth'
        Integer     : 'SensorHeight'
        Integer     : 'OffsetX'
        Integer     : 'OffsetY'
        Integer     : 'Width'
        Integer     : 'Height'
        Integer     : 'WidthMax'
        Integer     : 'HeightMax'
        Enumeration : 'SensorPixelSize'
            EnumEntry   : 'SensorBpp12'
            EnumEntry   : 'SensorBpp8'
            EnumEntry   : 'SensorBppAuto'
        Enumeration : 'PixelSize'
            EnumEntry   : 'Bpp12'
            EnumEntry   : 'Bpp8'
        Enumeration : 'PixelFormat'
            EnumEntry   : 'BayerRG12Packed'
            EnumEntry   : 'BayerRG8'
            EnumEntry   : 'Mono12Packed'
            EnumEntry   : 'Mono8'
        Enumeration : 'PixelColorFilter'
            EnumEntry   : 'BayerBG'
            EnumEntry   : 'BayerGB'
            EnumEntry   : 'BayerGR'
            EnumEntry   : 'BayerRG'
            EnumEntry   : 'None'
        Integer     : 'PixelDynamicRangeMin'
        Integer     : 'PixelDynamicRangeMax'
        Enumeration : 'BinningHorizontal'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Enumeration : 'BinningVertical'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Boolean     : 'ReverseX'
        Boolean     : 'ReverseY'
    Category    : 'AcquisitionControl'
        Enumeration : 'AcquisitionMode'
              * AcquisitionStart
              * AcquisitionStop
            EnumEntry   : 'Continuous'
            EnumEntry   : 'SingleFrame'
        Command     : 'AcquisitionStart'
        Command     : 'AcquisitionStop'
        Enumeration : 'TriggerSelector'
              * TriggerMode
              * TriggerSoftware
              * TriggerSource
              * TriggerActivation
              * TriggerDelay
              * TriggerDelayAbs
              * SensorTriggerMode
            EnumEntry   : 'FrameStart'
            EnumEntry   : 'AcquisitionStart'
        Enumeration : 'TriggerMode'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Command     : 'TriggerSoftware'
        Enumeration : 'TriggerSource'
            EnumEntry   : 'Line1'
            EnumEntry   : 'Software'
        Enumeration : 'TriggerActivation'
            EnumEntry   : 'BothEdges'
            EnumEntry   : 'FallingEdge'
            EnumEntry   : 'RisingEdge'
        Float       : 'TriggerDelay'
        Enumeration : 'ExposureMode'
            EnumEntry   : 'TriggerWidth'
            EnumEntry   : 'Timed'
        Float       : 'AcquisitionFrameRate'
        Float       : 'ExposureTime'
        Enumeration : 'ExposureAuto'
            EnumEntry   : 'Continuous'
            EnumEntry   : 'Once'
            EnumEntry   : 'Off'
        Boolean     : 'ExposureAutoOrder'
        Float       : 'ExposureTimeMin'
        Float       : 'ExposureTimeMax'
        Enumeration : 'SensorShutterMode'
            EnumEntry   : 'Global'
    Category    : 'AnalogControl'
        Enumeration : 'GainSelector'
              * Gain
              * GainRaw
            EnumEntry   : 'All'
        Float       : 'Gain'
        Integer     : 'GainRaw'
        Enumeration : 'BlackLevelSelector'
              * BlackLevelRaw
            EnumEntry   : 'All'
        Integer     : 'BlackLevelRaw'
        Enumeration : 'GainAuto'
            EnumEntry   : 'Continuous'
            EnumEntry   : 'Once'
            EnumEntry   : 'Off'
        Enumeration : 'GainSpeed'
            EnumEntry   : 'Fast'
            EnumEntry   : 'Standard'
        Integer     : 'GainSpeedTime'
        Integer     : 'GainAutoLevel'
        Float       : 'GainAutoMin'
        Float       : 'GainAutoMax'
        Enumeration : 'BalanceRatioSelector'
              * BalanceRatioRaw
              * BalanceRatioAbs
              * BalanceRatio
            EnumEntry   : 'Blue'
            EnumEntry   : 'Green'
            EnumEntry   : 'Red'
        Float       : 'BalanceRatio'
        Enumeration : 'BalanceWhiteAuto'
            EnumEntry   : 'Reset'
            EnumEntry   : 'Continuous'
            EnumEntry   : 'Once'
            EnumEntry   : 'Off'
    Category    : 'DigitalIOControl'
        Enumeration : 'LineSelector'
              * LineMode
              * LineInverter
              * LineStatus
              * LineSource
              * LineFormat
            EnumEntry   : 'Line14'
            EnumEntry   : 'Line13'
            EnumEntry   : 'Line12'
            EnumEntry   : 'Line11'
            EnumEntry   : 'Line22'
            EnumEntry   : 'Line21'
            EnumEntry   : 'Line20'
            EnumEntry   : 'Line19'
            EnumEntry   : 'Line18'
            EnumEntry   : 'Line17'
            EnumEntry   : 'Line16'
            EnumEntry   : 'Line15'
            EnumEntry   : 'Line9'
            EnumEntry   : 'Line8'
            EnumEntry   : 'Line7'
            EnumEntry   : 'Line6'
            EnumEntry   : 'Line5'
            EnumEntry   : 'Line4'
            EnumEntry   : 'Line3'
            EnumEntry   : 'Line2'
            EnumEntry   : 'Line1'
            EnumEntry   : 'Line0'
        Enumeration : 'LineMode'
            EnumEntry   : 'Output'
            EnumEntry   : 'Input'
        Boolean     : 'LineInverter'
        Boolean     : 'LineStatus'
        Enumeration : 'LineSource'
            EnumEntry   : 'Uart2Out'
            EnumEntry   : 'Triggerfeedback'
            EnumEntry   : 'PtpTrigger'
            EnumEntry   : 'Logic'
            EnumEntry   : 'Prescaler'
            EnumEntry   : 'Debouncer'
            EnumEntry   : 'SeqActive'
            EnumEntry   : 'SeqPulseB'
            EnumEntry   : 'SeqPulseA'
            EnumEntry   : 'Readout'
            EnumEntry   : 'Expose'
            EnumEntry   : 'PWM3'
            EnumEntry   : 'PWM2'
            EnumEntry   : 'PWM1'
            EnumEntry   : 'PWM0'
            EnumEntry   : 'Strobe3'
            EnumEntry   : 'Strobe2'
            EnumEntry   : 'Strobe1'
            EnumEntry   : 'Strobe0'
            EnumEntry   : 'UartOut'
            EnumEntry   : 'UserOutput4'
            EnumEntry   : 'UserOutput3'
            EnumEntry   : 'UserOutput2'
            EnumEntry   : 'UserOutput1'
            EnumEntry   : 'UserOutput0'
            EnumEntry   : 'Input4'
            EnumEntry   : 'Input3'
            EnumEntry   : 'Input2'
            EnumEntry   : 'Input1'
            EnumEntry   : 'Off'
        Integer     : 'LineStatusAll'
        Enumeration : 'LineFormat'
            EnumEntry   : 'DigitalIn'
            EnumEntry   : 'OpenDrain'
            EnumEntry   : 'OpenCollector'
            EnumEntry   : 'RS232'
            EnumEntry   : 'OptoCoupled'
            EnumEntry   : 'RS422'
            EnumEntry   : 'LVDS'
            EnumEntry   : 'TTL'
            EnumEntry   : 'TriState'
            EnumEntry   : 'NoConnect'
            EnumEntry   : 'Undefined'
        Enumeration : 'UserOutputSelector'
              * UserOutputValue
            EnumEntry   : 'UserOutput4'
            EnumEntry   : 'UserOutput3'
            EnumEntry   : 'UserOutput2'
            EnumEntry   : 'UserOutput1'
            EnumEntry   : 'UserOutput0'
        Boolean     : 'UserOutputValue'
        Integer     : 'UserOutputValueAll'
        Integer     : 'UserOutputValueAllMask'
        Enumeration : 'UseroutputStatusLevel'
            EnumEntry   : 'CamStatus_overheating'
            EnumEntry   : 'CamStatus_initialization_problem'
            EnumEntry   : 'CamStatus_acquisition_enabled'
            EnumEntry   : 'CamStatus_streaming_channel_established'
            EnumEntry   : 'CamStatus_linked_to_application'
            EnumEntry   : 'CamStatus_initialized'
            EnumEntry   : 'CamStatus_setup_network'
            EnumEntry   : 'CamStatus_cable_disconnected'
            EnumEntry   : 'CamStatus_undefined'
        IntReg      : 'UseroutputStatusMask'
    Category    : 'StrobeControl'
        Enumeration : 'StrobeSelector'
              * StrobePolarity
              * StrobeDuration
              * StrobeDelay
            EnumEntry   : 'Strobe3'
            EnumEntry   : 'Strobe2'
            EnumEntry   : 'Strobe1'
            EnumEntry   : 'Strobe0'
        Enumeration : 'StrobePolarity'
            EnumEntry   : 'negative'
            EnumEntry   : 'positive'
        Float       : 'StrobeDuration'
        Float       : 'StrobeDelay'
    Category    : 'EnhancedIO'
        Boolean     : 'PWMEnable'
        Integer     : 'PWMMax'
        Integer     : 'PWMChange0'
        Integer     : 'PWMChange1'
        Integer     : 'PWMChange2'
        Integer     : 'PWMChange3'
        Command     : 'SeqTrigger'
        Enumeration : 'SeqTriggermode'
            EnumEntry   : 'RisingEdge'
            EnumEntry   : 'LevelHigh'
        Integer     : 'SeqSelector'
              * SeqInterval
              * SeqPulseAStart
              * SeqPulseAStop
              * SeqPulseBStart
              * SeqPulseBStop
              * PWMMax
              * PWMChange0
              * PWMChange1
              * PWMChange2
              * PWMChange3
        Integer     : 'SeqCount'
        Boolean     : 'SeqEnable'
        Boolean     : 'SeqLoop'
        Integer     : 'DebounceDuration'
        Integer     : 'PrescaleDivisor'
        Enumeration : 'LogicFunction'
            EnumEntry   : 'TRIGGER_ENABLE'
            EnumEntry   : 'XNOR_Function'
            EnumEntry   : 'NOR_Function'
            EnumEntry   : 'NAND_Function'
            EnumEntry   : 'XOR_Function'
            EnumEntry   : 'OR_Function'
            EnumEntry   : 'AND_Function'
        Integer     : 'SeqInterval'
        Integer     : 'SeqPulseAStart'
        Integer     : 'SeqPulseAStop'
        Integer     : 'SeqPulseBStart'
        Integer     : 'SeqPulseBStop'
    Category    : 'LUTControl'
        Enumeration : 'LUTSelector'
              * LUTIndex
            EnumEntry   : 'Luminance'
        Boolean     : 'LUTEnable'
        Integer     : 'LUTIndex'
              * LUTValue
        Integer     : 'LUTValue'
        Float       : 'Gamma'
    Category    : 'CustomerIDProtection'
        Integer     : 'CustomerID'
        Integer     : 'CustomerIDKey'
        Integer     : 'CustomerValue'
        Integer     : 'CustomerValueKey'
        Integer     : 'CustomerDataIndex'
              * CustomerDataValue
        Integer     : 'CustomerDataValue'
    Category    : 'LensControl'
        Enumeration : 'LensControlType'
            EnumEntry   : 'svcamef'
            EnumEntry   : 'varioptic'
            EnumEntry   : 'birger'
            EnumEntry   : 'none'
        Integer     : 'LensControlFocus'
        Integer     : 'LensControlIris'
        Command     : 'LensControlLensInit'
    Category    : 'DefectPixelCorrection'
        Integer     : 'DefectPixelCorrection_Revision'
        Enumeration : 'DefectPixelCorrectionEnable_Control'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Enumeration : 'DefectPixelCorrectionMark_Control'
            EnumEntry   : 'Mark'
            EnumEntry   : 'Off'
        Enumeration : 'DefectPixelCorrection_MapSelect'
            EnumEntry   : 'custom1'
            EnumEntry   : 'factory'
        Integer     : 'DefectPixelCorrection_MapMaxSize'
        Integer     : 'DefectPixelCorrection_MapSize'
    Category    : 'Shading'
        Integer     : 'Shading_Revision'
        Enumeration : 'Shading_Control'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Enumeration : 'Shading_MapSelect'
            EnumEntry   : 'ShadingMap2'
            EnumEntry   : 'ShadingMap1'
            EnumEntry   : 'ShadingMap0'
    Category    : 'SensorTapCorrection'
    Category    : 'CustomFeatures'
    Category    : 'TransportLayerControl'
        Integer     : 'PayloadSize'
        Integer     : 'GevVersionMajor'
        Integer     : 'GevVersionMinor'
        Boolean     : 'GevDeviceModeIsBigEndian'
        Enumeration : 'GevDeviceModeCharacterSet'
            EnumEntry   : 'UTF8'
        Integer     : 'GevInterfaceSelector'
              * GevMACAddress
              * GevSupportedIPConfigurationLLA
              * GevSupportedIPConfigurationDHCP
              * GevSupportedIPConfigurationPersistentIP
              * GevCurrentIPConfiguration
              * GevCurrentIPConfigurationLLA
              * GevCurrentIPConfigurationDHCP
              * GevCurrentIPConfigurationPersistentIP
              * GevCurrentIPAddress
              * GevCurrentSubnetMask
              * GevCurrentDefaultGateway
              * GevPersistentIPAddress
              * GevPersistentSubnetMask
              * GevPersistentDefaultGateway
        Integer     : 'GevMACAddress'
        Boolean     : 'GevSupportedIPConfigurationLLA'
        Boolean     : 'GevSupportedIPConfigurationDHCP'
        Boolean     : 'GevSupportedIPConfigurationPersistentIP'
        Integer     : 'GevCurrentIPConfiguration'
        Boolean     : 'GevCurrentIPConfigurationLLA'
        Boolean     : 'GevCurrentIPConfigurationDHCP'
        Boolean     : 'GevCurrentIPConfigurationPersistentIP'
        Integer     : 'GevCurrentIPAddress'
        Integer     : 'GevCurrentSubnetMask'
        Integer     : 'GevCurrentDefaultGateway'
        StringReg   : 'GevFirstURL'
        StringReg   : 'GevSecondURL'
        Integer     : 'GevNumberOfInterfaces'
        Integer     : 'GevMessageChannelCount'
        Integer     : 'GevStreamChannelCount'
        Enumeration : 'GevCCP'
            EnumEntry   : 'ControlAccess'
            EnumEntry   : 'ExclusiveAccess'
            EnumEntry   : 'OpenAccess'
        Integer     : 'GevHeartbeatTimeout'
        Integer     : 'GevSCPSPacketSize'
        Integer     : 'GevSCPHostPort'
        Integer     : 'GevSCDA'
        Integer     : 'GevSCPD'
        Integer     : 'GevSCSP'
        Integer     : 'GevStreamChannelSelector'
              * GevSCPSPacketSize
              * GevSCPHostPort
              * GevSCPD
              * GevSCDA
              * GevSCSP
        Integer     : 'GevTimestampTickFrequency'
        Command     : 'GevTimestampControlLatch'
        Command     : 'GevTimestampControlReset'
        Integer     : 'GevTimestampValue'
        Integer     : 'GevMCPHostPort'
        Integer     : 'GevMCDA'
        Integer     : 'GevMCTT'
        Integer     : 'GevMCRC'
        Integer     : 'GevMCSP'
        Enumeration : 'DeviceTapGeometry'
            EnumEntry   : 'Geometry_1X_1Y'
    Category    : 'PtpControl'
        Boolean     : 'PtpEnable'
        Enumeration : 'PtpClockAccuracy'
            EnumEntry   : 'Reserved'
            EnumEntry   : 'Unknown'
            EnumEntry   : 'AlternatePTPProfile'
            EnumEntry   : 'GreaterThan10s'
            EnumEntry   : 'Within10s'
            EnumEntry   : 'Within1s'
            EnumEntry   : 'Within250ms'
            EnumEntry   : 'Within100ms'
            EnumEntry   : 'Within25ms'
            EnumEntry   : 'Within10ms'
            EnumEntry   : 'Within2p5ms'
            EnumEntry   : 'Within1ms'
            EnumEntry   : 'Within250us'
            EnumEntry   : 'Within100us'
            EnumEntry   : 'Within25us'
            EnumEntry   : 'Within10us'
            EnumEntry   : 'Within2p5us'
            EnumEntry   : 'Within1us'
            EnumEntry   : 'Within250ns'
            EnumEntry   : 'Within100ns'
            EnumEntry   : 'Within25ns'
        Command     : 'PtpDataSetLatch'
        Enumeration : 'PtpStatus'
            EnumEntry   : 'Slave'
            EnumEntry   : 'Uncalibrated'
            EnumEntry   : 'Passive'
            EnumEntry   : 'Master'
            EnumEntry   : 'PreMaster'
            EnumEntry   : 'Listening'
            EnumEntry   : 'Disabled'
            EnumEntry   : 'Faulty'
            EnumEntry   : 'Initializing'
        Enumeration : 'PtpServoStatus'
            EnumEntry   : 'DeviceSpecific'
            EnumEntry   : 'Locked'
            EnumEntry   : 'Unknown'
        Integer     : 'PtpOffsetFromMaster'
        Integer     : 'PtpClockId'
        Integer     : 'PtpParentClockId'
        Integer     : 'PtpGrandmasterClockId'
        Enumeration : 'PtpTriggerEnable'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Integer     : 'PtpTriggerPulseLen'
        Integer     : 'PtpTriggerInterval'
        Integer     : 'PtpTriggerStart'
    Category    : 'EventControl'
        Enumeration : 'EventSelector'
              * EventNotification
            EnumEntry   : 'LensApertureDone'
            EnumEntry   : 'LensFocusDone'
            EnumEntry   : 'LensFocallengthDone'
            EnumEntry   : 'ExposureEnd'
            EnumEntry   : 'ExposureStart'
            EnumEntry   : 'FrameEnd'
            EnumEntry   : 'FrameStart'
            EnumEntry   : 'FrameTrigger'
            EnumEntry   : 'FrameTransferEnd'
            EnumEntry   : 'FrameTransferStart'
            EnumEntry   : 'AcquisitionError'
            EnumEntry   : 'SequenceDone'
        Enumeration : 'EventNotification'
            EnumEntry   : 'On'
            EnumEntry   : 'Off'
        Category    : 'EventFrameTransferStartData'
            Integer     : 'EventFrameTransferStart'
            Integer     : 'EventFrameTransferStartTimestamp'
            Integer     : 'EventFrameTransferStartBlockID'
        Category    : 'EventFrameEndData'
            Integer     : 'EventFrameEnd'
            Integer     : 'EventFrameEndTimestamp'
        Category    : 'EventExposureStartData'
            Integer     : 'EventExposureStart'
            Integer     : 'EventExposureStartTimestamp'
        Category    : 'EventExposureEndData'
            Integer     : 'EventExposureEnd'
            Integer     : 'EventExposureEndTimestamp'
    Category    : 'UserSetControl'
        Enumeration : 'UserSetSelector'
              * UserSetLoad
              * UserSetSave
            EnumEntry   : 'UserSet8'
            EnumEntry   : 'UserSet7'
            EnumEntry   : 'UserSet6'
            EnumEntry   : 'UserSet5'
            EnumEntry   : 'UserSet4'
            EnumEntry   : 'UserSet3'
            EnumEntry   : 'UserSet2'
            EnumEntry   : 'UserSet1'
            EnumEntry   : 'Default'
        Command     : 'UserSetLoad'
        Command     : 'UserSetSave'
        Enumeration : 'UserSetDefault'
            EnumEntry   : 'UserSet8'
            EnumEntry   : 'UserSet7'
            EnumEntry   : 'UserSet6'
            EnumEntry   : 'UserSet5'
            EnumEntry   : 'UserSet4'
            EnumEntry   : 'UserSet3'
            EnumEntry   : 'UserSet2'
            EnumEntry   : 'UserSet1'
            EnumEntry   : 'Default'
    Category    : 'Debug'
        Command     : 'RegisterRefresh'
        Integer     : 'RegisterAddress'
        Integer     : 'RegisterValue_dec'
        Integer     : 'RegisterValue_hex'
        Command     : 'StreamingStatsRefresh'
        Integer     : 'StreamingStatsImageAll'
        Integer     : 'StreamingStatsImageDrop'
        Integer     : 'StreamingStatsImageSent'
        Integer     : 'StreamingStatsResendPacketSum'
        Integer     : 'StreamingStatsResendPacketUnavail'
        Integer     : 'StreamingStatsResendPacketNotYetAvail'
        Integer     : 'StreamingStatsResendPacketOverflow'
        Integer     : 'StreamingStatsResendPacketRequests'

roman-raisin avatar Dec 24 '21 18:12 roman-raisin

I disabled one of my two 10 Gbit interfaces, and ran the test again (with the same result).

I also realised how to get a GenICam XML-like tree with arv-tool genicam, attaching the result fxo545CXGE.genicam.txt .

roman-raisin avatar Dec 26 '21 14:12 roman-raisin

I ran tcpdump while running arv-test and noticed:

  1. I see no correspondence between the Destination stream port mentioned in arv-test and the UDP port in tcpdump. As I understand, that means there is no stream from camera;
  2. Source stream port = 0 displayed by arv-test seems to be wrong.
arv-test
$ arv-test-0.8 -d all -t Single*
# ...ripped...
🅸 interface> [GvInterface::discovery] Device 'SVS-VISTEK GmbH-fxo545CXGE-107445' found (interface 192.168.100.1) user_id 'Right-100' - MAC 'ac:4f:fc:01:6f:e9'
Found 1 device
🅸 interface> Found 0 USB3Vision device (among 11 USB devices)
🅸 device> [GvDevice::new] Interface address = 192.168.100.1
🅸 device> [GvDevice::new] Device address = 192.168.100.100
🅸 device> [GvDevice::load_genicam] xml url = 'Local:fxo545CXGE_v1.7.2_b2990.xml;10000;4C114' at 0x200
🅸 device> [GvDevice::load_genicam] Xml address = 0x10000 - size = 0x4c114 - fxo545CXGE_v1.7.2_b2990.xml
🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSDoNotFragment'
🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPSBigEndian'
🅸 genicam> [Gc::set_default_node_data] Add 'GevSCPAddrCalc'
🅸 device> [GvDevice::new] Device endianness = big
🅸 device> [GvDevice::new] Packet resend     = yes
🅸 device> [GvDevice::new] Write memory      = yes
🅸 device> [GvDevice::new] Legacy endianness handling = no
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
🅸 device> [GvDevice::create_stream] Number of stream channels = 1
🅸 device> [GvDevice::auto_packet_size] No GevSCPSFireTestPacket feature found
🅸 device> [GvStream::stream_new] Packet size = 576 byte(s)
🅸 stream> [GvStream::stream_new] Destination stream port = 44685
🅸 stream> [GvStream::stream_new] Source stream port = 0
🅸 stream> [GvStream::loop] Standard socket method
🅸 stream>     bins    ;frame_retent; packet_time;inter_packet
                     0;           0;           0;           0
          -------------
          >=      2000;           0;           0;           0
          <          0;           0;           0;           0
          min         :         n/a;         n/a;         n/a
          max         :         n/a;         n/a;         n/a
          last max at :           0;           0;           0
          counter     :           0:           0:           0
🅸 stream> [GvStream::finalize] n_completed_buffers    = 0
🅸 stream> [GvStream::finalize] n_failures             = 0
🅸 stream> [GvStream::finalize] n_underruns            = 0
🅸 stream> [GvStream::finalize] n_timeouts             = 0
🅸 stream> [GvStream::finalize] n_aborteds             = 0
🅸 stream> [GvStream::finalize] n_missing_frames       = 0
🅸 stream> [GvStream::finalize] n_size_mismatch_errors = 0
🅸 stream> [GvStream::finalize] n_received_packets     = 0
🅸 stream> [GvStream::finalize] n_missing_packets      = 0
🅸 stream> [GvStream::finalize] n_error_packets        = 0
🅸 stream> [GvStream::finalize] n_ignored_packets      = 0
🅸 stream> [GvStream::finalize] n_resend_requests      = 0
🅸 stream> [GvStream::finalize] n_resent_packets       = 0
🅸 stream> [GvStream::finalize] n_resend_ratio_reached = 0
🅸 stream> [GvStream::finalize] n_resend_disabled      = 0
🅸 stream> [GvStream::finalize] n_duplicated_packets   = 0
🅸 stream> [GvStream::finalize] n_transferred_bytes    = 0
🅸 stream> [GvStream::finalize] n_ignored_bytes        = 0
🅸 stream> [Stream::finalize] Flush 1 buffer[s] in input queue
🅸 stream> [Stream::finalize] Flush 0 buffer[s] in output queue
SingleAcquisition:BufferCheck       FAILURE
tcpdump
$ sudo tcpdump -i enp3s0f0
# ...ripped...
IP 192.168.100.1.45534 > 255.255.255.255.3956: UDP, length 8
IP 192.168.100.100.3956 > 192.168.100.1.45534: UDP, length 256
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 524
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 288
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 44
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 44
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 44
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 44
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 16
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 12
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12
IP 192.168.100.1.38591 > 192.168.100.100.3956: UDP, length 16
IP 192.168.100.100.3956 > 192.168.100.1.38591: UDP, length 12

roman-raisin avatar Dec 26 '21 16:12 roman-raisin

Hi, any update on this issue, did you resolve it and if so, how? I am running into the exact same issue with a NET Gmbh camera.

durnezj avatar Feb 02 '22 14:02 durnezj

What could help is a wireshark capture of a successful session using the proprietary SDK. Make sure to select a small image size and a slow framerate in order to minimize the capture file size.

EmmanuelP avatar Feb 02 '22 15:02 EmmanuelP

I have no possibility of running a proprietary SDK for the moment. The cameras are already integrated into a linux system and I only have access to them through Linux with an Aravis 0.8.20 install. The only observations I can offer are:

  • My camera is a NET GmbH GP4136C.

  • running arv-tool on an earlier version like 0.8.0 gives the error: Failed to open device 'NET GmbH-GP4136C-15212037003': Invalid Genicam data, but is detected on 0.8.20 .

  • When I (in order) set auto packet size, trigger a Software Trigger and acquire a buffer (which is always NULL, nothing in the GError about it), the follwing debug output is shown:

[15:05:56.322] 🅸 device> [GvDevice::new] Interface address = 10.0.0.1
[15:05:56.322] 🅸 device> [GvDevice::new] Device address = 10.0.0.2
[15:05:56.421] 🅸 device> [GvDevice::load_genicam] xml url = 'Local:gigepro_1.12.008.00.xml.zip;FFC10000;0000AD5A?SchemaVersion=1.1.0' at 0x200
[15:05:56.421] 🅸 device> [GvDevice::load_genicam] Xml address = 0xffc10000 - size = 0xad5a - gigepro_1.12.008.00.xml.zip
[15:05:56.638] 🅸 device> [GvDevice::load_genicam] Zipped xml data
[15:05:56.672] 🅸 device> [GvDevice::new] Device endianness = big
[15:05:56.672] 🅸 device> [GvDevice::new] Packet resend     = yes
[15:05:56.672] 🅸 device> [GvDevice::new] Write memory      = yes
[15:05:56.672] 🅸 device> [GvDevice::new] Legacy endianness handling = no
Found camera 'GP4136C'
[15:05:56.675] 🅸 device> [GvDevice::auto_packet_size] Try packet size = 8177
[15:05:56.676] 🅸 device> [GvDevice::auto_packet_size] Packet size set to 8177 bytes
[15:05:56.680] 🅸 device> [GvDevice::create_stream] Number of stream channels = 1
[15:05:56.682] 🅸 device> [GvDevice::auto_packet_size] Current packet size check successfull (8177 bytes)
[15:05:56.683] 🅸 device> [GvStream::stream_new] Packet size = 8177 byte(s)
[15:05:56.684] 🅸 stream> [GvStream::stream_new] Destination stream port = 58343
[15:05:56.684] 🅸 stream> [GvStream::stream_new] Source stream port = 0
[15:05:56.696] 🅸 stream> [GvStream::loop] Packet socket method
[15:05:57.673] 🅳 device> [GvDevice::Heartbeat] Ack value = 2
[15:06:06.732] 🅸 stream>     bins    ;frame_retent; packet_time;inter_packet
                                    0;           0;           0;           0
                         -------------
                         >=      2000;           0;           0;           0
                         <          0;           0;           0;           0
                         min         :         n/a;         n/a;         n/a
                         max         :         n/a;         n/a;         n/a
                         last max at :           0;           0;           0
                         counter     :           0:           0:           0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_completed_buffers    = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_failures             = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_underruns            = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_timeouts             = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_aborteds             = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_missing_frames       = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_size_mismatch_errors = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_received_packets     = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_missing_packets      = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_error_packets        = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_ignored_packets      = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_resend_requests      = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_resent_packets       = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_resend_ratio_reached = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_resend_disabled      = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_duplicated_packets   = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_transferred_bytes    = 0
[15:06:06.732] 🅸 stream> [GvStream::finalize] n_ignored_bytes        = 0
[15:06:06.732] 🅸 stream> [Stream::finalize] Flush 1 buffer[s] in input queue
[15:06:06.732] 🅸 stream> [Stream::finalize] Flush 0 buffer[s] in output queue

The line that seems to be off is [15:05:56.684] 🅸 stream> [GvStream::stream_new] Source stream port = 0, as Romain-raisin also has. @EmmanuelP Do you have any idea in what direction to look to solve this problem? I'm on version 0.8.20, could this e.g. be related to an older version of glib as I saw that you bumped the version in the last week.

durnezj avatar Feb 03 '22 13:02 durnezj

@EmmanuelP I Update: I have figured out a solution for my case. On the device where streaming does not work the debug output of arv-camera-test-0.8 says: [15:33:08.082] 🅸 stream> [GvStream::loop] Packet socket method whereas on my laptop where it is working it says:

[13:49:17.144] 🅸 stream> [GvStream::loop] Standard socket method

Which prompted me to look into the options of the command and I saw the '--no-packet-socket' option, after which it started working!

In my application code this translates to setting this option with: arv_camera_gv_set_stream_options (camera, ARV_GV_STREAM_OPTION_PACKET_SOCKET_DISABLED);

This solution seems stable enough and saturates my gbit link. I will now try and understand the differences between the modes 'standard socket' and 'packet socket'

durnezj avatar Feb 28 '22 12:02 durnezj

@EmmanuelP

Update: Aravis is able to work with SVS fxo545CXGE cameras on Intel Ubuntu 20.04 machine.

What has changed:

  1. I rebuilt and reinstalled Aravis to more recent version (3c8ec492);
  2. I updated cameras firmware from b2990 to recent b3038 version;

What's new to my experiment ?

I mentioned that Aravis doesn't work after proprietary SDK. This could be the real cause of our problem.

Report from console

# After cold start
> cat /etc/os-release | grep VERSION_ID
VERSION_ID="20.04"
> uname -a
Linux rr-ubu20 5.13.0-40-generic #45~20.04.1-Ubuntu SMP Mon Apr 4 09:38:31 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux
> sudo ip link set enp3s0f0 mtu 9400
> ip link show enp3s0f0
4: enp3s0f0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 9400 qdisc mq state DOWN mode DEFAULT group default qlen 1000
    link/ether a0:36:9f:20:d3:a4 brd ff:ff:ff:ff:ff:ff

> arv-test-0.8 -t Single*
Found 1 device
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
SingleAcquisition:BufferCheck       SUCCESS

> arv-viewer-0.8
> # I have seen the picture, no errors

# Now running the proprietary SDK's viewer
> SVCapture64
HeartbeatRate 3000
# I have seen the video from camera

> arv-test-0.8 -t Single*
Found 1 device
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
SingleAcquisition:BufferCheck       FAILURE
> arv-viewer-0.8
> # I saw 0 images and increasing error counter

> # Now I restart camera cold (physical power off/on)
> arv-test-0.8 -t Single*
Found 1 device
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
SingleAcquisition:BufferCheck       SUCCESS

Coming soon

Build Aravis for NVidia Xavier AGX (Ubuntu 18.04, aarch64) and test with my camera.

roman-raisin avatar May 10 '22 10:05 roman-raisin

Test result on NVidia Xavier AGX (Ubuntu 18.04)

The build prerequisites

To build Aravis on Jetson AGX running Ubuntu 18.04.6, I had to update meson to more recent version, but it depends on python 3.7+, while system python is 3.6. So I installed Anaconda Mini to provide that environment.

jetson:~$ meson --version
0.45.1
# Too old
jetson:~$ ninja --version
1.8.2
jetson:~$ python3 --version
Python 3.6.9
# too old for Meson

jetson:~$ ./Miniconda3-latest-Linux-aarch64.sh
# success
(base) jetson:~$ python3 --version
Python 3.9.7

(base) jetson:~$ conda install meson
# success
(base) jetson:~$ meson --version
0.59.0
(base) jetson:~$ ninja --version
1.10.2

After that I could make a normal build of Aravis (the same version, 3c8ec492) .

Test results

Aravis works with fxo545CXGE camera on Jetson Xavier AGX

jetson:~$ cat /etc/os-release | grep VERSION_ID
VERSION_ID="18.04"
jetson:~$ uname -a
Linux rogue-1 4.9.253-tegra #1 SMP PREEMPT Thu Feb 24 11:50:52 EST 2022 aarch64 aarch64 aarch64 GNU/Linux

jetson:~$ sudo ip link set eth1 mtu 9000
jetson:~$ sudo ip link show eth1
4: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9000 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether 00:0c:8b:b4:11:dc brd ff:ff:ff:ff:ff:ff

jetson:~$ arv-test-0.8 -t Single*
Found 1 device
Testing 'SVS-VISTEK GmbH:fxo545CXGE'
SingleAcquisition:BufferCheck       SUCCESS

# Viewer test (in Desktop GUI)
jetson:~$ arv-viewer-0.8
# I saw the picture

aravis-screenshot-2022-05-10 aravis-screenshot-2022-05-10-picture

Later on I'll investigate the issue with proprietary SDK, to realize what changed in camera properties by comparing feature trees on cold camera start and after running that SDK.

roman-raisin avatar May 10 '22 13:05 roman-raisin

This solution seems stable enough and saturates my gbit link. I will now try and understand the differences between the modes 'standard socket' and 'packet socket'

Packet socket is a more efficient method of receiving stream packets from the device. The issue is, for some devices, aravis reads 0 as the source port, which is incorrect. Packet socket has an input filter that not only checks for the right host ip and port, but also the right device ip and port. I guess we should remove the source port from the input packet filtering.

EmmanuelP avatar May 11 '22 13:05 EmmanuelP

Packet socket is a more efficient method of receiving stream packets from the device. The issue is, for some devices, aravis reads 0 as the source port, which is incorrect. Packet socket has an input filter that not only checks for the right host ip and port, but also the right device ip and port. I guess we should remove the source port from the input packet filtering.

That should be fixed for a while now by 6c2894e106f21037bba7458365f308fc63ad3381 .

I guess we can close this issue now.

EmmanuelP avatar Jun 07 '23 13:06 EmmanuelP
