SSM-U01 and SP-EUC01 reports 0kWh energy

Open szymucha94 opened this issue 3 years ago • 4 comments

SSM-U01 and SP-EUC01 reports 0kWh energy regardless of how it is used. Tested multiple times SP-EUC01 under 800W load. Re-adding devices, reinstalling integration doesn't help. It's seen under all T1 relays and all EU plugs. Please, pretty please fix it

szymucha94 avatar May 06 '22 23:05 szymucha94

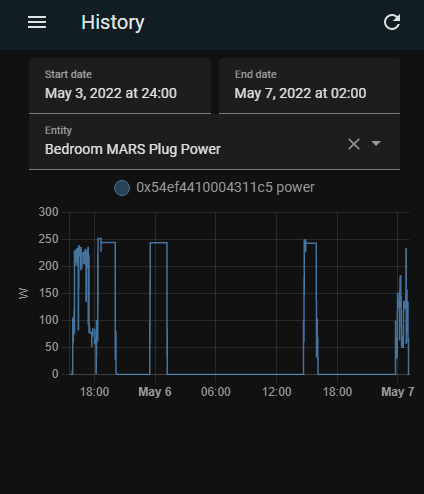

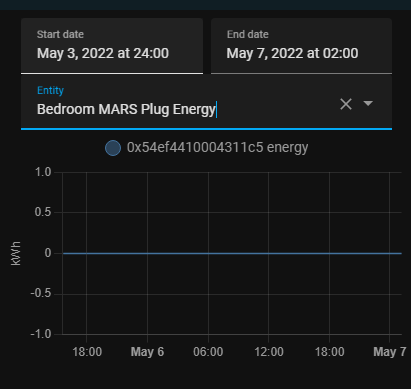

2 1 examples

szymucha94 avatar May 06 '22 23:05 szymucha94

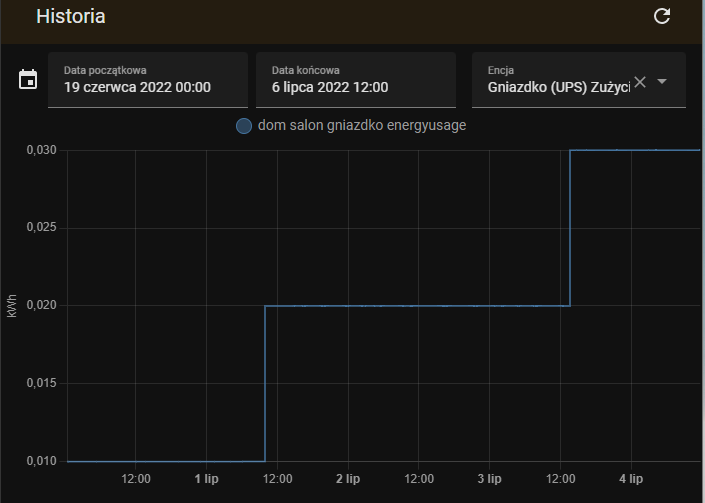

I think that it is actually updating energy usage, but there is something wrong with units. I have the same plug, and everything works great besides the energy usage counter. Screenshot below: image

MayestroPW avatar Jul 04 '22 09:07 MayestroPW

noticed same thing. This would probably work fine with zigbee2mqtt, but there are too many devices to fix after this change for me to try :P Btw. if you're looking for alternative counters you can use this one:

sensor:

  • platform: integration source: sensor.0x54ef4410004311c5_power name: MARS_energy unit_prefix: k round: 2 method: left

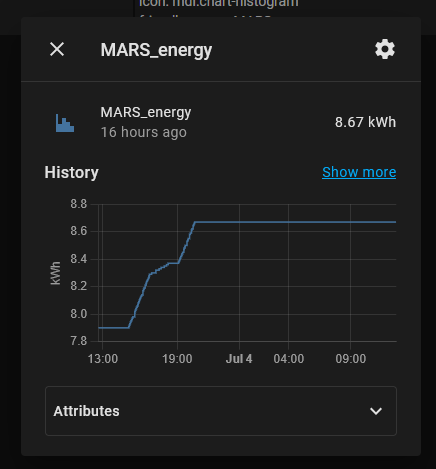

Capture

Just remember to zero the Power entity after plug is disabled. For some reason these plugs don't send "0W" readings after switch off.

szymucha94 avatar Jul 04 '22 10:07 szymucha94

Bumping with installed firmware version: FIRMWARE........: 1.5.0_0102 #20210816

szymucha94 avatar Jul 29 '22 08:07 szymucha94

Please reopen the issue if it is still relevant

AlexxIT avatar Apr 09 '23 05:04 AlexxIT
