PxMatrix P5 RGB 32x64 320x160mm not correct display

Rules

Post your code
Post a picture of the problem and describe what you expect to see
Run the pattern test and post the result as gif/video (need to have a bit more than one full RED/YELLOW/WHITE cycle)
State what version of PxMatrix you are running and what MicroController you use
I use example cone pixeltime

#ifdef ESP8266

#include <Ticker.h> Ticker display_ticker; #define P_LAT 16 #define P_A 5 #define P_B 4 #define P_C 15 #define P_D 12 #define P_E 0 #define P_OE 2

#endif

#define matrix_width 64 #define matrix_height 32 `

// This defines the 'on' time of the display is us. The larger this number, // the brighter the display. If too large the ESP will crash uint8_t display_draw_time = 20; //10-50 is usually fine

//PxMATRIX display(32,16,P_LAT, P_OE,P_A,P_B,P_C); PxMATRIX display(64, 32, P_LAT, P_OE, P_A, P_B, P_C, P_D); //PxMATRIX display(64,32,P_LAT, P_OE,P_A,P_B,P_C,P_D,P_E);

display.begin(16);`

IMG_20200428_162224

IMG_20200428_162218 IMG_20200428_162212_1

IMG_20200428_162212

IMG_20200428_162214

I was try different settings scan rate n pattern.. Its still doesn't not display correctly I use esp32, P5 32x64 RGB panel

Test pattern Display. Begin(16) https://youtu.be/h0oy6MdZapE

Apr 28 '20 09:04 gunaone

What kind of pattern did you try?

Apr 28 '20 14:04 2dom

Ist default pattern,

`#include <PxMatrix.h>

#ifdef ESP32

#define P_LAT 22 #define P_A 19 #define P_B 23 #define P_C 18 #define P_D 5 #define P_E 15 #define P_OE 2 hw_timer_t * timer = NULL; portMUX_TYPE timerMux = portMUX_INITIALIZER_UNLOCKED;

#endif

#ifdef ESP8266

#include <Ticker.h> Ticker display_ticker; #define P_LAT 16 #define P_A 5 #define P_B 4 #define P_C 15 #define P_D 12 #define P_E 0 #define P_OE 2

#endif // Pins for LED MATRIX

//PxMATRIX display(32,16,P_LAT, P_OE,P_A,P_B,P_C); PxMATRIX display(64,32,P_LAT, P_OE,P_A,P_B,P_C,P_D); //PxMATRIX display(64,64,P_LAT, P_OE,P_A,P_B,P_C,P_D,P_E);

#ifdef ESP8266 // ISR for display refresh void display_updater() { display.displayTestPattern(70); // display.displayTestPixel(70); //display.display(70); } #endif

#ifdef ESP32 void IRAM_ATTR display_updater(){ // Increment the counter and set the time of ISR portENTER_CRITICAL_ISR(&timerMux); //isplay.display(70); display.displayTestPattern(70); portEXIT_CRITICAL_ISR(&timerMux); } #endif

uint16_t myCYAN = display.color565(0, 255, 255); void setup() { // put your setup code here, to run once: Serial.begin(9600); display.begin(4); display.flushDisplay(); display.setTextColor(myCYAN); display.setCursor(2,0); display.print("Pixel"); Serial.println("hello");

#ifdef ESP8266 display_ticker.attach(0.002, display_updater); #endif

#ifdef ESP32 timer = timerBegin(0, 80, true); timerAttachInterrupt(timer, &display_updater, true); timerAlarmWrite(timer, 2000, true); timerAlarmEnable(timer); #endif

delay(1000); }

void loop() {

delay(100);

}`

https://youtu.be/k5CePYcIEhY

IMG_20200429_081122 IMG_20200429_081121 IMG_20200429_081114

Apr 29 '20 01:04 gunaone

I have the same board as you

test pattern was OK PxMATRIX display(64, 32, P_LAT, P_OE, P_A, P_B, P_C, P_D); display.begin(4); and display.begin(8); but with 16 its start with green line at bottom IMG_20200429_193600

Apr 29 '20 12:04 hanandika

// This is how many color levels the display shows - the more the slower the update
//#define PxMATRIX_COLOR_DEPTH 8

// Defines the buffer height / the maximum height of the matrix
//#define PxMATRIX_MAX_HEIGHT 64

// Defines the buffer width / the maximum width of the matrix
//#define PxMATRIX_MAX_WIDTH 64

// Defines how long we display things by default
//#define PxMATRIX_DEFAULT_SHOWTIME 30

// Defines the speed of the SPI bus (reducing this may help if you experience noisy images)
//#define PxMATRIX_SPI_FREQEUNCY 20000000

// Creates a second buffer for backround drawing (doubles the required RAM)
//#define PxMATRIX_double_buffer true

#include <PxMatrix.h>

// Pins for LED MATRIX
#ifdef ESP32

#define P_LAT 22
#define P_A 19
#define P_B 23
#define P_C 18
#define P_D 5
#define P_E 15
#define P_OE 2
hw_timer_t * timer = NULL;
portMUX_TYPE timerMux = portMUX_INITIALIZER_UNLOCKED;

#endif

#ifdef ESP8266

#include <Ticker.h>
Ticker display_ticker;
#define P_LAT 16
#define P_A 5
#define P_B 4
#define P_C 15
#define P_D 12
#define P_E 0
#define P_OE 2

#endif

#define matrix_width 64
#define matrix_height 32

// This defines the 'on' time of the display is us. The larger this number,
// the brighter the display. If too large the ESP will crash
uint8_t display_draw_time=20; //10-50 is usually fine

//PxMATRIX display(32,16,P_LAT, P_OE,P_A,P_B,P_C);
PxMATRIX display(matrix_width,matrix_height,P_LAT, P_OE,P_A,P_B,P_C,P_D);
//PxMATRIX display(matrix_width,matrix_height,P_LAT, P_OE,P_A,P_B,P_C,P_D,P_E);

// Some standard colors
uint16_t myRED = display.color565(255, 0, 0);
uint16_t myGREEN = display.color565(0, 255, 0);
uint16_t myBLUE = display.color565(0, 0, 255);
uint16_t myWHITE = display.color565(255, 255, 255);
uint16_t myYELLOW = display.color565(255, 255, 0);
uint16_t myCYAN = display.color565(0, 255, 255);
uint16_t myMAGENTA = display.color565(255, 0, 255);
uint16_t myBLACK = display.color565(0, 0, 0);

uint16_t myCOLORS[8]={myRED,myGREEN,myBLUE,myWHITE,myYELLOW,myCYAN,myMAGENTA,myBLACK};

uint8_t static weather_icons[]={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00
  ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xdf,0x07,0xdf,0x07,0xdf,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x20,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xdf,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00
  ,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00
  ,0x00,0x20,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x07,0xdf,0x07,0xdf,0x07,0xff,0xff,0xe0,0xff,0xe0,0x00,0x00
  ,0x00,0x00,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0xff,0xe0,0x00,0x20,0x00,0x00,0x07,0xdf,0x07,0xdf,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xdf,0x07,0xdf,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0xff,0xff,0x07,0xff,0x07,0xff,0x07,0xdf,0x07,0xff,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xdf,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00
  ,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x07,0xff,0x00,0x20,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xdf,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xdf,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0x07,0xdf,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00
  ,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0xff,0xe0,0xff,0xe0,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00
  ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xdf,0x07,0xdf,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x07,0xff,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00
  ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x07,0xdf,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xff,0x00,0x00,0xff,0xff,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xdf,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0x07,0xdf,0x07,0xff,0x07,0xff,0x00,0x00,0x00,0x00,0x00,0x00
  ,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0xff,0xe0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};

#ifdef ESP8266
// ISR for display refresh
void display_updater()
{
  display.display(display_draw_time);
}
#endif

#ifdef ESP32
void IRAM_ATTR display_updater(){
  // Increment the counter and set the time of ISR
  portENTER_CRITICAL_ISR(&timerMux);
  display.display(display_draw_time);
  portEXIT_CRITICAL_ISR(&timerMux);
}
#endif


void display_update_enable(bool is_enable)
{

#ifdef ESP8266
  if (is_enable)
    display_ticker.attach(0.002, display_updater);
  else
    display_ticker.detach();
#endif

#ifdef ESP32
  if (is_enable)
  {
    timer = timerBegin(0, 80, true);
    timerAttachInterrupt(timer, &display_updater, true);
    timerAlarmWrite(timer, 2000, true);
    timerAlarmEnable(timer);
  }
  else
  {
    timerDetachInterrupt(timer);
    timerAlarmDisable(timer);
  }
#endif
}



void setup() {

 Serial.begin(9600);
  // Define your display layout here, e.g. 1/8 step, and optional SPI pins begin(row_pattern, CLK, MOSI, MISO, SS)
  display.begin(8);
  //display.begin(8, 14, 13, 12, 4);

  // Define multiplex implemention here {BINARY, STRAIGHT} (default is BINARY)
//display.setMuxPattern(BINARY);

  // Set the multiplex pattern {LINE, ZIGZAG,ZZAGG, ZAGGIZ, WZAGZIG, VZAG, ZAGZIG} (default is LINE)
//display.setScanPattern(ZAGZIG);

  // Rotate display
  //display.setRotate(true);
  // Flip display

  //display.setFlip(true);

  // Helps to reduce display update latency on larger displays
  //display.setFastUpdate(true);

  // Control the minimum color values that result in an active pixel
  //display.setColorOffset(5, 5,5);

  // Set the multiplex implemention {BINARY, STRAIGHT} (default is BINARY)
  //display.setMuxPattern(BINARY);

  // Set the color order {RRGGBB, RRBBGG, GGRRBB, GGBBRR, BBRRGG, BBGGRR} (default is RRGGBB)
  //display.setColorOrder(RRGGBB);

  // Set the time in microseconds that we pause after selecting each mux channel
  // (May help if some rows are missing / the mux chip is too slow)
  //display.setMuxDelay(0,1,0,0,0);

  // Set the number of panels that make up the display area width (default is 1)
  //display.setPanelsWidth(2);

  // Set the brightness of the panels (default is 255)
  //display.setBrightness(50);

  // Set driver chip type
  //display.setDriverChip(FM6124);


  display.setFastUpdate(true);
  display.clearDisplay();
  display.setTextColor(myCYAN);
  display.setCursor(2,0);
  display.print("Pixel");
  display.setTextColor(myMAGENTA);
  display.setCursor(2,8);
  display.print("Time");
  display_update_enable(true);

  delay(3000);

}
union single_double{
  uint8_t two[2];
  uint16_t one;
} this_single_double;

// This draws the weather icons
void draw_weather_icon (uint8_t icon)
{
  if (icon>10)
  icon=10;
  for (int yy=0; yy<10;yy++)
  {
    for (int xx=0; xx<10;xx++)
    {
      uint16_t byte_pos=(xx+icon*10)*2+yy*220;
      this_single_double.two[1]=weather_icons[byte_pos];
      this_single_double.two[0]=weather_icons[byte_pos+1];
      display.drawPixel(1+xx,yy,this_single_double.one);
    }
  }
}

unsigned long last_draw=0;
void scroll_text(uint8_t ypos, unsigned long scroll_delay, String text, uint8_t colorR, uint8_t colorG, uint8_t colorB)
{
    uint16_t text_length = text.length();
    display.setTextWrap(false);  // we don't wrap text so it scrolls nicely
    display.setTextSize(1);
    display.setRotation(0);
    display.setTextColor(display.color565(colorR,colorG,colorB));

    // Asuming 5 pixel average character width
    for (int xpos=matrix_width; xpos>-(matrix_width+text_length*5); xpos--)
    {
      display.setTextColor(display.color565(colorR,colorG,colorB));
      display.clearDisplay();
      display.setCursor(xpos,ypos);
      display.println(text);
      delay(scroll_delay);
      yield();

      // This might smooth the transition a bit if we go slow
      // display.setTextColor(display.color565(colorR/4,colorG/4,colorB/4));
      // display.setCursor(xpos-1,ypos);
      // display.println(text);

      delay(scroll_delay/5);
      yield();

    }
}

uint8_t icon_index=0;
void loop() {
  scroll_text(1,50,"Welcome to PxMatrix!",96,96,250);
  display.clearDisplay();

  draw_weather_icon(icon_index);
  icon_index++;
  if (icon_index>10)
    icon_index=0;

  for (int xx=0; xx<16;xx++)
  {
    display.drawLine(xx+16,0,xx+16,5,display.color565(xx*16,0,0));
    display.drawLine(xx+16,6,xx+16,10,display.color565(0,xx*16,0));
    display.drawLine(xx+16,11,xx+16,15,display.color565(0,0,xx*16));
  }
  delay(1000);
  for (uint8_t dimm=255; dimm>0; dimm--)
  {
    display.setBrightness(dimm);
    delay(5);
  }
  for (uint8_t dimm=0; dimm<255; dimm++)
  {
    display.setBrightness(dimm);
    delay(5);
  }
}
``

i try this code..

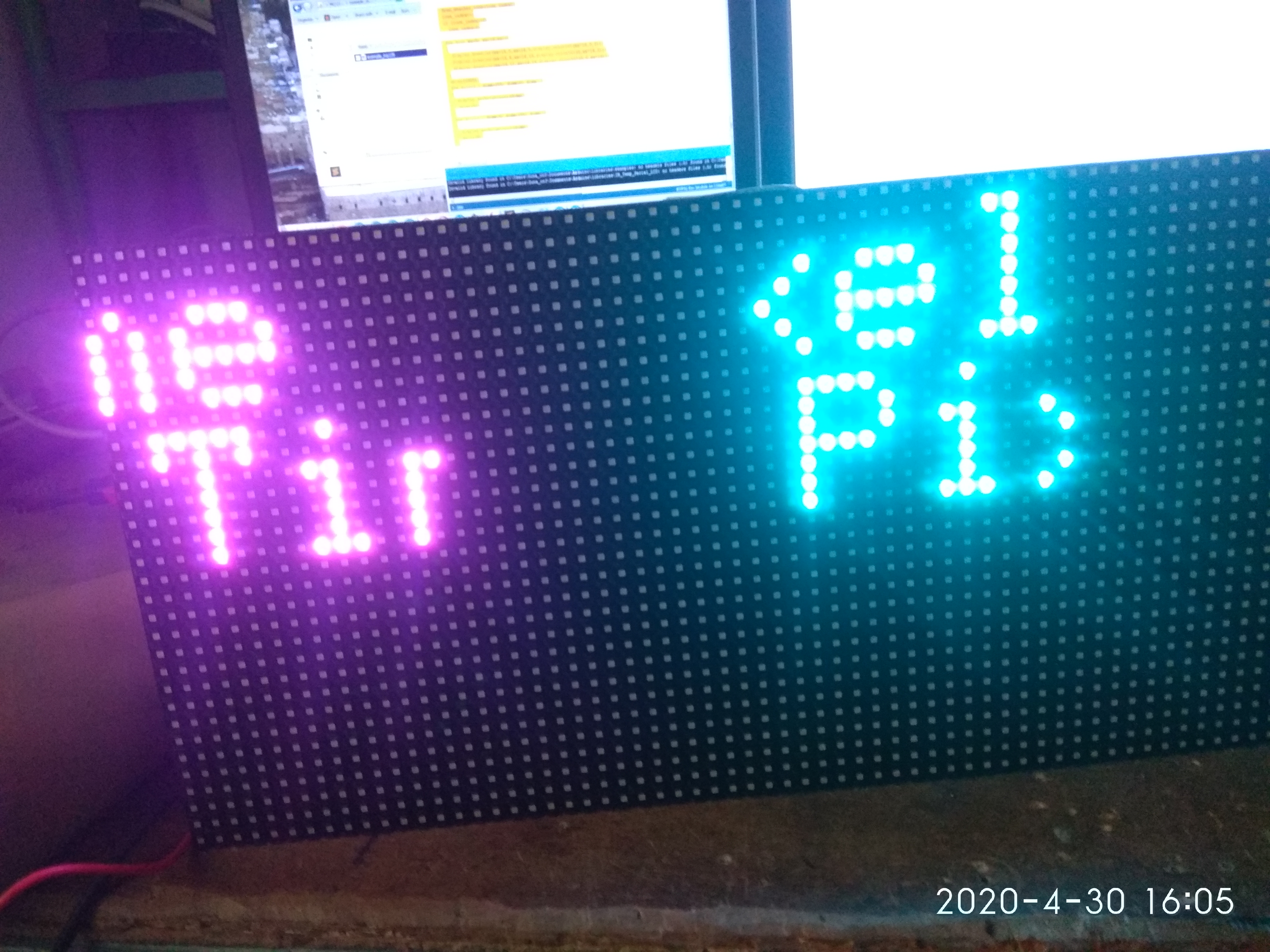

but look like this :
![IMG_20200430_160542](https://user-images.githubusercontent.com/12540556/80693215-e402c580-8afc-11ea-9d76-dbd0117d41b4.jpg)

https://youtu.be/ALmQzPT8Kk4

Apr 30 '20 09:04 gunaone

Your panel is 1/8, so please use begin(8) and post a video of the pattern test again with more than one full cycle (all LEDs tun white, then off) if you still have issues.

May 03 '20 11:05 xsrf
