Tags ERROR CANCELLED on Zipkin

[patpatpat123]

Hello Spring Cloud Sleuth Team,

I wanted to start an issue observed using this project

Background, the project is a Java 11 + Spring Boot 2.6.7 + Jubilee 2021.0.1, latest as of this writing.

The issue is that Zipkin always (reproducible 100%) shows a "Cancelled" (screenshots to show the issue below)

Here is the minimal sample reproducible code. I tried my best to water it down to only two classes and one pom.

Instead of attaching a zip / linking a repo, here they are, it is really just couple of files, again, 100% reproducible.

the pom (not very important actually)

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.7</version>
        <relativePath/>
    </parent>

    <groupId>io.github.hakky54</groupId>
    <artifactId>java-tutorials</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <licenses>
        <license>
            <name>Apache License, Version 2.0</name>
            <url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
            <distribution>repo</distribution>
        </license>
    </licenses>

    <properties>
        <version.java>11</version.java>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>2021.0.1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-sleuth</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-sleuth-zipkin</artifactId>
        </dependency>
        <dependency>
            <groupId>io.projectreactor.netty</groupId>
            <artifactId>reactor-netty-http-brave</artifactId>
        </dependency>
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
        </dependency>
        <dependency>
            <groupId>io.github.resilience4j</groupId>
            <artifactId>resilience4j-micrometer</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.10.1</version>
                <configuration>
                    <source>11</source>
                    <target>11</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

The controller file (also not very important)

package com.why.cancelled;

import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.reactive.function.client.WebClient;
import reactor.core.publisher.Mono;

@Controller
public class CancelledController {

    private static final Logger LOGGER = LogManager.getLogger(CancelledController.class.getName());
    private final    WebClient webClient;

    @Autowired
    public CancelledController(final WebClient webClient) {
        this.webClient = webClient;
    }

    @ResponseBody
    @PostMapping(path = "/whycancelled", consumes = MediaType.APPLICATION_JSON_VALUE, produces = MediaType.APPLICATION_JSON_VALUE)
    public Mono<String> whycancelled() {
        LOGGER.info("why cancelled when using the bean?");
        return webClient.post().uri("https://httpbin.org/post").retrieve().bodyToMono(String.class);
    }

}

The file where the issue happens

package com.why.cancelled;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.context.annotation.Bean;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.http.client.reactive.ReactorClientHttpConnector;
import org.springframework.security.config.web.server.ServerHttpSecurity;
import org.springframework.security.web.server.SecurityWebFilterChain;
import org.springframework.web.reactive.function.client.WebClient;
import reactor.netty.http.HttpProtocol;
import reactor.netty.http.client.HttpClient;

import java.util.Map;
import java.util.function.Function;

@EnableDiscoveryClient
@SpringBootApplication
public class CancelledApplication {

    /**
     * The issue is happening here. Please run a query with the first line comment, and then another test with the second line comment.
     */
    @Bean
    public WebClient getWebClient(HttpClient httpClient) {
        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(httpClient)).build();
//        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(HttpClient.create().wiretap(false).metrics(true, Function.identity()).protocol(HttpProtocol.HTTP11))).build();
    }

    @Bean
    public HttpClient getHttpClient() {
        return HttpClient.create().wiretap(false).metrics(true, Function.identity()).protocol(HttpProtocol.HTTP11);
    }

    @Bean
    public SecurityWebFilterChain insecureWebFilterChain(ServerHttpSecurity http) {
        return http.csrf().disable().build();
    }

    public static void main(String[] args) {
        SpringApplication app = new SpringApplication(CancelledApplication.class);
        app.setDefaultProperties(Map.of("server.port", "8765", "spring.application.name", "cancelledapplication", "spring.sleuth.sampler.probability", "1.0", "spring.sleuth.sampler.rate", "10000", "spring.zipkin.base-url", "http://localhost:9411", "spring.zipkin.enabled", "true", "spring.zipkin.sender.type", "web"));
        app.run(args);
    }

}

Structure (screenshot)

Run command: A curl equivalent is ok

POST http://localhost:8765/whycancelled
Content-Type: application/json

{
    "foo": "bar"
}

Case 1: the issue: (please run with )

 @Bean
    public WebClient getWebClient(HttpClient httpClient) {
        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(httpClient)).build();
//        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(HttpClient.create().wiretap(false).metrics(true, Function.identity()).protocol(HttpProtocol.HTTP11))).build();
    }

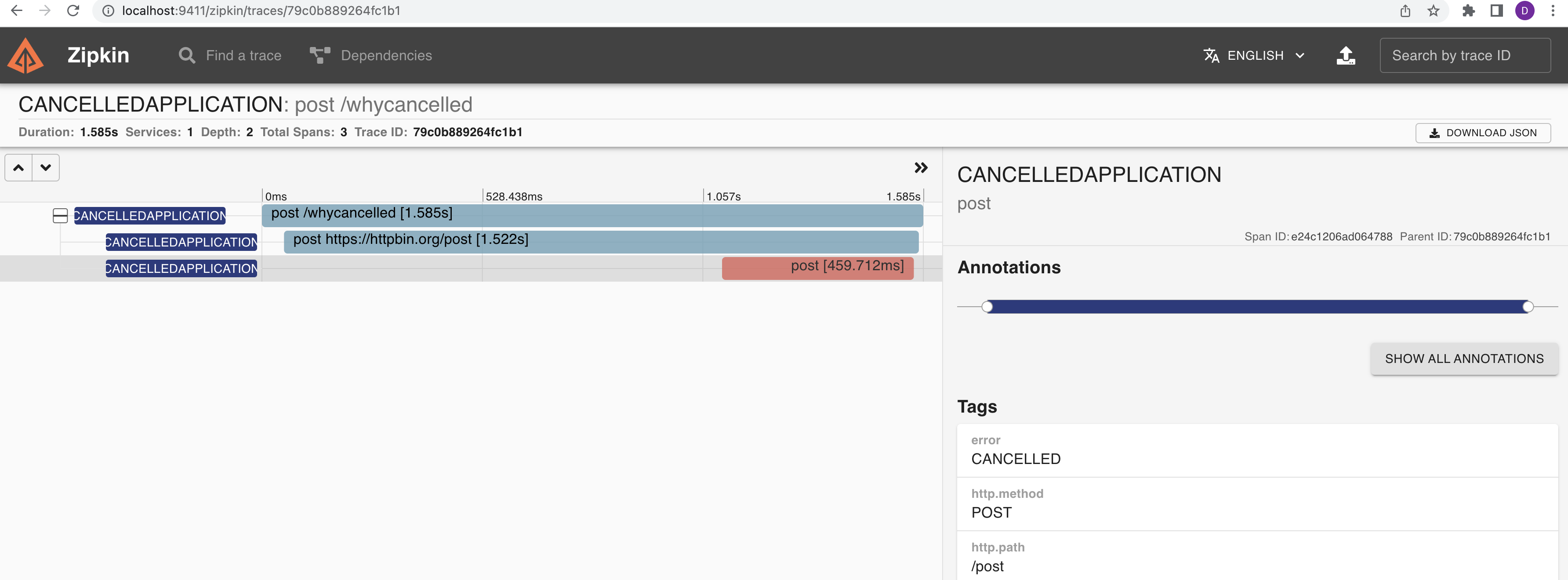

With this, Zipkin will show this: (please see the screenshot, one "picture is worth a thousand words")

I would like to highlight the part where it shows "Cancelled" and there is something red.

I am having a very hard time understanding why this "red Cancelled" is there.

Actual: There is an extra line in Zipkin showing as cancelled (see above screenshot)

Expected: I would have expected to look like Case 2 (see screenshot)

Case 2: the good (it is really strange, jut one single line change, reproducible 100%, please run with)

  @Bean
    public WebClient getWebClient(HttpClient httpClient) {
//        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(httpClient)).build();
        return WebClient.create().mutate().defaultHeader(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_JSON_VALUE, HttpHeaders.ACCEPT, MediaType.APPLICATION_JSON_VALUE).clientConnector(new ReactorClientHttpConnector(HttpClient.create().wiretap(false).metrics(true, Function.identity()).protocol(HttpProtocol.HTTP11))).build();
    }

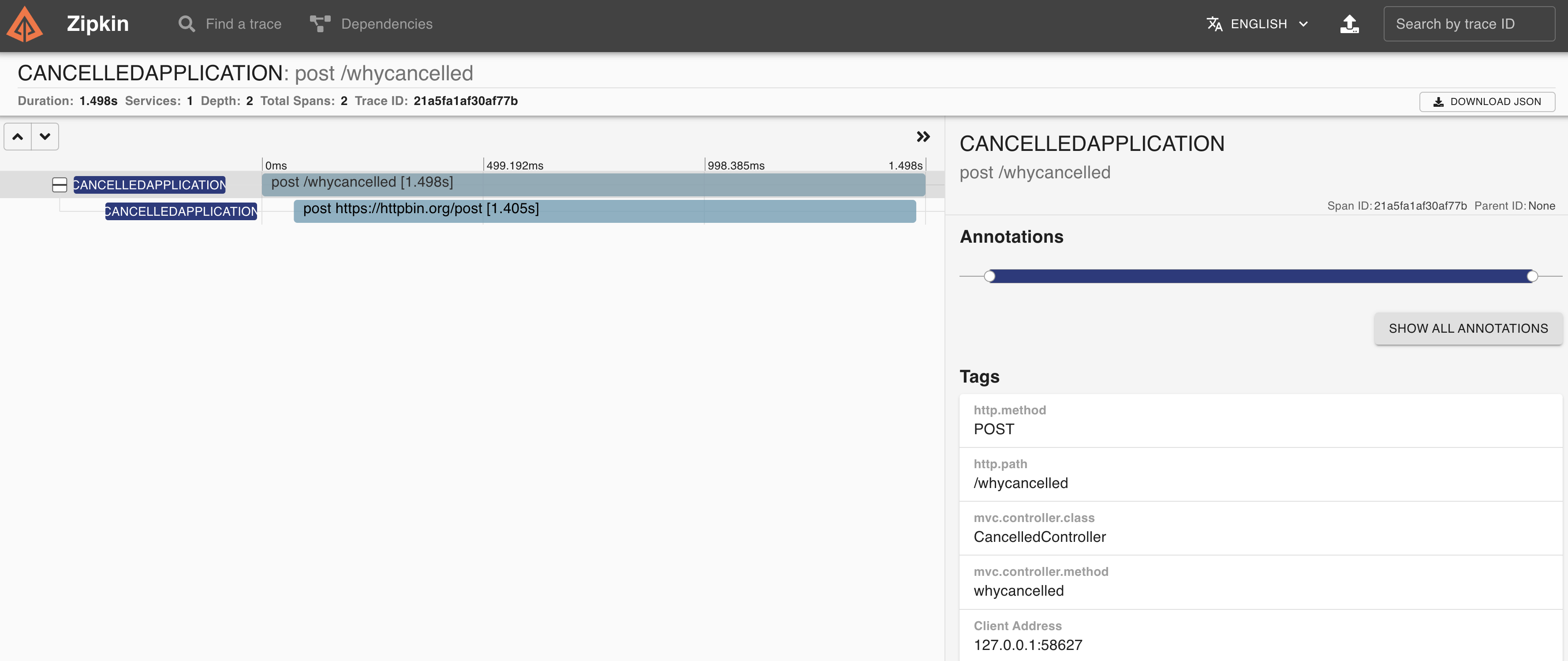

With case two, where there is the use of the bean, we can see a "correct Zipkin" see above screenshot.

I am very puzzled by this, (spent a lot of time finding the root cause, even more trying to understand why).

Could you please kindly take a look?

Thank you

[patpatpat123]

Is it possible to help on this please?

[marcingrzejszczak]

Apparently there was a cancel signal (check https://github.com/spring-cloud/spring-cloud-sleuth/blob/3.1.x/spring-cloud-sleuth-instrumentation/src/main/java/org/springframework/cloud/sleuth/instrument/web/client/TraceExchangeFilterFunction.java#L293-L312) you can put a breakpoint in that method and see why is it being thrown.

[patpatpat123]

Understood, thank you @marcingrzejszczak

[patpatpat123]

Hello @marcingrzejszczak ,

Apologies to reopen this issue. I tried your advice and put breakpoints pretty much everywhere on TraceExchangeFilterFunction. Also, I ran into another interesting classes:

org.springframework.cloud.sleuth.instrument.web.client.HttpClientBeanPostProcessor
org.springframework.cloud.sleuth.instrument.reactor.ScopePassingSpanSubscriber

Especially the TracingMapConnect part.

The code is a bit hard to follow on my end.

May I ask if there is a possibility because it is a Bean, this project, Spring Cloud Sleuth will treat the flow differently, and add this cancel, why not using the bean will not show the cancel please?

Thank you

[Delirante]

Hi patpatpat123 did you find any final solution for this problem?

[patpatpat123]

Hello @Delirante and team,

This issue still persists with the latest SpringBoot 3. I am still having a hard time understanding why. Could you please help?

Thank you

[marcingrzejszczak]

Is this still a problem with Spring Boot 3 and Micrometer Tracing? If it is please create an issue in Spring Framework instrumentaiton
