SpanId is generated twice when kafka message is produced and received

[kzkvv]

Hello, Met a strange behaviour when kafka message is sent or received. Could you help to undestand what is wrong in my example, please? For example we have a tracing flow like this: I make http request to my controller -> then I send message to kafka -> I consume this message in the same (or other, it doesn't matter I think) service. First I should clarify: there should be generated only 2 spanId - first when http request is started and second when kafka message is consumed, right?

If it's true, then let me describe how I'm getting 3 or 4 spanIds instead of 2 with my minimal sample.

Sample Minimal sample: https://github.com/kzkvv/spring-sleuth-span-test

Dependencies versions: org.springframework.cloud:spring-cloud-starter-sleuth:3.1.1 org.springframework.kafka:spring-kafka:2.8.4 org.springframework.boot:spring-boot-starter-web:2.6.6 org.springframework.boot:spring-boot-starter-test:2.6.6 org.springframework.kafka:spring-kafka-test:2.8.4

I added a SpanHandler to log when each new span is generated. Let's check each case:

1. Do not change nothing in configs, just start the example and make a GET request to this URL: /test/1 This endpoint use Producer bean to send kafka messages, as described in spring sleuth integration docs Result: in this case all looks as expected, we have 2 new spans, it's ok. ParentId=null looks strange in second log record, but it's not important in my question I think.

2022-04-12 10:21:37.512  INFO [,,] 35864 --- [nio-5002-exec-5] m.k.s.TracingConfiguration               : New span. traceId: ff8fe4ed89817eef, spanId: ff8fe4ed89817eef, parentId: null
2022-04-12 10:21:38.571  INFO [,,] 35864 --- [ntainer#0-0-C-1] m.k.s.TracingConfiguration               : New span. traceId: d2278aee4bec9395, spanId: d2278aee4bec9395, parentId: null
2022-04-12 10:21:38.571  INFO [,d2278aee4bec9395,d2278aee4bec9395] 35864 --- [ntainer#0-0-C-1] m.k.s.TestKafkaListener                  : Message received, mdc: {traceId=d2278aee4bec9395, spanId=d2278aee4bec9395}

2. Complete the same steps without any changes using another endpoint: GET /test/2 - this endpoint use KafkaTemplate to send kafka message Result: a new span is generated 3 times instead of 2

2022-04-12 10:42:08.930  INFO [,,] 33720 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: f36d5b4acb5949d1, spanId: f36d5b4acb5949d1, parentId: null
2022-04-12 10:42:09.500  INFO [,f36d5b4acb5949d1,f36d5b4acb5949d1] 33720 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: f36d5b4acb5949d1, spanId: e98ea3ba5b0c9575, parentId: f36d5b4acb5949d1
2022-04-12 10:42:10.267  INFO [,,] 33720 --- [ntainer#0-0-C-1] m.k.s.TracingConfiguration               : New span. traceId: f36d5b4acb5949d1, spanId: 53c0abed1b94840a, parentId: e98ea3ba5b0c9575
2022-04-12 10:42:10.267  INFO [,f36d5b4acb5949d1,53c0abed1b94840a] 33720 --- [ntainer#0-0-C-1] m.k.s.TestKafkaListener                  : Message received, mdc: {traceId=f36d5b4acb5949d1, spanId=53c0abed1b94840a}

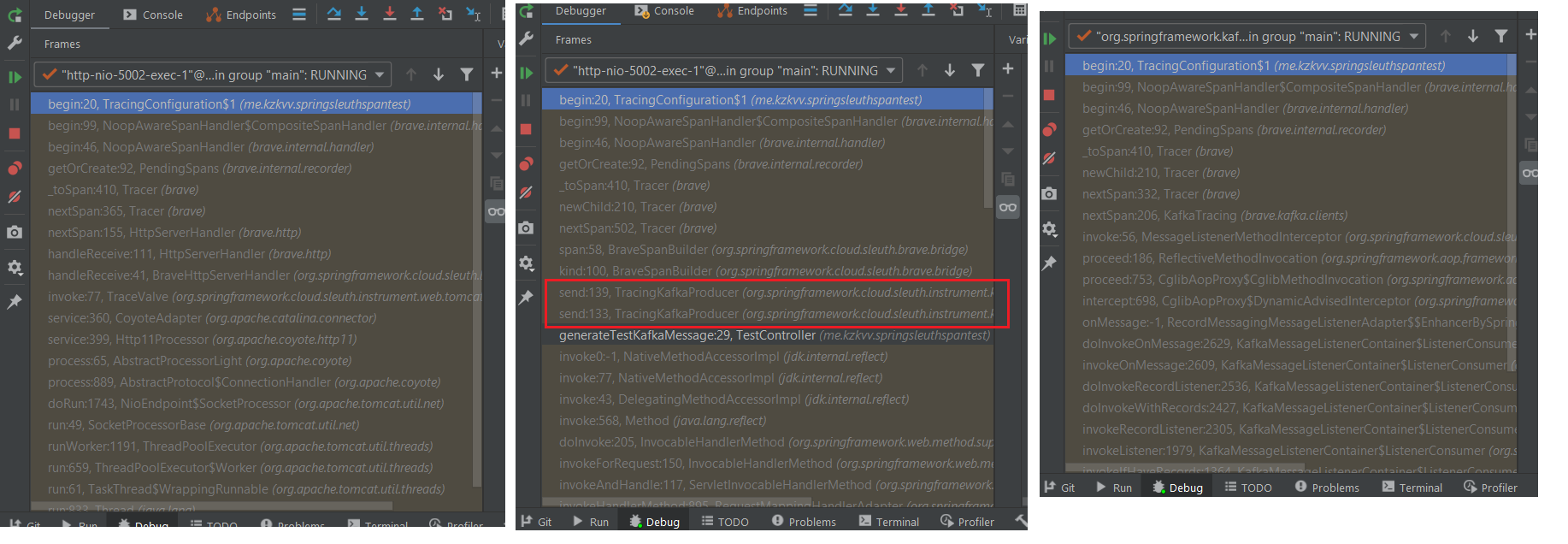

Components initiated a new span generation: here is one extra generation that I marked with red

But here we completed this flow with disabled property in spring yaml config: spring.sleuth.kafka.enabled=false Let's check the same flow when this property is enabled.

3. Set spring.sleuth.kafka.enabled=true in spring yaml config (it's false in my example by default) Then make a GET request to URL /test/1 to send message using Producer bean Result: spanId is generated 3 times instead of 2

2022-04-12 10:30:49.266  INFO [,,] 31716 --- [nio-5002-exec-5] m.k.s.TracingConfiguration               : New span. traceId: a861ea863b528882, spanId: a861ea863b528882, parentId: null
2022-04-12 10:30:49.720  INFO [,a861ea863b528882,a861ea863b528882] 31716 --- [nio-5002-exec-5] m.k.s.TracingConfiguration               : New span. traceId: a861ea863b528882, spanId: ecd31ddbebb5b9f8, parentId: a861ea863b528882
2022-04-12 10:30:50.352  INFO [,,] 31716 --- [ntainer#0-0-C-1] m.k.s.TracingConfiguration               : New span. traceId: a861ea863b528882, spanId: 0d2eebaa13924f30, parentId: ecd31ddbebb5b9f8
2022-04-12 10:30:50.353  INFO [,a861ea863b528882,0d2eebaa13924f30] 31716 --- [ntainer#0-0-C-1] m.k.s.TestKafkaListener                  : Message received, mdc: {traceId=a861ea863b528882, spanId=0d2eebaa13924f30}

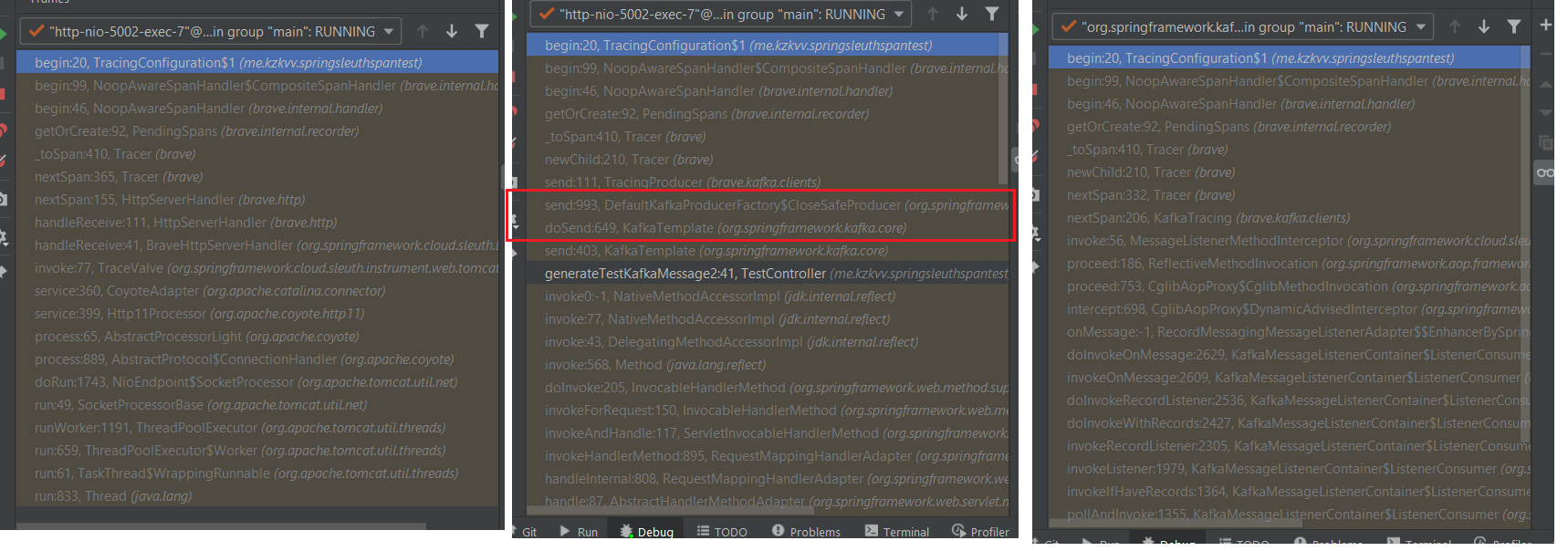

Components initiated a new span generation: here is one extra generation that I marked with red

4. Try with spring.sleuth.kafka.enabled=true using endpoint /test/2 (generate a messsage using KafkaTemplate) Result is the same: spanId is generated 3 times instead of 2

2022-04-12 10:48:53.058  INFO [,,] 39884 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: 6c1c1c3ccae12c25, spanId: 6c1c1c3ccae12c25, parentId: null
2022-04-12 10:48:53.434  INFO [,6c1c1c3ccae12c25,6c1c1c3ccae12c25] 39884 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: 6c1c1c3ccae12c25, spanId: b979e26f258f9e3e, parentId: 6c1c1c3ccae12c25
2022-04-12 10:48:54.315  INFO [,,] 39884 --- [ntainer#0-0-C-1] m.k.s.TracingConfiguration               : New span. traceId: 6c1c1c3ccae12c25, spanId: 64f20e2839e1de1e, parentId: b979e26f258f9e3e
2022-04-12 10:48:54.316  INFO [,6c1c1c3ccae12c25,64f20e2839e1de1e] 39884 --- [ntainer#0-0-C-1] m.k.s.TestKafkaListener                  : Message received, mdc: {traceId=6c1c1c3ccae12c25, spanId=64f20e2839e1de1e}

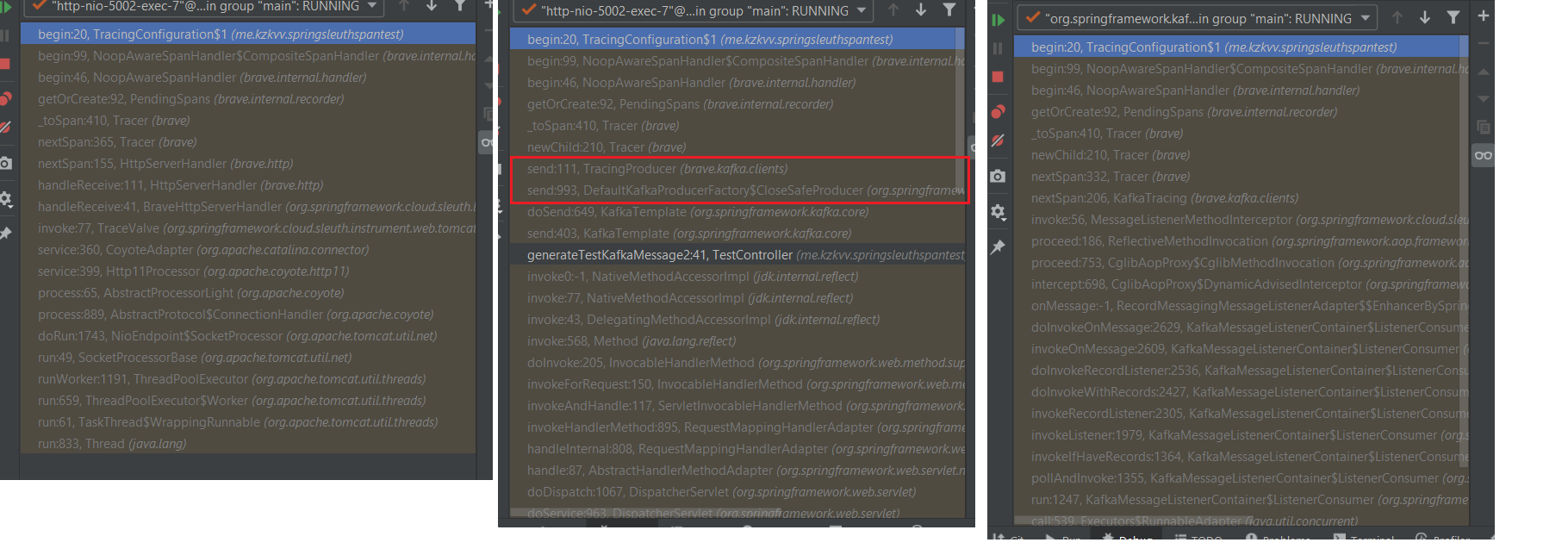

Components initiated a new span generation:

5. When I delete consumerFactory bean from KafkaProducerConfig then I got 4 new spans instead of 2 (2 while producing and another 2 while consuming). It's not a big problem, but it looks like spring sleuth docs are not complete, I can't find description about this point except this small part in integration docs.

And as result I have these questions:

1. What I should change to use KafkaTemplate to produce kafka messages and @KafkaListener annotation to consume them without extra span generation? Or is it impossible now and I should use Producer beans only?
2. What is the difference between spring.sleuth.kafka.enabled and another similar property spring.sleuth.messageing.kafka.enabled? Which values should I specify to avoid extra spans generation?

After a few days of experiments, I came to a dead end :( I will be very grateful for any advice or answers

[marcingrzejszczak]

I can't replicate this problem using the sample. I didn't even manage to properly receive the kafka message after the controller processed it. I used the following docker compose yaml for kafka.

version: "3"

networks:
  kafka-cluster:
    name: kafka-cluster
    driver: bridge

services:
  zookeeper:
    image: bitnami/zookeeper:3.6.2
    container_name: zookeeper
    ports:
      - '2181:2181'
    environment:
      - ALLOW_ANONYMOUS_LOGIN=yes
    networks:
      - kafka-cluster


  kafka1:
    image: bitnami/kafka:2.7.0
    container_name: kafka1
    ports:
      - '9093:9093'
      - '9092:9092'
    environment:
      - KAFKA_CFG_ZOOKEEPER_CONNECT=zookeeper:2181
      - ALLOW_PLAINTEXT_LISTENER=yes
      - KAFKA_CFG_LISTENER_SECURITY_PROTOCOL_MAP=CLIENT:PLAINTEXT,EXTERNAL:PLAINTEXT
      - KAFKA_CFG_LISTENERS=CLIENT://:9092,EXTERNAL://:9093
      - KAFKA_CFG_ADVERTISED_LISTENERS=CLIENT://localhost:9092,EXTERNAL://localhost:9093
      - KAFKA_INTER_BROKER_LISTENER_NAME=CLIENT
      - KAFKA_CFG_AUTO_CREATE_TOPICS_ENABLE=true
    depends_on:
      - zookeeper
    networks:
      - kafka-cluster

I also added Zipkin dependency and modified the app properties like this

spring:
  kafka:
    consumer:
#      bootstrap-servers: localhost:9093
      auto-offset-reset: earliest
      key-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer: org.apache.kafka.common.serialization.StringDeserializer
      trusted-packages: java.lang
    producer:
#      bootstrap-servers: localhost:9093
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: org.springframework.kafka.support.serializer.JsonSerializer

  sleuth:
    kafka:
      enabled: true
    propagation:
      type: B3
    sampler:
      probability: 1.0

server:
  port: ${SERVER_PORT:5002}

logging:
  level:
    root: INFO
    brave: DEBUG

Can you double check that the sample actually sends and receives a message from Kafka?

[kzkvv]

Hm, it's strange, because this sample works as before with your docker-compose too. What I changed:

1. Used your docker-compose with kafka (copied and pushed to my sample repository)

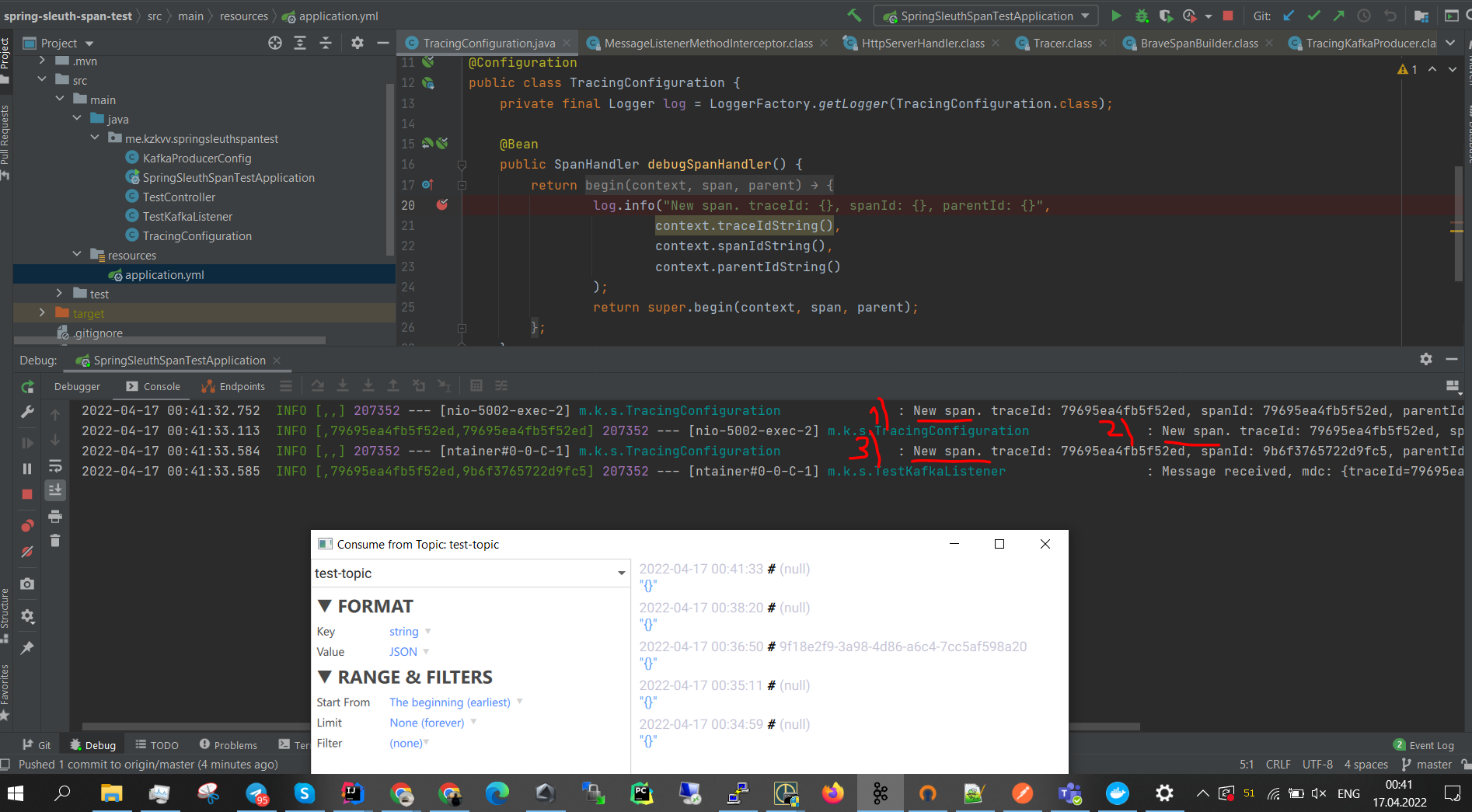

2. Updated the yaml config (already pushed to my sample repository too) Then I got the same result - 3 spanId are generated instead of 2 when using '/test/2' endpoint:

2022-04-17 00:55:34.195  INFO [,,] 210128 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: 14b5802cfa51e550, spanId: 14b5802cfa51e550, parentId: null
2022-04-17 00:55:34.578  INFO [,14b5802cfa51e550,14b5802cfa51e550] 210128 --- [nio-5002-exec-4] m.k.s.TracingConfiguration               : New span. traceId: 14b5802cfa51e550, spanId: 6f428a7b5b853f81, parentId: 14b5802cfa51e550
2022-04-17 00:55:35.202  INFO [,,] 210128 --- [ntainer#0-0-C-1] m.k.s.TracingConfiguration               : New span. traceId: 14b5802cfa51e550, spanId: 99b5b93422fcb5e8, parentId: 6f428a7b5b853f81
2022-04-17 00:55:35.202  INFO [,14b5802cfa51e550,99b5b93422fcb5e8] 210128 --- [ntainer#0-0-C-1] m.k.s.TestKafkaListener                  : Message received, mdc: {traceId=14b5802cfa51e550, spanId=99b5b93422fcb5e8}

At the same time I successfully received kafka messages (it's "Message received ..." log record produced in TestKafkaListener) I can see also these messages in topic "test-topic" using kafka UI (I connected to localhost:9092 broker created from your docker-compose)

I have a question about the zipkin dependency: is it a neccesary dependency t use the spring sleuth framework? We didn't plan to use zipkin in our tech stack. Looks like it's an optional service with optional dependency, otherwise this requirement should be described in spring-sleuth docs and should be included in 'spring-cloud-starter-sleuth'.

[marcingrzejszczak]

I have a question about the zipkin dependency: is it a neccesary dependency t use the spring sleuth framework? We didn't plan to use zipkin in our tech stack. Looks like it's an optional service with optional dependency, otherwise this requirement should be described in spring-sleuth docs and should be included in 'spring-cloud-starter-sleuth'.

It's not necessary but I wanted to visualize the spans

[marcingrzejszczak]

Please upgrade to Micrometer Tracing. Spring Cloud Sleuth is feature complete and out of OSS support.
