Indentation bug when using lists

Open jursed opened this issue 5 years ago • 4 comments

Hello,

I have the following issue: when lists are used on a DokuWiki page, the corresponding DW2PDF export seems to mess up the indents. Apparently, the parser/renderer only de-dents the last level of the list, and continues at that level for all following content. For all lists with >2 levels, that means the entire content gets shifted to the right. The effect accumulates throughout the entire page.

I'm also noticing a random switch from unordered items (bullets) to ordered items (digits).

Please see the test case below.

EDIT 2020-09-16: The issue may be related to use of Extended Syntax Plugin, see https://github.com/splitbrain/dokuwiki-plugin-dw2pdf/issues/394#issuecomment-693624380. Thank you to @simon-r-white for investigating. I did not have a chance to confirm as I do not administer the particular DW installation anymore.

Debug info: DokuWiki version: 2018-04-22a "Greebo" DW2PDF version: 2020-01-16-0-gfd01148 Server OS: Ubuntu Server 16.04 PHP version: 7.0.33-0ubuntu0.16.04.12 mb_string extension: available

Test case source:

====== Test case of DW2PDF indentation bug ======

===== Lorem ipsum =====

Lorem ipsum

  * Lorem ipsum
    * Lorem ipsum
  * Lorem ipsum

Lorem ipsum

===== Lorem ipsum =====

  * Lorem ipsum

==== Lorem ipsum ====

  * Lorem ipsum
    * Lorem ipsum
      * Lorem ipsum
        * Lorem ipsum
          * Lorem ipsum
            * Lorem ipsum

=== Lorem ipsum ===

  * Lorem ipsum
  * Lorem ipsum
  * Lorem ipsum

Lorem ipsum

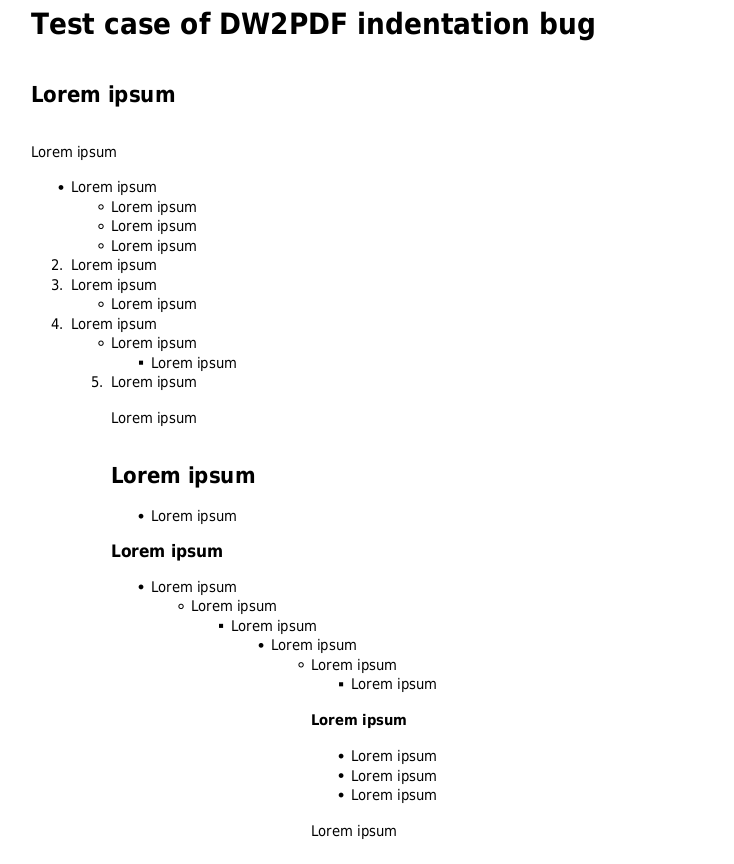

Test case - DW2PDF export:

dw2pdf_indent_bug

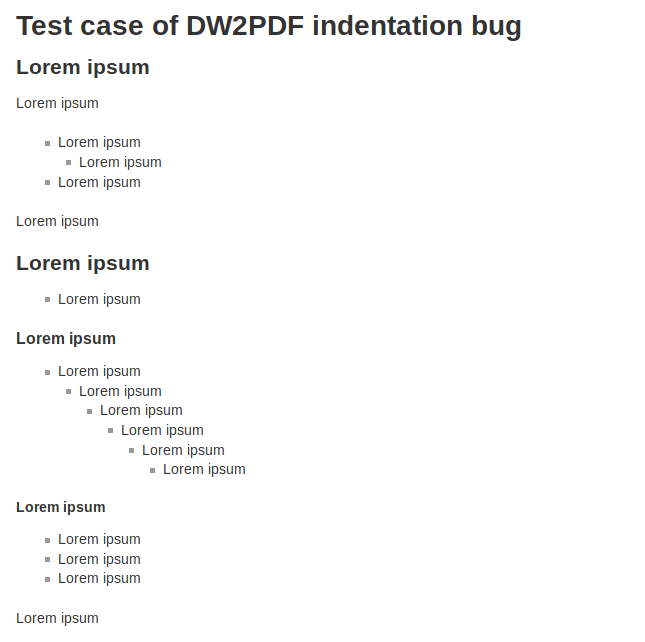

Test case - HTML render (Firefox 75)

html_render

jursed avatar Apr 15 '20 17:04 jursed

I also experience this issue.

simon-r-white avatar Jun 03 '20 10:06 simon-r-white

Could you mention which versions of the softwares you are using?

Klap-in avatar Jun 03 '20 14:06 Klap-in

@Klap-in after looking into this a bit more, I think I've found one cause of the problem - an incompatibility with the Extended List Syntax Plugin.

After disabling that plugin this problem goes away.

simon-r-white avatar Sep 16 '20 19:09 simon-r-white

Thank you Simon, that may very well be it. We also used said plugin. I'll mention it in the OP.

jursed avatar Sep 16 '20 20:09 jursed

So I guess the Extended List Syntax plugin should improve the html of the list? Maybe &debughtml=html option can be used to inspect the html, and see if its tags are consistently closed. The mpdf-library is a bit picky and has limited support for corner cases. I changes needs, please open an issue in the tracker of that plugin.

Klap-in avatar Oct 12 '22 18:10 Klap-in
