[BUG] When i increase more than 8 plots then in same page then getting sad emoji

[dhananroy]

trafficstars

Thank you so much for helping improve the quality of Dash!

We do our best to catch bugs during the release process, but we rely on your help to find the ones that slip through.

Describe your context Please provide us your environment, so we can easily reproduce the issue.

• replace the result of pip list | grep dash below

dash                 0.42.0
dash-core-components 0.47.0
dash-html-components 0.16.0
dash-renderer        0.23.0
dash-table           3.6.0

• if frontend related, tell us your Browser, Version and OS

  • OS: [e.g. iOS]
  • Browser [e.g. chrome, safari]
  • Version [e.g. 22]

Describe the bug

A clear and concise description of what the bug is.

Expected behavior

A clear and concise description of what you expected to happen.

Screenshots

If applicable, add screenshots or screen recording to help explain your problem.

[geophpherie]

Could it be related to this?

https://plotly.com/python/webgl-vs-svg/

Context limits: browsers impose a strict limit on the number of WebGL "contexts" that any given web document can access. WebGL-powered traces in plotly can use multiple contexts in some cases but as a general rule, it may not be possible to render more than 8 WebGL-involving figures on the same page at the same time.

[jaugustine04]

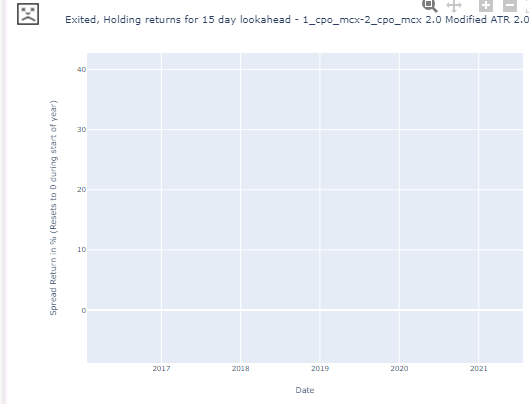

face the similar issues Following dsah app is created to display 13 charts based on the dropdown down options. After choosing the options the graph become distorted. On the left I see a sad smiley face. The underlying data is there, if I hover on the white surface I can find the invisible data points.

Using chrome Line 58: dash==2.6.2 Line 59: dash-bootstrap-components==1.2.1 Line 60: dash-core-components==2.0.0 Line 61: dash-html-components==2.0.0 Line 62: dash-renderer==1.9.1 Line 63: dash-table==5.0.0

[alexcjohnson]

Yes I'm assuming this is about webgl -> https://github.com/plotly/dash/issues/2740

[archmoj]

@dhananroy Did you try adding https://unpkg.com/[email protected]/src/virtual-webgl.js to external_scripts (or downloading that and putting it in your assets folder)?
