I encounter some bugs during building the program and integration in cadence and wonder if there lack some necessary file or definiton

[zzhhjj-cpu]

trafficstars

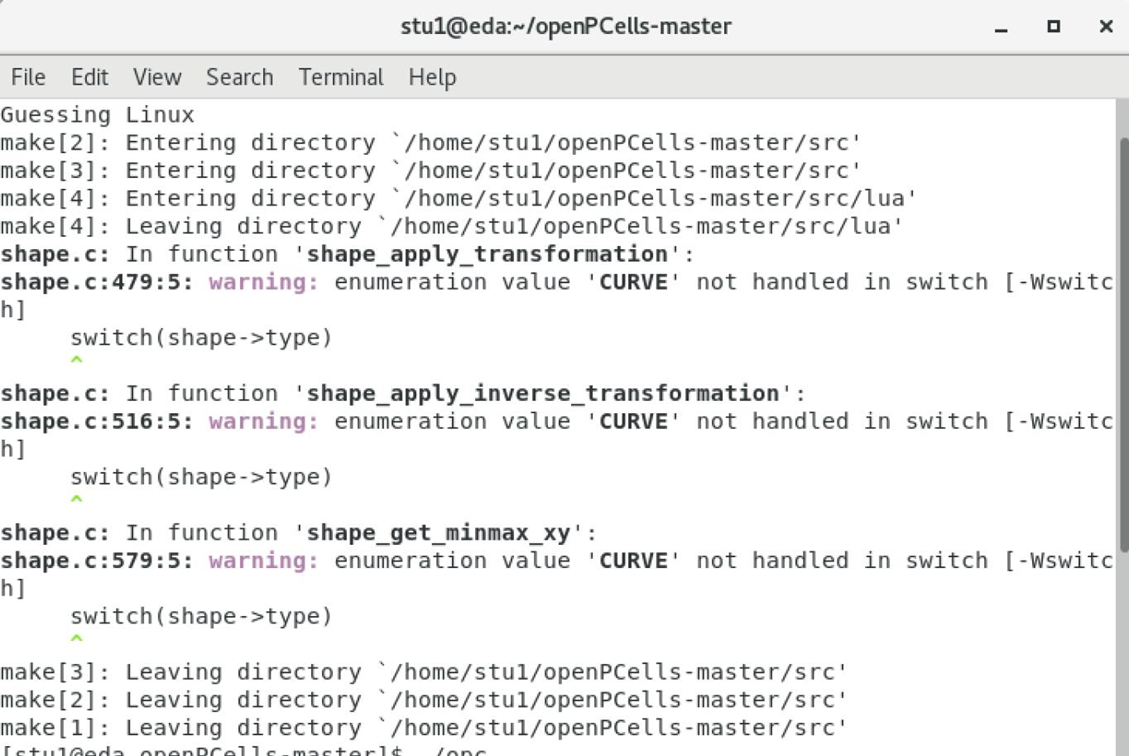

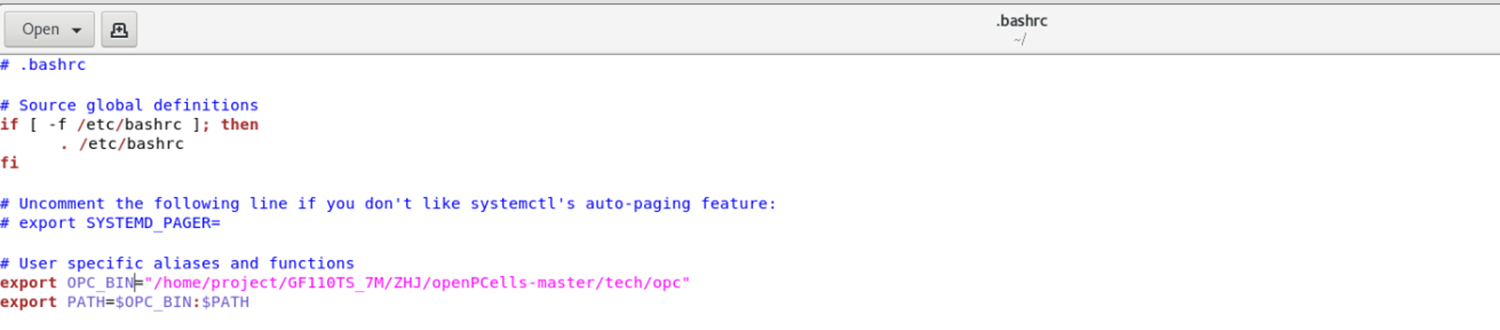

First , I have made the program and pointed my PATH to the directory, the result is as follows: please see Fig 1 &2 . When I type “opc --technology OPC_BIN --export svg --cell basic/transistor” in the command line, then there will be Fig 3，which gives “error while loading user config”.So I wonder if there lacks some definiton and maybe the program needs updates.

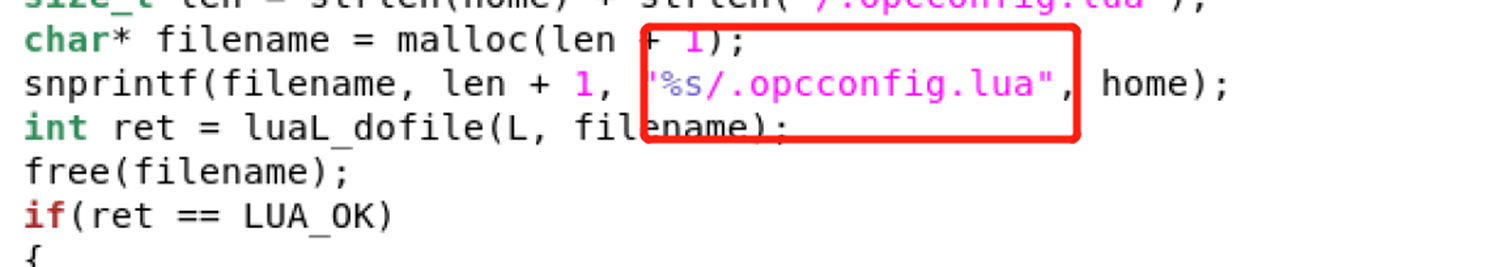

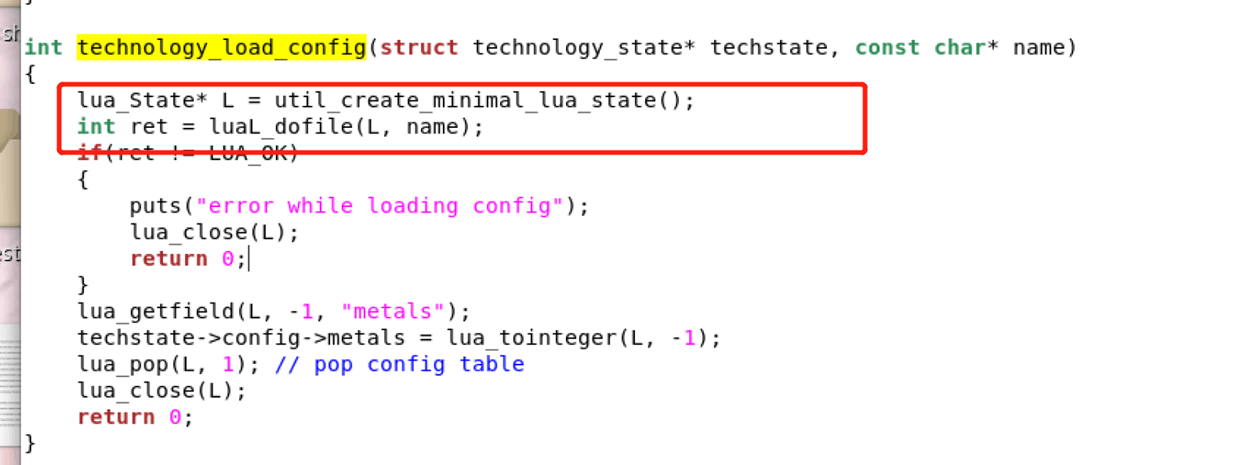

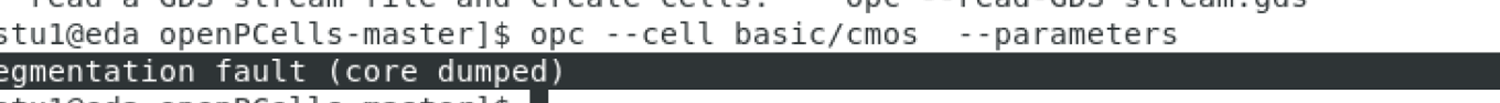

Second, after my friend and I discovered and supplemented the lacked definition above(see Fig 4 ), there still exist the following problem called "core dumped",please see Fig 5. We think the reason is that the corresponding file(home/.opcconfig.lua) is lacked ,which needs to be supplemented with dictionary variables in the form of lua.(see Fig 6) Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 Fig 6.

Thanks for you opc!

[patrickschulz]

Hi and thank you for this report, this is indeed an error. A non-existing user config should not produce an error. I fixed this in commit https://github.com/patrickschulz/openPCells/commit/4fbf4a0bf5af49ad783d56163d44daee1d8fed48. I did not exactly understand the second part of your issue. You created a config but still get a segmentation fault? I can't reproduce this by using opc --cell basic/cmos --parameters.

[zzhhjj-cpu]

Thanks a lot, I've confirmed that the first issue is solved. As for the second issue, maybe it's our fault, I‘ll confirm it again later！Thanks for your reply！
